Alienware M18x R1 running a Nvidia GTX 780M - Let the testing begin

[Riri-Fifi 101]

Hello

Check mail

[Riri-Fifi 101]

[chiefule 77]

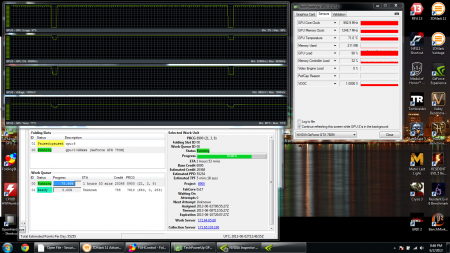

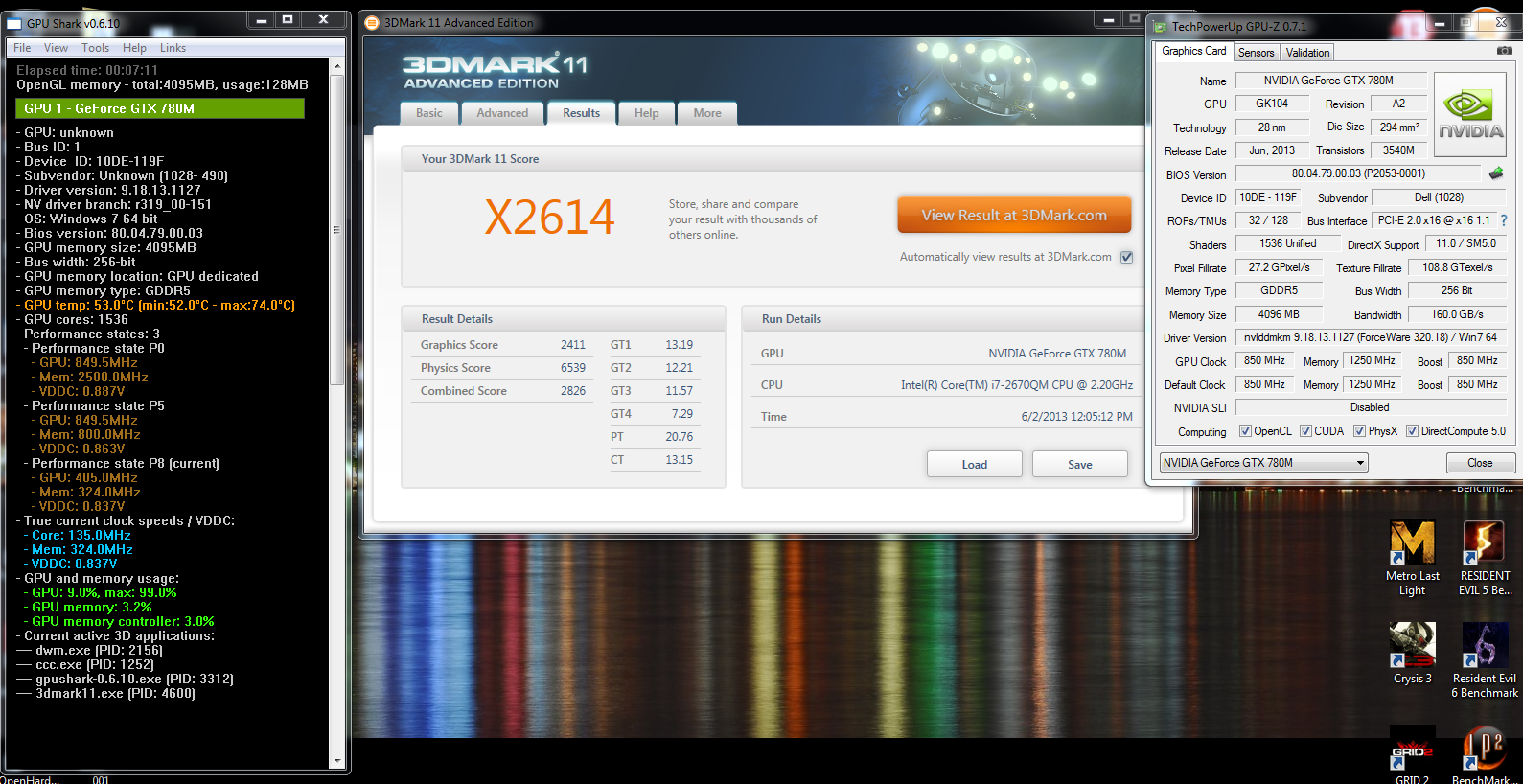

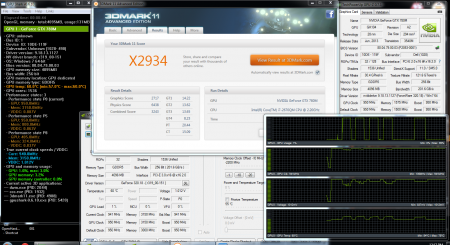

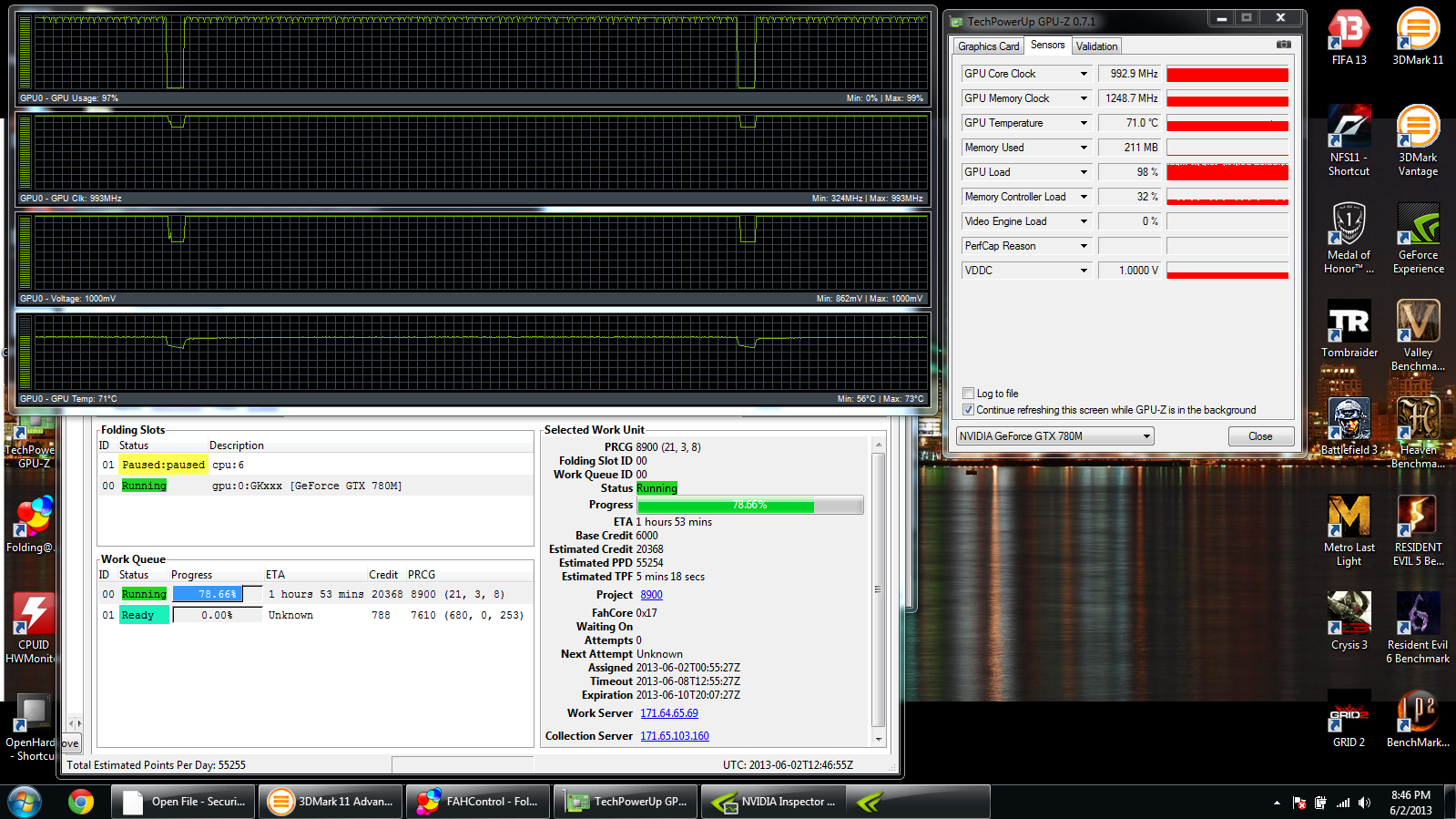

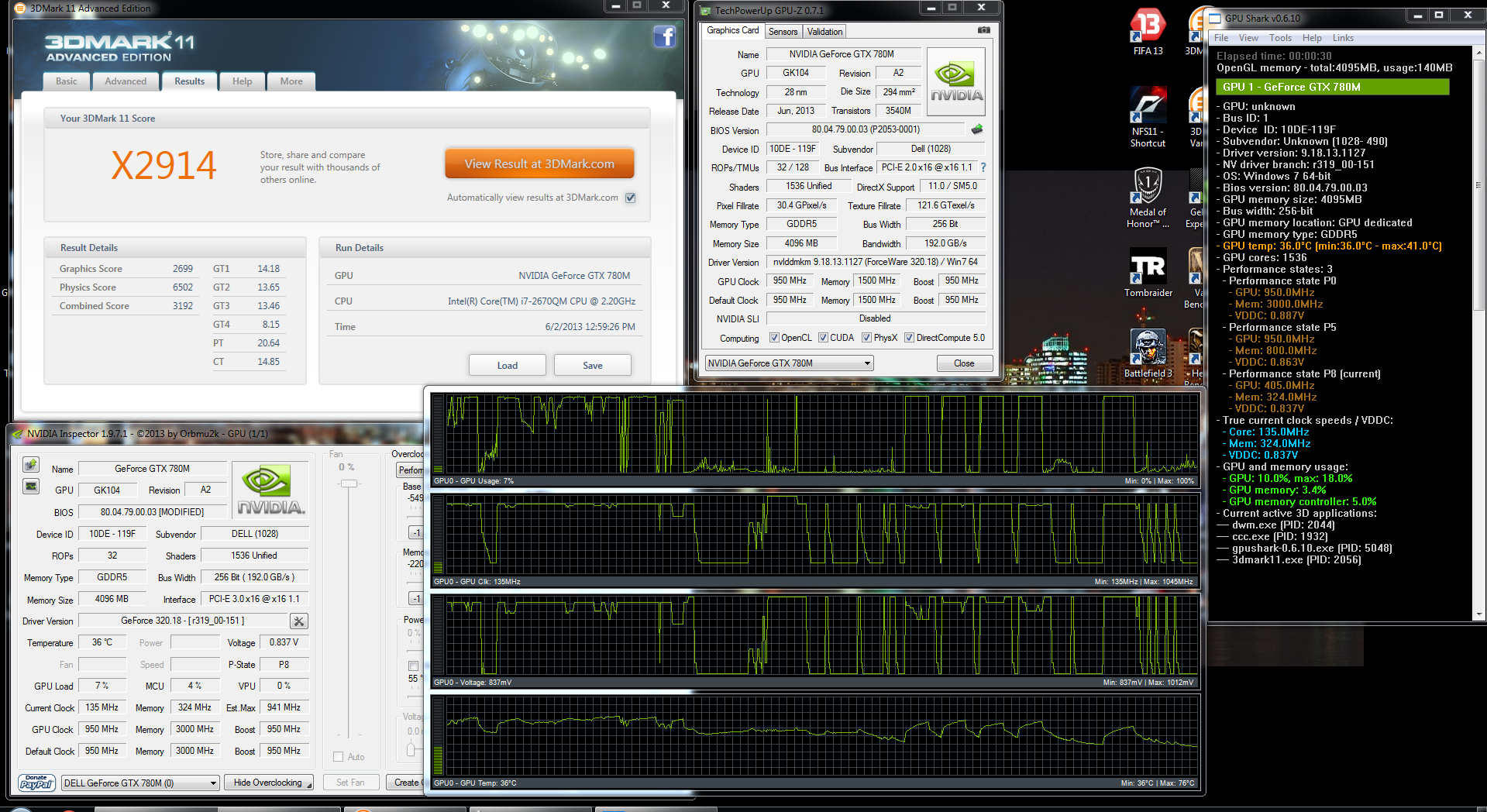

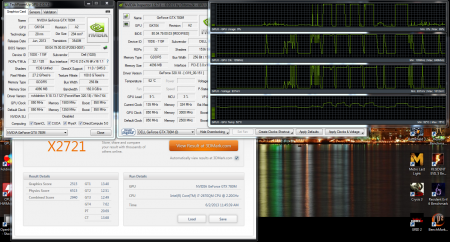

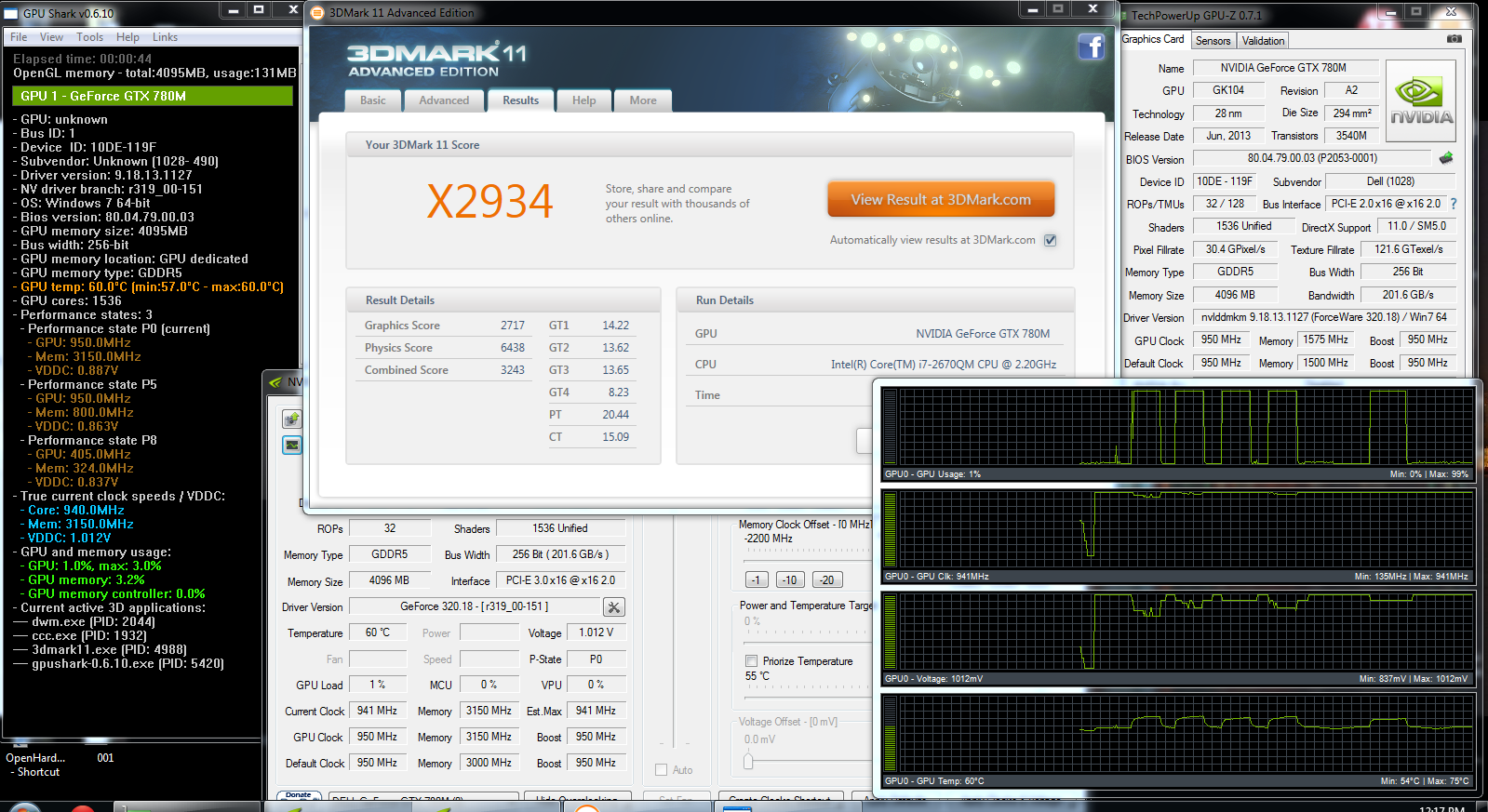

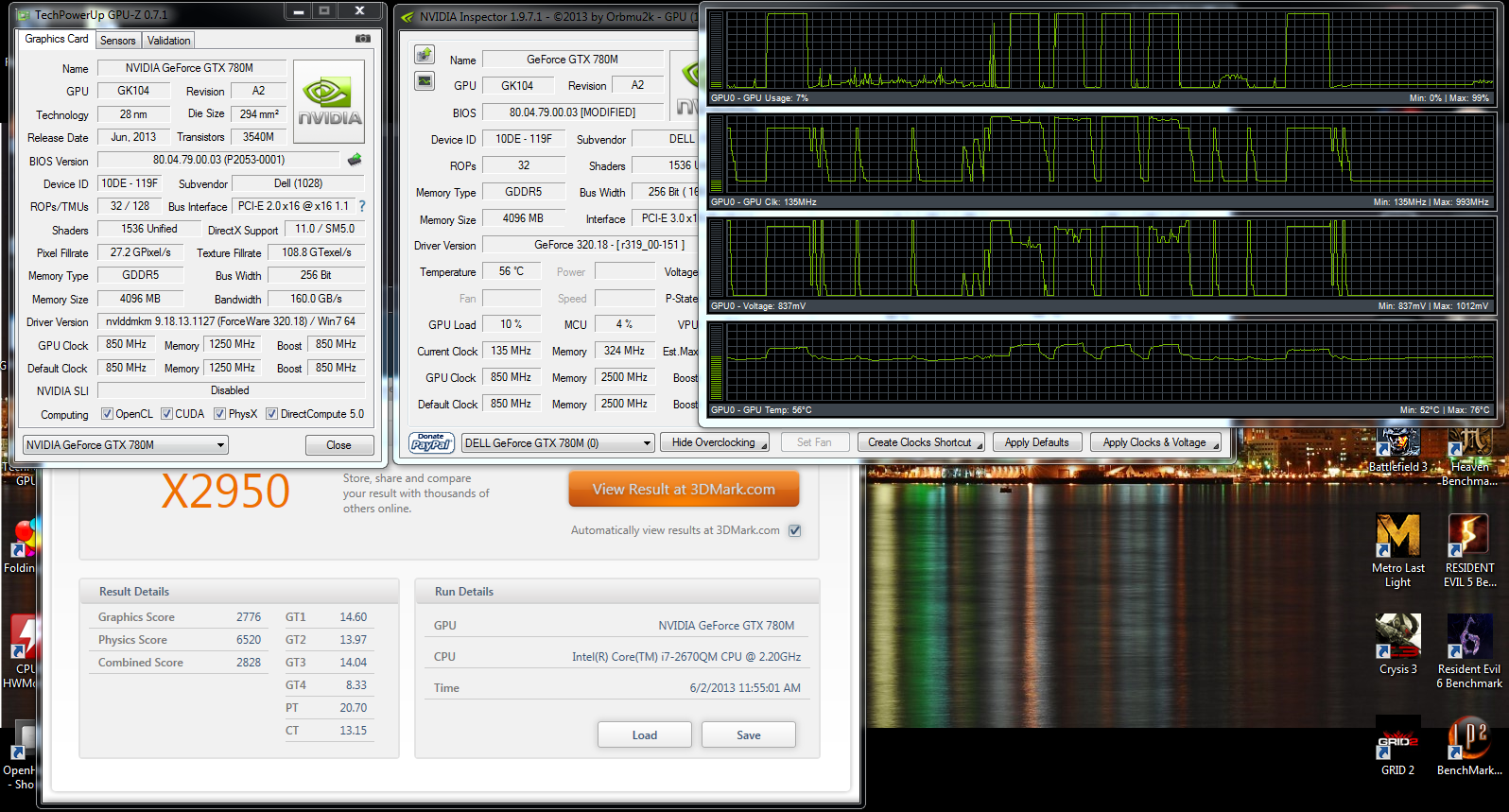

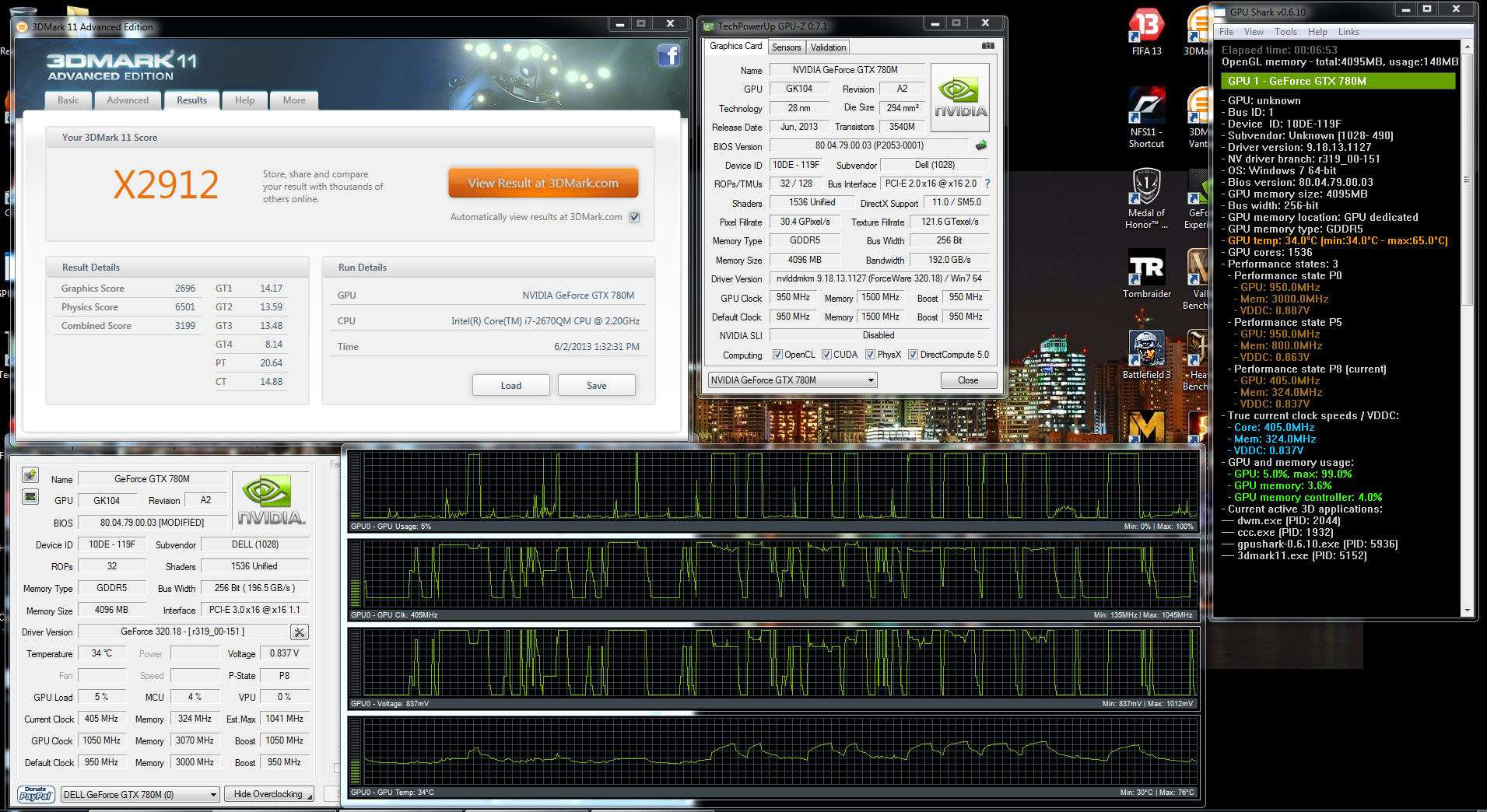

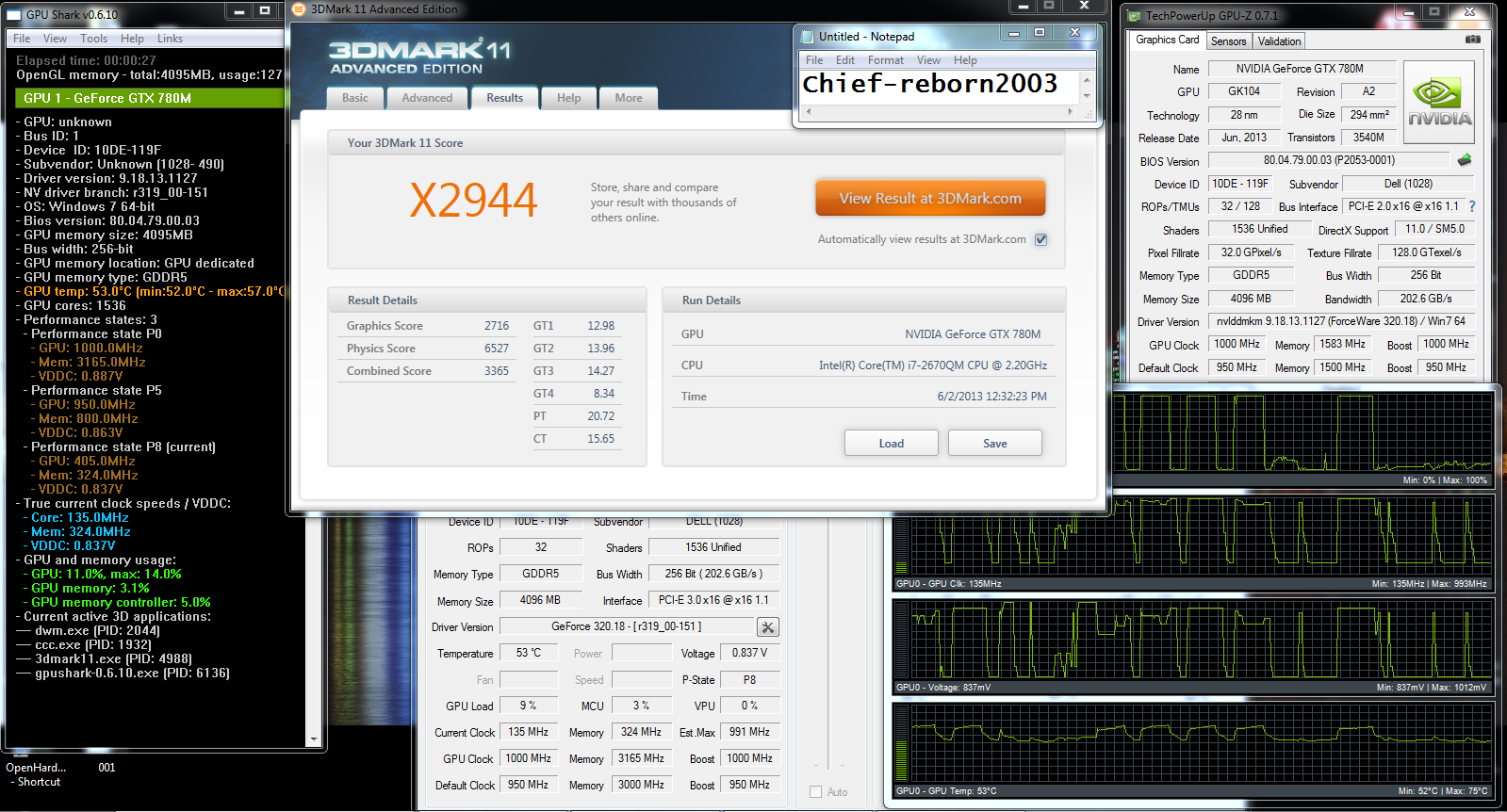

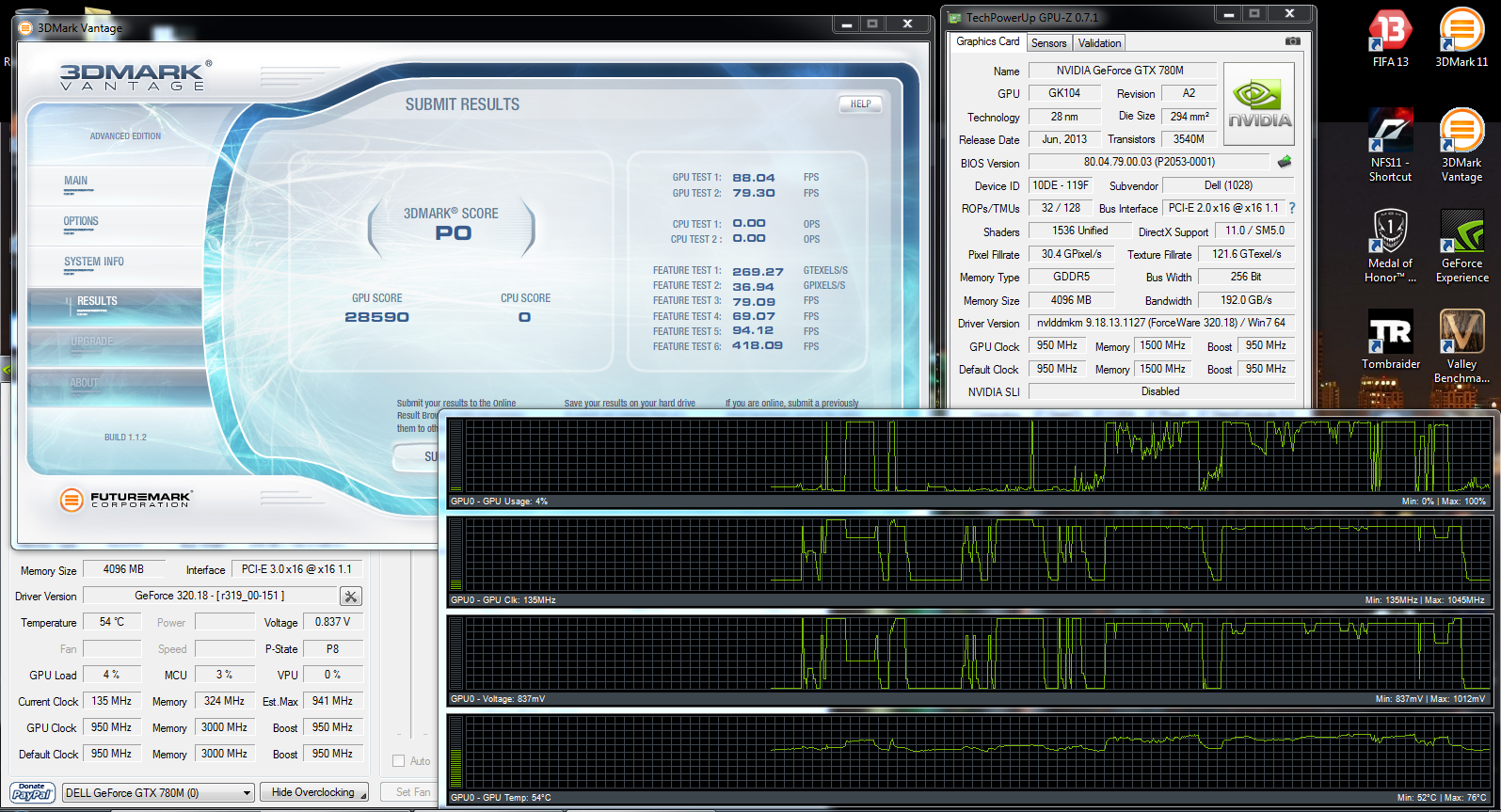

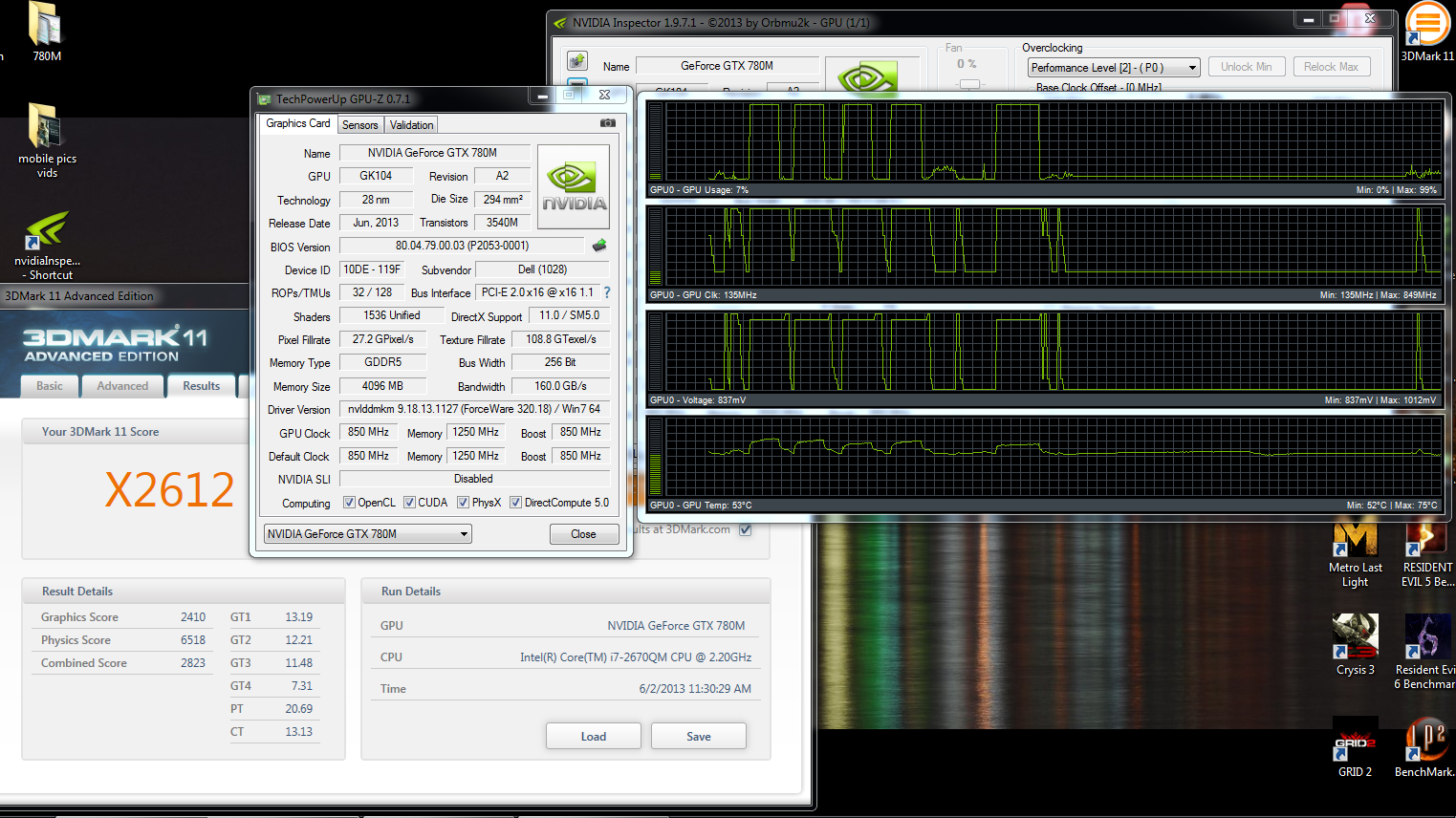

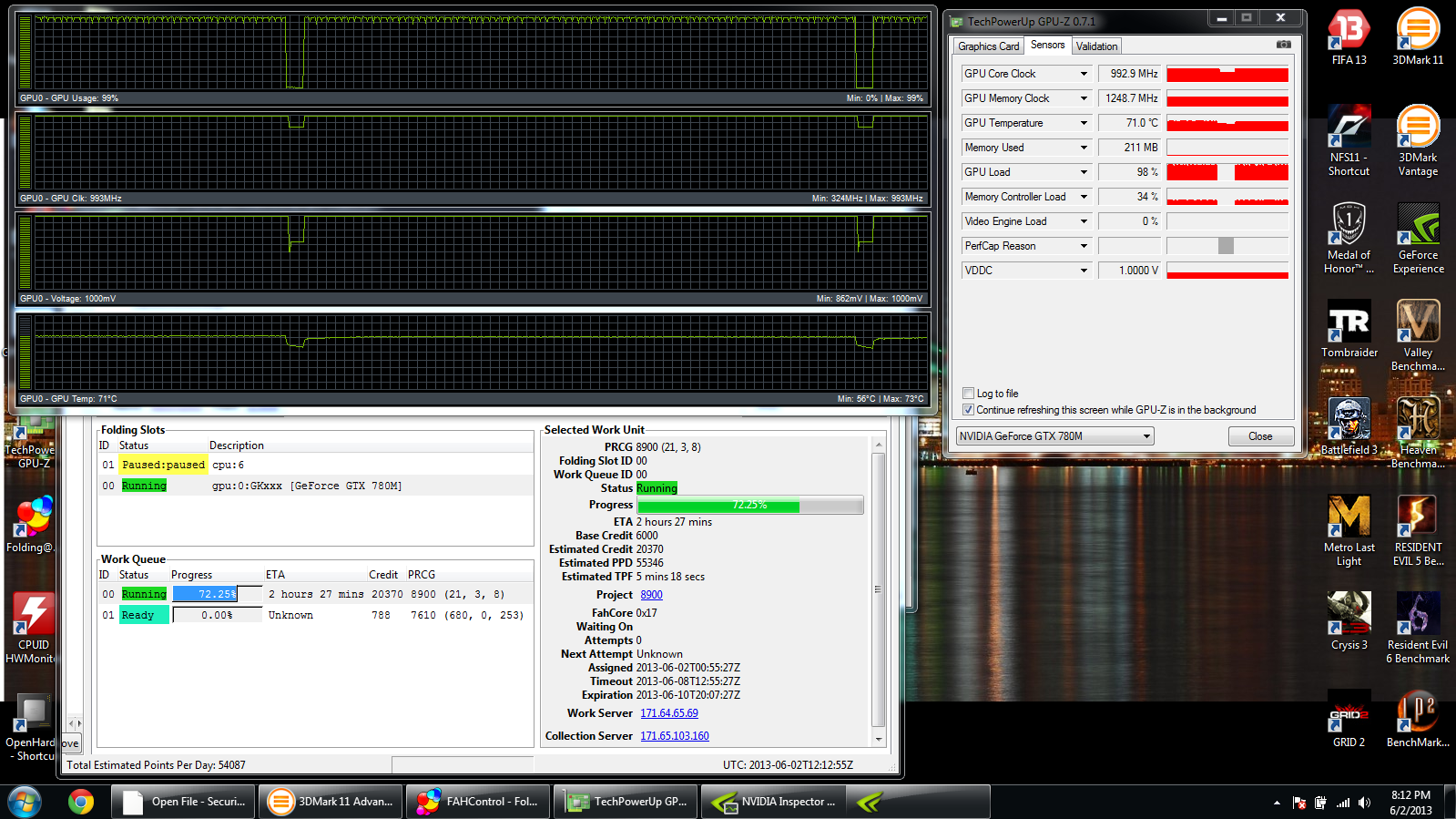

Some random X-rated;) benches with graphs to show the throttling.

Cheers.

[Khenglish 1154]

[ATTACH=CONFIG]7763[/ATTACH][ATTACH=CONFIG]7764[/ATTACH][ATTACH=CONFIG]7765[/ATTACH][ATTACH=CONFIG]7766[/ATTACH][ATTACH=CONFIG]7767[/ATTACH][ATTACH=CONFIG]7768[/ATTACH][ATTACH=CONFIG]7769[/ATTACH][ATTACH=CONFIG]7770[/ATTACH][ATTACH=CONFIG]7771[/ATTACH][ATTACH=CONFIG]7772[/ATTACH][ATTACH=CONFIG]7773[/ATTACH]

Some random X-rated;) benches with graphs to show the throttling.

Cheers.

Ouch. That is pretty bad throttling. I never saw your temps over 76C so it looks power draw related. You can probably fix it by looking up the power monitoring chip and modding the current sensing circuit.

Is 1.012V the default voltage, or did you raise it?

[ERAWNEILA 12]

guys, will the m18x r2 be compatible with a 780m sli setup? I'd like to upgrade my 680m's to 780m's will the PSU be enough? how much would this type of upgrade cost me?

[chiefule 77]

guys, will the m18x r2 be compatible with a 780m sli setup? I'd like to upgrade my 680m's to 780m's will the PSU be enough? how much would this type of upgrade cost me?

Yup it should work fine.

Brother Harlon and

Riri-Fifi have it running in their M18x R2 machines.

The upgrade atm would be quite pricey through Ebay upgradeyourlaptop aka Eurocom - around $1500 - $1600 for 2 cards.

As long as you have the 330Watt PSU you should be fine.

Cheers.

[Hybrys 10]

The cost on those is nuts, but those are done damn fine benchmarks... Maybe I'll upgrade my R2 in the next few months.

[mikecacho 24]

Yes it is compatible and it will cost you around 1400 to upgrade, not worth the 15%-20% gain unless you are an enthusiast

[dandan112988 11]

Yeah, my conclusion so far is that (unless the OEM vbios will be a lot different - which I bet it won't) the 780m with a stock vbios won't be able to beat a tweaked 680m, the card will downclock at high clocks.

seems like this generation is a big disappointment in more ways than one

[joshuachew 12]

When buying the upgrade cards, does any 780M card do or must we look for ones that are specifically made for Alienware like the ones form upgradeyourlaptop?

And does anyone have the VBIOS for the Alienware?

[TBoneSan 112]

That's a real shame

[veer 13]

chiefule, can you please help me, i bought the 780m, and trying to install it on my M17x r3, with no 120hrz 3D Screen im having some trouble to get it to work. Further information here http://forum.techinferno.com/alienware-m17x/3702-m17x-r3-gpu-upgrade-gtx-780m-3.html

Thanks in advance for any help that u can offer thank you.

[titansfan 11]

Haven't had any trouble with downclocks on my Alienware 18, but a lot of people have had problems on their Alienware 17's. Either way if the modified VBios solves the problem it isn't really a problem. The card overclocks very nicely and will outperform the 680m at least 15%.

[Evil Penguin 11]

What clock speed does the 780M generally top out?

I've seen some people running 1100 MHz on the core or so but I'm not sure that's sustainable beyond benchmarking.

[Thumper_23 143]

I ran Firestrike at 1100/3000 1.1v no problem

[samstalk 11]

Where did you get that video card?

[Czarny_PLone 14]

Overclocked GPU zegary @ 950MHz rdzeń + 1500MHz MEM. Something amazing, I'm interested in one _ What temperature reached max? , Do not choke the card above 75 degrees w R3 ?

[michaelkirk1984 10]

Seriously, where did you get the video card?

[deckard 11]

I just noticed that 1 of my 780M's (ID 1) will not go past stock 850 on the core, the other (ID 0) is fine. Both patched with the TI v2 VBIOS with no issue. Any idea what that issue could be? Should I flash back to the original and try flashing the TI again?

[chiefule 77]

I just noticed that 1 of my 780M's (ID 1) will not go past stock 850 on the core, the other (ID 0) is fine. Both patched with the TI v2 VBIOS with no issue. Any idea what that issue could be? Should I flash back to the original and try flashing the TI again?

Yep try and flash the vbios again.

Cheers.

[charlie22911 11]

I just noticed that 1 of my 780M's (ID 1) will not go past stock 850 on the core, the other (ID 0) is fine. Both patched with the TI v2 VBIOS with no issue. Any idea what that issue could be? Should I flash back to the original and try flashing the TI again?

Could also be a part that just met the minimum requirements for its bin. I for example have 3 6970s in my desktop, 2 of which hit 1GHz core and 1 which wont go 15mhz past stock.

[deckard 11]

Could also be a part that just met the minimum requirements for its bin. I for example have 3 6970s in my desktop, 2 of which hit 1GHz core and 1 which wont go 15mhz past stock.

Well...poop!

[jaykc 10]

Hello everyone.. I am a newbie just bought the Alienware with 780m sli, not really sure about the safety issue of overclock.

For example the 780m what is the safety range of clock and memory speed?

And I am epscailly scared of adjusting voltage once I burnt my cpu by applying the max voltage in my childhood ¬.¬

Really glad that anyone could give me a noob guideline for overclock in entry level XD

[samstalk 11]

is it one video card or 2 like SLI and how many gigs?

[deckard 11]

I just noticed that 1 of my 780M's (ID 1) will not go past stock 850 on the core, the other (ID 0) is fine. Both patched with the TI v2 VBIOS with no issue. Any idea what that issue could be? Should I flash back to the original and try flashing the TI again?

Ok I've learned a bit more about how all this works but still unable to resolve things. I'm running 326.41 beta and I understand there are some overclocking issues with this version so that might be complicating things. Basically the funkiness I am seeing with card 1 is actually normal due to the expected downclocked P-state while on the desktop (it sits at P8). Card 0 however will NOT downclock, just pegged at P0 regardless and now I'm more concerned about THAT than overclocking. I tried the Nvidia Inspector Multi-Display Power Saver fix but it did not resolve the issue. So now I can't get an overclock to even APPLY plus the added problem of card 0 pegged at P0 all the time. Can any of this simply be due to the beta drivers and I should just wait it out for a newer more stable release?
