EwinRacing Flash Series Gaming Chairs
svl7

Lenovo Y400 / Y500 - unlocked BIOS / wlan whitelist mod

Recommended Posts

I have searched far and wide on Google and it looks like you cannot overclock GPU core on drivers newer than 310.90 (only memory overclocking works in my case). Thus, without the modded VBIOS we are out of luck :(

Share this post


Link to post
Share on other sites

Hi guys, I'm a forum noob and just ordered a Y500 with SLI. Thanks for all the super helpful info in this thread. Got some quick questions.

This is the main system BIOS not the vBIOS correct? We are still waiting for an unlocked vBIOS for the GT 650M?

Is this BIOS required to overclock the GPU? Does it help you get higher clocks? I'm assuming everyone is using Nvidia Inspector and the .bat files to do the overclocking?

What are other benefits of this unlocked BIOS besides removing the hardware whitelist so that other WiFi cards can be installed? I know that the Intel GPU is disabled at the hardware level. Does the hardware whitelist prevent me from installing an mSATA SSD in the laptop?

last but not least, how many posts do I need in order to see images and download attachments in this forum? :playful:

Thanks a lot.

Share this post


Link to post
Share on other sites

Hi guys, this will be my first experience with bios flash(on a laptop) and reading this thread has given me a lot of confidence.

MY BIOS ver is 1.03.

My Y500 has ELAN touchpad which is faulty and i have already contacted lenevo and they have told me they are going to replace it(it will take atleast 2 weeks).So should I update my BIOS to 1.03 Mod or should I wait for the repair first?

Share this post


Link to post
Share on other sites

Yes greatben this bios will allow overclocking of the video card.

As an aside in regards to the hd4000 issues.. other systems ( alienware) require a reboot to switch to onboard gpu. I'll fiddle hopefully without breaking when I can get my bios modded.

Share this post


Link to post
Share on other sites

Hi final kiss dun know what problem my y400 even use 310.90 driver and flash the modified bios and using nvidiainspector my gpu core clock can't higher than 925 with +135 already I now still figure up why problem I have why u guys can oc till 1k+ but I can't. So any suggestion here?

Share this post


Link to post
Share on other sites

Has anybody been able to successfully overclock the Y500 CPU and RAM using this modified BIOS? Someone posted here that he was able to used the "Advanced" menu to change the CPU multiplier and bump up the RAM. Since I don't have enough posts to view pictures or download files on this forum I cannot try this out for myself.

Share this post


Link to post
Share on other sites

Thank you so much. Mine came with a POS Intel PCI Half-Mini wifi card - Backtrack 5 resolutely refused to play with. Gonna load up this BIOS and pop in my Atheros hacking wifi card.

Share this post


Link to post
Share on other sites

If I were to install a larger mSata card in here AND I have my own legitimate install of Windows 8, will I have the same problem booting from the solid state?

Share this post


Link to post
Share on other sites

This looks great svl7 can you guys recommend the best dual band wifi/bluetooth card to go with. This centrino wifi card sucks!

Share this post


Link to post
Share on other sites

Is there any way to overclock the graphics card? I don't know if anyone noticed, but overclocking via Nvidia Inspector actually doesn't increase the max clock. It says it does, but if you check the usage while gaming, it's locked at 790Mhz.

Share this post


Link to post
Share on other sites

I was in my bios today and I noticed my bios says 2.0 I just got my y500 is this going to cause problems if i use your custom bios?

Share this post


Link to post
Share on other sites

I really want to try this bios unlock but with bios 2.0 in my y500 i am uncertain this will work. Please anyone else with 2.0 bios used this? I notices y580 has version 2 bios but I don't know how this relates to mine.

Share this post


Link to post
Share on other sites

Hey svl7 - I just got my Lenovo y500 and I am wanting to overclock. I am trying to unlock my bios but when I go to run the backup utility either it is not working or I get an error.

Running the windows one from a command prompt give me error 104 - the SPI flash devices do not have compatible command sets.

Running the DOS version from command prompt tells me that it is not compatible with the 64 bit version of windows. any ideas what I could be doing wrong? Thanks for the help!


Share this post


Link to post
Share on other sites

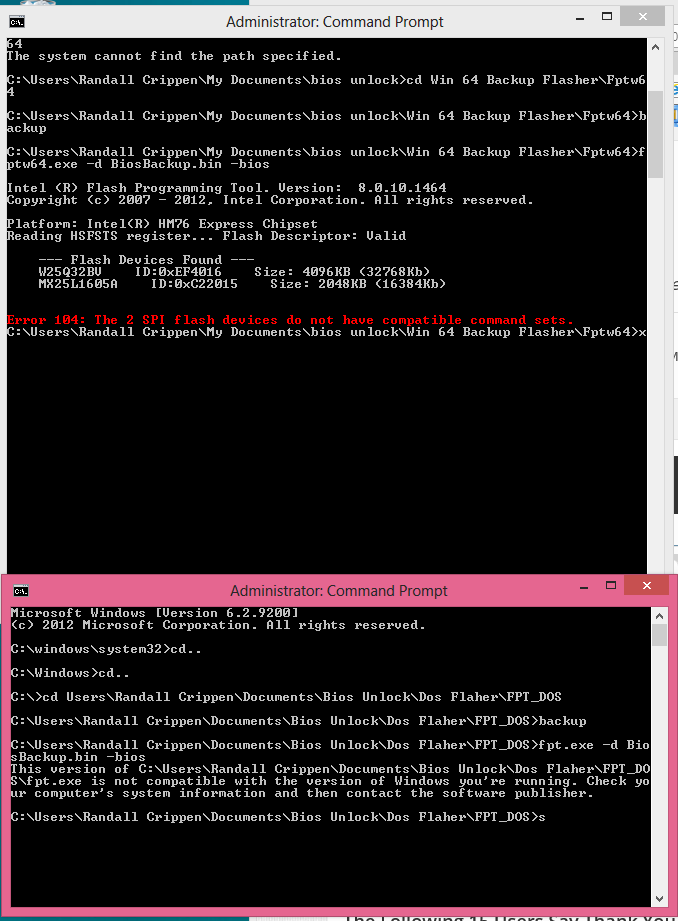

Hey svl7 - I just got my Lenovo y500 and I am wanting to overclock. I am trying to unlock my bios but when I go to run the backup utility either it is not working or I get an error.

Running the windows one from a command prompt give me error 104 - the SPI flash devices do not have compatible command sets.

Running the DOS version from command prompt tells me that it is not compatible with the 64 bit version of windows. any ideas what I could be doing wrong? Thanks for the help!

[ATTACH=CONFIG]6361[/ATTACH]

Nevermind - found the answer in a previous post! :)

Share this post


Link to post
Share on other sites

I definitely am going to change my bios. I contacted Lenovo support and asked why there was a whitelist on network cards for my Y500 and was told because my network card was incompatible with Windows 8. Yes, I'm going to trust a guy who told me that it was originally a driver issue, not the fact that the bios was blocking me from even attempting to access Windows.

Share this post


Link to post
Share on other sites
Hello!

My question to guru.

Did you see that & what new here. China BIOS 6BCN42WW(V2.02) YX00S202.exe_

It looks like a new firmware update.

@svl7,is it possible to change directly from a modded v1.03 bios to a modded v2.02 bios? (because I already have a third party wifi card installed)

Share this post


Link to post
Share on other sites

I need to check it first, but most likely that's not possible. Also this update is not officially released yet. If you really want to make sure that it hasn't been tampered with, then just flash the stock 2.02 with the included Insyde utility. If it isn't signed it won't flash.

Share this post


Link to post
Share on other sites
