Mich Posted March 19, 2015 Share Posted March 19, 2015 Work great whit 880M SLI. Thank you ! Quote Link to comment Share on other sites More sharing options...
George Posted April 5, 2015 Share Posted April 5, 2015 Hi,I cant flash my GTX 780M (Clevo Version). The filename was less than 8 characters. I am getting an error. I will restart the procedure and i will write you the text i am getting. Quote Link to comment Share on other sites More sharing options...

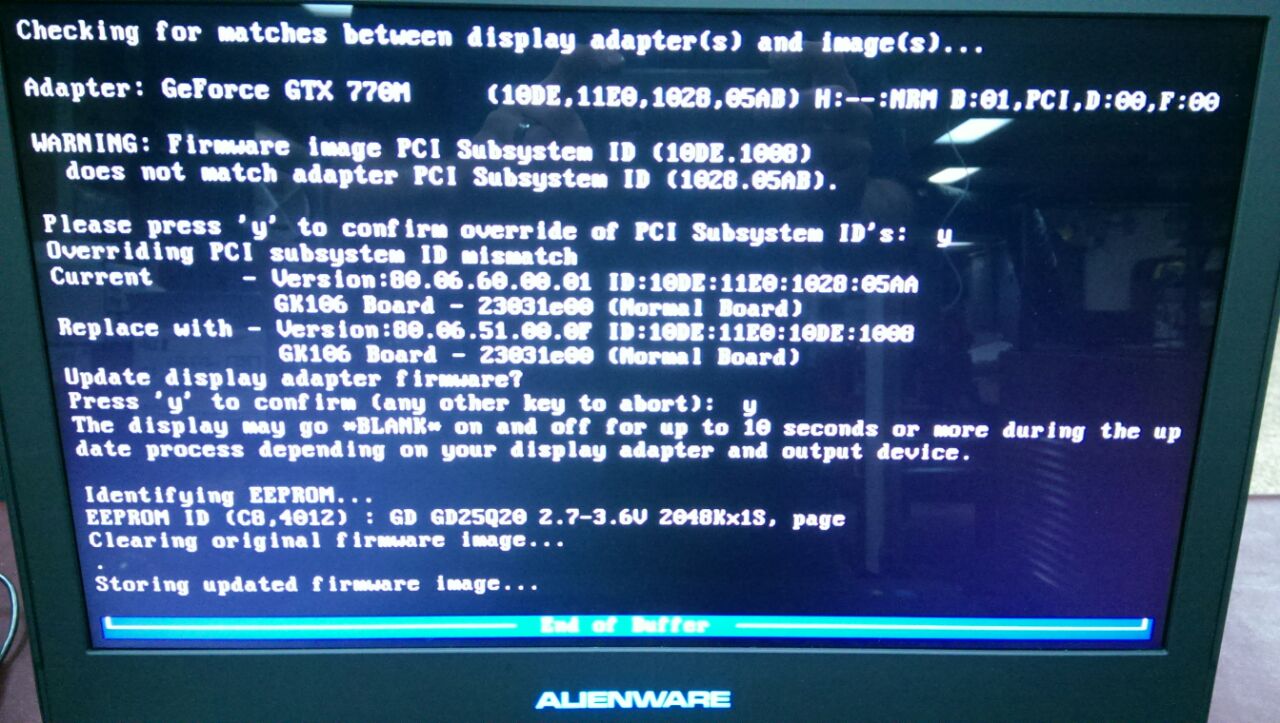

issdar Posted May 3, 2015 Share Posted May 3, 2015 Hello all, I am attempting to flash my alienware 18 770m sli, I did a backup of the bios , when attempting to flash with nvflash -I0 -6 vbiosfilename.Rom I get a pci subsystem mismatch of last 2 octets and accept with y, now screen is stuck saying the following. How long does flash take ? It's been 5 minutes, I used the Dell 770m rom posted by svl7. I rebooted system with ctrl alt del because I noticed End of buffer when scrolling down I was using freedos booting from UBCD so figured it was done. Now I am getting 8 beeps on startup ;( do I have to do a blind flash now ? EDIT: Solved problem, vbios got corrupy, with help of Mr. Fox swapped cards and removed sli cable. Was able to POST and reflash both cards with correct bios using freedos from rufus not UBCD. Quote Link to comment Share on other sites More sharing options...
Eivis Posted May 7, 2015 Share Posted May 7, 2015 @issdar Is the 770m set as a default gpu on your system? I'm asking because i want to flash my 770m with a modified bios and was wondering if the fact that the fact that intel gpu is set as default does anything. Also am using legacy mode in bios (yeah, it's old, but at the time that was the only known way for me to install win7) Quote Link to comment Share on other sites More sharing options...
issdar Posted May 8, 2015 Share Posted May 8, 2015 @issdar Is the 770m set as a default gpu on your system? I'm asking because i want to flash my 770m with a modified bios and was wondering if the fact that the fact that intel gpu is set as default does anything. Also am using legacy mode in bios (yeah, it's old, but at the time that was the only known way for me to install win7)Eivis, When you have the 770m graphics installed on the AW 18 it gets set to default regardless. There is no setting you can change in the bios to force intel integrated graphics. As far as I know the only way to force intel integrated is to remove both 770m graphics cards or I believe you can set it software wise with FN+F5 while inside of windows (havent tried this yet). I am running in legacy bios mode as well because I have windows 7 nothing really special about uefi. When you say that your intel gpu is default where are you seeing this? In my bios under integrated graphics it says none and just shows both gtx 770m. Regardless you shouldnt have a problem flashing your 770m graphics cards as long as they are both showing up in the bios. I used Rufus version 2.1 and installed the default option of freedos to a flash drive then copied the nvflash util and the overclocked .rom. Quote Link to comment Share on other sites More sharing options...
Eivis Posted May 8, 2015 Share Posted May 8, 2015 Eivis, When you have the 770m graphics installed on the AW 18 it gets set to default regardless. There is no setting you can change in the bios to force intel integrated graphics. As far as I know the only way to force intel integrated is to remove both 770m graphics cards or I believe you can set it software wise with FN+F5 while inside of windows (havent tried this yet). I am running in legacy bios mode as well because I have windows 7 nothing really special about uefi. When you say that your intel gpu is default where are you seeing this? In my bios under integrated graphics it says none and just shows both gtx 770m. Regardless you shouldnt have a problem flashing your 770m graphics cards as long as they are both showing up in the bios. I used Rufus version 2.1 and installed the default option of freedos to a flash drive then copied the nvflash util and the overclocked .rom.You see i have a GT70 and the led in the power button shows what gpu is doing the work. Was thinking that AW has a similar system, but i guess not if your 770s are always running (mine is chilling most of the time). Quote Link to comment Share on other sites More sharing options...
Imperial700 Posted May 13, 2015 Share Posted May 13, 2015 I have a question concerning the flashing of a 880M from an AW17 bought in early 2015 (AW17-R1). My concern is that the original 880M bios backup size differs from the modded 880M bios made by svl7.my original bios size is 169984 bytes (backed up with nvflash 5.136 under dos) Version 80.04.F5.00.07 (P2053-0002) from 12-March-2014svl7 modded bios is 170496 bytes (from Nvidia GTX 880m - 'OC edition' - rev00.zip)Since I am quite a novice about flashing roms I would like to take extra precautions before flashing my 880M.So my question is : Shouldn't both roms be of equal size ? (original and modded one)It would be great if svl7 himself or any other expert could enlighten me about this issue.thanksI second this. My Stock Vbios was 94kb.And the new one is 167kb?The flashing also was completed successfully according to NVflash. However. My 880M only shows up as a generic video adapter and not an 880m. The drivers will also not install. Did I miss something? Quote Link to comment Share on other sites More sharing options...
Imperial700 Posted May 16, 2015 Share Posted May 16, 2015 Bump...?I have followed this guide step by step, the re-flashing installs perfect. But when I boot up my computer and it recognizes my GTX880m and a Standard Generic Nvidia card. And I am unable to install drivers. Quote Link to comment Share on other sites More sharing options...
Nomad Posted May 22, 2015 Share Posted May 22, 2015 I have a question concerning the flashing of a 880M from an AW17 bought in early 2015 (AW17-R1). My concern is that the original 880M bios backup size differs from the modded 880M bios made by svl7.my original bios size is 169984 bytes (backed up with nvflash 5.136 under dos) Version 80.04.F5.00.07 (P2053-0002) from 12-March-2014svl7 modded bios is 170496 bytes (from Nvidia GTX 880m - 'OC edition' - rev00.zip)Since I am quite a novice about flashing roms I would like to take extra precautions before flashing my 880M.So my question is : Shouldn't both roms be of equal size ? (original and modded one)It would be great if svl7 himself or any other expert could enlighten me about this issue.thanksI am in the same boat here. Got my A17 R1 with 880M in late 2014 and I have the same vBIOS.But: It's the svl7 Nvidia GTX 880m - 'OC edition' - rev00.zip updated for this machines or the "stock" vBIOS named before it is "newer"? (anyway I'm suffering throttling from time to time with this stock vbios)Could someone "save" this stock vbios? At this point I don't know if to upgrade or not...if I'm going to get in more trouble.. Quote Link to comment Share on other sites More sharing options...
thegh0sts Posted June 2, 2015 Share Posted June 2, 2015 is there instructions for the UEFI version of nvflash? Quote Link to comment Share on other sites More sharing options...
badadabadaboy Posted July 29, 2015 Share Posted July 29, 2015 can i use it for alienware m17xr4 ??cause i got problem downgrade the bios for upgrading the GPU... Quote Link to comment Share on other sites More sharing options...
Ganjax Posted July 30, 2015 Share Posted July 30, 2015 Hi, i need some help.I bought GTX765M to mine G73SW from dell. On vga bios collection is vbios for asus, but after flash it. it does not work, black screen.Currently i'm able to make blind flash because nvflash is booting from pendrive.But still no success.I do commands:nvflash.exe -j -6 -A dell.rom -L log.txtbut reason is:*** NVFLASH LOG FILE ***Version 5.163Command: flashFindDevices:Device:00:00:00=8086:0104:1043:11F7Device:00:01:00=8086:0101:1043:11F7Device:00:16:00=8086:1C3A:1043:11F7Device:00:1A:00=8086:1C2D:1043:11F7Device:00:1B:00=8086:1C20:1043:1A13Device:00:1C:00=8086:1C10:1043:11F7Device:00:1C:03=8086:1C16:1043:11F7Device:00:1D:00=8086:1C26:1043:11F7Device:00:1F:00=8086:1C49:1043:11F7Device:00:1F:02=8086:1C03:1043:11F7Device:01:00:00=10DE:11E1:10DE:11E1 GPUDevice:01:00:01=10DE:0E0B:1028:05A9Device:03:00:00=1B73:1000:1043:1039One to one modeTesting adapter: GeForce GTX 765M (10DE,11E1,10DE,11E1) H:--:NRM B:01,PCI,D:00,F:00Action: Override subvendor strap.Original NV_PEXTDEV_BOOT_0: 0xCF58049ANew NV_PEXTDEV_BOOT_0: 0xCF58049AAction: Read image head.Action: Identify EEPROM.Atmel Serial EEPROM Identify.Reported Manufacturer Code (JEDEC): C8Reported Device Code (JEDEC): 4012EEPROM ID (C8,4012) : GD GD25Q20 2.7-3.6V 2048Kx1S, pageAction: Read EEPROM image.Reading EEPROM bytes.Start: 0x00000000Count: 4096Read complete.Testing Image: dell.romIFR image modeMismatch Type: Computed: 0x0000010BWARNING: None of the firmware image compatible PCI Device ID's match the PCI Device ID of the adapter.Adapter PCI Device ID: 11E1Firmware image PCI Device ID: 11E2WARNING: Firmware image PCI Subsystem ID (1028.05A9) does not match adapter PCI Subsystem ID (10DE.11E1).ERROR: GPU mismatchExit Code: 2Have someone idea what command should i use to flash original dell vbios? i tried -4 -5 -6. tried -5 -6 but after use this commands it dont create any log and still black screen. No idea how to solve it.. i try many many hours.. Please someone.I use NvFlash 5.163 for DOSupdate:With command : nvflash -4 -5 -6 GTX765M.rom -L log.txt and blind put y/yes i get:*** NVFLASH LOG FILE ***Version 5.163Command: flashFindDevices:Device:00:00:00=8086:0104:1043:11F7Device:00:01:00=8086:0101:1043:11F7Device:00:16:00=8086:1C3A:1043:11F7Device:00:1A:00=8086:1C2D:1043:11F7Device:00:1B:00=8086:1C20:1043:1A13Device:00:1C:00=8086:1C10:1043:11F7Device:00:1C:03=8086:1C16:1043:11F7Device:00:1D:00=8086:1C26:1043:11F7Device:00:1F:00=8086:1C49:1043:11F7Device:00:1F:02=8086:1C03:1043:11F7Device:01:00:00=10DE:11E1:10DE:11E1 GPUDevice:01:00:01=10DE:0E0B:1028:05A9Device:03:00:00=1B73:1000:1043:1039One to one modeTesting adapter: GeForce GTX 765M (10DE,11E1,10DE,11E1) H:--:NRM B:01,PCI,D:00,F:00Action: Read image head.Action: Identify EEPROM.Atmel Serial EEPROM Identify.Reported Manufacturer Code (JEDEC): C8Reported Device Code (JEDEC): 4012EEPROM ID (C8,4012) : GD GD25Q20 2.7-3.6V 2048Kx1S, pageAction: Read EEPROM image.Reading EEPROM bytes.Start: 0x00000000Count: 4096Read complete.Testing Image: GTX765M.romIFR image modeMismatch Type: Computed: 0x0000010EWARNING: Firmware image PCI Subsystem ID (1028.05AA) does not match adapter PCI Subsystem ID (10DE.11E1).WARNING: Firmware image Board ID (E312) does not match adapter Board ID (E318).Overriding PCI subsystem ID mismatchOverrding Board ID mismatchMismatch Type: Adjusted: 0x00000000Current - Version:80.06.64.00.01 ID:10DE:11E2:1028:05A9 GK106 Board - 204411E2 (Normal Board)Replace with - Version:80.06.61.00.01 ID:10DE:11E1:1028:05AA GK106 Board - 23031e10 (Normal Board)ERROR: Update abortedExit Code: 2Why at last step it's aborted? Quote Link to comment Share on other sites More sharing options...
copyninja Posted September 4, 2015 Share Posted September 4, 2015 HelloI have a cuestionI have my Alienware M18x r1 with Gtx Geforce 680m 4gb (pulled from a Clevo)This method works for me?Or it will brick my Laptop or Gpu? Quote Link to comment Share on other sites More sharing options...
andreacos92 Posted September 5, 2015 Share Posted September 5, 2015 HelloI have a cuestionI have my Alienware M18x r1 with Gtx Geforce 680m 4gb (pulled from a Clevo)This method works for me?Or it will brick my Laptop or Gpu?This guide works for you gtx 680m, too. You just have to use the correct vBios. Quote Link to comment Share on other sites More sharing options...
archmark Posted October 7, 2015 Share Posted October 7, 2015 Hi all,I'm searching for a DELL quadro k4100m vBios could someone help me?Thanks! Quote Link to comment Share on other sites More sharing options...
Hunter409 Posted October 10, 2015 Share Posted October 10, 2015 I have no experience flashing a gpu vbiosBut why would you flash a laptop gpu Does it help with performance and stability Since with desktops you can have full control on the overclock Quote Link to comment Share on other sites More sharing options...
MaeseppTarvo Posted October 12, 2015 Share Posted October 12, 2015 Hey, I want to go back to default bios and vbios. I instelld original BIOS from Lenovo site but NVInspector still says that both cards has modified vbos. I don't understan it because first card vbios should be in the BIOS or I am wrong? What to do? I have Second card original copy but if I flash only this I get blurry picture. Quote Link to comment Share on other sites More sharing options...
blackthunder Posted October 29, 2015 Share Posted October 29, 2015 I have a question i have Dell M6600 and want to replace my card with a 680M will this work? Quote Link to comment Share on other sites More sharing options...
ewentas Posted November 20, 2015 Share Posted November 20, 2015 hello.help me.how you install vbios gtx 880m sli? Quote Link to comment Share on other sites More sharing options...
joluke@inphtech Posted November 20, 2015 Share Posted November 20, 2015 hello.help me.how you install vbios gtx 880m sli?It's all in the first post... Read read readEnviado do meu SM-N9005 através de Tapatalk Quote Link to comment Share on other sites More sharing options...
ewentas Posted November 20, 2015 Share Posted November 20, 2015 please help me.I'm doingc:> nvflash -i0 -6 880m.rom enterNVIDIA Firmware update utility(version 5.127)I/O ERROR:Connot open file:880m.romPLEASE HELP GTX 880M SLI Quote Link to comment Share on other sites More sharing options...

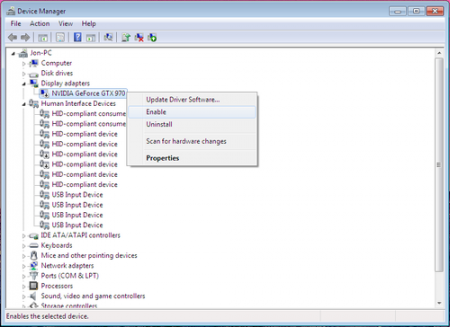

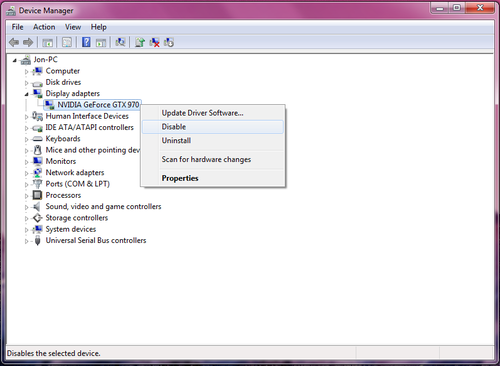

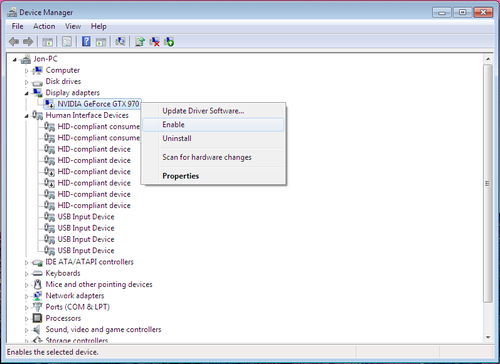

Founder Brian Posted November 20, 2015 Founder Share Posted November 20, 2015 @ewentas try what operating system are you on? Check to make sure you are using the correct file name. You may need to disable the 880M in the device manager before attempting to flash it. Then you can re-enable it: Quote Link to comment Share on other sites More sharing options...
ewentas Posted November 20, 2015 Share Posted November 20, 2015 win 10 64 bit.i use nvflash 5.127 and try use 5.117 and 5.128 and 5.163.. and everywhere the same Quote Link to comment Share on other sites More sharing options...
ewentas Posted November 20, 2015 Share Posted November 20, 2015 or anyone help me?!how install this Nvidia GTX 880m - 'OC edition' - rev00 in XMG P724(CLEVO P370SM-A)2x gtx880m 16gb.or first must need instal prema mod bios? Quote Link to comment Share on other sites More sharing options...
ewentas Posted November 20, 2015 Share Posted November 20, 2015 hello.what model laptop with you?and how you install?which version to use nvflash?thanks Quote Link to comment Share on other sites More sharing options...
