Moderator BAKED Posted February 3, 2014 Moderator Share Posted February 3, 2014 Morning All, thought i would give this a go this morning and unfortunately cannot get past the first step - Anybody have any ideas what I can do - im on a medion x6823 (copy of ms-16f3)[ATTACH]10785[/ATTACH]My bios is here, it has been unlocked and I was thinking that maybe now I have all the advanced options in the bios that I may have a setting to set the flash descriptor overide (gonna make a vid of my bios and upload to YT) -Here is youtube vid:http://www.youtube.com/watch?v=_g1HyZgB8JEThe bits are already set for bclk overclocking. Quote Link to comment Share on other sites More sharing options...
ftln Posted February 3, 2014 Share Posted February 3, 2014 The bits are already set for bclk overclocking.So does this mean that XTU should be able to set bclk ? Quote Link to comment Share on other sites More sharing options...
hans123 Posted February 3, 2014 Share Posted February 3, 2014 can i'm looking forward to see this on 9 series notebooks? would be so great! Quote Link to comment Share on other sites More sharing options...
Moderator BAKED Posted February 3, 2014 Moderator Share Posted February 3, 2014 So does this mean that XTU should be able to set bclk ?Yes, you can also set it in BIOS. Quote Link to comment Share on other sites More sharing options...

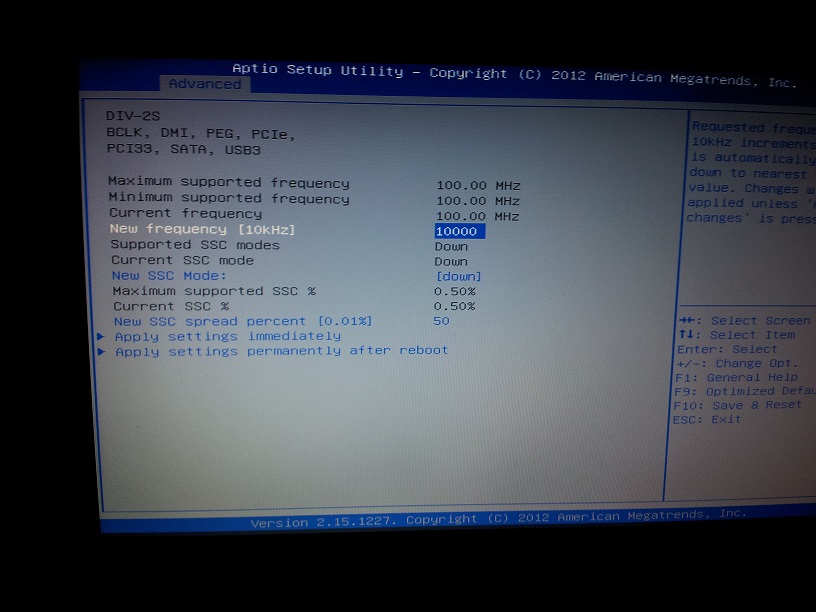

ftln Posted February 3, 2014 Share Posted February 3, 2014 Yes, you can also set it in BIOS. I seem to not be able to set bclk in bios? max is 100 and min is 100 : Quote Link to comment Share on other sites More sharing options...
Arise Posted February 4, 2014 Share Posted February 4, 2014 Instead of 10000 just write something like 10100.But you should try first playing with bclk in Intel XTU, it looks safer to me. Don't know how your computer/bIOS will react to failed overclocking, but if it doesn't reset the settings you will be caught in a POST loop and you will have to take out the CMOS battery I guess.So, play it safe first... Quote Link to comment Share on other sites More sharing options...
ftln Posted February 4, 2014 Share Posted February 4, 2014 Instead of 10000 just write something like 10100.But you should try first playing with bclk in Intel XTU, it looks safer to me. Don't know how your computer/bIOS will react to failed overclocking, but if it doesn't reset the settings you will be caught in a POST loop and you will have to take out the CMOS battery I guess.So, play it safe first...I cannot change bclk, look in prevois photo at max bclk it is set to 100 and min is 100.. Any idea why this is ? Quote Link to comment Share on other sites More sharing options...
Arise Posted February 4, 2014 Share Posted February 4, 2014 Oh, I got it.In that case you need a modified ME just like the one Khenglish built for me.The proper comamand to dump your ME and the results of it can be seen here:http://forum.techinferno.com/general-notebook-discussions/2091-lets-enable-overclocking-all-6-7-series-laptops-20.html#post81703Does this works for you? Quote Link to comment Share on other sites More sharing options...
ftln Posted February 4, 2014 Share Posted February 4, 2014 Quote Oh, I got it. In that case you need a modified ME just like the one Khenglish built for me.The proper comamand to dump your ME and the results of it can be seen here: [URL]http://forum.techinferno.com/general-notebook-discussions/2091-lets-enable-overclocking-all-6-7-series-laptops-20.html#post81703[/URL]Does this works for you? I get this error on 2nd step in windows and in dos 2. So you'll first need to dump your ME FW image. This is done by running fptw64 in windows or fpt in DOS. It needs to be run in a cmd window with admin rights. The command to do so is "fptw64 -d imagename", where imagename is whatever name you want for your flash imagedump. Prema found out that at least on Clevos, attempting to dump only the ME FW leaves out the clock control segment, so you need to dump the whole flash image. Note that you're also getting the flash descriptor when you dump everything, so you can edit it to not require the flash descriptor override to do any flash imagereads and writes. Maybe I need to change a setting in bios to allow r/w access ??[video=youtube;_g1HyZgB8JE]http://www.youtube.com/watch?v=_g1HyZgB8JE[/video] Quote Link to comment Share on other sites More sharing options...
Arise Posted February 4, 2014 Share Posted February 4, 2014 Could it be BIOS Interface Lock, under the other disabled locks? Quote Link to comment Share on other sites More sharing options...
ftln Posted February 4, 2014 Share Posted February 4, 2014 All fixed now blck overclocking enabled.. Just got 4th worldride ranking for 3630qm hwbot... Quote Link to comment Share on other sites More sharing options...
Khenglish Posted February 4, 2014 Author Share Posted February 4, 2014 @ftln what was the problem? Quote Link to comment Share on other sites More sharing options...
ftln Posted February 4, 2014 Share Posted February 4, 2014 Had to use another tool from another forum to unlock overclocking in "Intel ME"Place attached file on root of bootable usb key and type the following command without quotes "me_port.com"Here is the file - File deleted due to msi emailing me saying it is not for public use.....Take a look and see if you can see what it is doing ? Took two seconds for me and reboot... 2 Quote Link to comment Share on other sites More sharing options...
schranzmaster Posted February 4, 2014 Share Posted February 4, 2014 Had to use another tool from another forum to unlock overclocking in "Intel ME"Place attached file on root of bootable usb key and type the following command without quotes "me_port.com"Here is the file - https://www.dropbox.com/s/spmvxmz9pal1j6l/ME_Port.comTake a look and see if you can see what it is doing ? Took two seconds for me and reboot...will this work for the Y580? (got also the 3630QM) Quote Link to comment Share on other sites More sharing options...
Tech Inferno Fan Posted February 4, 2014 Share Posted February 4, 2014 Had to use another tool from another forum to unlock overclocking in "Intel ME"Place attached file on root of bootable usb key and type the following command without quotes "me_port.com" Here is the file - https://www.dropbox.com/s/spmvxmz9pal1j6l/ME_Port.com Take a look and see if you can see what it is doing ? Took two seconds for me and reboot... This is a MSI utility that works for you because you have a medion x6823 (copy of ms-16f3). Output of ME_port.com is shown below. Does nothing in a HP Elitebook. Quote Link to comment Share on other sites More sharing options...
Unregistered User Posted February 5, 2014 Share Posted February 5, 2014 Will this MSI utillity work on the MS-16F2? Quote Link to comment Share on other sites More sharing options...
Khenglish Posted February 5, 2014 Author Share Posted February 5, 2014 @ftln So what did you have to do to get BCLK overclock working after you turned on the descriptor override? Did you just have to widen the allowed clock ranges? Quote Link to comment Share on other sites More sharing options...
ftln Posted February 5, 2014 Share Posted February 5, 2014 it just worked straight away... after reboot my max bclk was 800mhz instead of 100mhz.. Quote Link to comment Share on other sites More sharing options...
Unregistered User Posted February 5, 2014 Share Posted February 5, 2014 I have managed to get hold ofIntel ME7 1.5MB FWUpdate v7.1.60.1193 6 SeriesIntel ME8 1.5MB FWUpdate v8.1.51.1471 7 Serieswhich are consumer firmwares.Also i managed to get some info on my MS-16F2's ME firmwareG:\ME>MEInfoWin.exeIntel® MEInfo Version: 7.1.52.1180Copyright© 2005 - 2011, Intel Corporation. All rights reserved.PMXUtil: Error during PMX Call: PMxDrv!MAPPHYS - Bad Input ParametersGBE Region does not exist.Intel® ME code versions:BIOS Version: E16F2IG6 V3.05MEBx Version: 0.0.0.0Gbe Version: UnknownVendorID: 8086PCH Version: 5FW Version: 7.0.4.1197UNS Version: Not AvailableLMS Version: Not AvailableMEI Driver Version: 8.0.0.1262Wireless Hardware Version: Not AvailableWireless Driver Version: Not AvailableFW Capabilities: 16784480 Intel® Anti-Theft Technology - PRESENT/ENABLED Intel® Capability Licensing Service - PRESENT/ENABLED Protect Audio Video Path - PRESENT/ENABLEDLevel III Manageability Upgrade State: Not UpgradableCPU Upgrade State: Upgrade CapableCryptography Support: DisabledLast ME reset reason: Power upLocal FWUpdate: EnabledBIOS and GbE Config Lock: UnknownHost Read Access to ME: DisabledHost Write Access to ME: DisabledSPI Flash ID #1: EF4016SPI Flash ID VSCC #1: 20052005SPI Flash BIOS VSCC: 20052005BIOS boot State: Post BootOEM Id: 00000000-0000-0000-0000-000000000000OEM Tag: 0x00000000EPID Group ID: 434But none of the tools in the OP works for Dumping the ME firmware at all, anyone have any ideas?? Quote Link to comment Share on other sites More sharing options...
Khenglish Posted February 5, 2014 Author Share Posted February 5, 2014 I have managed to get hold ofIntel ME7 1.5MB FWUpdate v7.1.60.1193 6 SeriesIntel ME8 1.5MB FWUpdate v8.1.51.1471 7 Serieswhich are consumer firmwares.Also i managed to get some info on my MS-16F2's ME firmwareG:\ME>MEInfoWin.exeIntel® MEInfo Version: 7.1.52.1180Copyright© 2005 - 2011, Intel Corporation. All rights reserved.PMXUtil: Error during PMX Call: PMxDrv!MAPPHYS - Bad Input ParametersGBE Region does not exist.Intel® ME code versions:BIOS Version: E16F2IG6 V3.05MEBx Version: 0.0.0.0Gbe Version: UnknownVendorID: 8086PCH Version: 5FW Version: 7.0.4.1197UNS Version: Not AvailableLMS Version: Not AvailableMEI Driver Version: 8.0.0.1262Wireless Hardware Version: Not AvailableWireless Driver Version: Not AvailableFW Capabilities: 16784480 Intel® Anti-Theft Technology - PRESENT/ENABLED Intel® Capability Licensing Service - PRESENT/ENABLED Protect Audio Video Path - PRESENT/ENABLEDLevel III Manageability Upgrade State: Not UpgradableCPU Upgrade State: Upgrade CapableCryptography Support: DisabledLast ME reset reason: Power upLocal FWUpdate: EnabledBIOS and GbE Config Lock: UnknownHost Read Access to ME: DisabledHost Write Access to ME: DisabledSPI Flash ID #1: EF4016SPI Flash ID VSCC #1: 20052005SPI Flash BIOS VSCC: 20052005BIOS boot State: Post BootOEM Id: 00000000-0000-0000-0000-000000000000OEM Tag: 0x00000000EPID Group ID: 434But none of the tools in the OP works for Dumping the ME firmware at all, anyone have any ideas??So what error do you get when trying to dump with FTP?Also you can just flash a modified BIOS and run ME_unlock for your system. Quote Link to comment Share on other sites More sharing options...
donkey Posted February 5, 2014 Share Posted February 5, 2014 hello there am i in the right place to ask this? well.. [request]can anyone help me overclock my hp compaq presario cq57 339wm i already dumped the -me -bios and both together but i dont know what to do with it since i got rsa signed bios..id appreciate some enlightment thank you. Quote Link to comment Share on other sites More sharing options...
Unregistered User Posted February 6, 2014 Share Posted February 6, 2014 I can't flash and all the tools be it dos or windows all error out with.Intel ® Flash Programming Tool. Version: 7.1.20.1119Copyright © 2007-2011, Intel Corporation. All rights reserved.Platform: Intel® HM67 Express Chipset Revision: UnknownReading HSFSTS register... Flash Descriptor: Valid --- Flash Devices Found ---Doesn't matter if i use the Unlockers either same thing. I can't even flash to it. So it looks like its lock down tight how ever i have noticed that the 4MB bios file has the ME firmware in it so here is the .xml file of that with a .30R biosMS-16F2ME.zipSo hopefully this will help ya out on the MS-16F2 Quote Link to comment Share on other sites More sharing options...
donkey Posted February 7, 2014 Share Posted February 7, 2014 hey there guys is anyone online that can help me mod my laptop to enable overclocking? i already dumped the me firmware and the bios ,and both put together, and i dont know what to do next......i got the hm65 chipset i used the intel 7 fptw64 tool.. Quote Link to comment Share on other sites More sharing options...
donkey Posted February 7, 2014 Share Posted February 7, 2014 hey can you help me enable overclocking on my hp laptop? i have a hm65 chipset with intel celeron b800 and intel hd graphic...i already dumped the me firmware and the bios...please reply..thank you. Quote Link to comment Share on other sites More sharing options...
donkey Posted February 8, 2014 Share Posted February 8, 2014 hey yo khenglish you there man?? can you help me mod my me? its already dumped and uploaded...- - - Updated - - -cmon guys anyone out there that can do this for me man? Quote Link to comment Share on other sites More sharing options...
