About schranzmaster

  • Birthday 03/01/1996

Recent Profile Visitors

The recent visitors block is disabled and is not being shown to other users.

schranzmaster's Achievements

T|I Advanced Member

T|I Advanced Member (4/7)



  1. 3630QM is Ivy Bridge, more effective than Sandy Bridge and way cooler Yeah you are right, this could invest much time:( EC unlock seems really complicated... Do we have EC-experts in this forum?
  2. This is pretty awesome. With this tool my 660m gets maximum 68 degrees hot and my CPU 70 degrees celcius, under FULL load! And you all must now that my 3630QM runs at 3,2GHz with throttlestop, on all cores and my 660m on 1200MHz (core) and 2800MHz on memory... No throttling on my Y580, just full clocks and nice temperatures Thank you for this! Edit: you should change the title of this thread. because it really seems like IdeaFan is working for every multimedia-lenovo-notebook so happy about this, ty again 2. Edit: @allstone Maybe this could help you for more improvements in future http://forum.techinferno.com/lenovo-ibm/3849-y580-fan-control-2.html#post87843
  3. I used 0,5 mm pads for the backplate of the GPU and for the other parts i used 1 mm. Sorry, i never tried these metalpads
  4. My setup is not as porn as the others, but still nice for my gaming sessions
  5. At first i used some Tesa tape to test where I can place the copper-heatsinks. As you can see on the picture, this are the parts where the heatsinks fit in the laptop without pushing against anything when reassembled. I get them stay at its place with ''Arctic Silver Alumina Thermal Adhesive''... It worked great so far. I created this mod to use the laptop without the back cover and a cooling pad under it... Thats why the small holes in the plastic you can see on the second picture. (I used a small drill for that) You can see my temps before that mod in my first post of this thread My temperature-Information is always when running the Y580 at full load on GPU and CPU. When i play less demanding games like League of Legends, the temparature of the GPU stays at 63°C and the CPU at 74°C maximum. I think that is a pretty good result, if you take a look at my overclock (and CPU clock, btw) - - - Updated - - - Thank You! Yes i also think that the cooling scheme isnt good designed... Thats why I wanted to do this A third heatpipe would be still nice
  6. I just did a small mod to my Y580 two days ago. now GPU temperature maxes out at 69 °C (@ 1200 MHz core and 2800 MHz memory) and CPU temperature maxes out at 75 °C (3,2 GHz with Throttlestop on all cores) Perfect for gaming
  7. it seems like the 860m of the Y50 is based on Maxwell architecture, that means it should have a good overclocking potential, (if the temperatures are good) just found some nice benchmarks on this link http://forum.notebookreview.com/gaming-software-graphics-cards/751352-860m-beast.html stock 860m: 4603 Graphics score http://www.3dmark.com/3dm/2974033 with overclock: over 5000 Graphics score http://www.3dmark.com/3dm/2981759? (in firestrike)
  8. I go to the gym three times per week and go often jogging/biking:bananalama:
  9. Yes, you should change all thermal pads, even the ones on the backside of the motherboard (backplate of the 660m). And yes, thermal paste on the core of the GPU and CPU For me the HDD doesn't become that hot like before...
  10. I didn't elapse the paste on the die's with a credit card, like some people do it... It worked well for me to just apply a single little dot of thermal paste on gpu and cpu and let it spread by the pressure of the heatsinks
  11. Yes of course I bought ''Softtherm - 86/600 Kerafol 86/600 50 mm x 50 mm 6 W/mK'' with a thickness of 1 mm and 0,5 mm'' (you need 0,5 mm pads for the backplate of the 660m) Hochleistungs-Wärmeleitfolie Softtherm® - 86/600 Kerafol 86/600 (L x 50 mm x 50 mm Stärke 1 mm 6 W/mK im Conrad Online Shop | 189072 Hochleistungs-Wärmeleitfolie Softtherm® - 86/600 Kerafol 86/600 (L x 50 mm x 50 mm Stärke 0.5 mm 6 W/mK im Conrad Online Shop | 189071 I bought them on conrad .de ... But there are better thermal pads out there on internet... But this ones are working like a charm for me
  12. Thats right. Not the best quality, but really durable if you're a little careful in using it

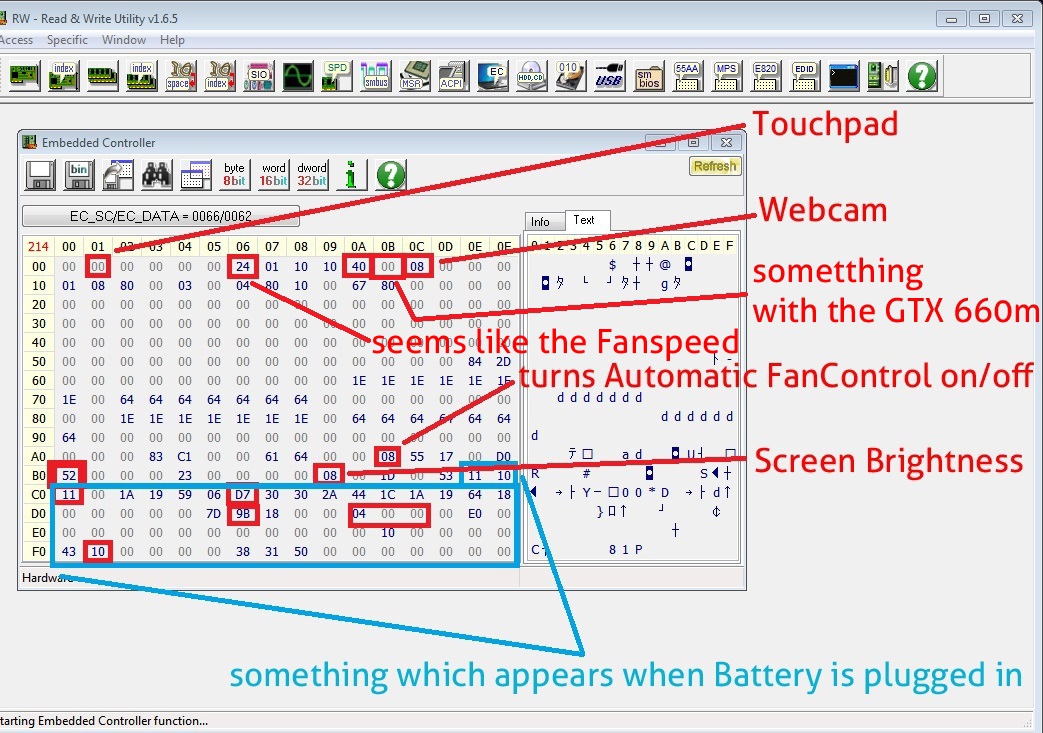

  13. Hello guys, it's me again. I just tried again to figure out, which values are for the control of the fan... I noticed that no adjustment made any effect... except for one value. I can turn on/off the automatic fan control... But if I turned it off, the fan just stayed off and I couldn't change anything except turning the automatic fan control on again Here is a screenshot of what I found out with RW-Everything -all red marked values are changing under normal use of the Y580 (I could assign some of them) -the red marked in the blue bounded values only appear when the battery is plugged in Maybe somebody has an idea what I could do now? Any experts concerning the embedded controller? Is this a type of ''locked EC''? because no changing did take effect expect for the one mentioned above Edit: informations I found in RW-Everything: [Cooling Device] (Type 27) 1B 0F 34 00 FF FF 63 00 00 00 00 00 D0 07 01 43 ..4...c........C 6F 6F 6C 69 6E 67 20 44 65 76 69 63 65 20 44 65 ooling Device De 73 63 72 69 70 74 69 6F 6E 2E 00 00 scription... Type....................................... 0x1B (27) Length.....................................0x0F (15) Handle.................................... 0x0034 (52) Temperature Probe Handle.....0xFFFF Device Type and Status......... 0x63 Cooling Unit Group..................0x00 OEM-Defined.......................... 0x00000000 Nominal Speed........................0x07D0 Description String1 - "Cooling Device Description."
  14. I think the performance of the 3610QM / 3630QM will last for the next three years Let's hope that games in the future are more CPU- than GPU-intensive ...Ok i will stay with windows 7 hm.. Yes that are all settings that I changed in the BIOS for the CPU... Are you using throttlestop 6.00? If not, google it and try it couldn't find anything about ASIC quality of CPUs... Would be interesting to know
