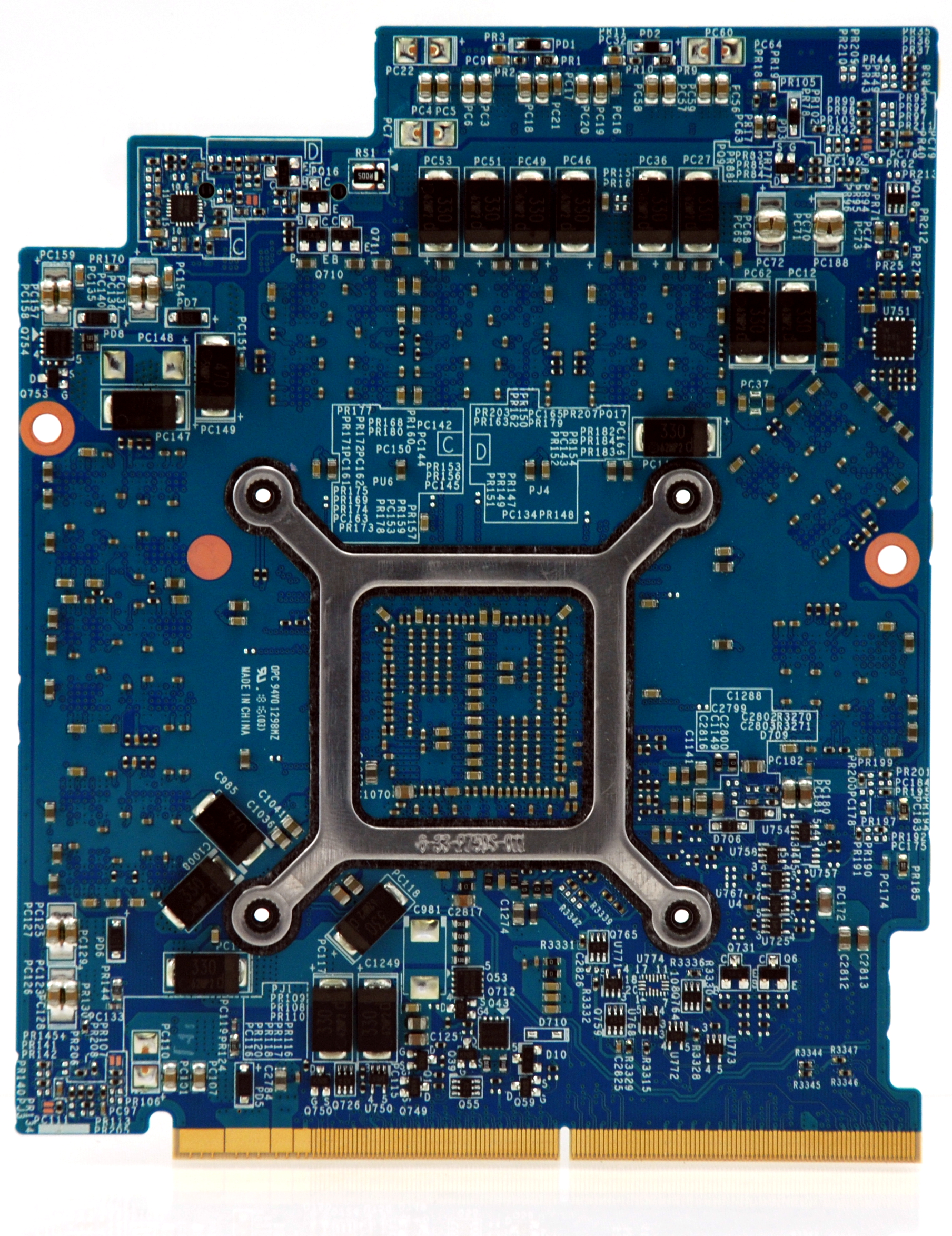

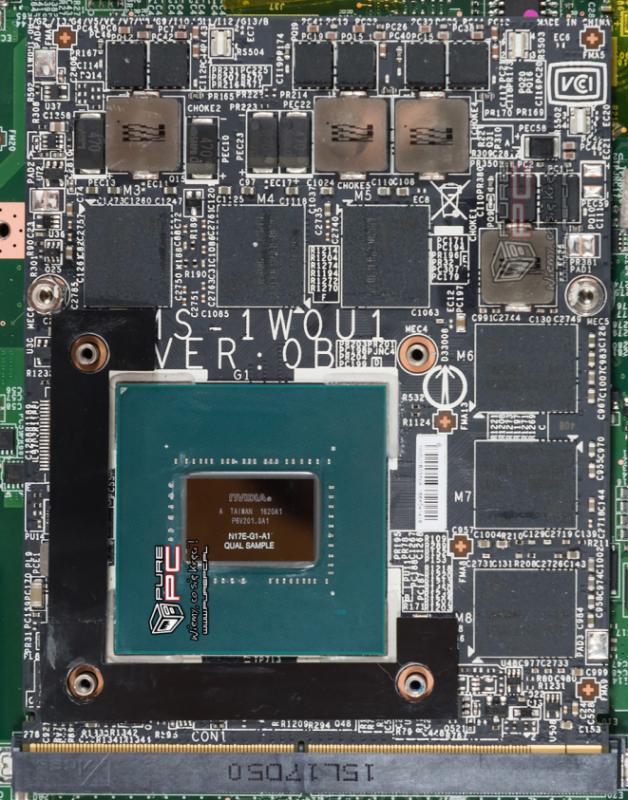

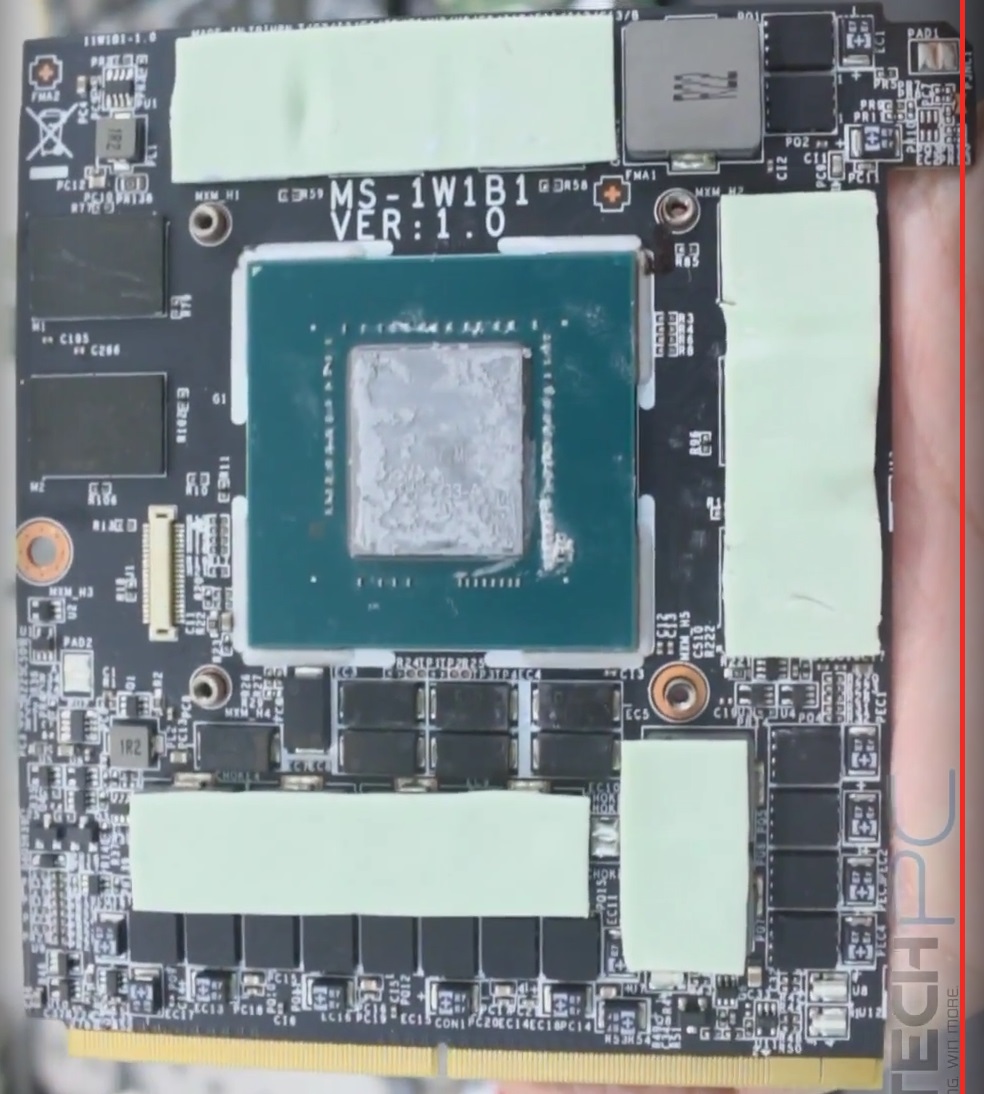

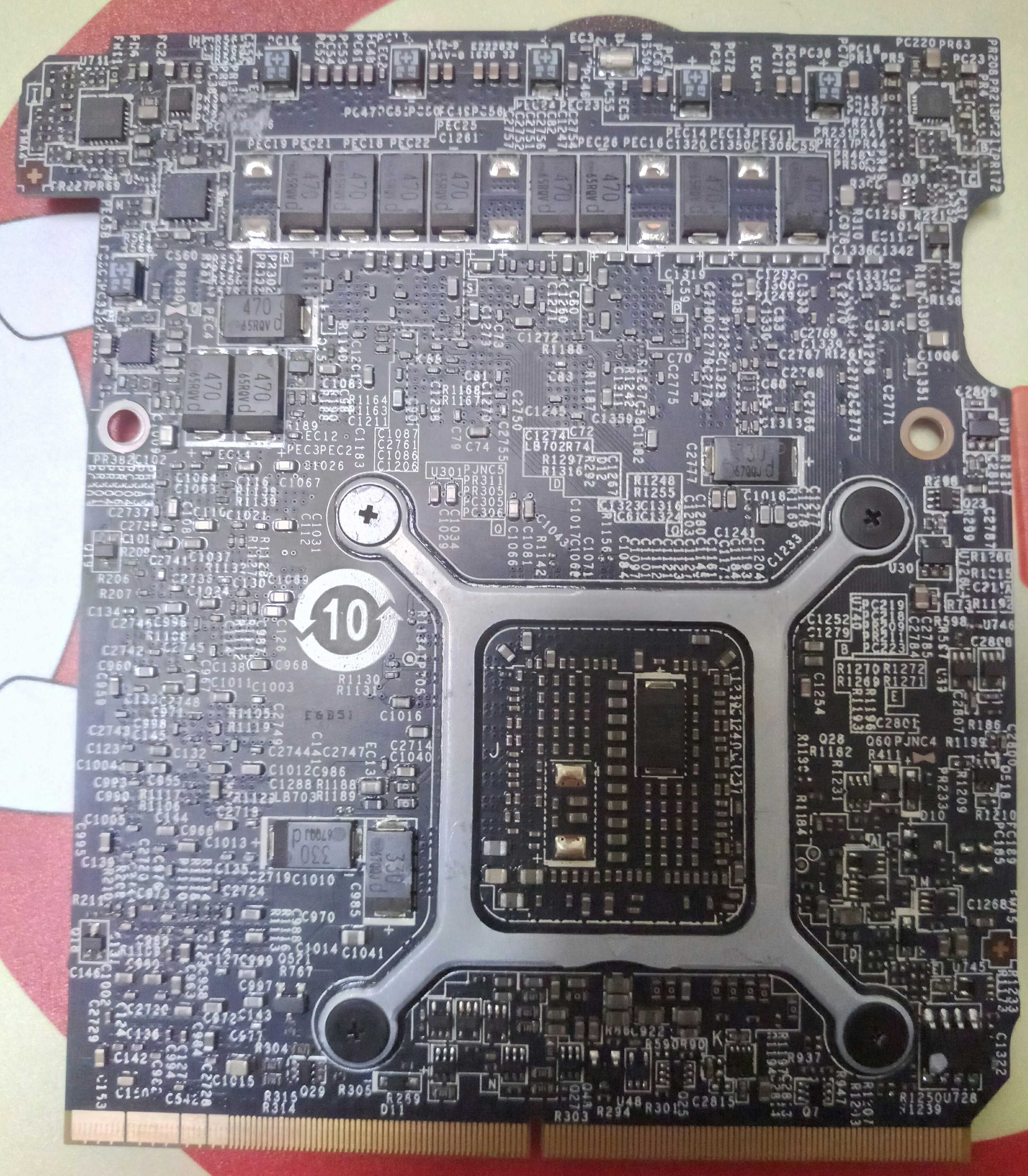

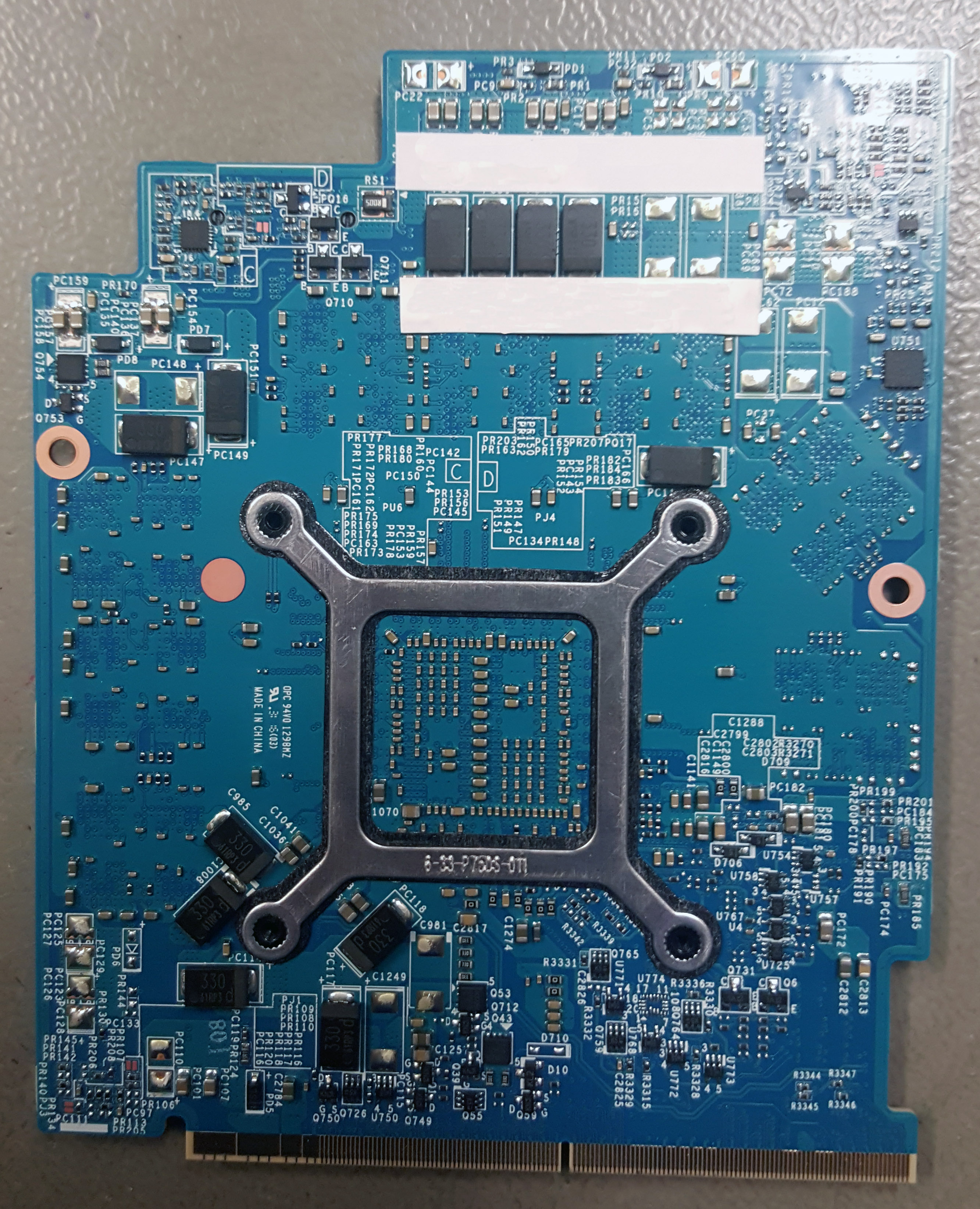

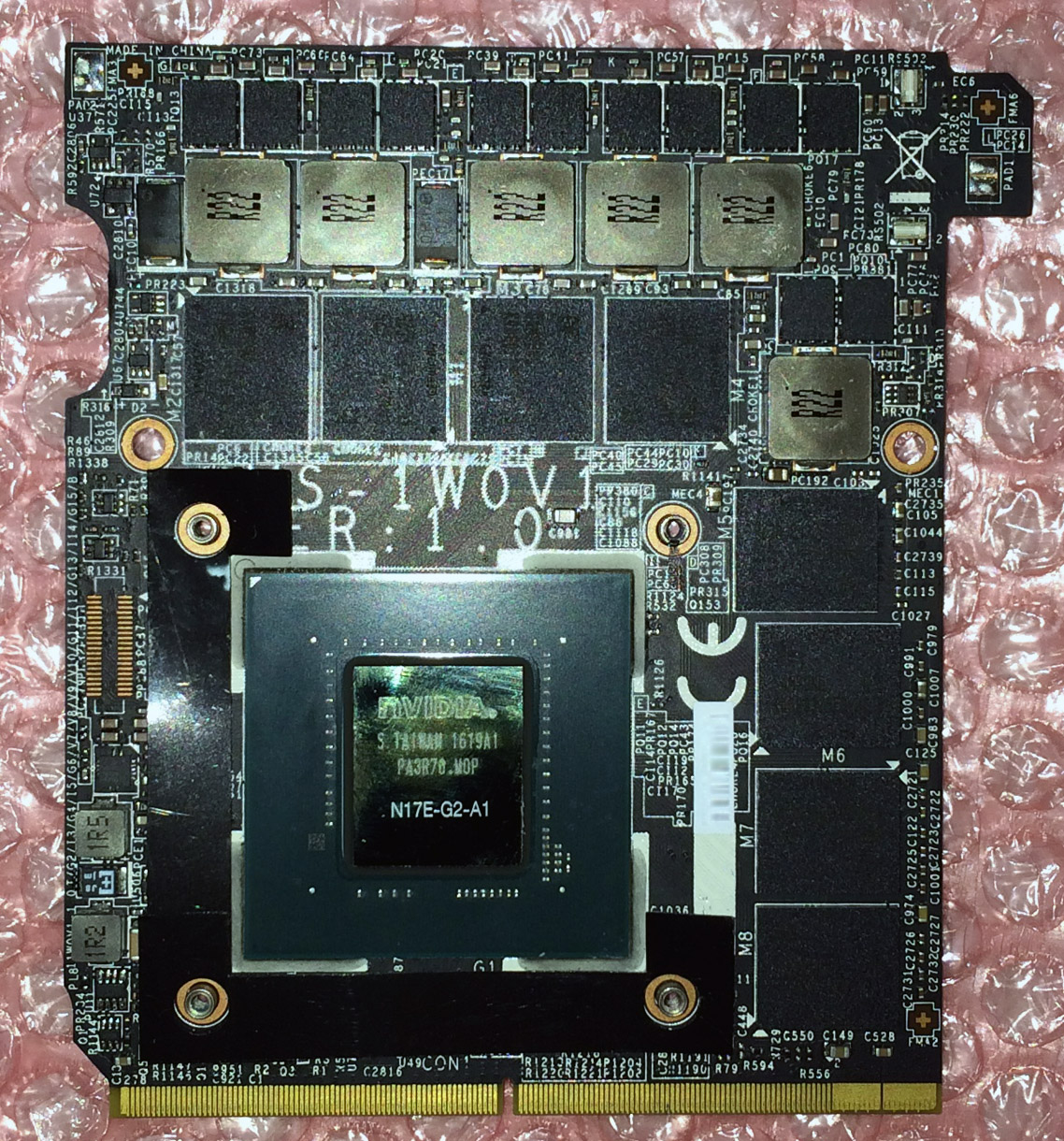

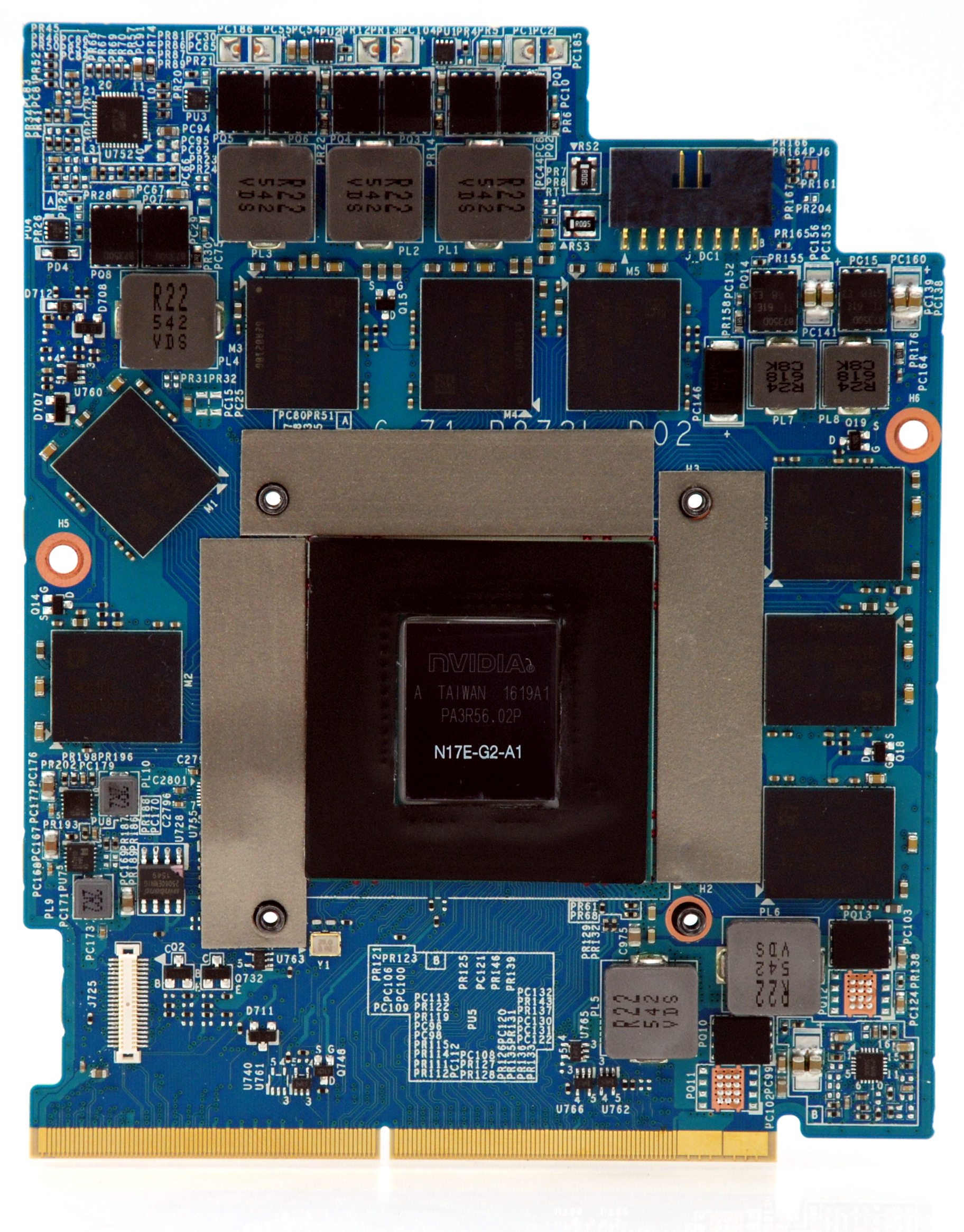

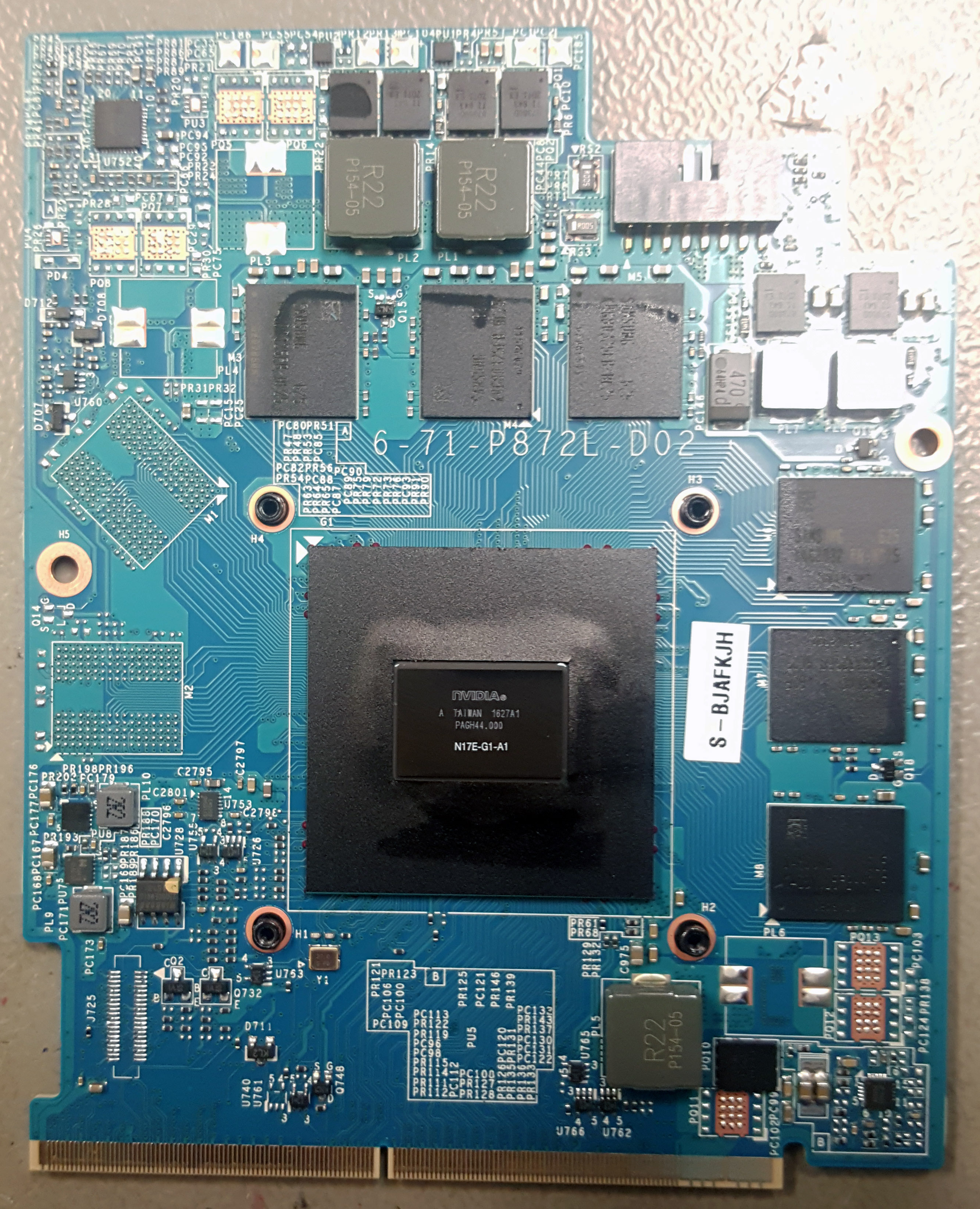

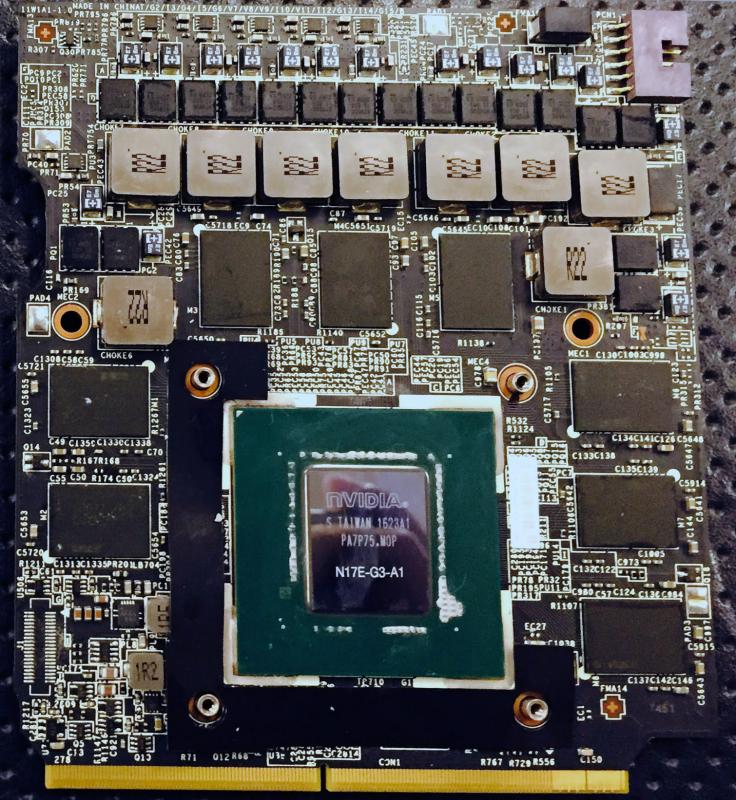

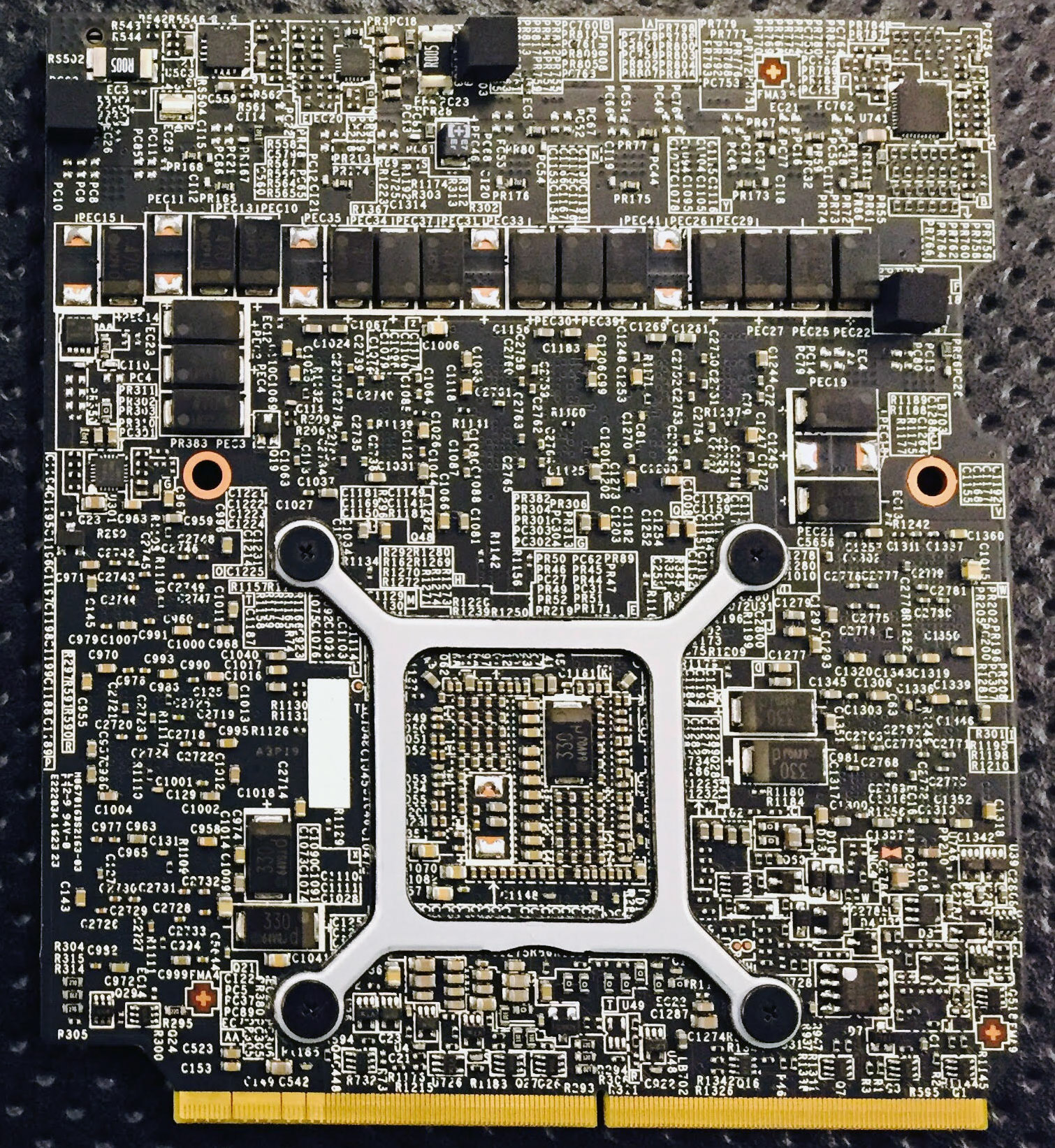

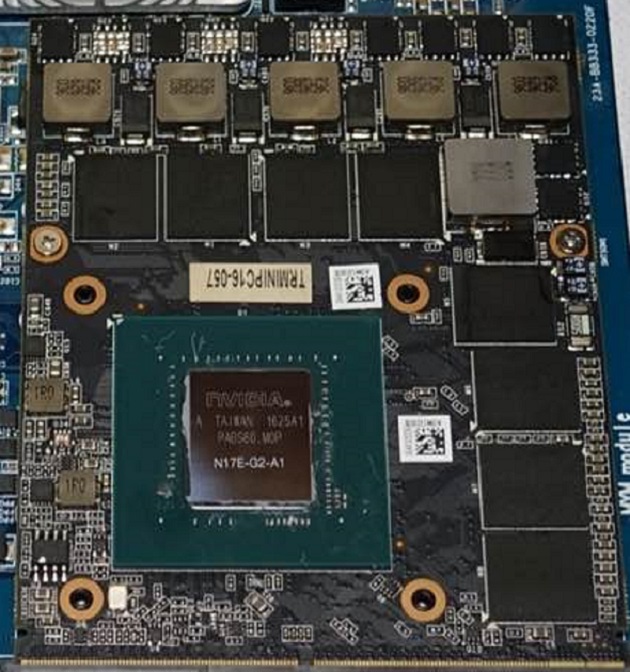

Guest Posted July 7, 2016 Share Posted July 7, 2016 Blaise Pascal N17E-Gx 'MXM III' VERSIONS N17E-G3 / GTX1080 / MXM: - TDP (Core): 125W+ - TGP (MXM): 150W-220W (vendor dependent)- FBW: 256-bit- CUDA: 2560- CORE BASE CLK: 1582Mhz- Turbo: 1771Mhz (Vendor dependent)- vRAM: 8GB GDDR5X- vRAM CLK: 1251Mhz (5005Mhz) CLEVO (SLI) MSI (single) MSI (SLI) N17E-G2 / GTX1070 / MXM: - TDP (Core): 85W - TGP (MXM): 115W- FBW: 256-bit- CUDA: 2048- CORE BASE CLK: 1442Mhz- Turbo: 1645Mhz (Vendor dependent)- vRAM: 8GB GDDR5- vRAM CLK: 2002Mhz (4004Mhz) CLEVO (SLI) MSI (SINGLE) MSI (SLI) - GT73 MSI (SLI) - GT83 Zotac N17E-G1 / GTX1060 / MXM: - TDP (Core): 65W - TGP (MXM): 78W - FBW: 192-bit- CUDA: 1280- CORE BASE CLK: 1405Mhz- Turbo: 1671Mhz (Vendor dependent)- vRAM 6GB GDDR5 (3GB variant option)- vRAM CLK: 2002Mhz (4004Mhz) CLEVO MSI CLEVO REFRESH MODELS P870DM2/3(-G) aka 'PHOENIX 2.0' Processor: • Intel® Core™ i7-6700K processor (14nm, 4.0GHz, DDR4 2133MHz, 8MB Smart cache,TDP: 91W) • Intel® Core™ i5-6600K processor (14nm, 3.5GHz, DDR4 2133MHz, 6MB Smart cache,TDP: 91W) • Intel® Core™ i7-6700 processor (14nm, 3.4GHz, DDR4 2133MHz, 8MB Smart cache,TDP: 65W) • Intel® Core™ i5-6500 processor (14nm, 3.2GHz, DDR4 2133MHz, 6MB Smart cache,TDP: 65W) Support Intel® XTU over-clocking technology depends on CPU SKU (Both of base frequency and ratio) Core Logic: • Intel® Z170 Express Chipset Display • 17.3” (43.94cm) QFHD (3840x2160) / FHD (1920x1080) 16:9 panel, 4.0mm Memory: • Dual channel DDR4 • Four 260 pins SODIMM sockets, support DDR4 2133/2400 MHz ( Real operation frequency depends on processor) • Expandable memory up to 64GB, depends on 4GB/8GB/16GB SODIMM module • Support XMP 2666/3000 MHz (XMP support depends on processor and works in dual channel) Video Controller: • NVIDIA® GeForce GTX 1080 (SLI - DM3) • NVIDIA® GeForce GTX 1070 (SLI) • (NVIDIA® GeForce GTX 1060) (optional/single) Storage: • Two changeable 2.5” 7mm/9.5mm(H) HDD/SSD, SATA interface (RAID 0/1) • (Factory Option) Two M.2 2280 SSD SATA/PCIe Gen3 x4 interface (RAID 0/1) Audio: • High Definition Audio • S/PDIF digital output • Built in array microphone • Built in two speakers • Built in one subwoofer speaker • ESS™ SABRE HiFi DAC for high resolution headphone audio • SOUND BLASTER® X-FI® MB5 • External 7.1CH audio output supported by headphone and S/PDIF combo, microphone, Line-in and Line-out jacks Keyboard and Pointing Device: • Multi languages full color illuminated full size keyboard with numeric pad and anti-ghost keys • Built in Secure pad with Microsoft PTP multi-gesture and scrolling function • W/A/S/D gaming key I/O ports: • 5 x USB 3.0 ports (USB3.1 Gen1, 1 x powered USB port, AC/DC) • 2 x USB 3.1 Gen2 / Thunderbolt™ 3 combo port (Type-C) • 2 x Mini Displayport 1.3 • 1 x HDMI™ output port (with HDCP) • 1 x Headphone and S/PDIF combo jack • 1 x Microphone jack • 1 x Line-out jack • 1 x Line-in jack • 2 x RJ-45 LAN port (Killer DoubleShot-X3™ Pro with Killer™ Wireless-AC 1535 module) • 1 x DC-in jack Card Reader: • 6-in-1 Push-Push Card reader - MMC / RSMMC - SD / mini SD / SDHC / SDXC up to UHS-ll Slots: • Three M.2 card slots -1st for WLAN Combo M.2 2230 Card with PCIex2 and USB interface (A key) -2nd for SSD M.2 2280 Card with SATA / PCIe Gen3 x4 interface (M key) -3rd for SSD M.2 2280 Card with SATA / PCIe Gen3 x4 interface (M key) Communication: • Built in Qualcomm® 10/100/1000Mb Base-TX Ethernet LAN • (Factory Option) Intel® Dual Band Wireless-AC 8260, 2x2 AC +BT M.2 2230 (Snowfield Peak) • (Factory Option) Intel® Wireless-N 7265, 2x2 BGN +BT M.2 2230 (Stone Peak 2) • (Factory Option) Intel® Dual Band Wireless-AC 3165, 1x1 AC +BT M.2 2230 (Stone Peak 1) • (Factory Option) Qualcomm® Atheros Killer™ Wireless-AC 1535 Dual Band 2x2 AC +BT M.2 2230 • (Factory Option) Intel Tri-Band Wireless-AC 18260, 802.11AC/AD + Bluetooth v4.1+LE Combo M.2 2230 (Douglas Peak) • 2.0M FHD video camera Power Supply: • Two Full Range AC adapter, AC in 100~240V, 50~60Hz - 2x 230W, 11.8A with Power Converter Box AC-200 (DM2) - 2x 330W, 16.9A with Power Converter Box AC-200 (DM3) • Embedded 8 cells Smart Lithium-lon battery pack, 89WH • Battery life: 180 minutes (With single VGA card, 89WH Battery) Security: • Kensington® Lock • Area finger print • TPM 2.0 Dimension: • 428(W) x 308(D) x 47.2(H) mm Weight: • 4.8kg, Including Barebone, single VGA card and 89WH Battery (DM2) • 5.5kg, Including Barebone, single VGA card and 89WH Battery (DM3) COOLING SLI LARGE aka 'The Grid' (DM3) DUAL (SLI) SINGLE LARGE MOTHERBOARD P775DM2/3(-G) aka 'WINGMAN 2.0' Processor: • Intel® Core™ i7-6700K processor (14nm, 4.0GHz, DDR4 2133MHz, 8MB Smart cache,TDP: 91W) • Intel® Core™ i5-6600K processor (14nm, 3.5GHz, DDR4 2133MHz, 6MB Smart cache,TDP: 91W) • Intel® Core™ i7-6700 processor (14nm, 3.4GHz, DDR4 2133MHz, 8MB Smart cache,TDP: 65W) • Intel® Core™ i5-6500 processor (14nm, 3.2GHz, DDR4 2133MHz, 6MB Smart cache,TDP: 65W) Support Intel® XTU over-clocking technology depends on CPU SKU (Both of base frequency and ratio) Core Logic: • Intel® Z170 Express Chipset Display • 17.3” (43.94cm) QFHD (3480x2160) / FHD (1920x1080) 16:9 panel, 4.0mm Memory: • Dual channel DDR4 • Four 260 pins SODIMM sockets, support DDR4 2133/2400 MHz (Real operation frequency depends on processor) • Expandable memory up to 64GB, depends on 4GB/8GB/16GB SODIMM module • Support XMP 2666/3000 MHz (XMP support depends on processor and works in dual channel) Video Controller: • NVIDIA® GeForce GTX 1080 (DM3) • NVIDIA® GeForce GTX 1070 • NVIDIA® GeForce GTX 1060 Storage: • Two changeable 2.5” 7mm/9.5mm(H) HDD/SSD, SATA interface (RAID 0/1) • (Factory Option) Two M.2 2280 SSD SATA/PCIe Gen3x4 interface (RAID 0/1) Audio: • High Definition Audio • S/PDIF digital output • Built in array microphone • Built in two speakers • Built in one subwoofer speaker • SOUND BLASTER® X-FI® MB5 • ESS™ SABRE HiFi DAC for high resolution headphone audio • External 7.1CH audio output supported by 2-in-1 Audio, Microphone, Line-in and Line-out jacks Keyboard and Pointing Device: • Multi languages full color illuminated full size keyboard with numeric pad and anti-ghost keys • Built in Secure pad with Microsoft PTP multi-gesture and scrolling function • W/A/S/D gaming key I/O ports: • 4 x USB 3.0 ports (USB3.1 Gen1) (1 x powered USB port, AC/DC) • 1 x USB 3.1 Gen2 port (Type-C) • 1 x USB 3.1 Gen2 / Thunderbolt™ 3 combo port (Type-C) • 2 x Mini DisplayPort 1.3 • 1 x HDMI™ output port (with HDCP) • 1 x 2-in-1 Audio jack (Heandphone / S/PDIF optical output) • 1 x Microphone jack • 1 x Line-out jack • 1 x Line-in jack • 1 x RJ-45 LAN port (DoubleShot™ Pro with Killer™ Wireless-AC 1535 module) • 1 x DC-in jack Card Reader: • 6-in-1 Push-Push Card reader - MMC / RSMMC - SD / mini SD / SDHC / SDXC up to UHS-ll Slots: • Three M.2 card slots -1st for WLAN Combo M.2 2230 Card with PCIex2 and USB interface (A key) -2nd for SSD M.2 2280 Card with SATA / PCIe Gen3x4 interface (M key) -3rd for SSD M.2 2280 Card with SATA / PCIe Gen3x4 interface (M key) Communication: • Built in Qualcomm® 10/100/1000Mb Base-TX Ethernet LAN • (Factory Option) Intel® Dual Band Wireless-AC 8260, 2x2 AC +BT M.2 2230 (Snowfield Peak) • (Factory Option) Intel® Wireless-N 7265, 2x2 BGN +BT M.2 2230 (Stone Peak 2) • (Factory Option) Intel® Dual Band Wireless-AC 3165, 1x1 AC +BT M.2 2230 (Stone Peak 1) • (Factory Option) Qualcomm® Atheros Killer™ Wireless-AC 1535 Dual Band 2x2 AC +BT M.2 2230• (Factory Option) Intel Tri-Band Wireless-AC 18260, 802.11AC/AD + Bluetooth v4.1+LE Combo M.2 2230 (Douglas Peak) • 2.0M FHD video camera Power Supply: • Full Range AC adapter, AC in 100~240V, 50~60Hz - 330W, 11.8A (DM3) - 230W, 16.9A (DM2) • Removable 8 cells Smart Lithium-lon battery pack, 82WH • Battery life: 150 minutes (VGA card with 82WH Battery) Security: • Kensington® Lock • Area finger print • TPM 2.0 Dimension: • 418(W) x 295.3(D) x 40.9(H) mm Weight: • 3.9Kg, Including Barebone, VGA card and 82WH Battery (with FHD panel) • 4.3Kg, Including Barebone, VGA card and 82WH Battery (with QFHD panel) COOLING P75xDM2(-G) aka 'BATMAN 3.0' Processor: • Intel® Core™ i7-6700K processor (14nm, 4.0GHz, DDR4 2133MHz, 8MB Smart cache,TDP: 91W) • Intel® Core™ i5-6600K processor (14nm, 3.5GHz, DDR4 2133MHz, 6MB Smart cache,TDP: 91W) • Intel® Core™ i7-6700 processor (14nm, 3.4GHz, DDR4 2133MHz, 8MB Smart cache,TDP: 65W) • Intel® Core™ i5-6500 processor (14nm, 3.2GHz, DDR4 2133MHz, 6MB Smart cache,TDP: 65W) Support Intel® XTU over-clocking technology depends on CPU SKU (Both of base frequency and ratio) Core Logic: • Intel® Z170 Express Chipset Display • 15.6” (39.62cm) QFHD (3840x2160) / FHD (1920x1080) 16:9 panel, 3.2mm Memory: • Dual channel DDR4 • Four 260 pins SODIMM sockets, support DDR4 2133/2400 MHz ( Real operation frequency depends on processor) • Expandable memory up to 64GB, depends on 4GB/8GB/16GB SODIMM module • Support XMP 2666/3000 MHz (XMP support depends on processor and works in dual channel) Video Controller: • NVIDIA® GeForce GTX 1070 • NVIDIA® GeForce GTX 1060 Storage: • Two changeable 2.5” 7mm/9.5mm(H) HDD/SSD, SATA interface (RAID 0/1) • (Factory Option) Two M.2 2280 SSD SATA/PCIe Gen3x4 interface (RAID 0/1) Audio: • High Definition Audio • S/PDIF digital output • Built in array microphone • Built in two speakers • SOUND BLASTER® X-FI® MB5 • ESS™ SABRE HiFi DAC for high resolution headphone audio • External 7.1CH audio output supported by headphone and S/PDIF combo, microphone, Line-in and Line-out jacks Keyboard and Pointing Device: • Multi languages full color illuminated full size keyboard with numeric pad and anti-ghost keys • Built in Secure pad with multi-gesture and scrolling function • W/A/S/D gaming key I/O ports: • 1 x USB 2.0 port • 3 x USB 3.0 ports (USB3.1 Gen1) (1 x powered USB port, AC/DC) • 1 x USB 3.1 Gen2 port (Type-C) • 1 x USB 3.1 Gen2 / Thunderbolt™ 3 combo port (Type-C) • 2 x Mini DisplayPort 1.3 • 1 x HDMI™ output port (with HDCP) • 1 x Headphone and S/PDIF combo jack • 1 x Microphone jack • 1 x Line-in jack • 1 x RJ-45 LAN port (DoubleShot™ Pro with Killer™ Wireless-AC 1535 module) • 1 x DC-in jack Card Reader: • 6-in-1 Push-Push Card reader - MMC / RSMMC - SD / mini SD / SDHC / SDXC up to UHS-ll Slots: • Four M.2 card slots -1st for WLAN Combo M.2 2230 Card with PCIex2 and USB interface (A key) -2nd for SSD M.2 2280 Card with SATA / PCIe Gen3 x4 interface (M key) -3rd for SSD M.2 2280 Card with SATA / PCIe Gen3 x4 interface (M key) -4th for LTE or UMTS/HSPA+ M.2 3042 Card with USB interface(B key) Note:(Factory Option) LTE-1 or 802.11AD antenna Communication: • Built in Qualcomm® 10/100/1000Mb Base-TX Ethernet LAN • (Factory Option) Intel® Dual Band Wireless-AC 8260, 2x2 AC +BT M.2 2230 (Snowfield) • (Factory Option) Intel® Wireless-N 7265, 2x2 BGN +BT M.2 2230 (Stone Peak 2) • (Factory Option) Intel® Dual Band Wireless-AC 3165, 1x1 AC +BT M.2 2230 (Stone Peak 1) • (Factory Option) Qualcomm® Atheros Killer™ Wireless-AC 1535 Dual Band 2x2 AC +BT M.2 2230• (Factory Option) Intel Tri-Band Wireless-AC 18260, 802.11AC/AD + Bluetooth v4.1+LE Combo M.2 2230 (Douglas Peak) • (Factory Option) UMTS/HSPA+ M.2 3042 Card module • (Factory Option) LTE M.2 3042 Card module • 2.0M FHD video camera Power Supply: • Full Range AC adapter, AC in 100~240V, 50~60Hz, DC output 19.5V, 11.8A, 230W • Removable 8 cells Smart Lithium-lon battery pack, 82WH • Battery life: 150 minutes (VGA card card, 82WH Battery) Security: • Kensington® Lock • Area finger print • TPM 2.0 Dimension: • 386(W) x 262(D) x 38(H) mm Weight: • 3.4 kg Including Barebone, VGA card and 82WH Battery COOLING P6xxRS/RP6(-G) aka 'ROBIN 2.0' Processor: • Intel® Core™ i7-6820HK processor (14nm, 2.7GHz, DDR4 2133MHz, 8MB Smart cache, TDP: 45W) • Intel® Core™ i7-6700HQ processor (14nm, 2.6GHz, DDR4 2133MHz, 6MB Smart cache, TDP: 45W) Support CPU over-clocking on i7-6820HK Core Logic: •Mobile Intel® HM170 Express Chipset Display: • 15.6” (39.62cm) QFHD (3840x2160) / FHD (1920x1080) 16:9 panel, 3.5mm (P650Rx) • 17.3” (43.94cm) FHD (1920x1080) 16:9 panel, 6.2mm (P670Rx) Memory: • Dual channel DDR4 • Four 260 pins SODIMM sockets, support DDR4 2133/2400 MHz ( Real operation frequency depends on processor) • Expandable memory from 8GB to 64GB, depends on 4GB/8GB/16GB SODIMM module • Support XMP 2666 MHz (XMP support depends on processor and works in dual channel) Video Controller:• NVIDIA® GeForce GTX 1070 (RS) • NVIDIA® GeForce GTX 1060 (RP6) • Intel® HD Graphics 530 - Dynamic frequency - Intel Dynamic Video Memory Technology - Microsoft DirectX® 12 compatible • Microsoft Hybrid Graphics mode or dGPU Mode • Support 4 active displays • Support NVIDIA® Surround View via HDMI x1 and miniDP x2 Storage: • Two changeable 2.5” 7mm(H) HDD/SSD (RAID 0/1), or One changeable 2.5” 9.5mm(H) HDD/SSD, SATA interface • (Factory Option) Two M.2 2280 SSD, SATA interface (RAID 0/1) or One M.2 2280 SSD. PCIe Gen3x4 interface Audio: • High Definition Audio • S/PDIF digital output • Built in array microphone • Built in two 2W speakers • SOUND BLASTER® X-FI® MB5 • External 5.1CH audio output supported by 2-in-1 Audio,microphone,and Line-out jacks • ESS™ SABRE HiFi DAC for high resolution headphone audio (P6xxRS)• ANSP™ 3D sound technology on headphone output (P6xxRP6) Keyboard and Pointing Device: • Multi languages white-LED illuminated full size keyboard with numeric pad • (Factory Option)Multi languages full color illuminated full size keyboard with numeric pad • Built in touch pad with Microsoft PTP multi-gesture and scrolling function • W/A/S/D gaming key I/O ports: • 2 x USB 3.1 Gen 2 port (Type-C) • 3 x USB 3.0 ports (USB3.1 Gen1, 1 x powered USB port, AC/DC) • 2 x Mini Display port 1.3 • 1 x HDMI™ output port (with HDCP) • 1 x 2-in-1 Audio Jack (Headphone / S/PDIF Coaxial output) • 1 x Microphone jack • 1 x Line out jack • 1 x RJ-45 LAN port • 1 x DC-in jack Card Reader: • 6-in-1 Push-Push Card reader - MMC / RSMMC - SD / mini SD / SDHC / SDXC Slot: • Three M.2 card slots -1st for WLAN Combo M.2 2230 Card with PCIex2 and USB interface (A key) -2nd for SSD M.2 2280 Card with SATA / PCIe Gen3x4 interface (M key) -3rd for SSD M.2 2280 Card with SATA or LTE/UMTS/HSPA+ M.2 3042 Card with USB interface (B key)Note: (Factory Option) LTE or 802.11AD antenna Communication: • Built in 10/100/1000Mb Base-TX Ethernet LAN • (Factory Option) Intel® Dual Band Wireless-AC 8260, 2x2 AC +BT M.2 2230 (Snowfield) • (Factory Option) Intel® Wireless-N 7265, 2x2 BGN +BT M.2 2230 (Stone Peak 2) • (Factory Option) Intel® Dual Band Wireless-AC 3165, 1x1 AC +BT M.2 2230 (Stone Peak 1) • (Factory Option) Qualcomm® Atheros Killer™ Wireless-AC 1535 Dual Band 2x2 AC +BT M.2 1630• (Factory Option) Intel Tri-Band Wireless-AC 18260, 802.11AC/AD + Bluetooth v4.1+LE Combo M.2 2230 (Douglas Peak)• (Factory Option) UMTS/HSPA+ M.2 3042 Card module (P65x)• (Factory Option) LTE M.2 3042 Card module (P65x)• 2.0M FHD video camera Power Supply: • Full Range AC adapter, AC in 100~240V, 50~60Hz, DC output 19V, 10.5A , 200W (RP6) • Full Range AC adapter, AC in 100~240V, 50~60Hz DC output 19V, 16.9A , 230W (RS) • Embedded 4 cells Polymer battery pack, 60WH • Battery life: 325 minutes (with UMA mode, 60WH Battery) (RP6) • Battery life: 285 minutes (with UMA mode, 60WH Battery) (RS) Security: • Kensington® Lock • Intel ® PTT for system without hardware TPM • (Factory Option) Finger print • (Factory Option) TPM 2.0 Design: • Al-alloy Dimension: • 385(W) x 271(D) x 28.8(H) mm (P650RS) • 385(W) x 271(D) x 25.4(H) mm (P65xRP6) • 385(W) x 271(D) x 27.3(H) mm (P655RP6) • 417(W) x 287(D) x 29.98(H) mm (P670Rx) Weight:• 2.6Kg, Including Barebone and 60WH Battery (P650Rx) • 2.7Kg, Including Barebone and 60WH Battery (P655RP6) • 3.2Kg, Including Barebone and 60WH Battery (P670Rx) COOLING P65xRP6 (GPU) (CPU) P67xRx & P65xRS This post has been promoted to an article Quote Link to comment Share on other sites More sharing options...
Guest Posted August 15, 2016 Share Posted August 15, 2016 @ Everyone with a Clevo mobile 1080, 1070, 1060: For the Mod I would like all cards to reach (and hold) the same base performance and for that I need to build a database of the currently sold stock spectrum! Please run a GPU-Z (use only latest version) render test @ stock clocks after running FULL FAN for at least 30s (FN+1): Record the GPU-Z log while doing so and PM me this log file (would probably miss it in this thread)! FOR SLI OWNER: nVidia Control Panel --> Manage 3D settings --> Program settings --> Add --> TechPowerUp GPU-Z (gpu-z.exe) --> SLI rendering mode change to Force Alternate Frame Rendering 2 --> Apply - Open two GPU-Zs - Set one to top card, set second to bottom card (The drop down arrow). - Set both to log to file. - Run PCI/e render test, acquire logs after a minimum of 30 seconds. Quote Link to comment Share on other sites More sharing options...

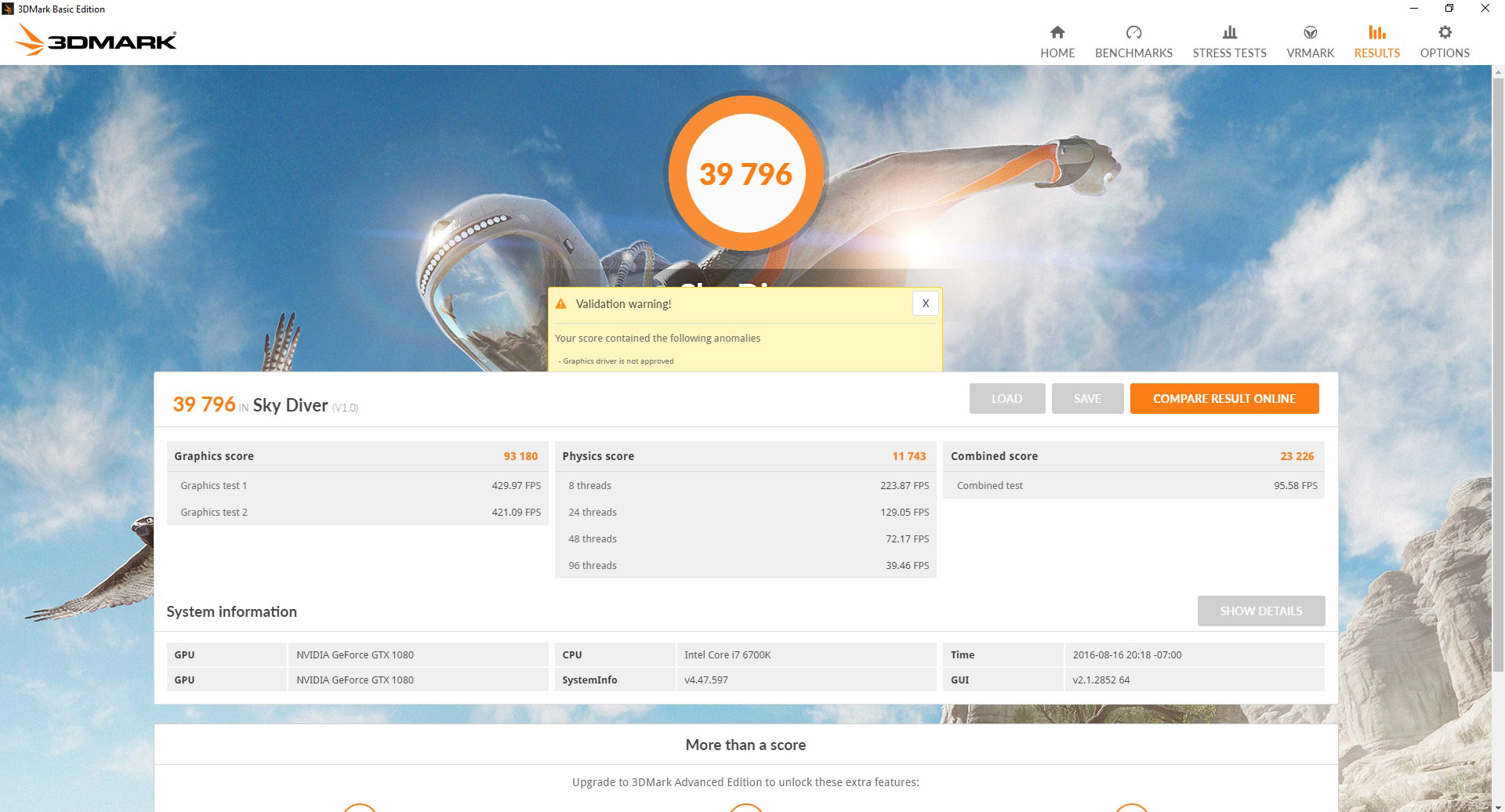

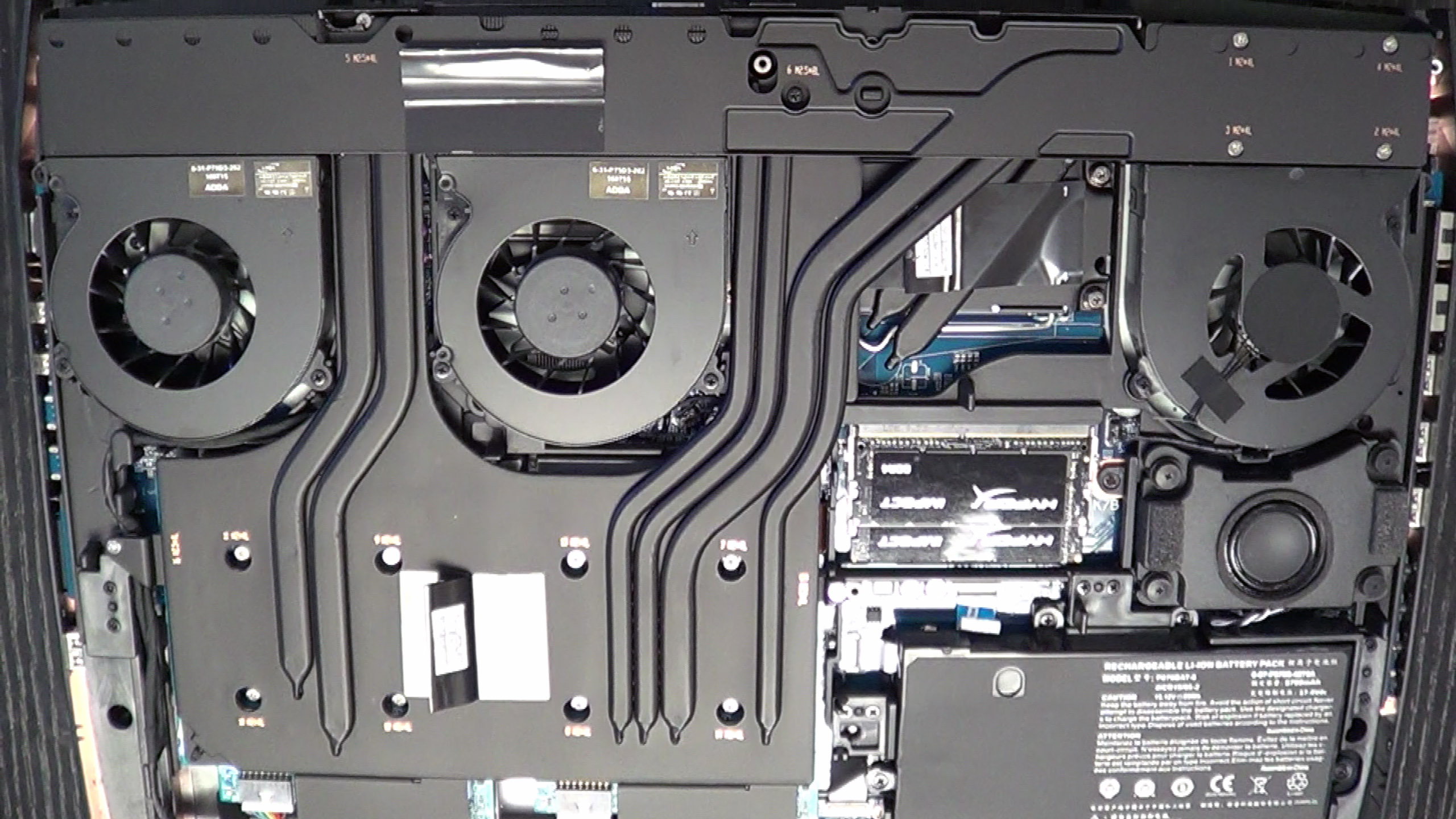

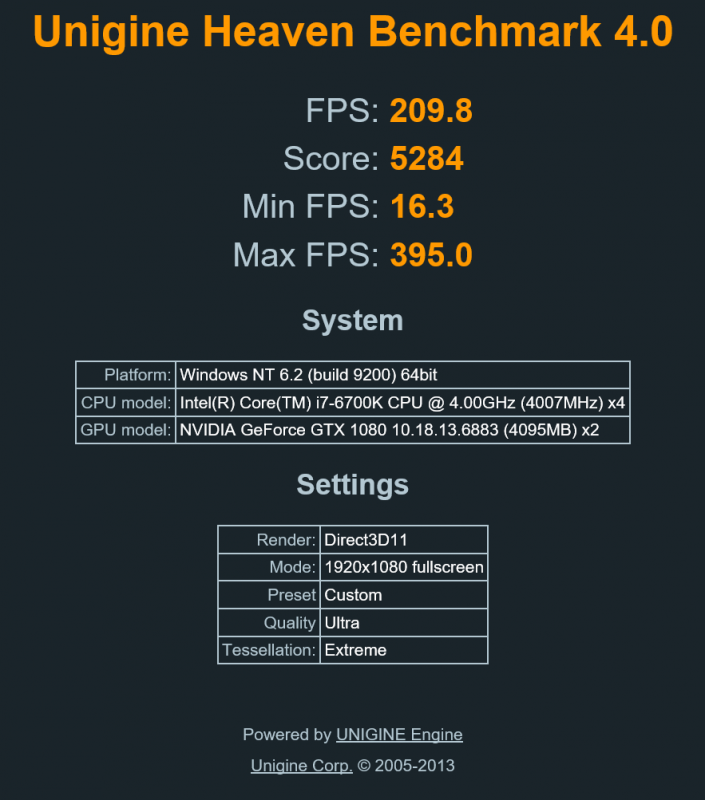

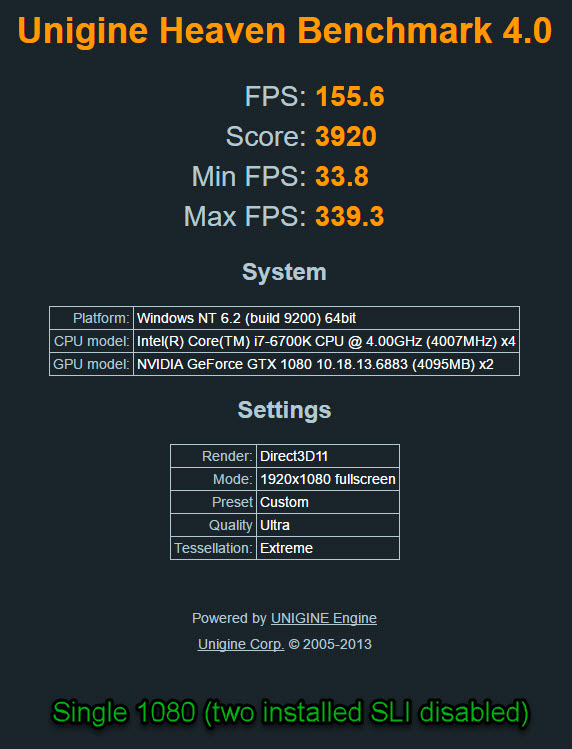

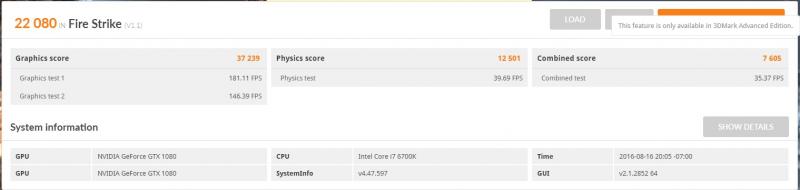

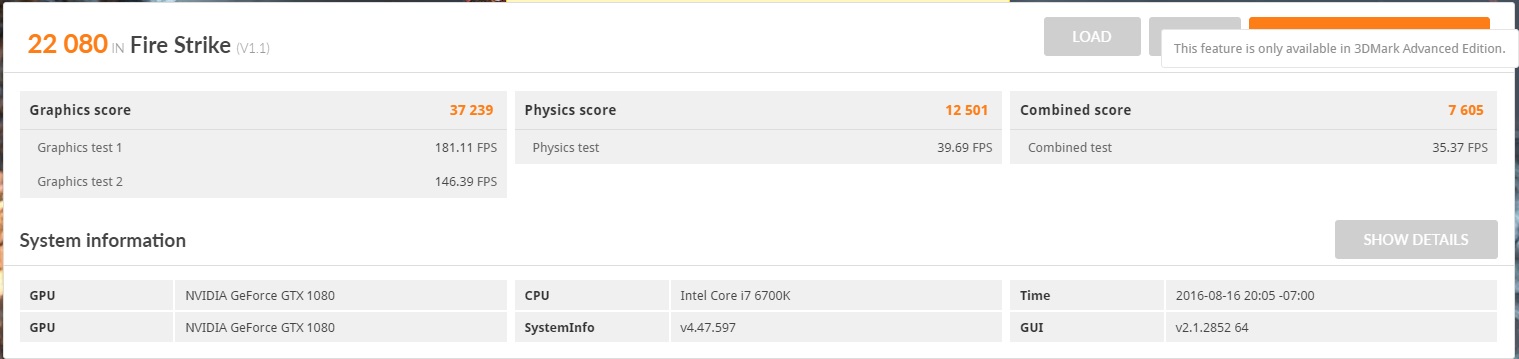

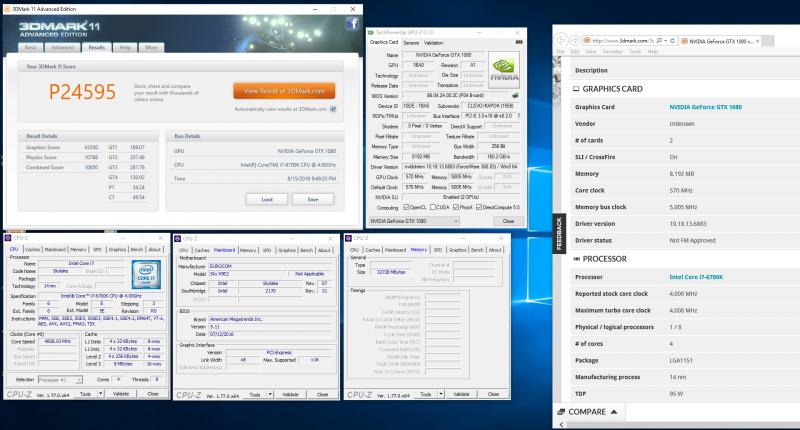

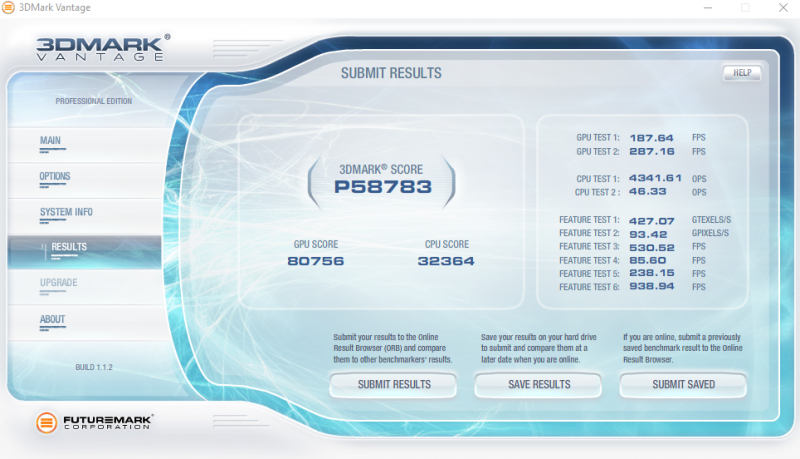

Guest Posted August 16, 2016 Share Posted August 16, 2016 So, now that you have seen more of what's offered out there, thanks to Brother @Prema, let's have a closer looks at what is really offered... performance results. Below are a few stock benchmarks for everyone to drool over. Sorry there are not more examples. We will add them as they become available. (I have specifically requested examples for Fire Strike, Time Spy and Sky Diver benchmarks.) PHOENIX 2.0 - 1080 SLI - Stock Benches (Updated) PHOENIX 2.0 - Single 1080 (SLI Disabled) - Stock Benches Spoiler (Please hold your thoughts about single 1080 versus 1080 SLI until we have more than one benchmark to look at.) Here is a quick video of the machine that donated the initial round of benchmarks for us to look at. Kudos to Eurocom for giving us some special things to share at launch! I think you may find something interesting under the hood. Quote Link to comment Share on other sites More sharing options...

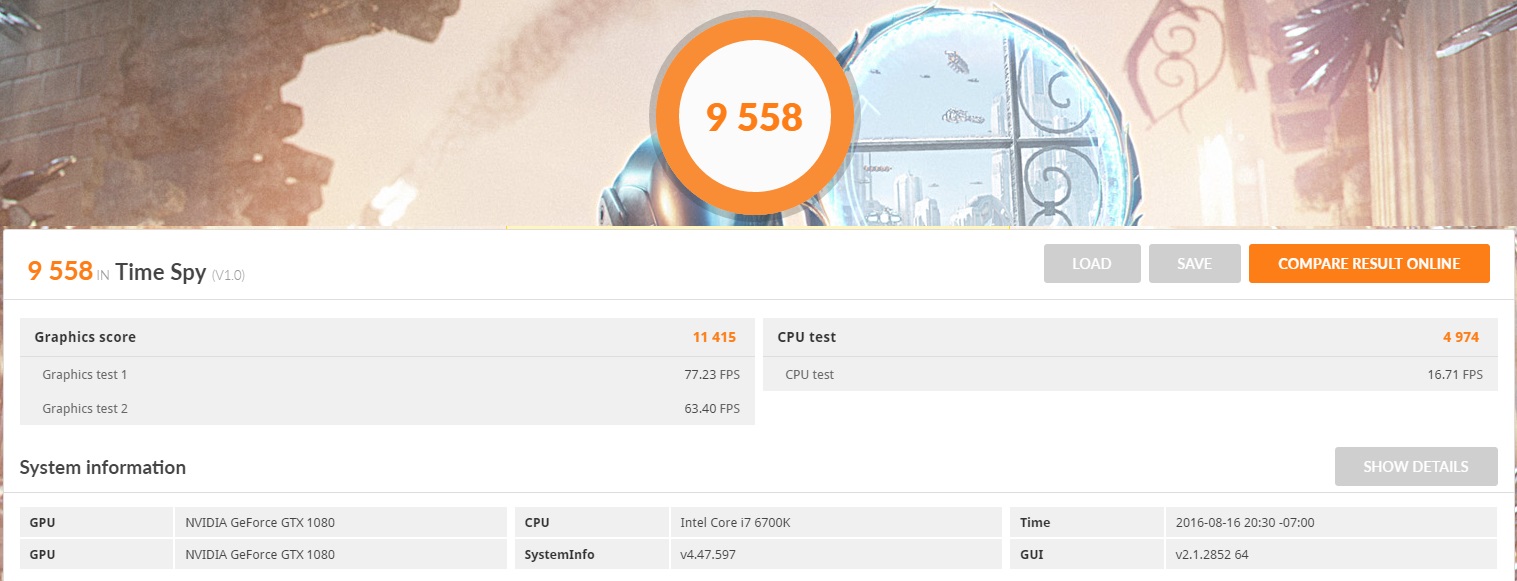

Guest Posted August 16, 2016 Share Posted August 16, 2016 Will reserve this post for new content as more details become available. PHOENIX 2.0 - GTX 1080 SLI - TimeSpy @ stock: http://www.3dmark.com/spy/281222 PHOENIX 2.0 - GTX 1080 SLI Firestrike @ stock: http://www.3dmark.com/fs/9788207 PHOENIX 2.0 - GTX 1080 SLI 3DM11 Extreme @ stock: http://www.3dmark.com/3dm11/11499181 PHOENIX 2.0 - GTX 1080 SLI Firestrike OC @ stock vBIOS: http://www.3dmark.com/fs/9794614 Quote Link to comment Share on other sites More sharing options...
johnksss Posted August 16, 2016 Share Posted August 16, 2016 (edited) Nice! Now, who to order from. Edit: Ordered. Edited August 16, 2016 by johnksss 3 Quote Link to comment Share on other sites More sharing options...

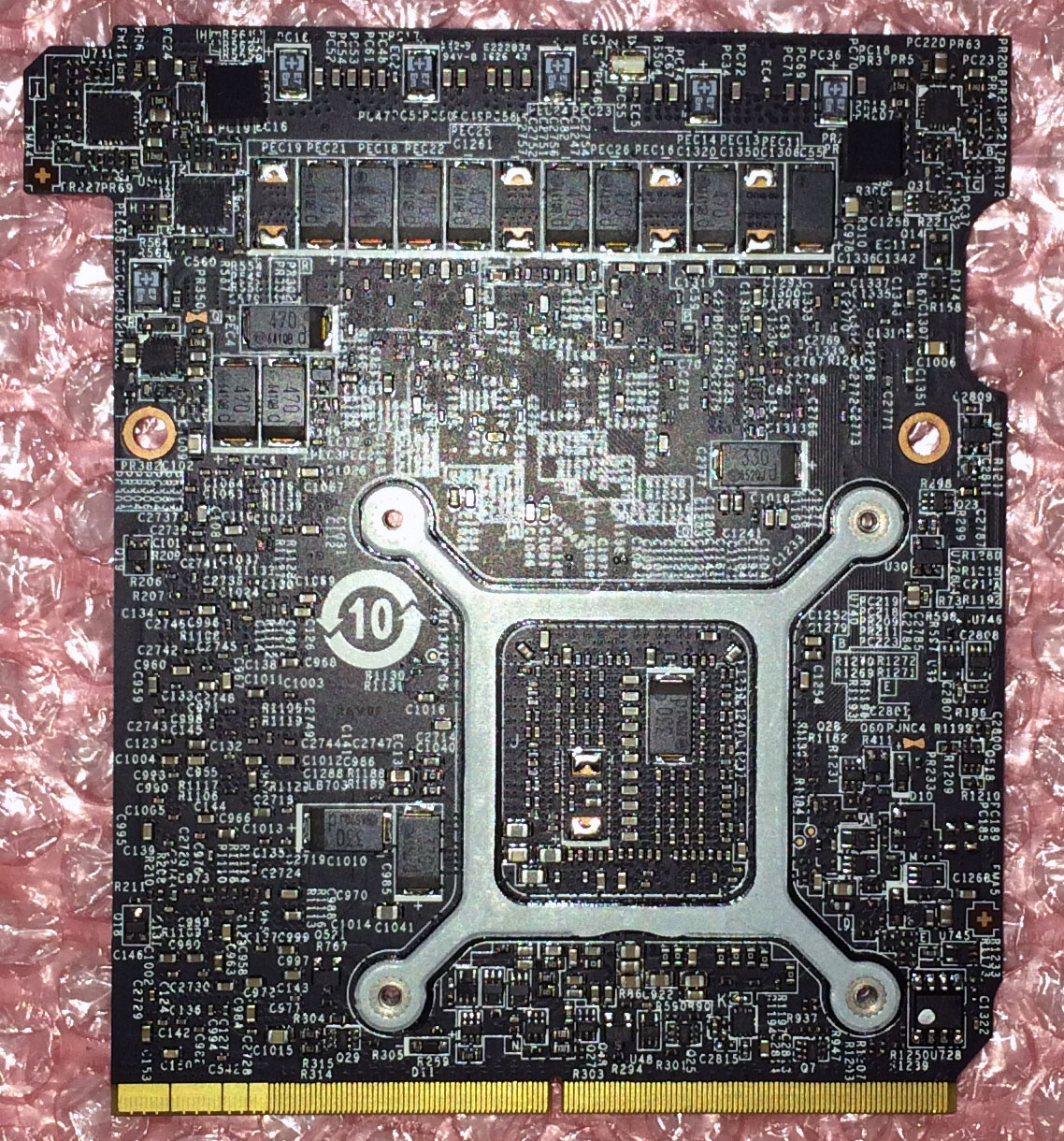

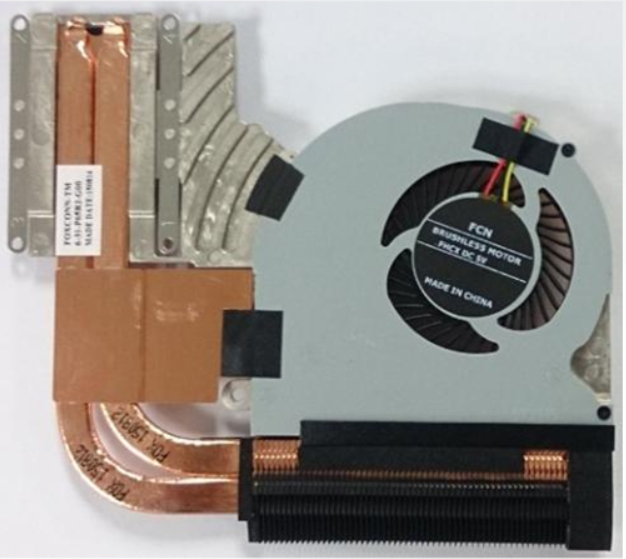

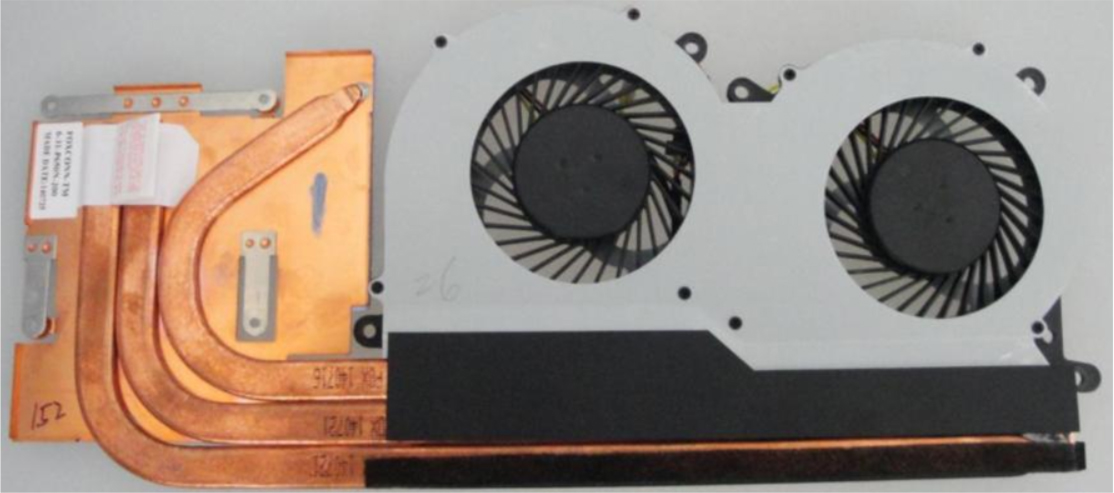

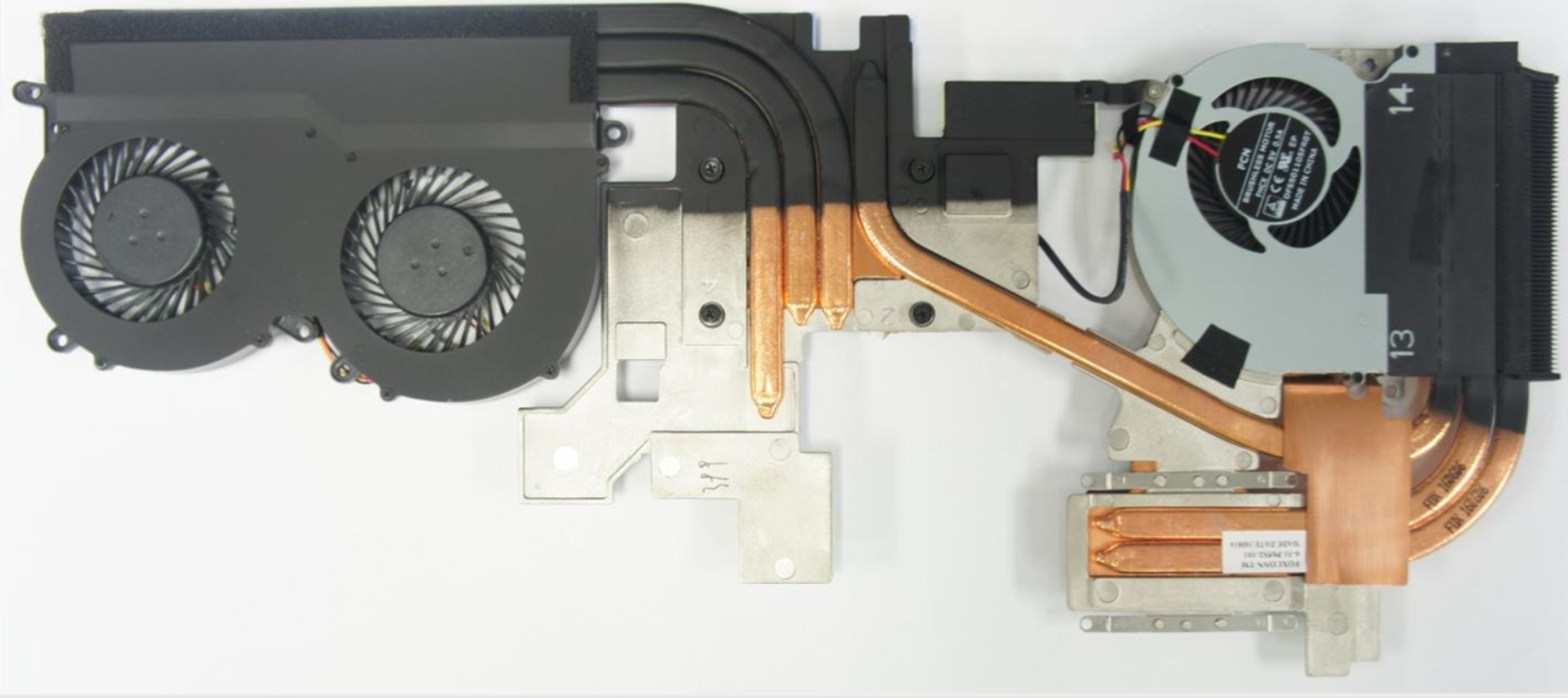

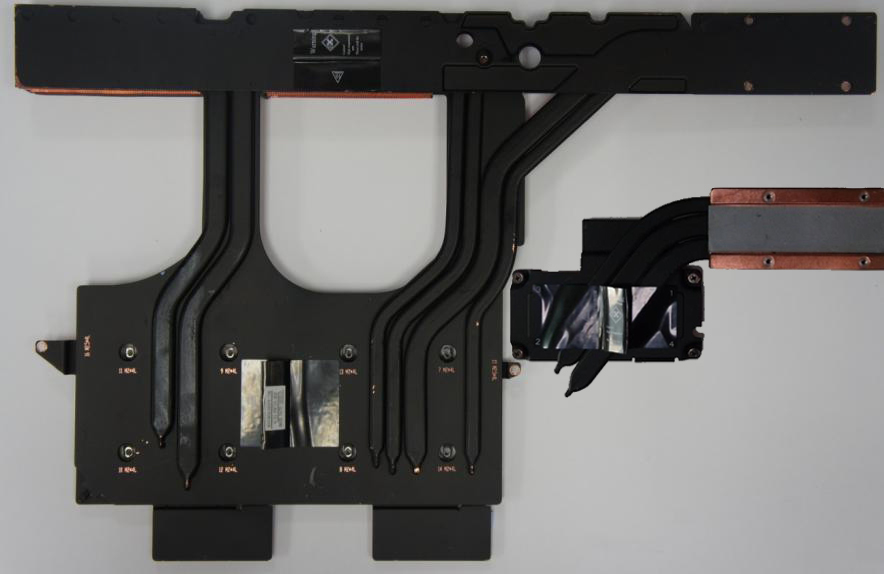

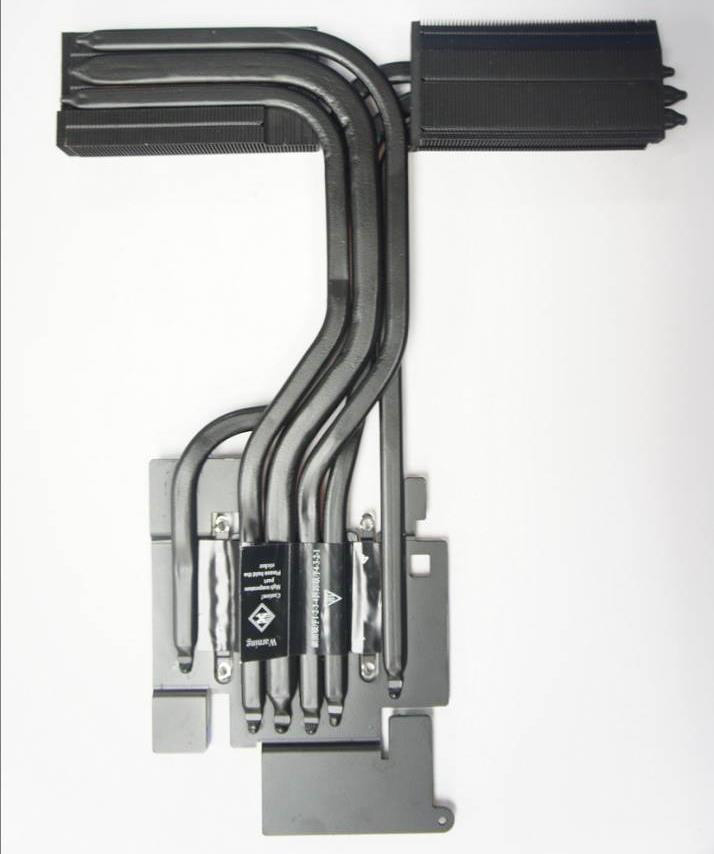

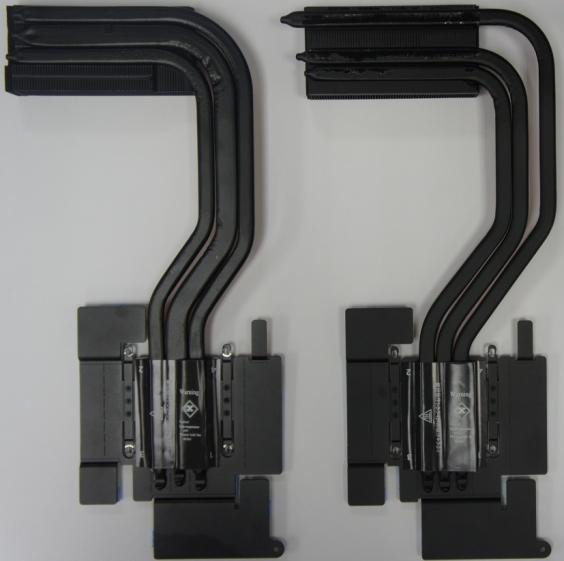

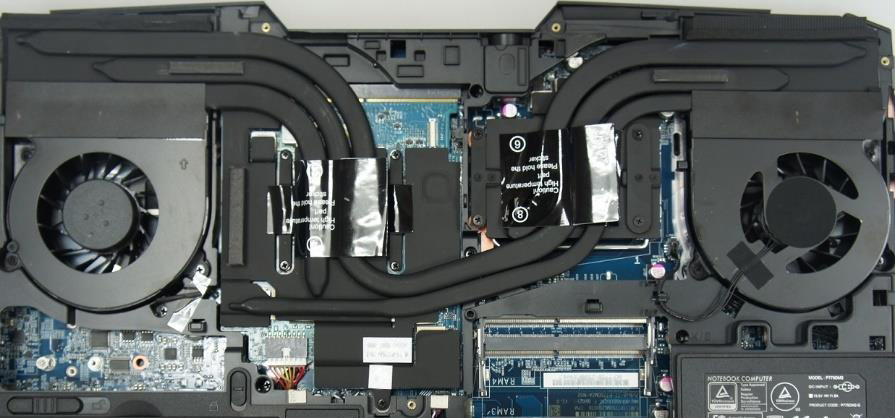

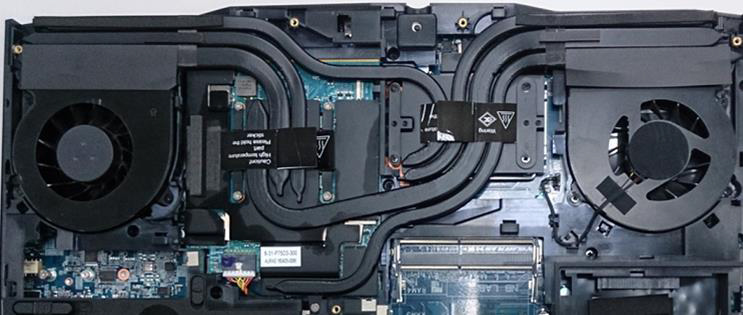

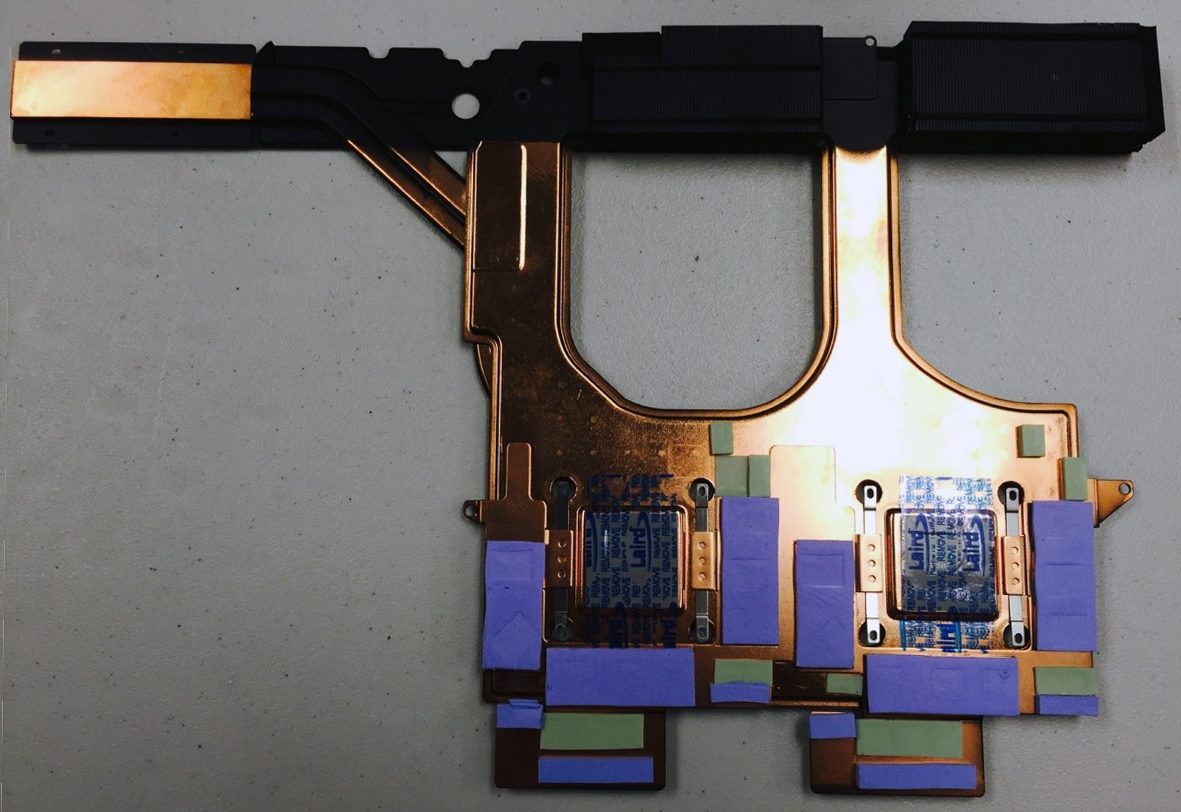

ajc9988 Posted August 16, 2016 Share Posted August 16, 2016 That msi 1070 is damn sexy! What heatsink work with it in current zm/dm settings and can someone get a pic of both the p750 and p775 heatsink bottom side? Really can't wait to find out more, including the msi 1080 form factor... Sent from my SM-G900P using Tapatalk 1 Quote Link to comment Share on other sites More sharing options...
bloodhawk Posted August 16, 2016 Share Posted August 16, 2016 Nice!! is it just me or do the 1080 and 1070 boards seem exactly the same , only difference being a different core? 2 hours ago, Mr. Fox said: So, now that you have seen more of what's offered out there, thanks to Brother @Prema, let's have a closer looks at what is really offered... performance results. Below are a few stock benchmarks for everyone to drool over. Sorry there are not more examples. We will add them as they become available. (I have specifically requested examples for Fire Strike, Time Spy and Sky Diver benchmarks.) PHOENIX 2.0 - 1080 SLI - Stock Benches Hide contents PHOENIX 2.0 - Single 1080 (SLI Disabled) - Stock Benches Hide contents (Please hold your thoughts about single 1080 versus 1080 SLI until we have more than one benchmark to look at.) Here is a quick video of the machine that donated the initial round of benchmarks for us to look at. Kudos to Eurocom for giving us some special things to share at launch! I think you may find something interesting under the hood. Did i call it or what?? XD Get ready for my PM barrage. 2 Quote Link to comment Share on other sites More sharing options...
ajc9988 Posted August 16, 2016 Share Posted August 16, 2016 Nice!! is it just me or do the 1080 and 1070 boards seem exactly the same , only difference being a different core? Different memory forms! More differences I'm sure, but now begins the fight for who wins the form standard and compromises as they can now factory overclock cards for mobile... Sent from my SM-G900P using Tapatalk 1 Quote Link to comment Share on other sites More sharing options...
bloodhawk Posted August 16, 2016 Share Posted August 16, 2016 Just now, ajc9988 said: Different memory forms! More differences I'm sure, but now begins the fight for who wins the form standard and compromises as they can now factory overclock cards for mobile... Sent from my SM-G900P using Tapatalk Gotcha, im just jumping across tabs , trying to soak in as much info as possible. But more than the laptop im actually excited about @Mr. Fox having a review unit. 2 Quote Link to comment Share on other sites More sharing options...
iunlock Posted August 16, 2016 Share Posted August 16, 2016 Excellent. 1080 SLI...holy smokes. Powered by: Octa Core Exynos + 6820HK 1 Quote Link to comment Share on other sites More sharing options...
Guest Posted August 16, 2016 Share Posted August 16, 2016 6 minutes ago, bloodhawk said: Nice!! is it just me or do the 1080 and 1070 boards seem exactly the same , only difference being a different core? It looks that way from the examples. Maybe there is a variation of 1070 that we have no example of to share yet that will work in older machines and in the P870DM-G with 980M SLI heat sinks that is yet to be revealed. It does not appear the version shown will fit since it appears to be the same PCB as 1080. More to follow once more becomes available. Quote Link to comment Share on other sites More sharing options...
bloodhawk Posted August 16, 2016 Share Posted August 16, 2016 Just now, Mr. Fox said: It looks that way from the examples. Maybe there is a variation of 1070 that we have no example of to share yet that will work in older machines and in the P870DM-G with 980M SLI heat sinks that is yet to be revealed. It does not appear the version shown will fit since it appears to be the same PCB as 1080. More to follow once more becomes available. Aye, will it be possible to get the exact panel details on the 120hz AUO ? 1 Quote Link to comment Share on other sites More sharing options...
Guest Posted August 16, 2016 Share Posted August 16, 2016 4 minutes ago, bloodhawk said: Gotcha, im just jumping across tabs , trying to soak in as much info as possible. But more than the laptop im actually excited about @Mr. Fox having a review unit. Unfortunately, that is not the case this time... at least not yet. Something could change. What has been shared are benchmark images provided to me by Eurocom. So, unless that changes we won't see examples of the full overclocked capabilities of this beast until @Prema or @Johnksss have purchased and received one. Quote Link to comment Share on other sites More sharing options...
bloodhawk Posted August 16, 2016 Share Posted August 16, 2016 Just now, Mr. Fox said: Unfortunately, that is not the case this time... at least not yet. Something could change. What has been shared are benchmark images provided to me by Eurocom. So, unless that changes we won't see examples of the full overclocked capabilities of this beast until @Prema or @Johnksss have purchased and received one. Ahhh. 1 Quote Link to comment Share on other sites More sharing options...
SRSR333 Posted August 16, 2016 Share Posted August 16, 2016 No 14". I'm out. Quote Link to comment Share on other sites More sharing options...

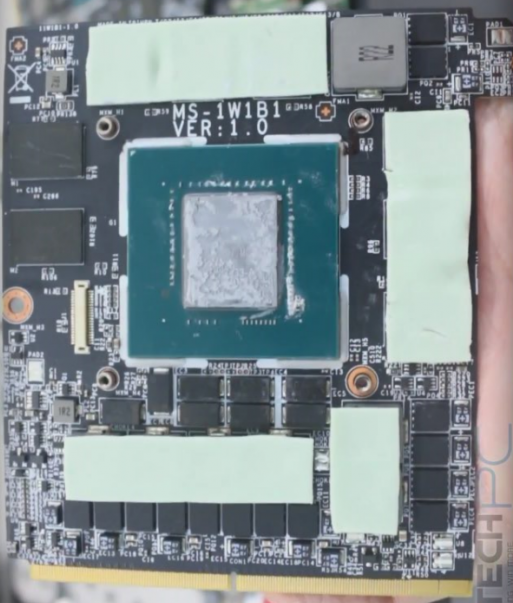

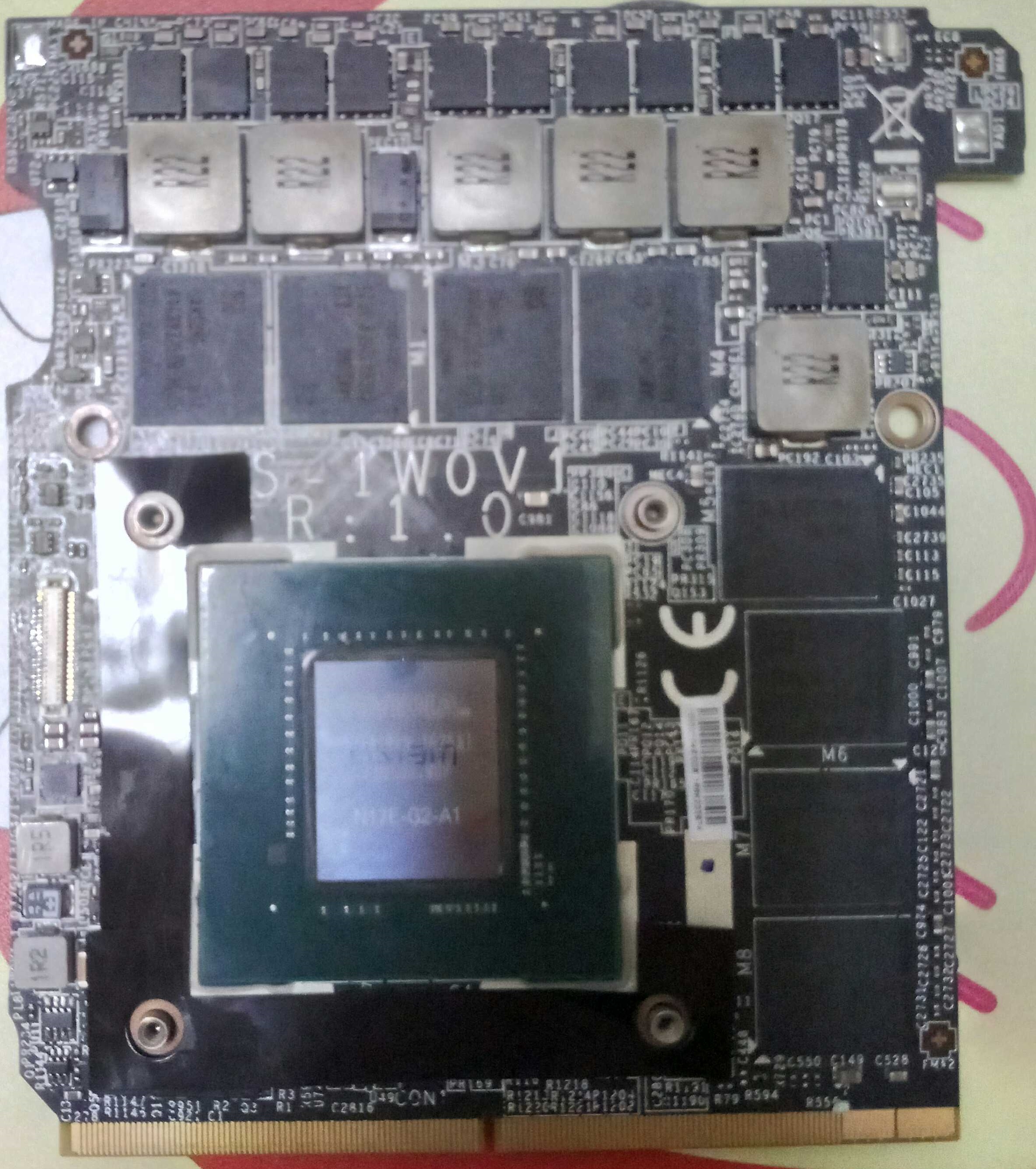

ajc9988 Posted August 16, 2016 Share Posted August 16, 2016 45 minutes ago, Mr. Fox said: 54 minutes ago, bloodhawk said: Nice!! is it just me or do the 1080 and 1070 boards seem exactly the same , only difference being a different core? Look at the msi 1070 board. Don't know if you can make that overhang work or not... Sent from my SM-G900P using Tapatalk 2 Quote Link to comment Share on other sites More sharing options...
dspboys Posted August 16, 2016 Share Posted August 16, 2016 Any news about the 200W 1080? How many phases do you think will it have? 1 Quote Link to comment Share on other sites More sharing options...
Guest Posted August 16, 2016 Share Posted August 16, 2016 6 minutes ago, dspboys said: Any news about the 200W 1080? How many phases do you think will it have? I would like to see a 400W Dual GPU Core single PCB 1080 16GB or 32GB card that can work in either my current or this new machine and a PCB that can fill up the unused slave GPU space. Now that would be a single card configuration I could be happy with in my 2.5 month old obsolete P870DM-G. Quote Link to comment Share on other sites More sharing options...
Papusan Posted August 16, 2016 Share Posted August 16, 2016 (edited) 1 hour ago, iunlock said: Excellent. 1080 SLI...holy smokes. Powered by: Octa Core Exynos + 6820HK Yeah. Will Dellienware came after with something similar or will they continue with their thin ECHO models?? They can probably use a single 1070. Edited August 16, 2016 by Papusan 2 Quote Link to comment Share on other sites More sharing options...
ajc9988 Posted August 16, 2016 Share Posted August 16, 2016 Excellent. 1080 SLI...holy smokes. Powered by: Octa Core Exynos + 6820HK Yeah. Will Dellienware came after with something similar or will they continue with their thin ECHO models?? You know the answer is the latter!!! Sent from my SM-G900P using Tapatalk 2 Quote Link to comment Share on other sites More sharing options...
Papusan Posted August 16, 2016 Share Posted August 16, 2016 Will the processor cooling be somewhat degraded due to the shared GPU cooling? 1 Quote Link to comment Share on other sites More sharing options...
ssj92 Posted August 16, 2016 Share Posted August 16, 2016 Can't wait to see MSI's 1070 SLI version 1 Quote Link to comment Share on other sites More sharing options...
iunlock Posted August 16, 2016 Share Posted August 16, 2016 Excellent. 1080 SLI...holy smokes. Powered by: Octa Core Exynos + 6820HK Yeah. Will Dellienware came after with something similar or will they continue with their thin ECHO models?? You know the answer is the latter!!! Sent from my SM-G900P using Tapatalk Funny in that I'm discussing this with@deex right now.... MSI has an answer....so if AW doesn't answer to that, then bye bye AW....welcome to officially being the Apple of the PC gaming world. Powered by: Octa Core Exynos + 6820HK 2 Quote Link to comment Share on other sites More sharing options...
Papusan Posted August 16, 2016 Share Posted August 16, 2016 (edited) 15 minutes ago, iunlock said: Funny in that I'm discussing this with@deex right now.... MSI has an answer....so if AW doesn't answer to that, then bye bye AW....welcome to officially being the Apple of the PC gaming world. Powered by: Octa Core Exynos + 6820HK THEY ARE ALREADY officially the Apple of the PC gaming world a LONG TIME. Sorry, but Mr. Azor wanted it so bad that he jumped on the train early 2015!! Evga, Razer and Aw will compete against each other with single 1070. Edited August 16, 2016 by Papusan 1 Quote Link to comment Share on other sites More sharing options...
iunlock Posted August 16, 2016 Share Posted August 16, 2016 I saw it coming, but left it be... Predictable... To be fair, then there's HP and Omen lol... so this is AW's last chance. Powered by: Octa Core Exynos + 6820HK 2 Quote Link to comment Share on other sites More sharing options...
