1 hour ago, rusTORK said:

P.S. I know that SLI versions of laptop have got better power brick, but is it really matter with Ultrabay adapter and ePSU and eGPU?

It DOES NOT matter. You just need to power the laptop by the power brick. The eGPU is powered by an external PSU anyway.

  • Thumbs Up 1

Share this post


Link to post
Share on other sites

Hi everyone.

I think I have successfully set up a paypal account.

My paypal link is: paypal.me/swung0x48

Btw, I'd like to adjust my pricing.

The board itself is $90

The case with random color is $27

and for another $8------That's $35 for a chosen color.



Shipping to US is $40,

So if you are in US just pay me by paypal.

$157-----for BA with random color (BA for Board+case)

$165-----for BA with chosen color

$130-----for B (B for bare board, i.e. without case)

Once I received your payment, I will make your required items and ship as soon as possible. The shipping info will be filled in the paypal payment.

When I sent your parcel, you can track it here. https://intl.sf-express.com/query/toOrderQuery.do



If you are living in a country other than US, pay me $1(check paypal availability) and add a note to let me know your shipping info(address, zip/postal code, etc.) so that I can figure out how much I'll pay for your shipment and other fees related.



Also, the cabled version is still alive.

Edited by Swung Huang
  • Thumbs Up 2

Share this post


Link to post
Share on other sites

Hello everyone,



Does anyone encountering BSOD on AMD cards when idle: DRIVER_POWER_STATE_FAILURE 0x0000009f ?



I guess the problem was there since Day 1, but I encountered whenever I switched to DisplayPort (from HDMI) for 144Hz experience.

Firstly, I thought it was lenovo specific thing, since I was using my Y510p the way it was not intended (Geralt's ultrabay gpu adapter).



Strange thing, I never got BSOD, but only black screen and unresponsive PC when waking up from idle state (like moving mouse, pressing any key).
I always hard rebooted (unplugged power cord), after reboot no dumps were found.

But today I decided to investigate and tried to swap DP to HDMI when PC was unresponsive/frozen, and bam... BSOD on Lenovo's monitor (not external).



Found out that atikmpag.sys was causing this issue.



After several hours of googling, I found several tips:



- Reinstall driver/OS and etc. things (as always, not this s**t again)



- Install ClockBlocker, somewhere I read that this is caused by GPU going into idle state, but I don't like this solution since I mostly leave my PC idle for several days/weeks.



p.s. I have attached dump file 071919-11500-01.zip (archived it, since TI does not allow me to upload files bigger than 1MB)



p.p.s: Specs:

- i7-4700MQ, 16GB

- AORUS RX 580 GPU 8GB

- Stock BIOS V3.08

- Windows 8.1 Pro





Edited by JavaMachine
added more details

Share this post


Link to post
Share on other sites
23 minutes ago, JavaMachine said:

Hello everyone,



Does anyone encountering BSOD on AMD cards when idle: DRIVER_POWER_STATE_FAILURE 0x0000009f ?

Need more data, mate! :)



What's you AMD GPU?

Which BIOS do you have?

Do you mod bios or it's in stock condition?



It may help to figure out faster what's going on.

Share this post


Link to post
Share on other sites
19 minutes ago, rusTORK said:

Need more data, mate! :)



What's you AMD GPU?

Which BIOS do you have?

Do you mod bios or it's in stock condition?



It may help to figure out faster what's going on.



Edited :)

Share this post


Link to post
Share on other sites
On 7/19/2019 at 4:19 PM, JavaMachine said:

the way it was not intended

You are absolutely right here.
0x0000009F indicates that the driver is in an inconsistent or invalid power value. Similar (same code: DRIVER_POWER_STATE_FAILURE 0x0000009f) error was previously fixed in Vista. The patch was released for the OS. Like most here, you connected a video card from PC to laptop with a unique adapter but nobody will write separate patches for this.
So try using a different video card (for example, any NVIDIA). This will probably help you with an error or reduce the search for solutions.

Share this post


Link to post
Share on other sites
On 7/19/2019 at 9:49 PM, JavaMachine said:

Hello everyone,



Does anyone encountering BSOD on AMD cards when idle: DRIVER_POWER_STATE_FAILURE 0x0000009f ?



I guess the problem was there since Day 1, but I encountered whenever I switched to DisplayPort (from HDMI) for 144Hz experience.

Firstly, I thought it was lenovo specific thing, since I was using my Y510p the way it was not intended (Geralt's ultrabay gpu adapter).



Strange thing, I never got BSOD, but only black screen and unresponsive PC when waking up from idle state (like moving mouse, pressing any key).
I always hard rebooted (unplugged power cord), after reboot no dumps were found.

But today I decided to investigate and tried to swap DP to HDMI when PC was unresponsive/frozen, and bam... BSOD on Lenovo's monitor (not external).



Found out that atikmpag.sys was causing this issue.



After several hours of googling, I found several tips:



- Reinstall driver/OS and etc. things (as always, not this s**t again)



- Install ClockBlocker, somewhere I read that this is caused by GPU going into idle state, but I don't like this solution since I mostly leave my PC idle for several days/weeks.



p.s. I have attached dump file 071919-11500-01.zip (archived it, since TI does not allow me to upload files bigger than 1MB)



p.p.s: Specs:

- i7-4700MQ, 16GB

- AORUS RX 580 GPU 8GB

- Stock BIOS V3.08

- Windows 8.1 Pro







I'd also suggest to try windows 10. It performs better for eGPU solutions. Might fix your issue.

  • Thumbs Up 1

Share this post


Link to post
Share on other sites
On 7/19/2019 at 9:19 PM, JavaMachine said:

Hello everyone,



Does anyone encountering BSOD on AMD cards when idle: DRIVER_POWER_STATE_FAILURE 0x0000009f ?



I guess the problem was there since Day 1, but I encountered whenever I switched to DisplayPort (from HDMI) for 144Hz experience.

Firstly, I thought it was lenovo specific thing, since I was using my Y510p the way it was not intended (Geralt's ultrabay gpu adapter).



Strange thing, I never got BSOD, but only black screen and unresponsive PC when waking up from idle state (like moving mouse, pressing any key).
I always hard rebooted (unplugged power cord), after reboot no dumps were found.

But today I decided to investigate and tried to swap DP to HDMI when PC was unresponsive/frozen, and bam... BSOD on Lenovo's monitor (not external).



Found out that atikmpag.sys was causing this issue.



After several hours of googling, I found several tips:



- Reinstall driver/OS and etc. things (as always, not this s**t again)



- Install ClockBlocker, somewhere I read that this is caused by GPU going into idle state, but I don't like this solution since I mostly leave my PC idle for several days/weeks.



p.s. I have attached dump file 071919-11500-01.zip (archived it, since TI does not allow me to upload files bigger than 1MB)



p.p.s: Specs:

- i7-4700MQ, 16GB

- AORUS RX 580 GPU 8GB

- Stock BIOS V3.08

- Windows 8.1 Pro







I don't know why, but my ultrabay adapter died.



No matter what I do, my Y510P is not detecting GPU. Strange thing, GPU leds turn on as intended, but not fans. When everything was ok, fans were spinning at 30-40 % of max speed until MSI Afterburner profile activates and stops the fans (custom fan curve).



I double checked GPU and PSU on my friends PC, it is working fine.

Share this post


Link to post
Share on other sites

I found another solution of upgrading of y510p. You can just put all compents into this board https://rover.ebay.com/rover/0/0/0?mpre=https%3A%2F%2Fwww.ebay.com%2Fulk%2Fitm%2F133135412851.

I would like to do it myself but this sellier does not ship to europe.



I think is better solution with more potential.

Share this post


Link to post
Share on other sites
31 minutes ago, Swung Huang said:

Hi everybody!

I'm working on a new adapter now! Now it's Plug-n-play and won't need a modified BIOS.


Should there be any significant differences between using this new one with an unmodded bios VS if we have the older one with a modded bios? Or is it just for the convenience of not needing to flash a modded bios?

Btw, I successfully received my adapter and am in the process of setting it up. Thanks again for carrying on where Gerald left off and making further advancements on these!

Share this post


Link to post
Share on other sites
16 minutes ago, IronWolf0117 said:


Should there be any significant differences between using this new one with an unmodded bios VS if we have the older one with a modded bios? Or is it just for the convenience of not needing to flash a modded bios?

Btw, I successfully received my adapter and am in the process of setting it up. Thanks again for carrying on where Gerald left off and making further advancements on these!

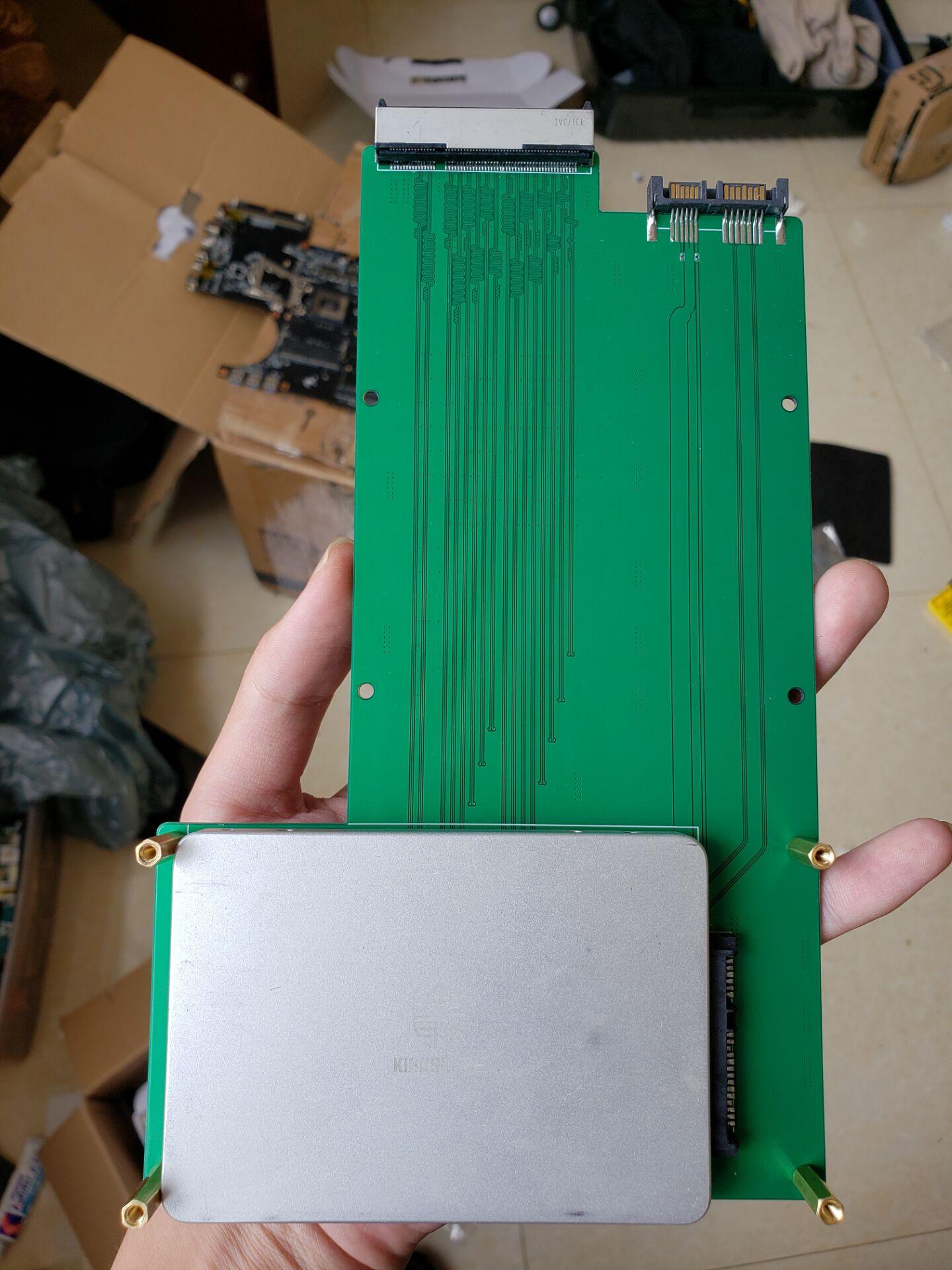

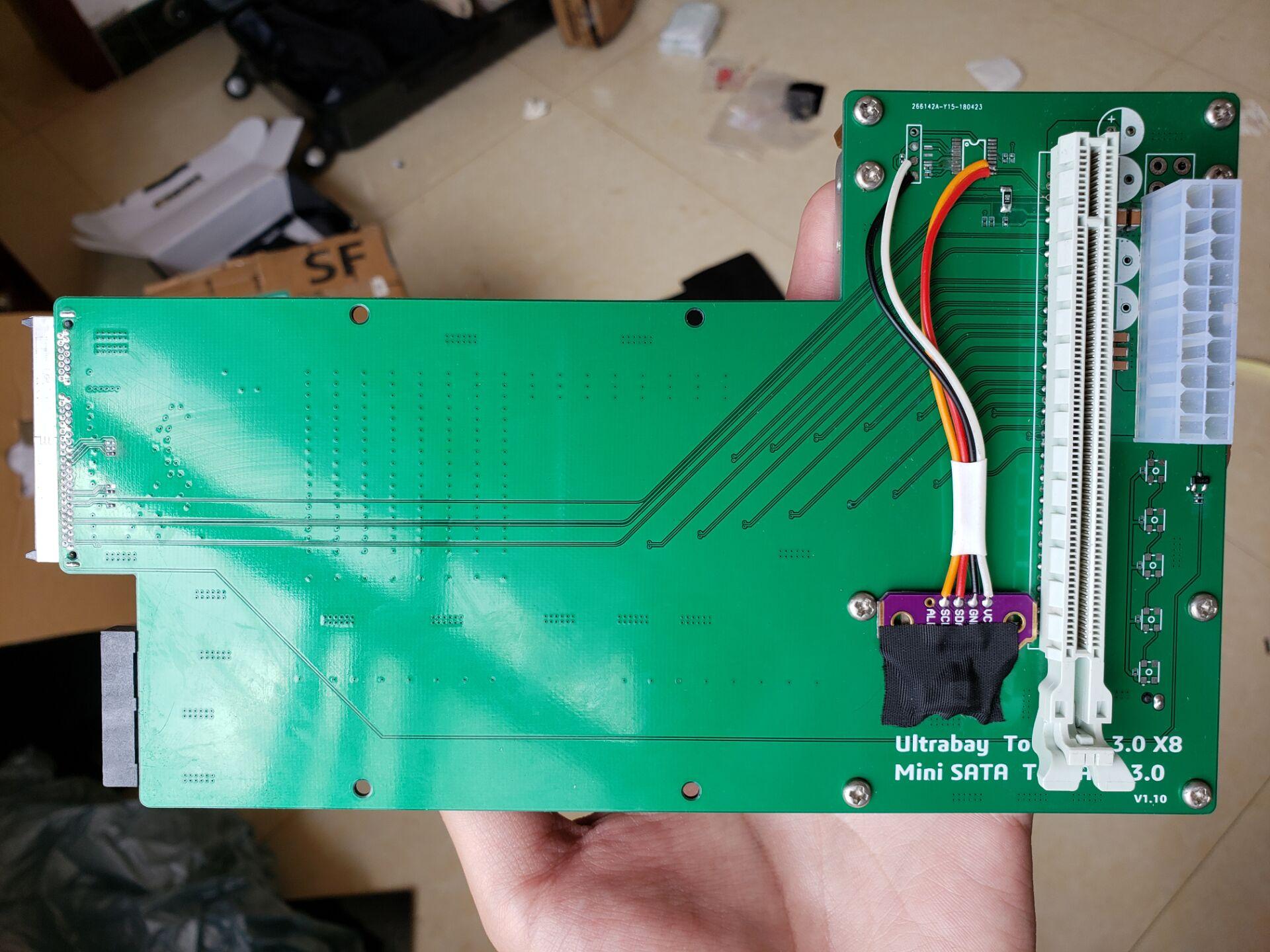

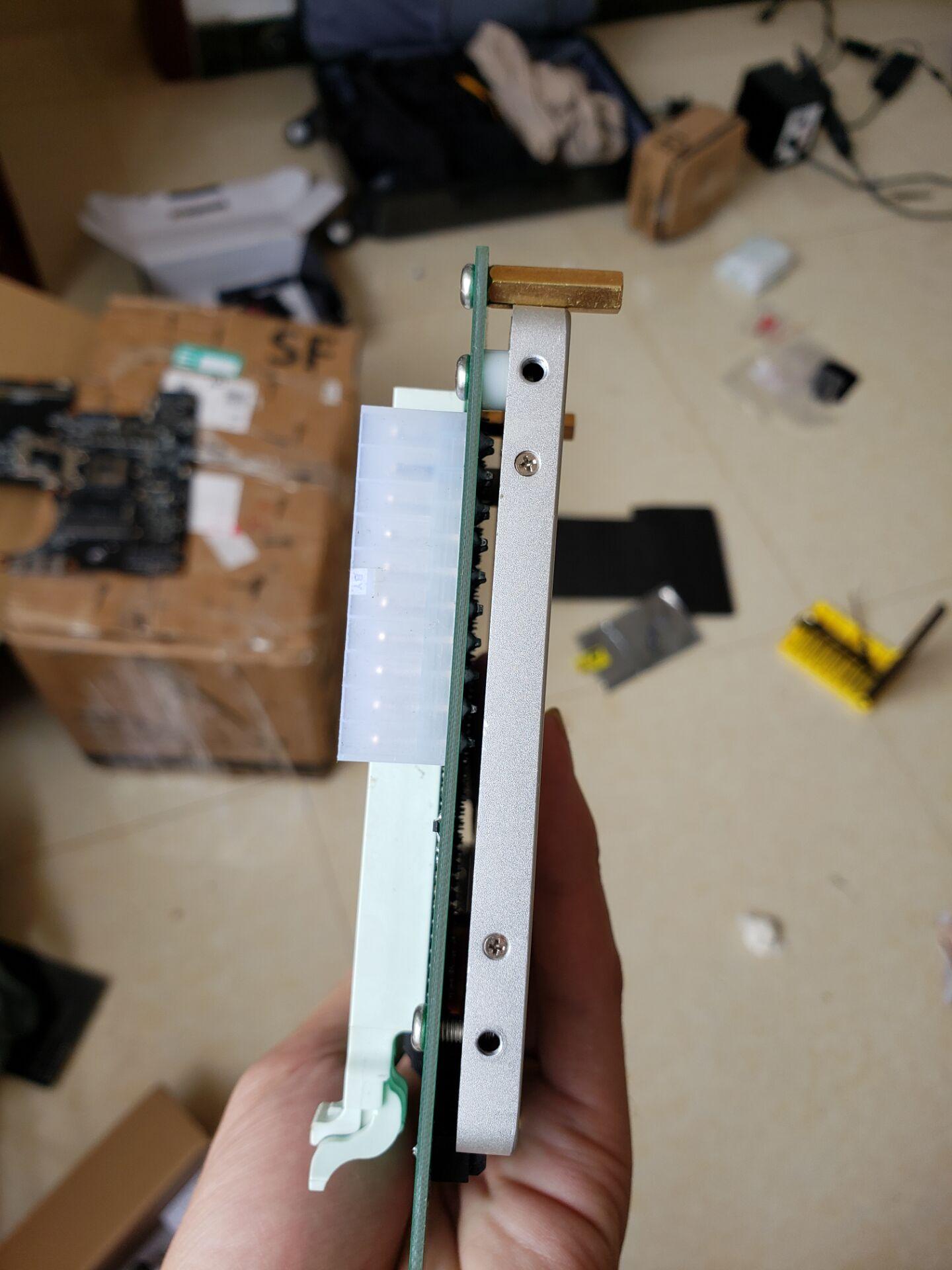

There are 2 major modification from the old one.

a. It now integrate the SATA wiring onto the PCB.

b.It now uses the aforementioned hardware mod to make it Plug'n'play without a BIOS mod.



But if you get your previous version up and running, it should behave the same as the new one.

Also, the pics here is still a testing sample. I want to make the finished one just have a simple chip soldered on the board to do the trick instead of such loose jumping wires.

Share this post


Link to post
Share on other sites

Hi Swung Huang, I know you might be busy with your exams and glad that you are working so hard for our y510p community. I wanted to get this adapter and tried contacting you, please reply once you get time. I brought this laptop as used one, and now I feel i was cheated because I can't game. Please tell me when can I talk to you.

Share this post


Link to post
Share on other sites
On 8/7/2019 at 9:35 PM, Zakyn said:

I found another solution of upgrading of y510p. You can just put all compents into this board https://rover.ebay.com/rover/0/0/0?mpre=https%3A%2F%2Fwww.ebay.com%2Fulk%2Fitm%2F133135412851.

I would like to do it myself but this sellier does not ship to europe.



I think is better solution with more potential.

I already talk about it before:



There some Cons and Pros of such conversion. Main problem - you will lost display and have to buy monitor. But ASRock is interesting company, they creating interesting motherboards.

Share this post


Link to post
Share on other sites
12 hours ago, flyinPanda69 said:

Hi Swung Huang, I know you might be busy with your exams and glad that you are working so hard for our y510p community. I wanted to get this adapter and tried contacting you, please reply once you get time. I brought this laptop as used one, and now I feel i was cheated because I can't game. Please tell me when can I talk to you.

I think you maybe read an obsolete post? My exam has been completed since June. I'm now as free as a bird!

  • Thumbs Up 1

Share this post


Link to post
Share on other sites
On 8/7/2019 at 11:29 PM, JavaMachine said:



I don't know why, but my ultrabay adapter died.



No matter what I do, my Y510P is not detecting GPU. Strange thing, GPU leds turn on as intended, but not fans. When everything was ok, fans were spinning at 30-40 % of max speed until MSI Afterburner profile activates and stops the fans (custom fan curve).



I double checked GPU and PSU on my friends PC, it is working fine.



Try inspecting the board (traces, pins, connector etc.). There must be some kind of damage to the board.

  • Thumbs Up 1

Share this post


Link to post
Share on other sites
1 hour ago, intruder said:



Try inspecting the board (traces, pins, connector etc.). There must be some kind of damage to the board.



Maybe later idk.



I am formatting my laptop and giving it to my wife for torture lol. Since, I am building new PC (R7 3700X) and I am done with instabilities I faced these days. Thanks everyone. Special thanks to @gerald, made my laptop usable for another year. Also [email protected]#$ Lenovo for betrayal, lol.

Edited by JavaMachine

Share this post


Link to post
Share on other sites

Has anyone else had success getting Fast Sync or Adaptive Sync to work? Setup, bios re-flashing, and running various troubleshooting scripts (like the error 43 one) went great, and benchmarks showed virtually no bottlenecking - I just noticed the Fast and Adaptive sync options missing from the V-Sync options in the Nvidia control panel.

Edited by IronWolf0117

Share this post


Link to post
Share on other sites
1 hour ago, IronWolf0117 said:

Has anyone else had success getting Fast Sync or Adaptive Sync to work? I just noticed the Fast and Adaptive sync options missing from the V-Sync options in the Nvidia control panel.

Just checked my NVIDIA Control Panel and i see all options. But i didn't tested them.



P.S. I have got custom install of drivers, since NVIDIA deleted my dGPU (GT 650M) from drivers.

Share this post


Link to post
Share on other sites
On 8/8/2019 at 7:48 AM, Swung Huang said:

Hi everybody!

I'm working on a new adapter now! Now it's Plug-n-play and won't need a modified BIOS.




Does this means the new version of adaptor allows ubuntu system to detect both 755m and egpu without any bios mod too?

Share this post


Link to post
Share on other sites
1 hour ago, jxfong2 said:

Does this means the new version of adaptor allows ubuntu system to detect both 755m and egpu without any bios mod too?

1. The BIOS mod seems have nothing to do with ubuntu graphics detection

2. Yeah, it should. Whether you apply the BIOS mod or not. Though I'm not so familiar with GPU drivers on Linux.

Share this post


Link to post
Share on other sites
On 8/13/2019 at 2:08 PM, Swung Huang said:

1. The BIOS mod seems have nothing to do with ubuntu graphics detection

2. Yeah, it should. Whether you apply the BIOS mod or not. Though I'm not so familiar with GPU drivers on Linux.



My (K)Ubuntu system detects the GPUs on my Y510p just fine, yet I haven't found a way to switch between the two dedicated GPUs (built-in and egpu).



I have therefore disabled the built-in NVIDIA card (755m) in the BIOS, which allows me to activate the egpu (AMD Vega56) for specific applications by using the command DRI_PRIME=1.

Share this post


Link to post
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.


  • Similar Content

    • By FlubDaBlub
      Hi all! I am wondering if it's possible to remove the bios whitelist easily. Because of the whitelist, my external gpu setup that I got recently refuses to work. If it helps at all, I know that the wifi card that used to be in the slot was the intel 8265ngw. Here's the bios link if that helps too: laptops and netbooks :: thinkpad x series laptops :: thinkpad x380 yoga :: 20lj :: 20ljs20n00 :: mp1e15eb - Lenovo Support US
      Thanks for your help!
    • By Tech Inferno Fan
      We've had a stack of recurring questions from with problems getting a mPCIe eGPU working. This includes GPU-Z not reporting no clock details, error 10/43 or even not being detected at all. Overall it's more troublesome getting mPCIe working than say expresscard or Thunderbolt.

      Here's some common problems and some troubleshooting steps to correct them.

      Getting a black bootup screen, resolving error 10/43 or ACPI_BIOS_ERROR win bootup messages

      Here the BIOS doesn't know what to do when it sees an eGPU. So the solution is to not let the BIOS see it. Do that by setting the delays on the eGPU adapter (CTD/PTD - EXP GDC or CLKRUN/PERST# on PE4L/PE4C). Boot with eGPU adapter in the wifi slot into Setup 1.30 or Windows. Is the eGPU detected?

      I'll add that should error 43 continue AND you have a NVidia dGPU as well as NVidia eGPU then it's likely because of having the mobile NVidia and desktop NVidia drivers loaded simultaneously. Proceed to uninstall ALL your NVidia drivers, use "DDU" to clean NVidia registry entries and do a 'clean' install of the latest NVidia desktop driver.

      mPCIe port that hosted the wifi card disappears when connecting an eGPU in it's place

      Use the Setup1.30 PCIe Ports->enable to enable the missing port.

      eGPU does not get detected

      Overcome mPCIe whitelisting by booting with the wifi card and then hotswapping in the eGPU. That way the BIOS will enable the mPCIe port to work.

      1. Boot with wifi card into Windows, sleep system, swap wifi card for mPCIe eGPU adapter and ensure eGPU is powered on, resume system. Do a device manager scan in Windows. Is the eGPU detected?

      2. Boot with wifi card into Setup 1.30 *carefully* hotplug the eGPU adapter in place of wifi card. Hit F5 to rescan the PCIe bus. Is the eGPU detected?

      If this enables detection then avoid this tedious hotswapping by seeking a unwhitelisted modified BIOS for your system OR test the Setup 1.30's PCI ports->undo_whitesting feature.

      eGPU still not detected - set the PSU to be permanently on

      The latest EXP GDC and BPlus eGPU adapters try to manage the PSU to only power on after they detect a signal. This can cause a race condition where the eGPU isn't ready to go when the CLKRUN signal is asserted.

      Avoid this by jumpering the PSU so it's permanently on rather than being managed. Depending on the PSU you are using refer to the following doco on how to do that:

      http://forum.techinferno.com/enclosures-adapters/8441-%5Bguide%5D-switching-atx-psu-using-paperclip-trick-swex.html
      http://forum.techinferno.com/enclosures-adapters/9426-220w-dell-da-2-ac-adapter-discussion.html

      eGPU still not detected - a non-standard mPCIe implementation by your vendor?

      PERST# mPCIe pin 22 may need to be isolated due to a non-standard implementation by your notebook vendor: http://forum.techinferno.com/enclosures-adapters/10812-pe4x-series-understanding-clkreq-perst-delay.html#post142689

      eGPU still not detected - faulty hardware?

      If you still don't get detection then test the video card and eGPU adapter in another machine to confirm neither is faulty.

      NVidia driver stops responding

      EXP GDC, PE4H 2.4 and PE4L 1.5 all use a socketted cable and therefore are not true Gen2 compatible device. This error indicates there was transmissions errors.

      The solution is either to get a better Gen2-compliant eGPU adapter such as PE4C V3.0 or PE4L 2.1b (both with soldered cable), or downgrade your link from Gen2 to Gen1 using BIOS options or Setup 1.30

      Other troubleshooting help resources?

      See DIY eGPU Troubleshooting FAQ.

    • By ReverseEffect
      3dMark11 Performance Preset Benchmark: http://www.3dmark.com/3dm11/11262792

      Required items:
      1.) Lenovo u310 (I have a Core i3 - Ivy Bridge, 8GB RAM)
      2.) 65CN99WW unwhitelisted.
      3.) eGPU (I used a EVGA GTX 750 Ti from another computer I had).
      4.) EXP GDC mPCIe Edition adapter (got from eBay - banggood seller).
      5.) ATX power supply (I used a 600W PSU from another computer I had).
      6.) USB wireless.
      7.) External monitor, keyboard, and mouse.

      Steps:
      1.) Obtain and install a unwhitelisted BIOS. If you are unable to obtain a unwhitelist BIOS, I think it might be possible to bypass it with Tech Inferno Fan's Setup 1.x (may need confirmation as I haven't used it myself yet.)
      2.) Shutdown computer and remove all USB devices, ethernet cables, power cables, card reader cards.
      3.) Remove mPCIe wireless card and detach antennas.


      4.) Attach EXP GDC external mPCIe cable to the former wireless slot and screw down.


      5.) Attach HDMI end of the mPCIe cable adapter to the EXP GDC device.


      6.) Attach graphics card to the EXP GDC device (I moved my laptop off the desk and onto the side shelf to make room on the desk for the monitor/keyboard/mouse).


      7.) Using the power cable adapters that came with the EXP GDC device, I hooked in my ATX power supply's 20 pin and CPU 4 pin cables. Then hooked the other end (8 pin) into the EXP GDC device. My EVGA 750 Ti also required that I use an additional PCIe power cable (6 pin) in the top of the card.





      8.) Then I attached my misc devices (HDMI monitor, USB keyboard/mouse/wireless adapter), and hooked in my PSU and powered it on (below is image of final product, also moved HDMI cable out of the way).



      9.) Power on your computer and let it install the standard VGA drivers and then install your drivers (I didn't have to go in the BIOS for any graphics settings, which it doesn't have anyways, nor did I have to disable iGPU in Device Manager before the card was added).

      Extra Info:
      I found that most games will play on med settings with about 45 FPS with this particular card.
      BDO: Upscale on - Anti Aliasing on - SSAO off - med settings.
      Skyrim: Med-High settings.
      Fallout 4: Med settings.

      (EDIT 5/19/2016) > Images added.

    • By Klem
      If someone wants upgrade Wi-Fi card and remove witelist, or unlock hidden additional menus and settings, or unlocked vbios for overclock NVIDIA card, then you can post your request in this thread.

      It's for Lenovo Z710, Z510 only!
×
×
  • Create New...

Important Information

By using this site, you agree to our Terms of Use. We have placed cookies on your device to help make this website better. You can adjust your cookie settings, otherwise we'll assume you're okay to continue.
