callitkarma67 Posted February 2, 2014 Share Posted February 2, 2014 Hey all, I noticed when upgrading my wireless card that I too have the blank SSD slot on my computer, however it appears that there are the solder joints and pin holes for a port to be installed. Is it worth it to do this or too risky/waste of time? I don't really need the second graphics card, just the one is fine, so I'm not super-opposed to just picking up a HDD caddy for it.Thanks in advance! Quote Link to comment Share on other sites More sharing options...
Kwaz Posted February 2, 2014 Share Posted February 2, 2014 This is something that was proposed in some other threads. I've thought about doing it, having someone else do it or buying the motherboard with it. I'll probably end up replacing this thing before I get around to it though haha! I'm not that attached to it Quote Link to comment Share on other sites More sharing options...
intruder Posted February 3, 2014 Share Posted February 3, 2014 Hey guys, i heard on every forum that Y510p's don't come with M2 NGFF SSD slot.I bought my new Y510p (Model: 59390016) yesterday and guess what, it DOES have a connector slot for SSD.I guess new models are coming with connectors. Check out the attachment for pics. Thanks.Unable to attach images. Quote Link to comment Share on other sites More sharing options...
Dastardly_Dog Posted February 7, 2014 Share Posted February 7, 2014 Hey guys, i heard on every forum that Y510p's don't come with M2 NGFF SSD slot.I bought my new Y510p (Model: 59390016) yesterday and guess what, it DOES have a connector slot for SSD.I guess new models are coming with connectors. Check out the attachment for pics. Thanks.Unable to attach images.I just purchased a new IdeaPad Y510p Laptop - 59405673 - Dusk B and it also has a M2 NGFF SSD slot with attached connector. Quote Link to comment Share on other sites More sharing options...
pocketbear Posted February 7, 2014 Share Posted February 7, 2014 Soldering sounds always risky unless your are experienced in computer assembling/ or fixing.And are you sure another graphic card can be installed in that SSD slot? Quote Link to comment Share on other sites More sharing options...
amiealouette Posted February 8, 2014 Share Posted February 8, 2014 From what I heard if you got the factory SSD caching option, then the M2 NGFF slot is there and that is where the SSD is. If you didn't get the option then they didn't put the slot in at all. I have a y510p 0005 and I can confirm that I have the slot. Quote Link to comment Share on other sites More sharing options...
artas182x Posted February 9, 2014 Share Posted February 9, 2014 In my country (Poland) y510p comes with m.2 slot only with 755m or 755m sli verison. 750m sli version don't have m.2 slot. Quote Link to comment Share on other sites More sharing options...
xizorkun Posted February 12, 2014 Share Posted February 12, 2014 I have the newegg version that came with the 24g cache drive, and it has the 750m sli. It is not available on the lenovo site though, i see only 755m versions on there. Quote Link to comment Share on other sites More sharing options...
sballirano Posted February 12, 2014 Share Posted February 12, 2014 seems a little risky to me soldering can get a lil ugly sometimes. Quote Link to comment Share on other sites More sharing options...
maxichameleon Posted February 13, 2014 Share Posted February 13, 2014 I got mine in August so it probably doesn't have a SSD connector. Could I still install ssd? I only have HDD Quote Link to comment Share on other sites More sharing options...

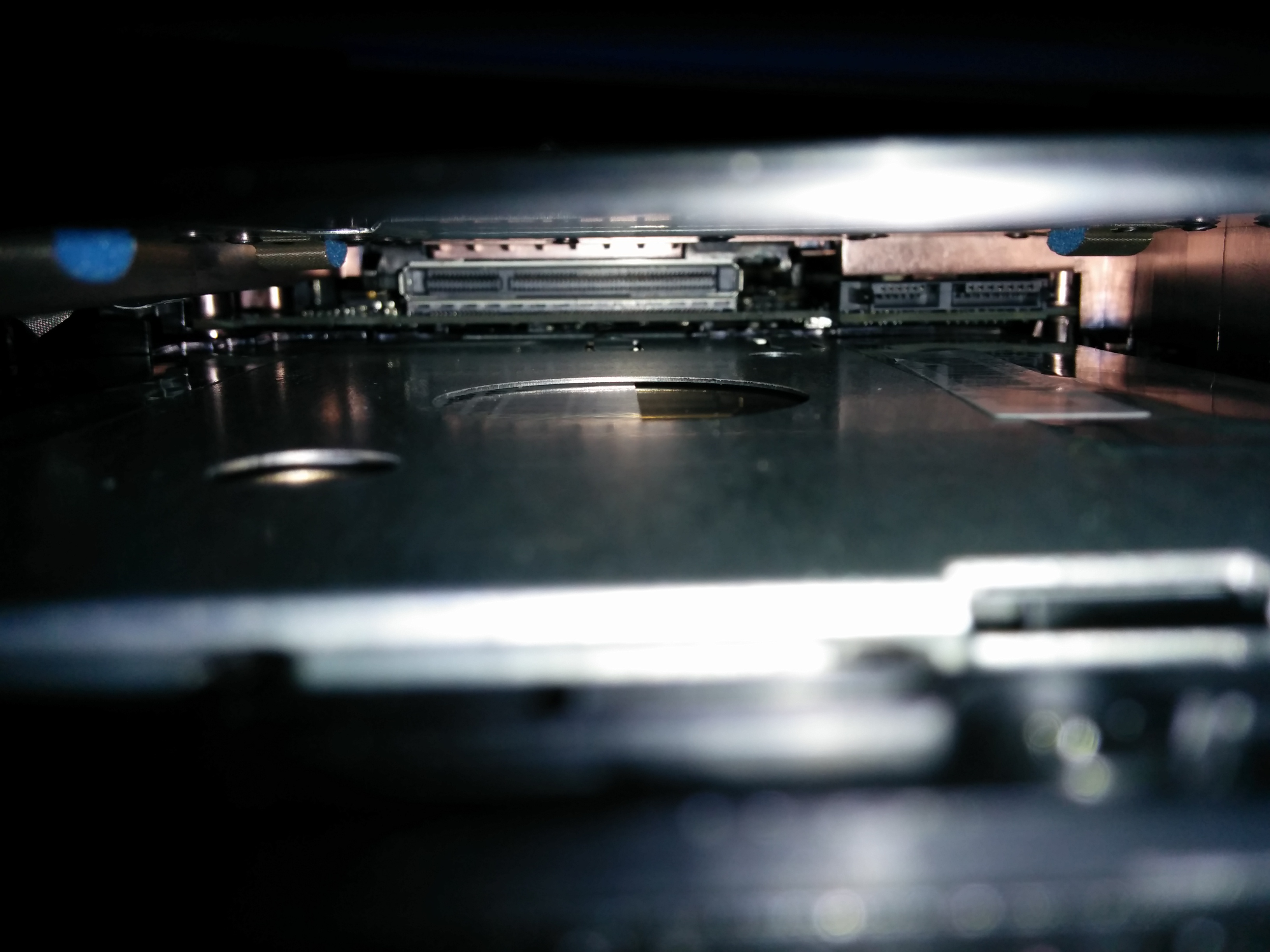

busterbytes Posted February 13, 2014 Share Posted February 13, 2014 I purchased teh IdeaPad Y510p Laptop - 59401512 - Dusk Black version I will attach some pictures of the interior layout. I can see where you could replace the optical drive with another hdd. Is that where the SSD will go as well? Will I have to replace the optical? Quote Link to comment Share on other sites More sharing options...

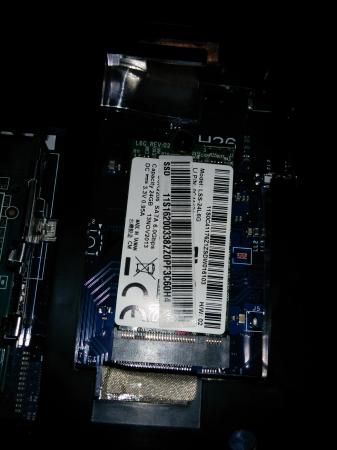

nono Posted February 15, 2014 Share Posted February 15, 2014 I just bought a y510p from the Lenovo Outlet and it came with a 24gb SSD in the m.2 slot. Quote Link to comment Share on other sites More sharing options...
gyc93 Posted February 15, 2014 Share Posted February 15, 2014 actually there are a msata slot and a ngff slot on y510p. msata slot is connected to a wlan card but the length of that is not long enough for a msata ssd.i also considered buy a ngff wlan card(7260AC) and install a msata ssd on the vacant msata slot but that needs professional skills Quote Link to comment Share on other sites More sharing options...
Theangelofspace15 Posted December 13, 2016 Share Posted December 13, 2016 can we use this port for a egpu? Quote Link to comment Share on other sites More sharing options...
Tesla Posted December 19, 2016 Share Posted December 19, 2016 if the socket exists on the mobo, then yeah it works. i have installed a 256GB ssd and its been working great for more than couple years now. just make sure when you buy one, you buy the correct form factor which is 2242mm for the y510p. the one i have: https://www.amazon.com/Transcend-256GB-MTS400-Solid-TS256GMTS400/dp/B00KLTPUG4/ref=sr_1_1?ie=UTF8&qid=1482187063&sr=8-1&keywords=transcend+ssd+2242 On 12/13/2016 at 4:26 AM, Theangelofspace15 said: can we use this port for a egpu? i dont think we can cause it is not a pcie ssd slot, it is wired to the sata controller. 1 Quote Link to comment Share on other sites More sharing options...
PhAnt0mFS Posted December 27, 2016 Share Posted December 27, 2016 On 19-12-2016 at 11:39 PM, Tesla said: if the socket exists on the mobo, then yeah it works. i have installed a 256GB ssd and its been working great for more than couple years now. just make sure when you buy one, you buy the correct form factor which is 2242mm for the y510p. the one i have: https://www.amazon.com/Transcend-256GB-MTS400-Solid-TS256GMTS400/dp/B00KLTPUG4/ref=sr_1_1?ie=UTF8&qid=1482187063&sr=8-1&keywords=transcend+ssd+2242 I have the same SSD.. Works like a charm! Quote Link to comment Share on other sites More sharing options...
MWichni Posted March 18, 2017 Share Posted March 18, 2017 Hi guys I have soldered the m.2 slot myself and got it working. Look here (last post):https://www.techinferno.com/index.php?/forums/topic/7548-lenovo-y510p-self-soldered-m2-slot/ Quote Link to comment Share on other sites More sharing options...
boot-a Posted March 20, 2017 Share Posted March 20, 2017 I have installed Transcend TS256GMTS400 in sli version of y510p too. Works great! But there is no screw fixing in the kit - consider. Quote Link to comment Share on other sites More sharing options...
