Kurbeco Posted September 18, 2015 Share Posted September 18, 2015 Turns out that multimeter was faulty. I use it read the voltage of 2 x AA batteries and it read 4.13v.I tested the DA-2 with a new meter and it was reading 12.32v under no load. Panic over! Quote Link to comment Share on other sites More sharing options...
000 Posted November 1, 2015 Share Posted November 1, 2015 If if have a gpu that needs one six pin input do I just need the DA-2+a 6 pin splitter (this: http://www.amazon.co.uk/Startech-com-Express-Power-Splitter-Cable/dp/B004NNTVT6/ref=sr_1_1?s=electronics&ie=UTF8&qid=1446403659&sr=1-1&keywords=6+pin+splitter) and a barrell plug (this: http://www.ebay.co.uk/itm/PLUGZ2GO-SET-OF-MALE-FEMALE-2-5MM-X-5-5MM-DC-POWER-CONNECTORS-for-CCTV-REPAIRS-/221500794870?var=&hash=item339279e7f6:m:mCKcIUPGyWEAIPvVbrw65gg)?With one 6 pin going into the gpu and the other I cut down and connect to a barrell plug for powering the akitio? Then the paperclip between the da-2 and 6 pin grounds as w4vz has done? 1 Quote Link to comment Share on other sites More sharing options...
Morv Posted November 1, 2015 Share Posted November 1, 2015 If if have a gpu that needs one six pin input do I just need the DA-2+a 6 pin splitter (this: Startech.com 6 inch PCI Express Power Splitter Cable: Amazon.co.uk: Electronics) and a barrell plug (this: PLUGZ2GO SET OF MALE & FEMALE 2.5MM X 5.5MM DC POWER CONNECTORS for CCTV/REPAIRS | eBay)?With one 6 pin going into the gpu and the other I cut down and connect to a barrell plug for powering the akitio? Then the paperclip between the da-2 and 6 pin grounds as w4vz has done?Yep, that's about what you need. Just be sure to check that you've plugged in the 6 pin splitter correctly before you're powering it, just to avoid any trouble. Quote Link to comment Share on other sites More sharing options...
afaale Posted November 25, 2015 Share Posted November 25, 2015 Hello! I just have one question - the two 6pins obviously go into the GPU, but where exactly on an akitio do you plug in the molex 4 pin plug? Because all I could find in terms of input type is the barrel connector, and I'm assuming you didn't use it, since you don't mention it in your tutorial.. Quote Link to comment Share on other sites More sharing options...
Dschijn Posted November 25, 2015 Share Posted November 25, 2015 @afaale: Please read my basic guide: https://forum.techinferno.com/apple-egpu-discussion/10061-basic-egpu-hardware-guide-macs.html Quote Link to comment Share on other sites More sharing options...
kos Posted December 3, 2015 Share Posted December 3, 2015 Just to be sure a few questions...Pin #1 (Sense) will be cut of on the Adapter cable and isolated - Right?Pin #5 (Remote) must be grounded against Pin #6 (GND) (or #7/8) - Right?Can I solder the Barrel Plug, lets say, only to Pins #4 + #8 or does this create to much unequal load to the PSU? I will connect 2,3,4 + 6,7,8 to the GPU as well, each of it by a single wire connection. Quote Link to comment Share on other sites More sharing options...
Dschijn Posted December 3, 2015 Share Posted December 3, 2015 Sense shouldn't be used, right.Remote needs to have a permanent conenction to any ground to make the PSU start.I joined all 12V together and all ground ports. By that the load should be spread evenly. Quote Link to comment Share on other sites More sharing options...
TYRTlive Posted December 16, 2015 Share Posted December 16, 2015 Do we still have to feed Akitio Thunder2 if we are certain we're powering our GPU with a right amount of power? I figured we do, but just asking to make sure. Quote Link to comment Share on other sites More sharing options...
Tech Inferno Fan Posted December 16, 2015 Share Posted December 16, 2015 2 hours ago, TYRTlive said: Do we still have to feed Akitio Thunder2 if we are certain we're powering our GPU with a right amount of power? I figured we do, but just asking to make sure. Have always done. Done via the AKiTiO DC jack barrel port. Only time this has been avoided is by when a PCIe riser extension with 12V input was plugged into the AKiTiO PCIe slot. This is NOT recommended as it leads to Gen2 signal degradation that has resulted in an unstable implementation. Quote Link to comment Share on other sites More sharing options...
TYRTlive Posted December 16, 2015 Share Posted December 16, 2015 13 hours ago, Tech Inferno Fan said: Have always done. Done via the AKiTiO DC jack barrel port. Only time this has been avoided is by when a PCIe riser extension with 12V input was plugged into the AKiTiO PCIe slot. This is NOT recommended as it leads to Gen2 signal degradation that has resulted in an unstable implementation. I see. But other than PCIe power adapters(8pins and/or 6pins), Akitio can only provide 75W right? So if we have a 300W PSU, and our GPU consumes 325~330W peak, it should be enough? Quote Link to comment Share on other sites More sharing options...
Dschijn Posted December 16, 2015 Share Posted December 16, 2015 How could that be ok if the GPU uses more than the PSU can provide?! Quote Link to comment Share on other sites More sharing options...
TYRTlive Posted December 16, 2015 Share Posted December 16, 2015 20 minutes ago, Dschijn said: How could that be ok if the GPU uses more than the PSU can provide?! No no, not just PSU. 300W from PSU+The 75W provided from the adapter connected to the box. So this: http://www.akitio.com/faq/270-thunder2-pcie-box-what-s-the-maximum-power-output-through-the-pcie-slot Plus our GPU. Quote Link to comment Share on other sites More sharing options...
Dschijn Posted December 16, 2015 Share Posted December 16, 2015 No! Please don't consider combining PSUs. Quote Link to comment Share on other sites More sharing options...
TYRTlive Posted December 16, 2015 Share Posted December 16, 2015 10 minutes ago, Dschijn said: No! Please don't consider combining PSUs. Thanks! Now I get it. Quote Link to comment Share on other sites More sharing options...
BeerNuts Posted December 30, 2015 Share Posted December 30, 2015 I wrote the guys on eBay about that cable and they gave me a phone number I could call to order one. I don't want to share it publicly on the forum but if you message them and ask they will probably give you the same. Its a shame you can't just order online but the phone should be fine. Quote Link to comment Share on other sites More sharing options...

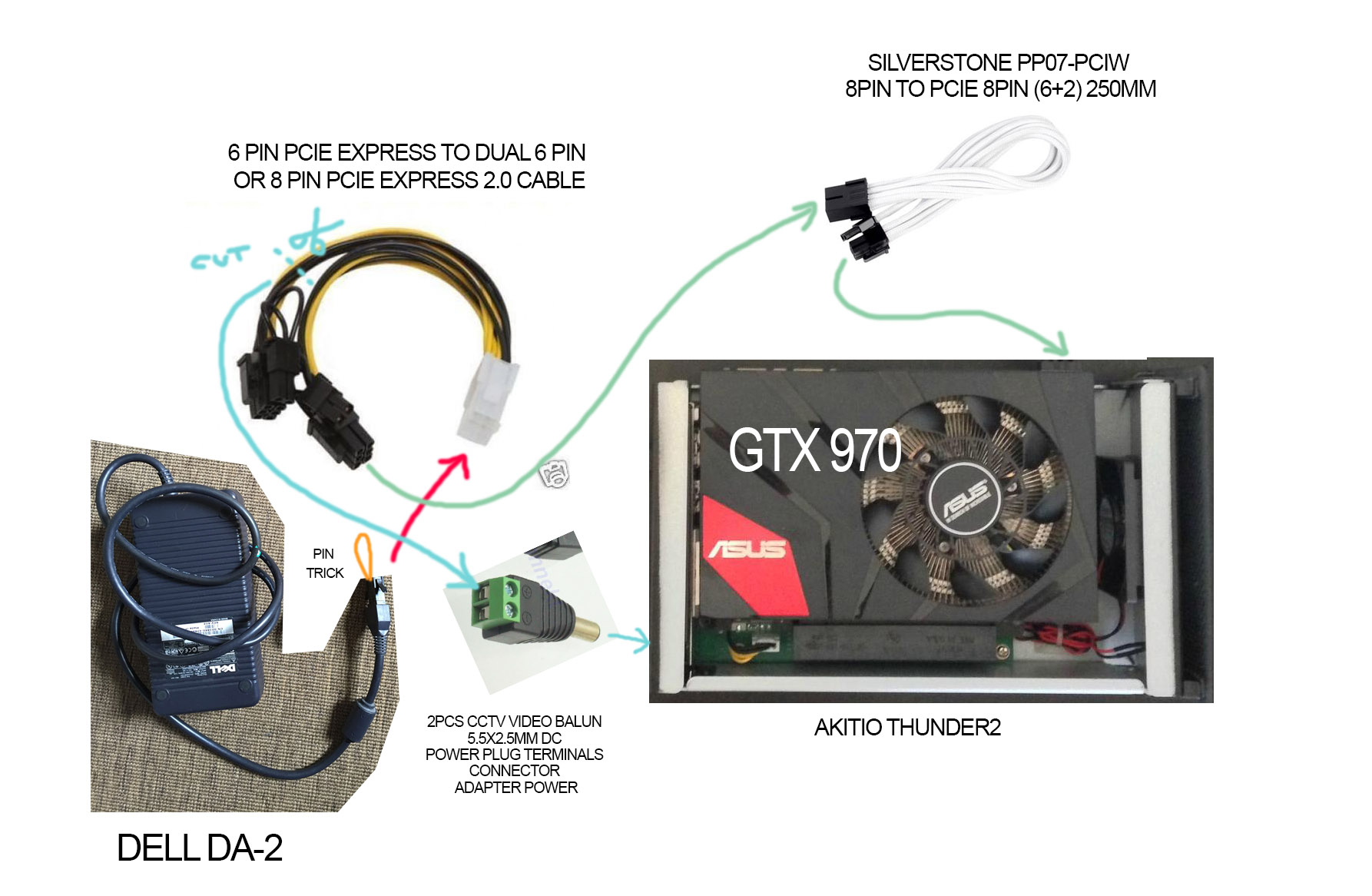

CM Posted January 9, 2016 Share Posted January 9, 2016 Hi I just wanted to check with the more experienced guys on here that what I am doing will work. I was intending on buying the pre made cable but it is no longer available so from reading on these forums, the setup on the attached image is what I plan to do. Dell da-2(pin trick remote to ground) > PCIE 6 to dual 8 cable > 8 pin extension to reach the card > cut the other 6 pins attaching the yellows and blacks to positive and negative terminals of the barrel plug Any guidance would be much appreciated. Thanks Quote Link to comment Share on other sites More sharing options...

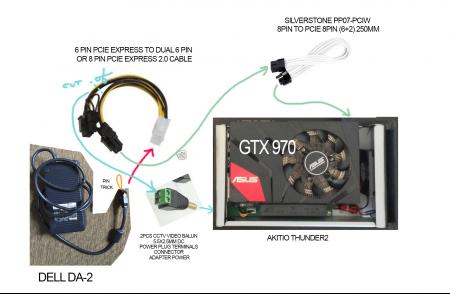

esatamod Posted January 17, 2016 Share Posted January 17, 2016 (edited) On 1/9/2016 at 11:18 AM, CM said: Hi I just wanted to check with the more experienced guys on here that what I am doing will work. I was intending on buying the pre made cable but it is no longer available so from reading on these forums, the setup on the attached image is what I plan to do. Dell da-2(pin trick remote to ground) > PCIE 6 to dual 8 cable > 8 pin extension to reach the card > cut the other 6 pins attaching the yellows and blacks to positive and negative terminals of the barrel plug Any guidance would be much appreciated. Thanks I'm no expert but just wanted to say thanks for drawing the diagram. So the 6pin female is a better choice than the 8pin female so that the "pin trick" can be used for startup? So to be clear 75W will go to the box (akitio) and 75W will go to the card vie PCIE 8pin for a total of 150W? I'm looking to do this too (ordering parts tomorrow) but I am wondering if this cable setup will work with even higher power cards? lower power cards? edit: just wondering is it confirmed that the CCTV barrel plug you list is rated to pass 6.25A? Edited January 17, 2016 by esatamod Quote Link to comment Share on other sites More sharing options...
Dschijn Posted January 17, 2016 Share Posted January 17, 2016 The barrel should be able to handle even more since 75W can be used just by the GPU and some extra by the AKiTiO itself. Just a small amount of cards really use all the 75W on the PCIe slot, most use way less. With the ASUS card having a 8-Pin plug on it, it will draw up to 150W on that single plug. Quote Link to comment Share on other sites More sharing options...
illconn Posted January 18, 2016 Share Posted January 18, 2016 I could not find this information on the thread or through google but can someone confirm that the "unused" Pin does not carry any voltage at all? I was hoping it would carry 5v to power my usb hub.... but now im not seeing this and I believe that my impression that it did was because of the Xbox Brick. Before i cancel my order and go with the XBOX FAT Brick can someone confirm this is true? Thank you. Quote Link to comment Share on other sites More sharing options...

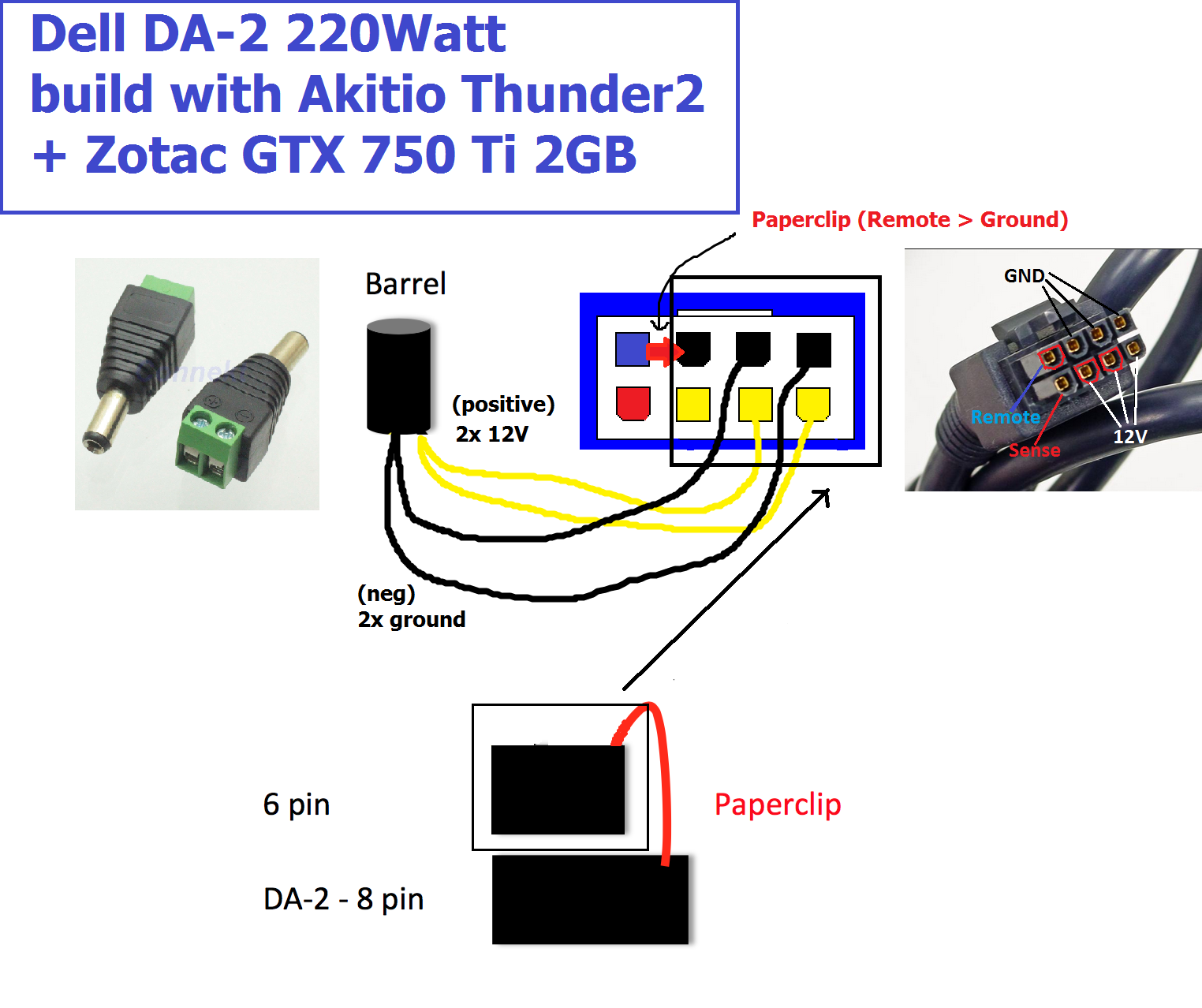

iddinmx Posted January 26, 2016 Share Posted January 26, 2016 Hello everyone, All the parts already arrived. Proceeding with plugging in the Dell DA-2 (INPUT: AC100-240V OUTPUT: DC12V-18A) to the Akitio Thunder2 via Barrel. Zotac 750 Ti 2GB requirements:- Recommended Power Supply 400W Power Consumption 60W Before proceeding, I want to double check my diagram below, I'll also purchase a multimeter and check the output on the plug making sure not exceeding 12V. Just want to make sure the setup is okay, please advice. Thank you very much, much appreciated! Will upload the setup once I managed to run it on my macbook pro Late 2011 Quote Link to comment Share on other sites More sharing options...
Dschijn Posted January 26, 2016 Share Posted January 26, 2016 @iddinmx Yes! 1 Quote Link to comment Share on other sites More sharing options...
lukeperman Posted January 29, 2016 Share Posted January 29, 2016 (edited) Hi all. Loving this discussion. I've finally assembled all my parts - the only missing link is the cable between the DA-2 and the video card. I have: - Akitio Thunder2 - Inno3D GTX970 Herculez X1 (to fit in the box with no modifications) - Dell DA-2 Where I'm getting confused is that the card came with a single 6-PIN connector PCI-e power cable like this: 71RTWfffYuL._SL1500_.jpg But the card itself has 2x 6-PIN connectors. Is this because the card needs double the power of the previous version? (Which only had a single 6-PIn power connector) Or do I only need a single 6-PIN plug as per the supplied cable? I can't find any further info on Inno3D's site regarding this. At it's most basic level, I think I need one of these: http://www.amazon.com/dp/B0007RXDDM (Though not this exact one, as I want the low profile version of the connectors to close my Akitio box.) The two 6-PIN males fit into the card, and the 6-PIN female into the right side of the 8-PIN DA-2 connector (+ paperclip in remote/ground holes) From there I will add another cable for the barrel plug to power the Akitio as per all the previous examples. Thanks for any pointers ! Edited January 29, 2016 by lukeperman Quote Link to comment Share on other sites More sharing options...
Dschijn Posted January 29, 2016 Share Posted January 29, 2016 You need 2x6-Pin to make the GPU run! The graphics card only comes with one adapter, because every PC that wants to run this card should have at least 1x6-Pin PCIe cable on the PSU. The 2nd 6-Pin can be made with that adapter. There are not two adapters, because using two adapters would mean that the PSU can run the GPU in the first place. With using the Dell DA-2 we are doing sth totally different. You have two options: 1. I can solder you a all in one ready to go cable or 2. you text this guy and let him make this cable for you (favour, not through eBay): http://www.ebay.com/itm/Akitio-eGPU-8-PIN-TO-2-x-PCI-E-6-PIN-MALE-AND-1-x-ID-2-5mm-OD-5-5mm-BARREL-/251984919354?pt=LH_DefaultDomain_0&hash=item3aab78bb3a 1 Quote Link to comment Share on other sites More sharing options...
lukeperman Posted January 29, 2016 Share Posted January 29, 2016 Thanks for getting back to me. That makes it really clear now. I'm based in Sydney, Australia so am struggling to find all the parts for the cable. Was thinking of grabbing that connector part from Amazon and making the necessary modification for the barrel plug. It would be awesome if someone could do it for me. How do we make that work? Thanks again. Quote Link to comment Share on other sites More sharing options...
Dschijn Posted January 29, 2016 Share Posted January 29, 2016 Like I said... I can do that or you buy that cable from the US. Or you make it yourself. Quote Link to comment Share on other sites More sharing options...
