Bloetschkopf

The Plus Pin from Your Socket is disconnect from the Board,You can see it very clear on the Pictures. You have to solder it new,thats all.

Hello I need the Vbios Files from MSI for Quadro M4000M and M500M It is from Wt72 6QL and WT72 6QM. Maybe someone can help me with this.

MSI have 2 Vbios for the GTX 765M,only one is working well. One is with GTX77M Board ID.

Try this. GTX780M.rar

The highest GPU is the GTX 980M in GT683(MS-16F2). For this Card You need another Heatsink or You modify Your old one. But for the Thermalpower of this Card is better to use the Heatsink with Cpu Bridge. You also can use HD7970M,but only Rev. 1.2 with Clevo Vbios. I tried last Week the HD8970M from GX60,it doesn`t work. GTX 1060 ist also not working. Between GTX 675M and GTX 980M only the GTX 765M and GTX 770M works. But the GTX 765M not with every Vbios and GTX 770 from Dell only with modded Driver because it is not possible to use the MSI Vbios on it. It bricks the Card.

If it is a Card in normal MXM Format it is a MSI Card not Clevo Card. And a 1C60 is also a Non G-Sync Card,i testet it in my GT72S with G-Sync. I testetd a GTX 1060 Yesterday in my GT70 (MS1762),here are the Benchmarks: http://www.3dmark.com/3dm/21157671 http://www.3dmark.com/3dm/21157906 You only need to install Windows in Legacy Mode and change the nv-dispi.Inf. Needs 2 Minutes.

Is the same,the Different is only the GPU.

GTX 1070 runs also in GT70,and it is much more easier to install.

The Bios E1763IMS.51D is the latest Bios for GT70 2.

You don`t need special Cleaner for this,only a soft Papertowel

Hello What is the Problem with the Card? You can deactivate the Card in Device Manager. Whitout Card the Fan will still run allways at 100%.

GT60 and GT70 have the same Hardware.

Which Vbios have the Card?

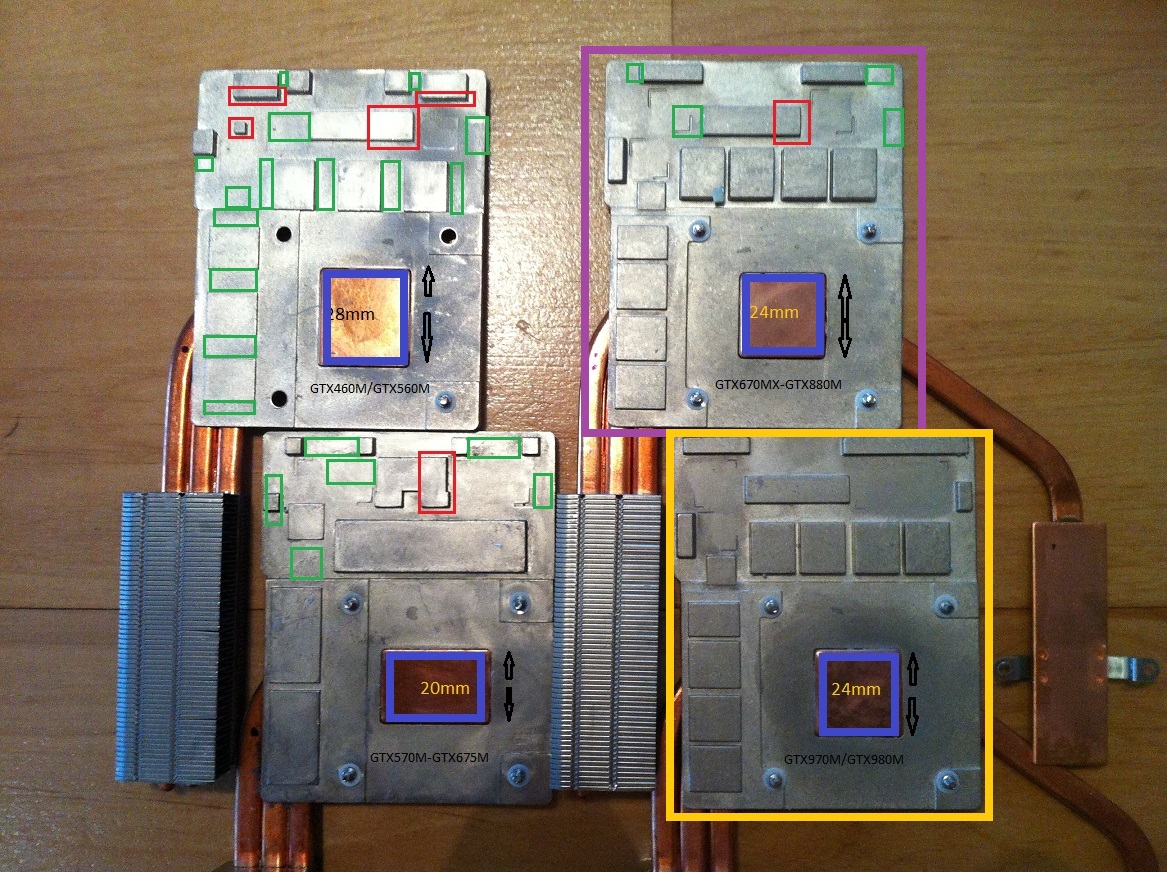

Hello At first You need some Eyeglasses,the GTX 680M looks different.:-) In the Picture You can see the different Heatsinks for Nvidia Cards. The Price for the Card is to high,for this Price You can find sometimes cheap GTX970M. in Your GT70 You can use every NVIDIA Card up to GTX 1060. But for the different GPU Generation You need also different Heatsinks or modified Heatsinks. Upgrading with the right Heatsink is normally very easy,if the Card is not from MSI You must Flash the MSI Vbios.

http://m.ebay.de/itm/NVidia-GTX-970M-6GB-N16E-GT-KC-A1-Video-Graphics-Card-GPU001-/182588953762?hash=item2a832654a2%3Ag%3AfxUAAOSwZ4dZJLYz&_trkparms=pageci%3A8bb02b97-46b6-11e7-a072-74dbd1808e99%7Cparentrq%3A633cd46515c0ab64b871ef30fffba169%7Ciid%3A25 http://m.ebay.de/itm/Nvidia-GeForce-GTX-970M-GPU-6Gb-GDDR5-/162536107731?hash=item25d7e82ed3%3Ag%3AFTMAAOSwhvFZDRLa&_trkparms=pageci%3A8bb02b97-46b6-11e7-a072-74dbd1808e99%7Cparentrq%3A633cd46515c0ab64b871ef30fffba169%7Ciid%3A26 http://m.ebay.de/itm/Nvidia-GeForce-GTX-970M-Video-Graphics-6Gb-GDDR5-MXM-3-0-/142396072388?hash=item212777a1c4%3Ag%3A8C8AAOSw3gJZKVEK&_trkparms=pageci%3A8bb02b97-46b6-11e7-a072-74dbd1808e99%7Cparentrq%3A633cd46515c0ab64b871ef30fffba169%7Ciid%3A27

MSI is the most compatible Notebookplattform,You doesn't need a unlock Bios for GPU Upgrade. In GT70 works all Cards without Problems,in Ixybridge based GT70 You only need the newest Bios and EC-Firmware. Flash the newest Bios and EC,if the GPU doesn't start with Screen it's not a Problem of the GT70.

For GT70 You must change nothing in Bios for GTX -060,but I notice that You can change Displaymode in Bios. Then You have a unlocked Bios,You need to Flash the latest Bios and EC Firmware. This is E1762IMS.51X for non Raid and E1762IMS.71X for RAID. This You need over the GTX 680M,with this the GTX 1060 works.

Pascal is compatible with LVDS,GTX 1060 works fine in GT70. In both,with IVY and with Haswell CPU.

In Your GT60 works every NVIDIA Card up to GTX 1060. GTX 765M is also working,but the Performance is low. For some Cards like GTX 780M You need the newest Bios and EC for it. The most works with MSI Vbios,some like GTX 1060 needs modded Driver.

No,if the Vbios from Clevo You have to change the Inf File. Look for a MSI OC Vbios or ask People who do. it for small Donation here or in global MSI Forum.

15.8k is a normal Value with OC, may Your Energy Plan im Windows is on balanced Mode.

GTX 1060 works with LDVS without Problems in MSI GT70,this is not a Problem from the Card.

GTX 770M makes 5000 Points in 3Dmark11,GTX 970M 10000 Points. You can also upgrade up to GTX1060. This will make 15000 Points

It doesn't work.

I only have contact to all Admins from German MSI Forum and meet 1 Time in the Year the People from the German Headquarter in Frankfurt. i got this Information directly from them last Year,not more not less. Different People check the Connectorlines on the Board from the Serviceconector to the Bioschip,there is no Way to Flash it this Way. There is also a Specialist who repair a lot of Bioschips and EC Chips from all Barebones. The most from MS16F4 and MS-1763 because MSI don't use Winbind there. i was the first People who tried a GTX 970M in MS1761 and GTX 1060 in MS-1763/MS-1762 and MS-16F4, also in MS-1781 and MS-1782. Also the GTX 1070 in MS-1781/MS-1782,next is a GTX 1070 in MS-1763/MS-16F4 and MS-16F2. I'm in China now to buy the Cards directly here. I think I'm not a Punk.
