Skylake Undervolt

Recommended Posts

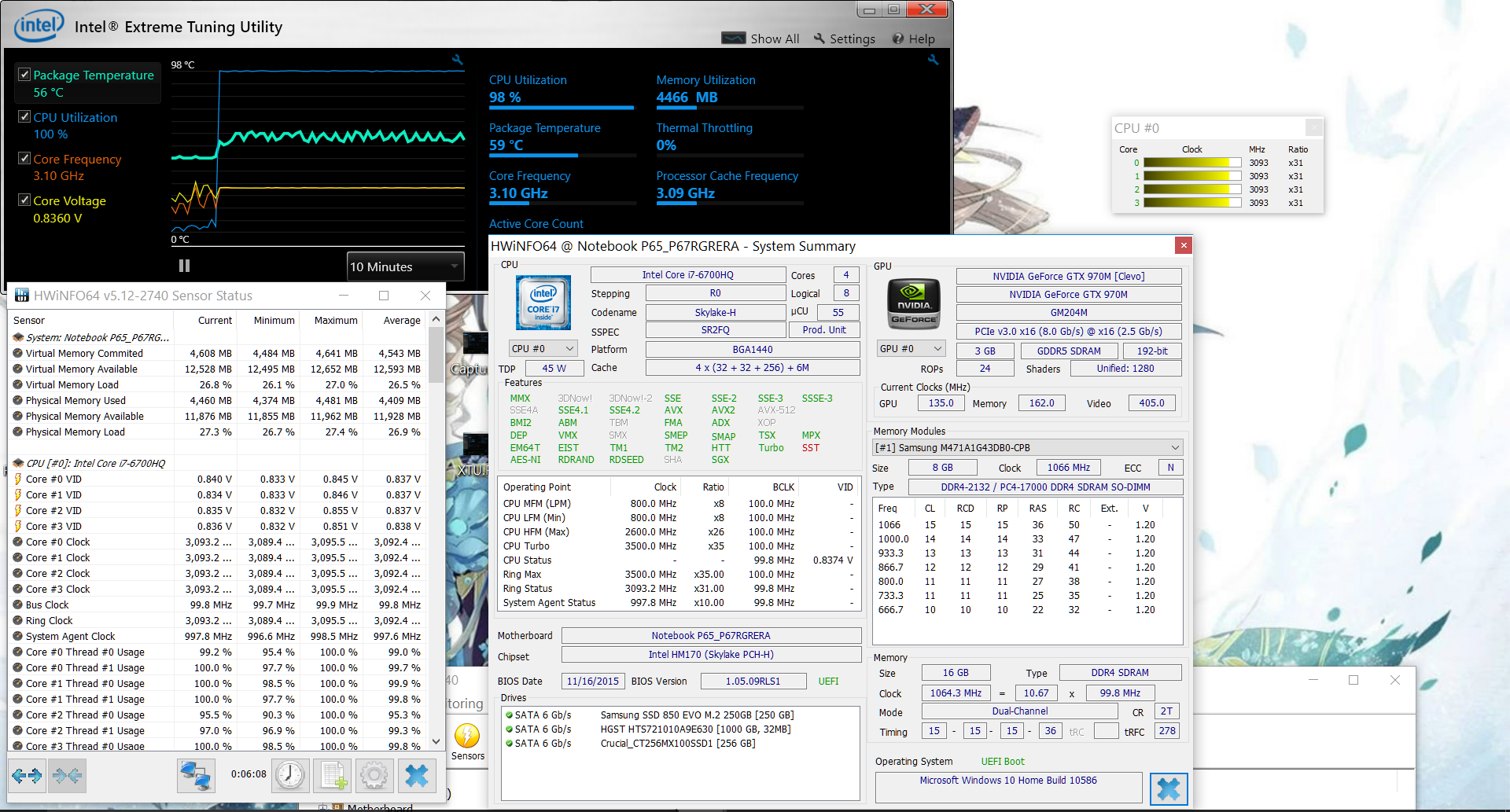

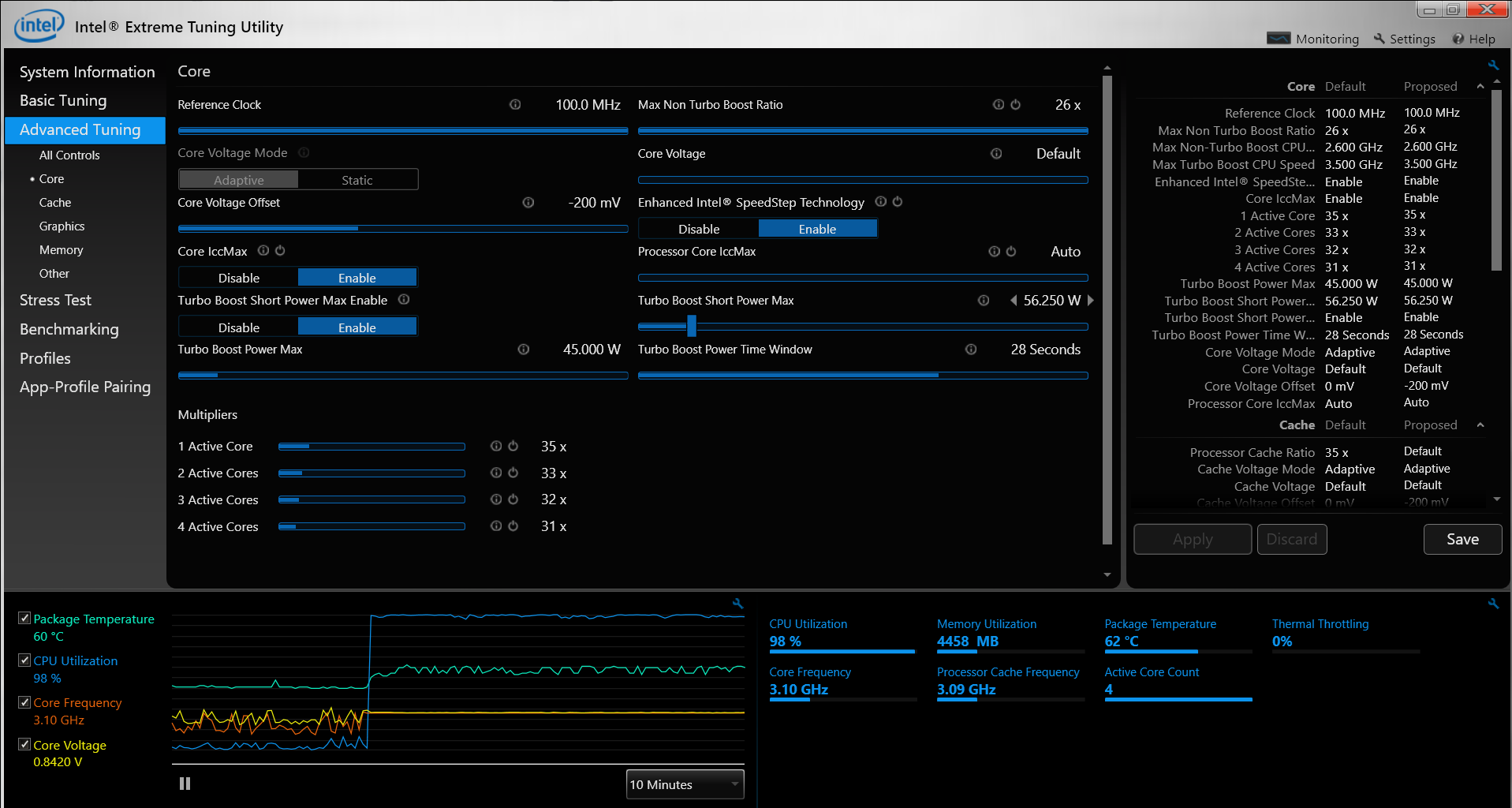

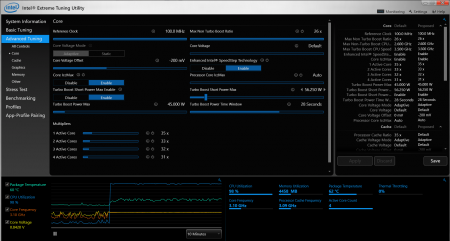

Since I cant be sure since i dont have any references from the internet, but i think i finally hit the silicone jackpot! Since our i7-6700hq couldn't be overclocked anyways i thought i might as well undervolt it and lower the temps of it. And before i knew it BOOM! -200mV undervolt "Stable" (I'm still in the process of stress testing it). Like i said at the begining im not sure if its an amazing undervolt but i think its pretty good. Before undervolt it was around 82 degrees C on load now its a cool 60 degrees C. A 20 degree decrease! So current its running at around 0.835 V. Oh and the system I'm running is the Sager NP8657 (Clevo P650RE3)



Link to comment
Share on other sites

Great results man, I love how far Skylake undervolts.  I found I am stable down to -180mV, it seems -185mV and below causes crashing fairly quickly when underload in games like BF4.  Still though I am extremely happy with my undervolt, and like you said it shaves off good amounts of heat.


Now I just want to figure out how to set the overclocking profile in my ME firmware so I can gain control over setting a higher BCLK.  I am able to flash the ME firmware.  However I think I need my own full ME firmware, and then need to extract that into Intel FIT and then mod it and flash it.
