[vBIOS - MODS] Alienware - Prema Mod™

Recommended Posts

Guest

T|I and the author are no longer associated.

For support kindly contact the author directly







Share this post


Link to post
Share on other sites
Guest

If you also want Prema Mod vBIOS for other AW systems, then just dump your current vBIOS with this tool and PM me the files.



Share this post


Link to post
Share on other sites

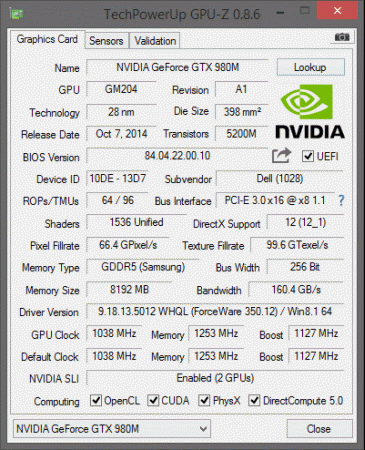

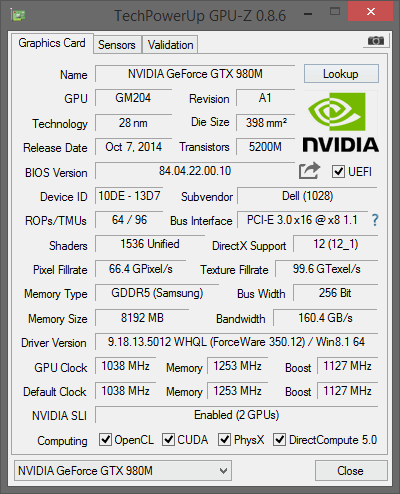

This is a SS of my current setup for my graphic cards atm as im not sure which bios file is the correct one to flash. Setup is a M18Xr2 on the A12 Bios with Dual GTX980M's. Anyone know which would be the best file to use dont wanna pick the wrong one and brick it accidentally.


Share this post


Link to post
Share on other sites
Guest
On 1/11/2016 at 3:29 AM, Infini said:

This is a SS of my current setup for my graphic cards atm as im not sure which bios file is the correct one to flash. Setup is a M18Xr2 on the A12 Bios with Dual GTX980M's. Anyone know which would be the best file to use dont wanna pick the wrong one and brick it accidentally.




You can either use the AW18 version or the Clevo Mod...just stay away from 361 driver as it crashes, freezes on far too many systems...

Share this post


Link to post
Share on other sites

@Prema  I am having issues with the clevo 1.1.1 vbios in my Alienware 17 R1. I have a 980m I installed using the 3 pipe heatsink and I keep having the card overheat, but only in certain games. ie. World of Warcraft will take my gpu up to 85*C+ where as looping uniengine benchmarks or 3dmark will never take the gpu over 75*C.

I am using a Cooling pad with 2 80mm fans directly pointing at the fan intakes. I have also upgraded the gpu fan in the laptop from the stock 1.Xcfm one to the 10.6cfm model from the R3.

I have an ASIC reading of 81.3%. What I am thinking is maybe this vbios has too much voltage applied for long term gaming for the cooling system in this machine? Will this Alienware 18 vbios help me with my issues at all or should I try a vbios with a lower 3dclock voltage? My current load voltage is 1.062v.

I am running 359.06 mobile modded inf drivers.

I honestly don't care about overclocking I just want this thing to be stable with or without my laptop cooler under it.



Share this post


Link to post
Share on other sites

Hello Prema, can u unlock / enable the SATA RAID in the BIOS for Alienware 15 (R1), i need to run my SSD in RAID 0 configuration, many thanks.

Share this post


Link to post
Share on other sites
Guest

I have just updated the AW18 GTX980M Prema Mod vBIOS to v2.

It'll properly support the latest NVIDIA driver releases.



ENJOY! :sorcerer:

Share this post


Link to post
Share on other sites
Guest
16 minutes ago, wanttolove said:

Hi Prema,

I'm using alienware 17r3 with 980m 8GB . Can I flash your vbios ?

Thanks







It works but for systems other than AW18 the Clevo base works best:





Share this post


Link to post
Share on other sites
17 hours ago, Prema said:



My 17r3 with 8gb 980m flash with MXM 8gb version or soldered 4gb version ?

THanks



It works but for systems other than AW18 the Clevo base works best:







Share this post


Link to post
Share on other sites
Guest

Updated AW18 GTX970M Mod also to v2!



ENJOY! :)



Will look at the 17 R3 8GB BGA as soon as I find time...for now you van use the 4GB version from the R2.

Share this post


Link to post
Share on other sites
On 4/6/2016 at 3:23 AM, Prema said:

Updated AW18 GTX970M Mod also to v2!



ENJOY! :)



Will look at the 17 R3 8GB BGA as soon as I find time...for now you van use the 4GB version from the R2.

Thank you. I can't wait :)

Share this post


Link to post
Share on other sites
Guest
On 4/9/2016 at 8:18 PM, a_Criminai said:

Thank you. I can't wait :)





OK AW 15 R2 / AW 17R3 GTX980M 8GB Prema Mod is up!



ENJOY! :)

Share this post


Link to post
Share on other sites
On 2.10.2015 at 0:55 PM, Prema said:

If you also want Prema Mod vBIOS for other AW systems, then just dump your current vBIOS with this tool and PM me the files.



EDIT: AW 15 R2 / 17 R2 GTX 980M vBIOS Prema Mod added to OP. Will add the others as dumps come in.



EDIT2: AW 15 R2 / 17 R2 GTX 970M vBIOS Prema Mod added to OP! ENJOY! :)



NVFLASH_TOOLKIT_x64_PM



Im trying to download stuff on this site and its not working (newbie account). Tried to upgrade many times my Elite mebership, without success. Contacted one of your mods, he created some invoices but somehow my paypal doesnt accept my payment. I use my paypal for several other things, so if i could just straight forward send you some money to your account and you in exhange help me with my card (gtx980m on M17xr4 /3d), that would be great.

Please let me know.



EDIT: NVM got my membership now.

Edited by angelorusso_

Share this post


Link to post
Share on other sites
Guest
9 hours ago, angelorusso_ said:



Im trying to download stuff on this site and its not working (newbie account). Tried to upgrade many times my Elite mebership, without success. Contacted one of your mods, he created some invoices but somehow my paypal doesnt accept my payment. I use my paypal for several other things, so if i could just straight forward send you some money to your account and you in exhange help me with my card (gtx980m on M17xr4 /3d), that would be great.

Please let me know.



EDIT: NVM got my membership now.



The best public Mod for your card/system would be this one:





Use it alongside this driver Mod:





Share this post


Link to post
Share on other sites

Hello Prema.

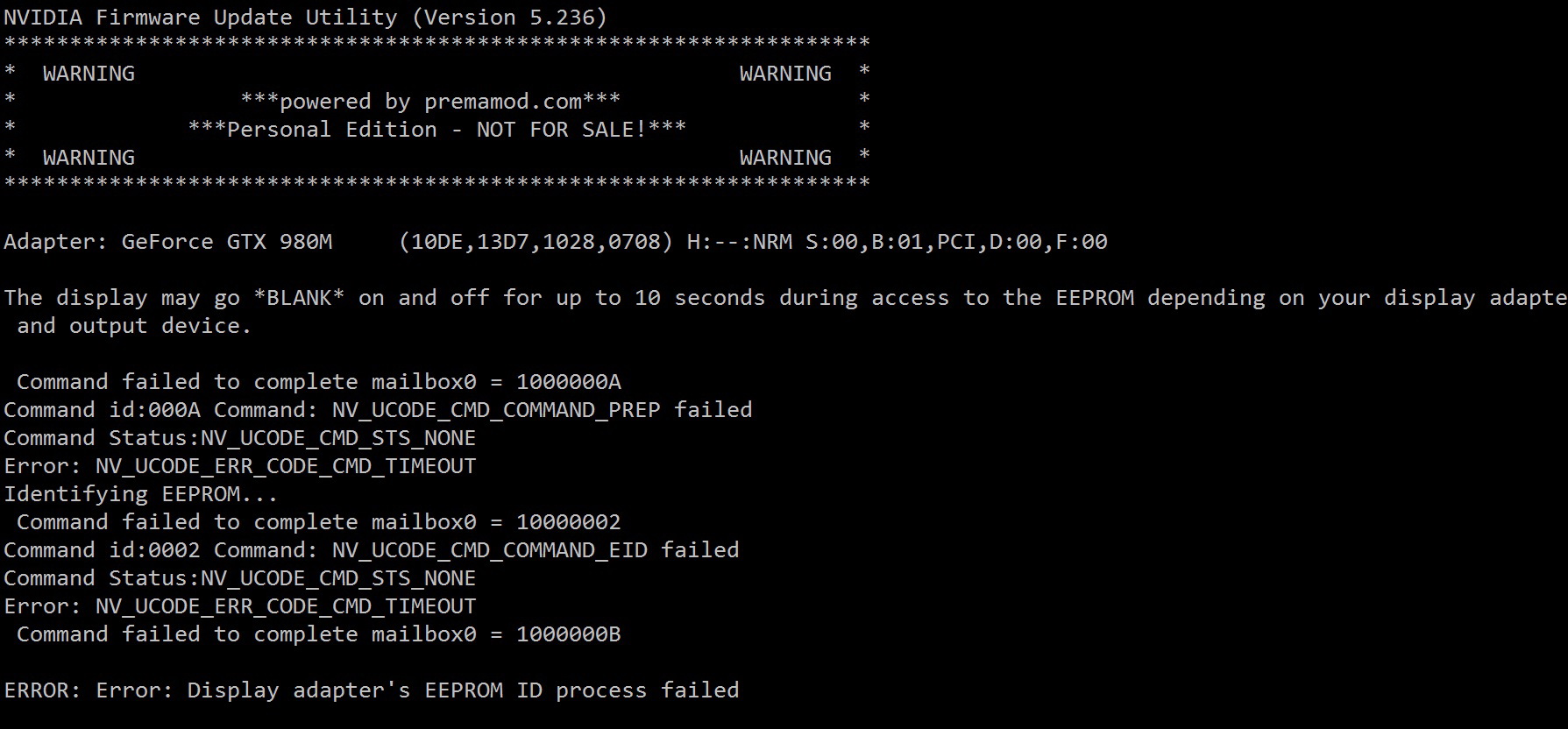

Please help, I upgrade M18R2 GTX675 to GTX970(single), upgrade BIOS to A12 and flash  AW18_6GB_GTX970M_OC_PM_v2.rar to GTX970.

But still have 8 BEEPs after switch on laptop, is there any differences between SLI vBios and single mod?

How I can solve my problem?

Thank You in advance.

Share this post


Link to post
Share on other sites

Hello Prema!



Can you please make a mod bios for alienware 15/17 R2 (2015) with RAID option selection enabled. A lot of people will thank you for it!



Regards!

Share this post


Link to post
Share on other sites

I am rather curious, the 970m 6GB card I got for my m17xR4 was from an Alienware 18, given the machine it is used in right now, would it be best to flash the Alienware 18 vBios for the card? I have the Clevo vBios flashed, lets me overclock and go bananas but power throttles once it hits 105 Watts. (35% TDP via GPU-Z).



A curiosity as I want to push this card and not worry about the wattage as much, I have a 330W Brick at my disposal and the card hits maybe 66-68 *C under load. I just want to see what this card is capable of and see how it compares to his 980m,

Edited by cskx2001

Share this post


Link to post
Share on other sites
On 22.04.2016 at 9:12 AM, Prema said:



The best public Mod for your card/system would be this one:







Hi, Prema) Could you please tell what does this mean? Tnx


Edited by Red Line

Share this post


Link to post
Share on other sites
Guest
This topic is now closed to further replies.

  • Similar Content

    • By laxus
      i want to ask two favours and a question from this community ..

      1.) Can someone mod my 940 mx to increase the target temperature and allow higher overclocking than 135hzband voltage control

      2.) Allowing my i5 7200U to be undervolted to reduce overall heat

      The question : I repasted my gpu and cpu cleaned it thoroughly, made sure twice everything is connected properly, use a cooling pad and yet the upper portion of my chasis above f1-f12 keys is so hot that i can roast peanuts on it.

      (if i left out any info or missed something please reply i would really love to have a page that has everything for people who have this laptop specifically for light gaming.)
    • By Guardian241
      So I just received a 980m in the post and after installing it I was greeted by multiple system crashes on my Alienware m17xr4 and was unable to install new drivers.

      Is there a step in the intallation process I missed? A bios setting I was supposed to change? The laptop is already set to UEFI mode in preperation for this and upon putting the old 680m back in the system it now works again. I have heard that I need to change INI files to install drivers but I expected it to at least function without large bugs such as these. Do you think that this GPU is faulty or have I done something wrong?

      Thanks for any help you can give.

      - M
    • By Guardian241
      Hi,

      I've recently got my hands on an M17x R4 Alienware Laptop from 2013 which I love. I've replaced the screen, keyboard, RAM, and hard drive to make it into a fully modern laptop. However, I'm currently waiting on a replacement for the 680m GPU with a 980m from ebay. My question for you all is, do I need to do anything with the BIOS to make this 980m work? Is there a way to prevent the laptop from using Intel HD Graphics with Optimus? I think the Intel HD Graphics on this laptop are currently broken as I see static-looking dots flash on the screen. (See image below for example). My theory is that because Intel HD Graphics with Optimus is still in-use while in-game, the dots are being caused by it.

      Thanks for any help in advance.

      - M




    • By narbardarse
      ok, so, i have a serious problem atm.
      im trying to mod my bios so that i can go past the normal overclocking limit. however, everytime i try to do it, it always says "file size does not match existing bios size!", and it's really annoying, since i had to find everything myself, as no one else online tried this on my specific model, besides me. (which surprises me, really)
      this is the guide im following:
      So this is my detailed description how I managed to mod and overclock my GTX 960M in my Lenovo Y50-70. Please note: it is very dangerous to play with the BIOS, so you need to be very careful! I take NO RESPONSIBILITY for any damage or misuse of the information below! Use it AT YOUR OWN RISK!

      -------


      Necessary tools:
      A. Fptw64 from Intel (9.5 or above)
      http://forum.hwbot.org/showthread.php?t=75024
      B. PhoenixTool (2.50 or above)
      C. Maxwell II BIOS Tweaker (1.36)
      https://www.techpowerup.com/downloads/2562/maxwell-ii-bios-tweaker-v1-36/

      -------------------------

      How to flash Modded BIOS:
      0. Flash the latest (3.03 now) official BIOS
      1. From Windows, start 'cmd' as Administrator and read your your BIOS via Fptw64:
         Fptw64 -d BIOS.ROM -bios
      2. Reboot, enter your BIOS and check "Enable downgrading BIOS" feature (we need to downgrade first in order to flash the modded BIOS)
      3. From Windows, downgrade to 1.13 (this is necessary because the newer BIOSes have protection against mod-ding)
      4. After reboot & reflash, start Windows, then enter standby, wait a bit, then wake up the machine
      5. Create your modded BIOS, see separate list below
      6. Start 'cmd' as Administrator and write your _modded_ BIOS via Fptw64:
         Fptw64 -f BIOS_MODDED.ROM -bios

      -------------------------

      How to create modded BIOS (point 5 above):
      5.1 Start PhoenixTool.exe from Phoenix Tool 2.50 and open your previously saved original BIOS.ROM from point #1 above
       .2 The tool analyses it and shows some messages, click OK
       .3 Now you can find your vBIOS in the "DUMP" subfolder in the folder containing your BIOS.ROM, with the file name:
          BE13645B-2C2C-44D2-A64F-0EA052C34597_1796.ROM
       .4 Create your modded vBIOS, see separate list below -> let's call it 960M_OC.MOD
       .5 Click on "Structure"
       .6 Open "EFI BIOS" tag
       .7 Open second "File Volume {7A9354D9-...}" tag
       .8 DXE Core -> Compressed Section -> Raw section -> File Volume {7A9354D9-...}
       .9 In the very long list, find the following tag (usually displayed at around 80% of the list):
          Freeform {BE13645B-2C2C-44D2-A64F-0EA052C34597}
          This is the item containing the latest vBIOS
       .10 Open the tag, then "GUID defined section", then click on Raw section. "Internal number" (in the top right corner) should be 1796 for BIOS 3.03.
       .11 Click on "Replace" and select your modded vBIOS (called 960M_OC.MOD above)
       .12 Click exit "Exit" and say Yes to "Save changes?"
       .13 Close the Phoenix Tool; now you should have your BIOS.ROM updated (the original will be saved as BIOS.ROM.OLD for safety)

      -------------------------

      How to create modded vBIOS (point 5.4 above):
      Use Maxwell II BIOS Tweaker to change BE13645B-2C2C-44D2-A64F-0EA052C34597_1796.ROM;
      5.4.1 Open the ROM
         .2 Change "Boost Clock" on "Common" tab to the new boost-ed maximum value
         .3 On "Boost table" tab, use the slider in the right bottom corner to increase your max boost-ed value to the same number
         .4 On "Boost states" tab, at P00 profile, change the MAX values in the GPC, L2C and XBAR fields to the same max boost-ed value
         .5 Save your modified BIOS and rename it to 960M_OC.MOD

      (My boost-ed max value was 1359 MHz. I could then use MSI Afterburner's software tuning -> my 960M could reach 1454 MHz without voltage increase.)
      i know that it's for a different laptop, but its basically the same
      ill provide more info when im home
    • By Klem
      If someone wants upgrade Wi-Fi card and remove witelist, or unlock hidden additional menus and settings, or unlocked vbios for overclock NVIDIA card, then you can post your request in this thread.

      It's for Lenovo Z710, Z510 only!
×
×
