aylan1196 Posted November 18, 2013 Share Posted November 18, 2013 hi svl7 if u want evga gtx 780 ti superclocked orig bios let me know bro:02.47-tranquillity: Quote Link to comment Share on other sites More sharing options...
Evildemon Posted November 18, 2013 Share Posted November 18, 2013 I have an EVGA 780 FTW - I flashed the bios in the downloads section (Nvidia GTX 780 - 'OC edition' VBIOS (update: v03)) and it really messed up my card, had to flash back Fun process. Is there a more appropriate one to use?Since you have a aftermarket cooler, you should have tried the Classified ou ACX bios, though you dont specify your problem. Quote Link to comment Share on other sites More sharing options...
Crysis1 Posted November 18, 2013 Share Posted November 18, 2013 I don't see why you would need a default voltage of 1.212V to get to 1.3V with MSI AB, that has nothing in common.Even with the stock vbios you can get to 1.3V with MSI AB.With only +100mv in AB I just get 1.223v monitoring AB Beta 15 SEWorkaround: When I first set in Nvidia-Inspector +287,5mv and then second in AB +100mv is the result 1,3vIs this the right way? Quote Link to comment Share on other sites More sharing options...
svl7 Posted November 18, 2013 Author Share Posted November 18, 2013 hi svl7 if u want evga gtx 780 ti superclocked orig bios let me know bro:02.47-tranquillity:Thanks, already have it, unless you have something newer than 80.80.30.00.80With only +100mv in AB I just get 1.223v monitoring AB Beta 15 SEWorkaround: When I first set in Nvidia-Inspector +287,5mv and then second in AB +100mv is the result 1,3vIs this the right way?I'm sorry, I'm afraid I can't completely follow your explanation. So if you set the voltage to 1.212V per Nvidia Inspector you can still add another 100mV per MSI AB? But no matter what you can't apply more than 100mV per MSI AB? For me that sounds ike MSI AB has yet some more strange issues. Quote Link to comment Share on other sites More sharing options...
Crysis1 Posted November 18, 2013 Share Posted November 18, 2013 You are right that's what I said: Only using AB +100mv gives me 1.223v (around +100mv more than default voltage of the bios - AB - Monitor is not exactly)Example: - with default voltage = 1050v I get 1150v with +100mv setting in AB- with default voltage = 1150 and set +100mv in AB I get 1250vIf I set first (before using AB) voltage in nvidia inspector AB gives me the voltage above! Example :- Set NI=1212v and after that in AB +50mv I get 1262v- Set NI=1212v and after that in AB +100mv I get 1,3vWith every Bios Nvidia Inspector gives (max) 1.212v but AB gives (only) +100mv over the default voltage (without using NI before). So if default voltage is only 1.050v using (only) AB I can get no more than 1.150v (1.050v +100mv from AB) That's is realy mysterious AB Quote Link to comment Share on other sites More sharing options...
svl7 Posted November 18, 2013 Author Share Posted November 18, 2013 Okay, now there's one thing I'm curious about... if you use MSI AB and give those additional 100mV does the card still idle at the original 2d voltage?Also - any idea why you can go only for +100mV? In the reviews I've seen all have been able to go to at least 1.3V with the stock vbios. Quote Link to comment Share on other sites More sharing options...
Crysis1 Posted November 18, 2013 Share Posted November 18, 2013 Yes the card idle at original 2D voltage (0,875).Another interesting point: That's the same behavior Rbby258 AB Voltage Mod works with my card:If default voltage is 1.050v and I set 100 into the Rbby258 Tool I get 1.150v.If default voltage is 1.150 and I set 100 into the Tool I get 1.250v. That's an offset input - equal to the GPU offset input. Maybe it depends on the new B1 stepping my Lightning works with Quote Link to comment Share on other sites More sharing options...
svl7 Posted November 18, 2013 Author Share Posted November 18, 2013 No, that depends on the voltage regulator and how it is controlled. It seems to be a CHiL 8318, with MSI AB you should be able to control it beyond 100mV offset, offset mode really makes no sense and I don't understand how reviewers got the card to 1.30V and up while you only get a 100mV offset. Quote Link to comment Share on other sites More sharing options...
Raven77 Posted November 19, 2013 Share Posted November 19, 2013 Great work you have done here svl7. Would there be any chance of you editing my 780SC bios for increased power limt only? cheers. Quote Link to comment Share on other sites More sharing options...

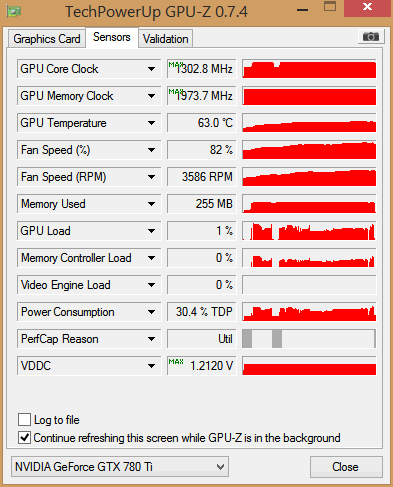

vmanuelgm Posted November 19, 2013 Share Posted November 19, 2013 A new firestrike with the newest whql 331.82 drivers from Nvidia. 780ti sli @ svl7 oc bios @ 1275 +300 memory (1,21v limitation): Quote Link to comment Share on other sites More sharing options...
aylan1196 Posted November 19, 2013 Share Posted November 19, 2013 fire strike extreme man this card is crazy with svl7 bios thanks man Quote Link to comment Share on other sites More sharing options...
vmanuelgm Posted November 19, 2013 Share Posted November 19, 2013 And a firestrike @ 780ti @ 1300 +300 Quote Link to comment Share on other sites More sharing options...
Evildemon Posted November 19, 2013 Share Posted November 19, 2013 vmanuelgm just for the record, how much could you achieve with stock bios?Those results are great by the way!!! Wish mine would do the same xD Quote Link to comment Share on other sites More sharing options...
vmanuelgm Posted November 20, 2013 Share Posted November 20, 2013 vmanuelgm just for the record, how much could you achieve with stock bios?Those results are great by the way!!! Wish mine would do the same xDDid not play for long with stock bios. As soon as I saw svl7 bios, I changed to it. I suppose stock bios could reach 1210-1240, depending on card asic/quality.. Quote Link to comment Share on other sites More sharing options...
Dicehunter Posted November 20, 2013 Share Posted November 20, 2013 I tried Skyn3ts bios the day I got my 780 ti *Didn't know SVL7 had one out yet* and for some reason I could get better overclocks with the stock vbios than with his lol I'll try SVL7 vbios as I know his are always great Quote Link to comment Share on other sites More sharing options...
DStealth Posted November 21, 2013 Share Posted November 21, 2013 SVL7 thank m8 again for the great support and your fabulous BIOS for 780Ti..here's what my bad OC 71 asic card can do with it : 1 Quote Link to comment Share on other sites More sharing options...

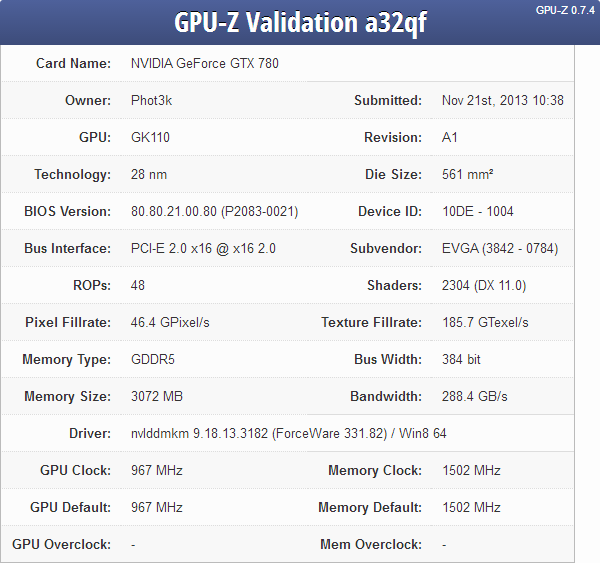

Phot3k Posted November 21, 2013 Share Posted November 21, 2013 Will you be creating a bios for the newer cards, I have the EVGA GTX 780 SC ACX. I would be willing to donate for it. Thanks. Quote Link to comment Share on other sites More sharing options...
Federmaus Posted November 23, 2013 Share Posted November 23, 2013 Hey, im having a little question here, i wonder if someone has a working Modbios for the GTX 780 Super Jetstream from Palit, the card i have has the the BIOS "80.10.3A.00.07", what i really need is the possibility to increase the powertarget, and maybe raise the vcore to 1.21 or something, so i can clock higher, since i run into powertarget throttling with my 2 cards all the time.Any help is appreciated alot, thanks. Quote Link to comment Share on other sites More sharing options...
dureiken Posted November 23, 2013 Share Posted November 23, 2013 Hi thereI have a MSI 780 Gaming Twin Frozr, I downloaded your Nvidia_GTX_780_(EVGA)_80.10.3A.00.82_-_'OC_edition_v03', I used dos nvflash -6 to flash and I have : Ovveride subsystem, I said Yes. Now I have : Board ID mismatch.Is it because my card is non reference design ?Thanks a lot Quote Link to comment Share on other sites More sharing options...
svl7 Posted November 24, 2013 Author Share Posted November 24, 2013 Will you be creating a bios for the newer cards, I have the EVGA GTX 780 SC ACX. I would be willing to donate for it.[ATTACH=CONFIG]9629[/ATTACH]Thanks.Yes, that's on my list, hopefully tomorrow.Hey, im having a little question here, i wonder if someone has a working Modbios for the GTX 780 Super Jetstream from Palit, the card i have has the the BIOS "80.10.3A.00.07", what i really need is the possibility to increase the powertarget, and maybe raise the vcore to 1.21 or something, so i can clock higher, since i run into powertarget throttling with my 2 cards all the time.That card has a custom cooler, right? You could use one of the ACX vbios, that will work, but the fan control might be a bit off for your cooler.Haven't modified the Jetstream vbios yet.I have a MSI 780 Gaming Twin Frozr, I downloaded your Nvidia_GTX_780_(EVGA)_80.10.3A.00.82_-_'OC_edition_v03', I used dos nvflash -6 to flash and I have : Ovveride subsystem, I said Yes. Now I have : Board ID mismatch.Is it because my card is non reference design ?You probably have a card with a B1 chip. Haven't modified the vbios for that yet. Can you send me a copy of your verison? Quote Link to comment Share on other sites More sharing options...
Federmaus Posted November 24, 2013 Share Posted November 24, 2013 That card has a custom cooler, right? You could use one of the ACX vbios, that will work, but the fan control might be a bit off for your cooler.Haven't modified the Jetstream vbios yet. Thanks, the fancontrol is no problem, since im on water anyway Edit: could someone upload me the "EVGA 780 - SC ACX - 80.10.3A.00.81 - 'OC edition v03' " somewhere? i cannot seem to access the attachments, thanks. Quote Link to comment Share on other sites More sharing options...
svl7 Posted November 24, 2013 Author Share Posted November 24, 2013 You need to have five approved posts in order to see attachments, just this one if you're under water: Nvidia GTX 780 - 'OC edition' VBIOS (update: v03) - Downloads - Tech|Inferno ForumsOr the classified version, that should work as well and has higher clocks. Quote Link to comment Share on other sites More sharing options...
dureiken Posted November 24, 2013 Share Posted November 24, 2013 You probably have a card with a B1 chip. Haven't modified the vbios for that yet. Can you send me a copy of your verison?As I can't send you PM : MSI%20GTX%20780%20GAMING%20biosThanks for the update ! Quote Link to comment Share on other sites More sharing options...
gd350turbo Posted November 24, 2013 Share Posted November 24, 2013 Hello everybody, I'm new here! Thanks for job... As there are many different bioses (and bios updates), is there a guide ? Quote Link to comment Share on other sites More sharing options...
gd350turbo Posted November 24, 2013 Share Posted November 24, 2013 You probably have a card with a B1 chip. Haven't modified the vbios for that yet. Can you send me a copy of your verison?I have the same problem...( board mismatch )I have a MSI 780 GAMING, can you help me ? Quote Link to comment Share on other sites More sharing options...
