Ultrax5 Posted March 1, 2016 Share Posted March 1, 2016 6 hours ago, Arise said: 58W is a value that implies that the cpu is in full load, or at least stressed with something. At first you should try only raising the multiplier and validate the frequency. After you do that you can switch back to the tdp rating? What laptop do you have? What is the temperature when you have 58W in load? Sent from my iPhone using Tapatalk Yeah I understand that perfectly. 58W is the short time power limit which apparently works as a long term limit when I set short one to 80 and the long one to 100. Basically I'm aiming to get the multiplier to stick on full load, and with a 58W limit I can only hit 3,4-3,6ghz@8threads. My laptop is Lenovo Y50-70. The best thing about this is that my results are terribly inconsistent - a few times I managed to run a full 40+ multiplier on 8 thread load, and the power consumption skyrocketed to 80W but after a reboot it all faded away and I was back at hitting a brick wall at 58W, even when no conditions changed. Quote Link to comment Share on other sites More sharing options...
rancorx2 Posted March 1, 2016 Share Posted March 1, 2016 (edited) has anyone successfully enabled xtu overclocking on; p170sm w110er w230s d/x/t ? and can share their ME firmwares? i tried on my w230sd but the option disappeared after flashing. i changed 0x00011A33 > 0x00011A34 was there something else i'm meant to change? the instructions were not clear. Edited March 1, 2016 by rancorx2 Quote Link to comment Share on other sites More sharing options...
Moes Posted March 2, 2016 Share Posted March 2, 2016 Hello everyone, could'nt find anything form my good ole HP elitebook 8460p it runs on a Intel QM67 chipset thus XTU should work with this mod, currently i still can't install it (stupid netframework problems) Anyone did an overclock on 8460p F.42 Bios with this mod? I am willing to dump my ME FW just for the heck of it ^^ Quote Link to comment Share on other sites More sharing options...
Khenglish Posted March 3, 2016 Author Share Posted March 3, 2016 The FITC available for 6 series chipsets is buggy. If you dump your ME FW I could give you a modded one back, but beware that it might not work. Quote Link to comment Share on other sites More sharing options...
rancorx2 Posted March 3, 2016 Share Posted March 3, 2016 7 hours ago, Khenglish said: The FITC available for 6 series chipsets is buggy. If you dump your ME FW I could give you a modded one back, but beware that it might not work. ok, here are my ME FW's; w230sd; http://www79.zippyshare.com/v/snwmU1ZT/file.html w110er; http://www79.zippyshare.com/v/8MKTI6pT/file.html p170sm; http://www79.zippyshare.com/v/7KBrLOyG/file.html maybe i'll have luck with one of them! Thank you in advance Quote Link to comment Share on other sites More sharing options...
rancorx2 Posted March 4, 2016 Share Posted March 4, 2016 can someone tell me what i have edit in the FITC tool? i know about Clock Source Select 0x00011A33 > A34, but what else needs changing? Quote Link to comment Share on other sites More sharing options...

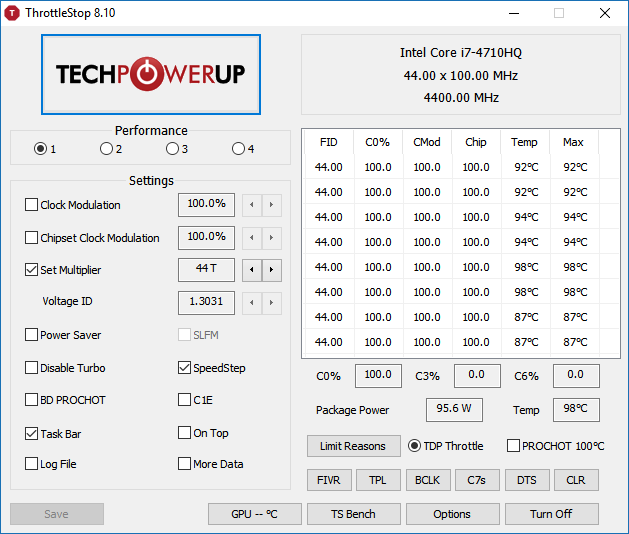

EDk-TheONE Posted March 5, 2016 Share Posted March 5, 2016 another interesting record: 4.4 GHz on 4710HQ @ 1.3 Volt 96 Watt TDP!Jump from 50 to 98 after 1 Second! WTF!http://valid.x86.fr/n7faqc Quote Link to comment Share on other sites More sharing options...
Arise Posted March 5, 2016 Share Posted March 5, 2016 Not that bad but it is supposed to do at least 4.5GHz with a little bit of cooling help according to Dufus. Did you tried to repaste it already? The voltage you set was with the offset or fixed? Quote Link to comment Share on other sites More sharing options...
EDk-TheONE Posted March 5, 2016 Share Posted March 5, 2016 my notebook repast with liquid ultra. i am planning to modify EC to run fans @ max speed. did you about know fans wire: balck,red,brown,yellow. it seems for max fan some pin/wire must be disconnected or shorted. adaptive voltage 1.3008 volt without offset. Quote Link to comment Share on other sites More sharing options...
Khenglish Posted March 5, 2016 Author Share Posted March 5, 2016 On 3/1/2016 at 3:50 AM, rancorx2 said: has anyone successfully enabled xtu overclocking on; p170sm w110er w230s d/x/t ? and can share their ME firmwares? i tried on my w230sd but the option disappeared after flashing. i changed 0x00011A33 > 0x00011A34 was there something else i'm meant to change? the instructions were not clear. Prema's modded bios have overclocking enabled ME FW for all of these systems. There are many changes necessary to the ME FW for BCLK overclocking. In the guide I say to mirror changes in another image and post that image because there are so many. For the P170sm only older ME FW allow for BCLK overclocking. Prema may have both linked in his thread. Quote Link to comment Share on other sites More sharing options...
UDPSendToFailed Posted March 7, 2016 Share Posted March 7, 2016 (edited) Hi! I can't open the BIOS dump with FITC, it gives me error: Error loading firmware version 7.0.2.1164. Major number of firmware image must be at least 8. What can i do with it? I have a laptop with HM65 PCH. Edited March 7, 2016 by UDPSendToFailed Quote Link to comment Share on other sites More sharing options...
Arise Posted March 9, 2016 Share Posted March 9, 2016 Probably uou need a fitc for your motherboard series. Sent from my iPhone using Tapatalk Quote Link to comment Share on other sites More sharing options...
UDPSendToFailed Posted March 16, 2016 Share Posted March 16, 2016 (edited) I have changed the setting with older version, and it corrupted the image. Can i do it with a hex editor? And some questions: Its possible to increase brightness steps, and set the brightness below minimum? It can be done under OSX (hackintosh). If i do this mod, can i change the CPU voltage, and can i overclock the IGP? How to bypass the TDP limits? Can i change the fan speed control method? And... How to unlock ME firmware on Acer laptops? Thanks for reply! Edit: I have a BIOS setting named "ME FW Image Reflash". When i set it to enable, Windows won't boot, just the spinning circle. I have Windows 10 Pro x64. Edited March 16, 2016 by UDPSendToFailed Quote Link to comment Share on other sites More sharing options...
Arise Posted March 17, 2016 Share Posted March 17, 2016 What platform you have? Changing brightness could be possible, but if macos is doing it accessing the ACPI space and overriding the function bodies in dsdt then you will need to do same in windows. You can probably try to edit the dsdt directly in BIOS and boot with it or try to override it like nando describes in egpu tutorials. Sent from my iPhone using Tapatalk Quote Link to comment Share on other sites More sharing options...
UDPSendToFailed Posted March 17, 2016 Share Posted March 17, 2016 (edited) I have a laptop with Intel HM65 PCH, I3 2310M CPU, so Sandy Bridge. In OSX, there is a Kernel Extension which controls the backlight. https://github.com/RehabMan/OS-X-Intel-Backlight Brightness problem solved with DSDT edit. Can i replace DSDT in my laptop's BIOS with the edited one? Edited March 17, 2016 by UDPSendToFailed Quote Link to comment Share on other sites More sharing options...
Arise Posted March 17, 2016 Share Posted March 17, 2016 You can, but I recommend to override the DSDT first by using setup 1.3. Only if it works then you can think about modding your bios. Sent from my iPhone using Tapatalk Quote Link to comment Share on other sites More sharing options...
UDPSendToFailed Posted March 18, 2016 Share Posted March 18, 2016 (edited) I have tested, its working. And.. How to edit the ME firmware? FITC creates a corrupt image. Also i have unlocked the BIOS, so i can read/write all regions. Edit: I have tried to replace 00 33 1A 01 with 00 34 1A 01 in BIOS file with a hex editor, and flashed it with SPI, the laptop won't post. So i will give up overclocking CPU. Can i OC the IGP some way? And how can i patch the DSDT in BIOS? Edited March 18, 2016 by UDPSendToFailed Quote Link to comment Share on other sites More sharing options...
Arise Posted March 29, 2016 Share Posted March 29, 2016 What bios you have? Sent from my iPhone using Tapatalk Quote Link to comment Share on other sites More sharing options...
UDPSendToFailed Posted March 30, 2016 Share Posted March 30, 2016 InsydeH2O Quote Link to comment Share on other sites More sharing options...
ShoshinUK Posted May 6, 2016 Share Posted May 6, 2016 (edited) If anyone can assist I would like to OC my 4700HQ on a G750JH ROG laptop to 4GHz stable - prob is I have no idea what I am doing and will break it if I attempt alone! Edited May 6, 2016 by ShoshinUK Quote Link to comment Share on other sites More sharing options...
tkoutn Posted May 30, 2016 Share Posted May 30, 2016 (edited) Awwww right, little heads up. I've followed through the guide and managed to not brick my laptop. It's a budget acer e1-531 machine purchased in 2013. I was pleasantly surprised when I first used it as it included hm77 chipset bundled with a pentium b960 sandy bridge cpu. Quite an odd combination but I'm not complaining. Anyway three years later it needs a little bit of a speed boost. I got a great deal on core i5 3210m. Upgrade to ivy bridge went pretty smooth, but I'm still looking to get the most out of it. Flashing the ME WF only allowed me to round up the bus speed to full 100Mhz but no more. I suspect this is the end of the line for this budget machine, honestly it still allowed me to do more than I expected. If anyone knows or is willing to further help me out or confirm my suspicion I would greatly appreciate it. Edited May 31, 2016 by tkoutn Quote Link to comment Share on other sites More sharing options...
Khenglish Posted May 31, 2016 Author Share Posted May 31, 2016 9 hours ago, tkoutn said: Awwww right, little heads up. I've followed through the guide and managed to not brick my laptop. It's a budget acer e1-531 machine purchased in 2013. I was pleasantly surprised when I first used it as it included hm77 chipset bundled with a pentium b960 sandy bridge cpu. Quite an odd combination but I'm not complaining. Anyway three years later it needs a little bit of a speed boost. I got a great deal on core i5 3210m. Upgrade to ivy bridge went pretty smooth, but I'm still looking to get the most out of it. Flashing the ME WF only allowed me to round up the fsb to full 100Mhz but no more. I suspect this is the end of the line for this budget machine, honestly it still allowed me to do more than I expected. If anyone knows or is willing to further help me out or confirm my suspicion I would greatly appreciate it. Link me your ME FW dump. Quote Link to comment Share on other sites More sharing options...
Flyview Posted June 7, 2016 Share Posted June 7, 2016 Hey guys, So about a year ago I tried this and even though I was able to extract the bios ME region and modify it, it didn't unlock anything on my UX32VD with Intel HM76 board. Is there anything I can modify in the bios image to allow some undervolting? The CPU just gets way too hot when also running the dedicated GPU on this laptop. Attached is the ME region I extracted a year ago. ME Region.zip Quote Link to comment Share on other sites More sharing options...
Bios Modder Klem Posted June 8, 2016 Bios Modder Share Posted June 8, 2016 8 hours ago, Flyview said: Hey guys, So about a year ago I tried this and even though I was able to extract the bios ME region and modify it, it didn't unlock anything on my UX32VD with Intel HM76 board. Is there anything I can modify in the bios image to allow some undervolting? The CPU just gets way too hot when also running the dedicated GPU on this laptop. Attached is the ME region I extracted a year ago. ME Region.zip To allow some undervolting for CPU, just use the nice program Intel XTU or ThrottleStop_8.1. ME Region designed for another things. Quote Link to comment Share on other sites More sharing options...
Flyview Posted June 8, 2016 Share Posted June 8, 2016 5 hours ago, Klem said: To allow some undervolting for CPU, just use the nice program Intel XTU or ThrottleStop_8.1. ME Region designed for another things. The voltage options are locked on this Ivy Bridge laptop. I was hoping to unlock them through modifying the BIOS? Quote Link to comment Share on other sites More sharing options...
