Dschijn Posted July 21, 2015 Share Posted July 21, 2015 I would strongly advise you to get the 2nd splitter! Quote Link to comment Share on other sites More sharing options...
keymone Posted July 21, 2015 Share Posted July 21, 2015 I would strongly advise you to get the 2nd splitter!could it be the reason i'm getting black screen when booting with akitio connected?no monitor is connected to gpu itself, i'm running 2015 rmpb osx 10.10.4 Quote Link to comment Share on other sites More sharing options...
Dschijn Posted July 21, 2015 Share Posted July 21, 2015 It depends on the GPU, some can draw a big amount of power through the PCIe slot. Without any load it shouldn't be a big problem.I don't really understand your problem, could you please explain in detail your setup and your problem?! Quote Link to comment Share on other sites More sharing options...
keymone Posted July 21, 2015 Share Posted July 21, 2015 It depends on the GPU, some can draw a big amount of power through the PCIe slot. Without any load it shouldn't be a big problem.I don't really understand your problem, could you please explain in detail your setup and your problem?!standard stuff: akitio, dell da-2, kfa2 gtx970. i powered akitio using it's stock psu and gpu with da-2 through 6pin splitter. i've ran the script from goalque with relative success (first couple runs failed because i had osx incompatible sed in my PATH, last one succeeded, i have nvidia web driver installed).now the problem is if i boot up my macbook normally - everything is fine, nvidia has the checkbox next to it's web driver in system panel.if i boot up with thunderbolt connected and akitio powered - i get black screen.P.S. system report shows additional gpu so it's a win, making it primary is apparently not possible at the moment so i'll just get external monitor somewhere. Quote Link to comment Share on other sites More sharing options...
Dschijn Posted July 21, 2015 Share Posted July 21, 2015 P.S. system report shows additional gpu so it's a win, making it primary is apparently not possible at the moment so i'll just get external monitor somewhere.eGPU with primary display is only possible with an external display connected to the eGPU in OSX. Quote Link to comment Share on other sites More sharing options...
w4vz Posted July 22, 2015 Share Posted July 22, 2015 @keymone you should not mix psu as this can bring ground loops and potentially damage your equipment. Quote Link to comment Share on other sites More sharing options...
keymone Posted July 22, 2015 Share Posted July 22, 2015 @keymone you should not mix psu as this can bring ground loops and potentially damage your equipment.ugh.. wow. thanks for letting me know. what is ground loops? are there any noob-friendly resources that explain that sort of stuff? Quote Link to comment Share on other sites More sharing options...
w4vz Posted July 22, 2015 Share Posted July 22, 2015 Paste from google: In an electrical system, a ground loop is an unwanted current in a conductor connecting two points that are supposed to be at the same potential, often ground, but are actually at different potentials. Ground loops are a major cause of noise, hum, and interference in audio, video, and computer systems. Quote Link to comment Share on other sites More sharing options...
dax Posted August 30, 2015 Share Posted August 30, 2015 I want to use DA-2 with Akitio Enclosure and a 175W GPU with 8pin connector.According to the very nice introduction by jacobsson, the DA2 has three 12V wires. Trying to minimize soldering efforts, I came up with a wiring diagram, where all three 12V wires are connected with an 8pin GPU power connectoronly two wires are also connected with Akitio Barrel plugAssuming that the GPU will consume 75W from PCIe lane and 100W from an 8pin connector, it seems like the total current in one wire will be 100W/3 = 2.8 Athe total current in two other wires will be 100W/3 + (10W+75W)/2 = 6.3 ADo I need to worry about more than 6 amps in those two wires? Are there any specs or information about the DA2 power cord? AWG? Length? Resistance? Quote Link to comment Share on other sites More sharing options...
Dschijn Posted August 30, 2015 Share Posted August 30, 2015 You can simply combine all 12V and ground rails and just use as much wires as you want to power the 8-Pin and the barrel plug (AKiTiO). Seems like you want to make the Fury Nano work, right? I would wait for reviews to see how much power the card really uses and how much load the card will put on the PCIe slot. Good cards get the major part on the 6/8-Pin power conenctors and only a fraction of the possible 75W on the slot! So lets hope AMD did a good good and set a small load on the slot! Edit: The Fury-X is already using almost all it's power from the PCIe plugs and only 10W on the slot: source: https://translate.google.de/translate?sl=de&tl=en&js=y&prev=_t&hl=de&ie=UTF-8&u=http%3A%2F%2Fwww.tomshardware.de%2Fradeon-r9-fury-x-grafikkarte-fiji-gpu%2Ctestberichte-241846-7.html&edit-text= Quote Link to comment Share on other sites More sharing options...
dax Posted August 30, 2015 Share Posted August 30, 2015 You can simply combine all 12V and ground rails and just use as much wires as you want to power the 8-Pin and the barrel plug (AKiTiO).Seems like you want to make the Fury Nano work, right? I would wait for reviews to see how much power the card really uses and how much load the card will put on the PCIe slot.It's like you are reading my mind ) I am very interested in the new Fury Nano indeed. Low power consumption at the PCIe slot comparable to Fury-X would be perfect. But coming back to the worst case, it would be still interesting to know the limits of DA2 power cord. Some people say it has 3x 14 AWG - IMHO, more than enough to carry 3x 6 amps and more.If someone would confirm that, then I would safely apply my simplistic "zero-soldering" wiring. Quote Link to comment Share on other sites More sharing options...
Dschijn Posted August 30, 2015 Share Posted August 30, 2015 Well the DA-2 is rated to output 220W… Quote Link to comment Share on other sites More sharing options...
Tech Inferno Fan Posted August 30, 2015 Share Posted August 30, 2015 Well the DA-2 is rated to output 220W… Well the DA-2 is rated to output 220W… Though can deliver up to 12V/20A (240W) according to a couple of taobao vendors: taobao vendor1 taobao vendor2 <A HREF=http://gd1.alicdn.com/bao/uploaded/i1/TB1RDb8HpXXXXXgaXXXXXXXXXXX_!!0-item_pic.jpg_600x600.jpg><img src=http://gd1.alicdn.com/bao/uploaded/i1/TB1RDb8HpXXXXXgaXXXXXXXXXXX_!!0-item_pic.jpg_600x600.jpg></A> Quote Link to comment Share on other sites More sharing options...
Dschijn Posted September 10, 2015 Share Posted September 10, 2015 @dax: Since the Nano is now reviews it seems like that cards power consumption can peak up to 300W. Might be unstable with the DA-2. Quote Link to comment Share on other sites More sharing options...

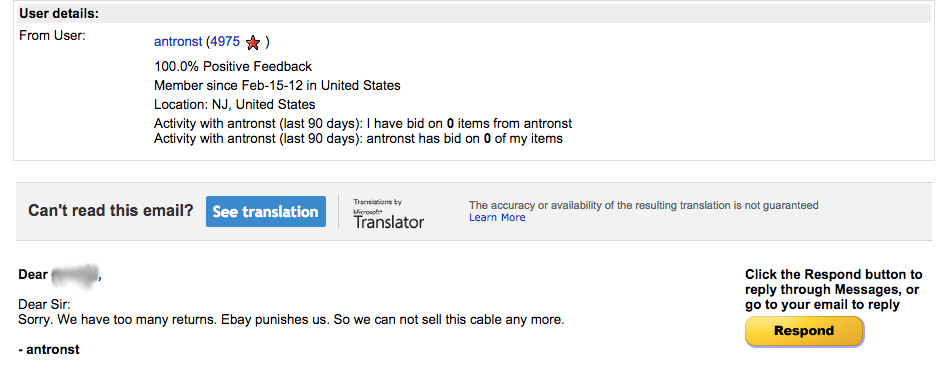

liga Posted September 11, 2015 Share Posted September 11, 2015 Hi, I tried to buy one of these and here's the reply Quote Link to comment Share on other sites More sharing options...
Dschijn Posted September 11, 2015 Share Posted September 11, 2015 Hi, I tried to buy one of these and here's the reply[ATTACH]15903[/ATTACH]The adapter cable? Guess too many bought it without knowing what it is for. Quote Link to comment Share on other sites More sharing options...
dax Posted September 12, 2015 Share Posted September 12, 2015 @dax: Since the Nano is now reviews it seems like that cards power consumption can peak up to 300W. Might be unstable with the DA-2.300W is definitely too much for DA-2. But I would call into question such statements. Both PCIe lane (max 75W) and 8pol plug (max 150W) allow max power consumption of 225 Watt, not 300 Watt.Would you please point me to one of the related reviews? Quote Link to comment Share on other sites More sharing options...
Dschijn Posted September 12, 2015 Share Posted September 12, 2015 Would you please point me to one of the related reviews?Sure, but for short peaks the card can use more than 225W! https://translate.google.de/translate?sl=de&tl=en&js=y&prev=_t&hl=de&ie=UTF-8&u=http%3A%2F%2Fwww.tomshardware.de%2Famd-radeon-r9-nano-grafikkarte-gpu%2Ctestberichte-241924-9.html&edit-text= Quote Link to comment Share on other sites More sharing options...
tranj10 Posted September 13, 2015 Share Posted September 13, 2015 It seems that the ebay seller no longer offers the pre-fabricated cable. Quote Link to comment Share on other sites More sharing options...
cbong23 Posted September 14, 2015 Share Posted September 14, 2015 Hello guys,Seems like this cable is no longer available from the owner. So I've decided to create my own.Based on the image, this wires has been spliced/soldered all together here. Is it something safe to do?Imgur: The most awesome images on the InternetPlus, if you know any alternative cables like this, let me know. Quote Link to comment Share on other sites More sharing options...
Dschijn Posted September 14, 2015 Share Posted September 14, 2015 That is no problem! Just make sure to use propper and thick wires for the peak loads! Quote Link to comment Share on other sites More sharing options...
Kurbeco Posted September 17, 2015 Share Posted September 17, 2015 What does the DA-2 put out when not underload? I've made a cable to power the AKiTio and whilst confirming it was correctly wired I saw the voltage at around 19v. The stated output is 12v. Can someone else please check what their DA-2 does when not loaded?edit: My multimeter was faulty, after checking with another meter it was showing 12.32v under no load. Quote Link to comment Share on other sites More sharing options...
Dschijn Posted September 17, 2015 Share Posted September 17, 2015 It's a 12V PSU… Quote Link to comment Share on other sites More sharing options...
Kurbeco Posted September 17, 2015 Share Posted September 17, 2015 Yes, but some switch-mode PSUs require a minimum amount of load before they'll output the correct voltage. I want to check what others with no load on them. Quote Link to comment Share on other sites More sharing options...
TheDeathEffect Posted September 18, 2015 Share Posted September 18, 2015 I'm getting around 12V on all 12V lines of my Dell DA-2 when it is on. I'm not using the best voltmeter, but I doubt it would read that far off from 19V. 2 Quote Link to comment Share on other sites More sharing options...
