Splitframe Posted February 15, 2016 Share Posted February 15, 2016 The A4 from Dan Cases would really be perfect. You could use the Motherboard space for 3,5" Archive HDDs. Link to comment Share on other sites More sharing options...
Dschijn Posted February 15, 2016 Author Share Posted February 15, 2016 That is true. Unfortunately the case is not released yet. Link to comment Share on other sites More sharing options...
davidexD Posted February 15, 2016 Share Posted February 15, 2016 The silverstones are my favorite, i'm also looking for a tiny case, what do you think about this one? http://www.vultech.it/it/411-case-mini-itx-cubo-usb-30-no-psu-bianco-8057284623281.html Inviato dal mio iPhone utilizzando Tapatalk Link to comment Share on other sites More sharing options...
Dschijn Posted February 15, 2016 Author Share Posted February 15, 2016 The cube is quite big (imho) Link to comment Share on other sites More sharing options...
davidexD Posted February 15, 2016 Share Posted February 15, 2016 How about the sugo08? Inviato dal mio iPhone utilizzando Tapatalk Link to comment Share on other sites More sharing options...
Dschijn Posted February 15, 2016 Author Share Posted February 15, 2016 Yeah seems good Link to comment Share on other sites More sharing options...
YukonAppleGeek Posted February 20, 2016 Share Posted February 20, 2016 Hi everyone, I have a great eGPU setup with the Rockstar 6361A with a Asus 980 TI Strix and an Evga 650 P2. I have been looking at the Xigmatek Eris for a case but am wondering if anyone knows how tight their tolerances are. It says it fits a 300mm GPU strix being 305mm (with shroud). If need be I can remove the shroud but there is no mention of how high of a gpu it supports. It looks like my GPU will fit but there is no way to tell for sure. Should I just go for it and see if I can squeeze it in or use the Elite 130 (bigger than I would like) that I know it will fit in? Link to comment Share on other sites More sharing options...
Dschijn Posted February 20, 2016 Author Share Posted February 20, 2016 Uhhhhh… The STRIX cards are huge. You better check forums where they are discussing the cases themself! Link to comment Share on other sites More sharing options...
davidexD Posted February 25, 2016 Share Posted February 25, 2016 Does anyone have a SILVERSTONE sugo 08? Can i take a look?[emoji51] Inviato dal mio iPhone utilizzando Tapatalk Link to comment Share on other sites More sharing options...
Dschijn Posted February 25, 2016 Author Share Posted February 25, 2016 I am currently using a CoolerMaster Elite 130 again, that is similar to the SILVERSTONE sugo 08. Link to comment Share on other sites More sharing options...
gharimanto Posted February 25, 2016 Share Posted February 25, 2016 1 hour ago, Dschijn said: I am currently using a CoolerMaster Elite 130 again, that is similar to the SILVERSTONE sugo 08. How about corsair Graphite 380T ? She has holding on top. I'm still considering about A4 SFX, but the price is too expensive Link to comment Share on other sites More sharing options...
Dschijn Posted February 25, 2016 Author Share Posted February 25, 2016 Corsair Graphite 380T will work, but you will need an angled riser! also the case is huge and a lot of space is "wasted" unused. Link to comment Share on other sites More sharing options...
davidexD Posted February 25, 2016 Share Posted February 25, 2016 @dschijn can i take a look of yours? Inviato dal mio iPhone utilizzando Tapatalk Link to comment Share on other sites More sharing options...
Dschijn Posted February 25, 2016 Author Share Posted February 25, 2016 Ok send you in a PN Link to comment Share on other sites More sharing options...

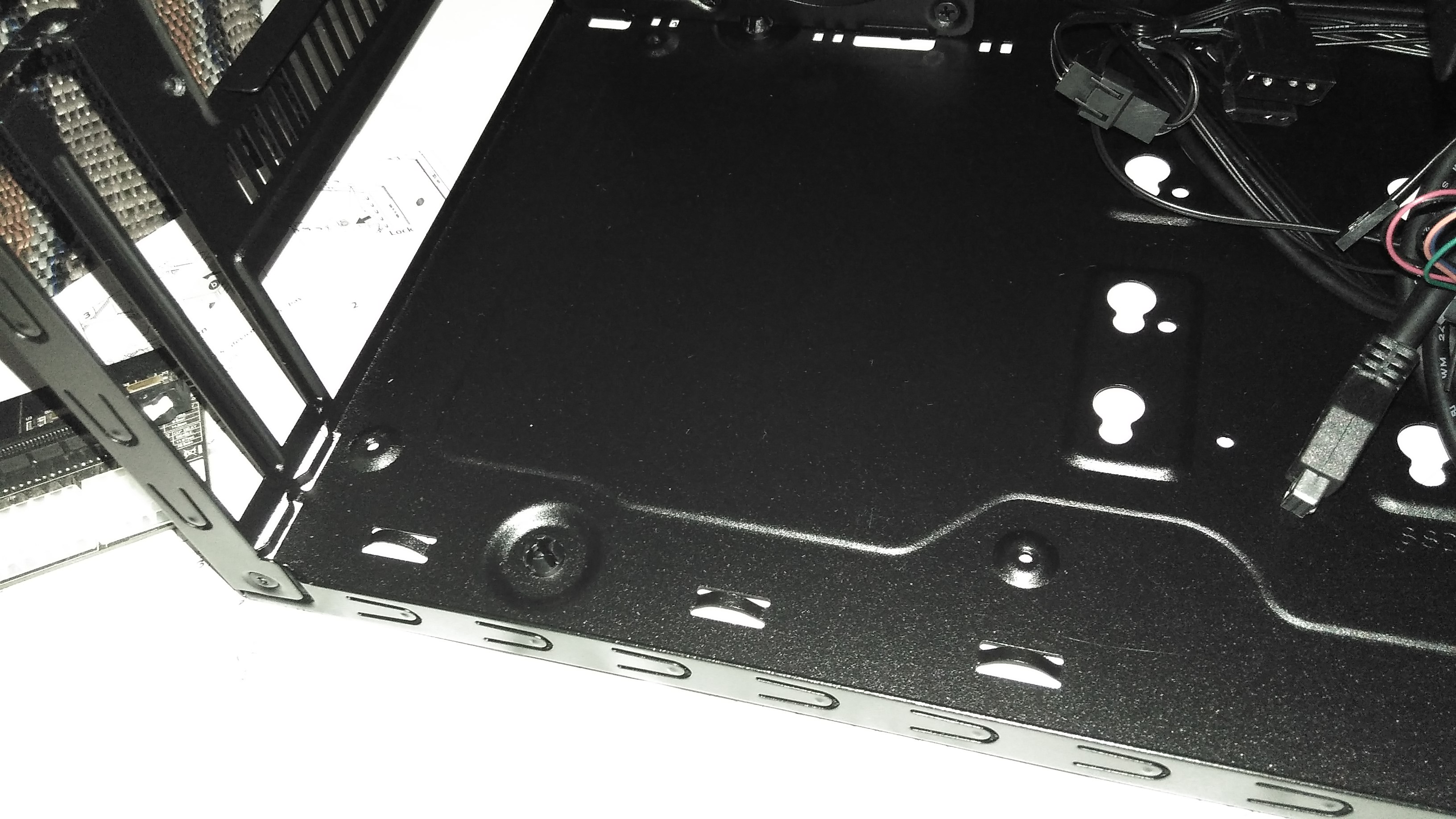

gharimanto Posted March 7, 2016 Share Posted March 7, 2016 On 2/25/2016 at 2:24 AM, Dschijn said: Ok send you in a PN Recently, I bought elite 130 advanced Should I get flexible pcie riser ? Because PE4C 3.0 stuck in this case Spoiler Spoiler Link to comment Share on other sites More sharing options...

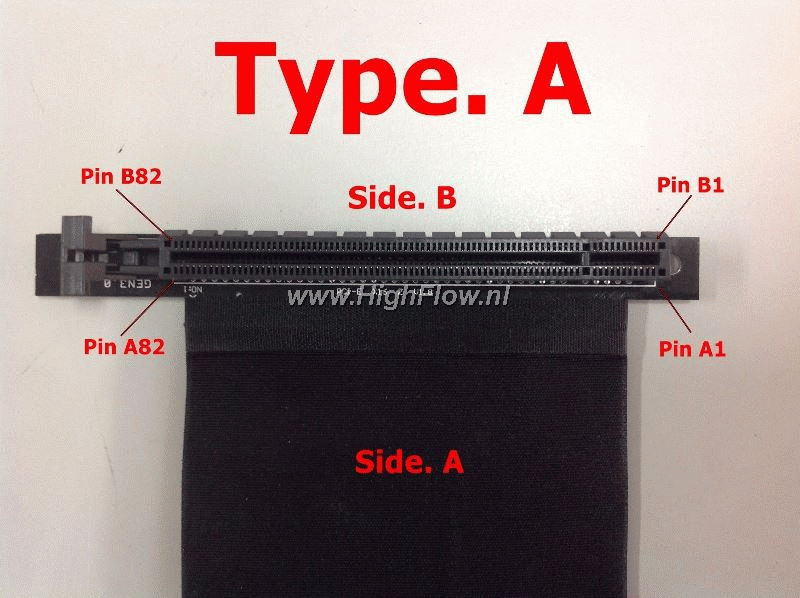

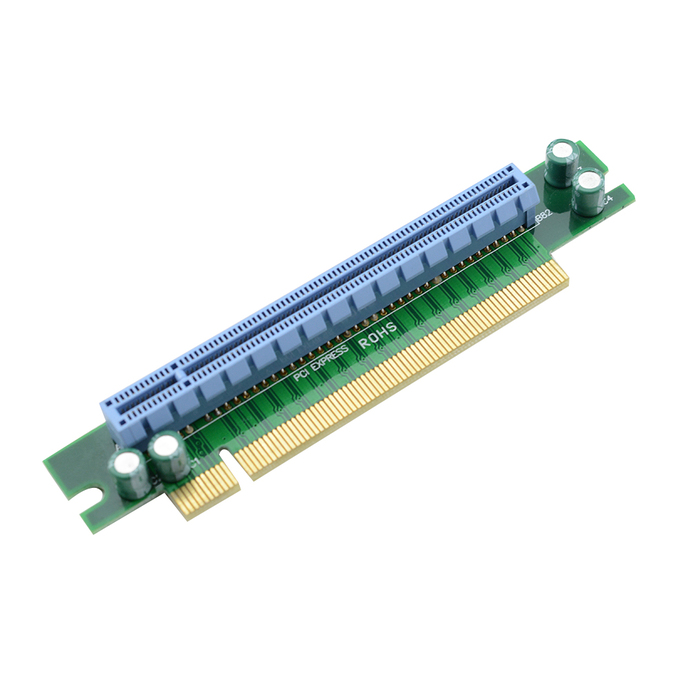

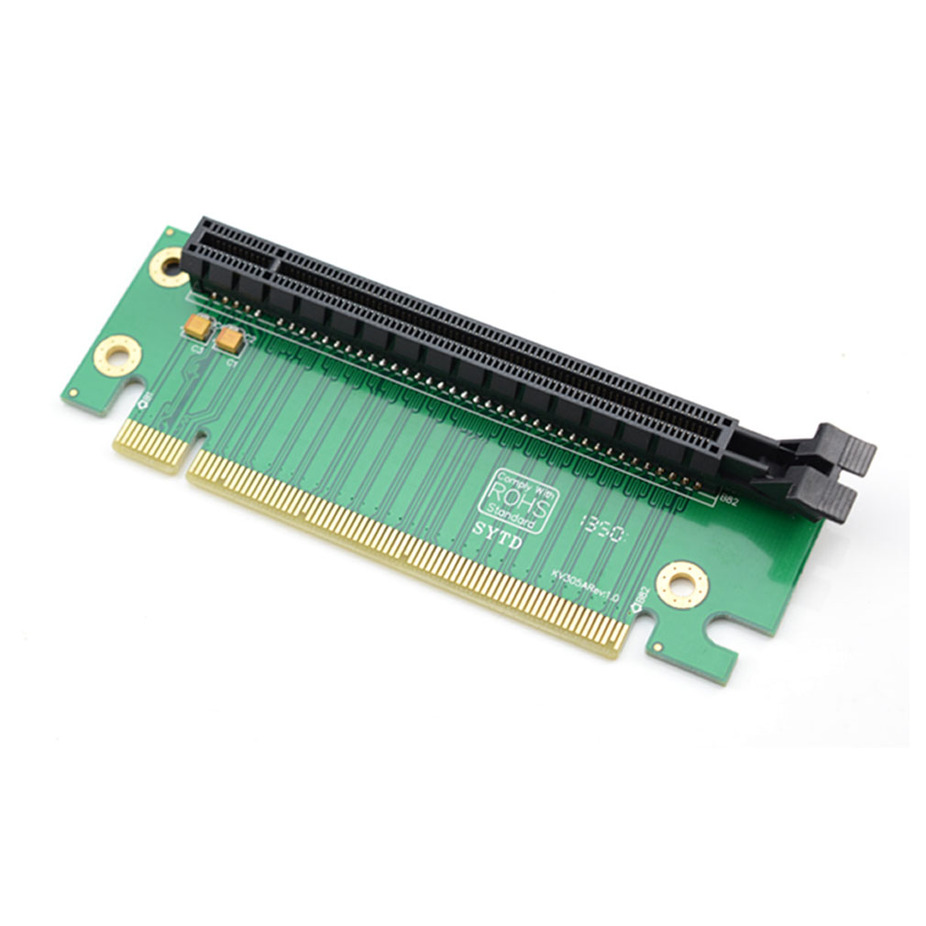

Dschijn Posted March 7, 2016 Author Share Posted March 7, 2016 Try and find this riser: DeLOCK 41788 PCIe x16 Riser You will need exactly this riser to make a 90° turn and you will need a flexible riser cable as well. OR you try and find Li-Heat Riser like this in Type-A: http://www.highflow.nl/hardware/videokaarten/li-heat-pci-e-gen-3.0-ribbon-flexible-riser-cable-black.html As you can see the connector makes a 90° turn into the cable: This is mandatory for cases like the Elite 130. 2 Link to comment Share on other sites More sharing options...

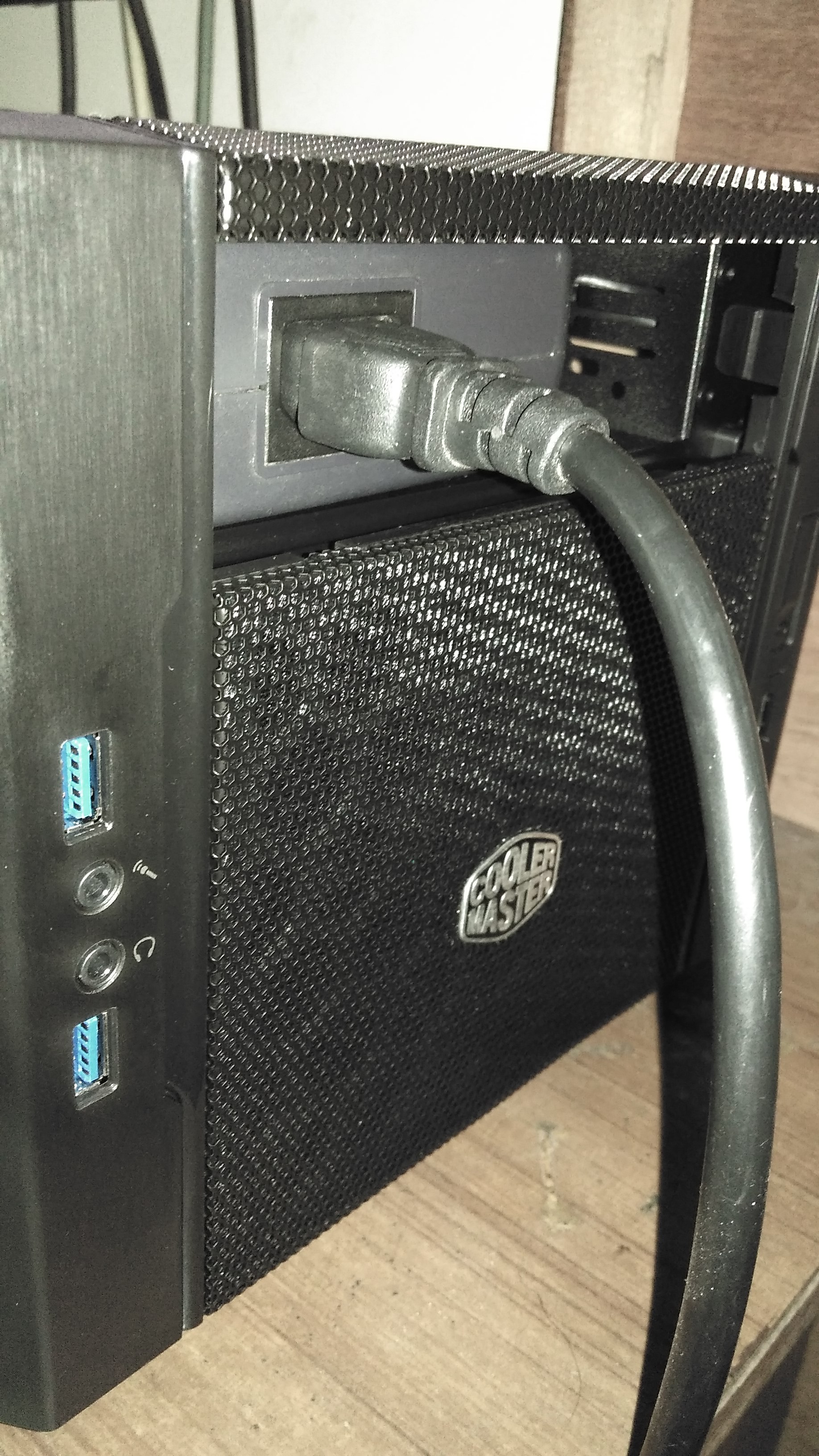

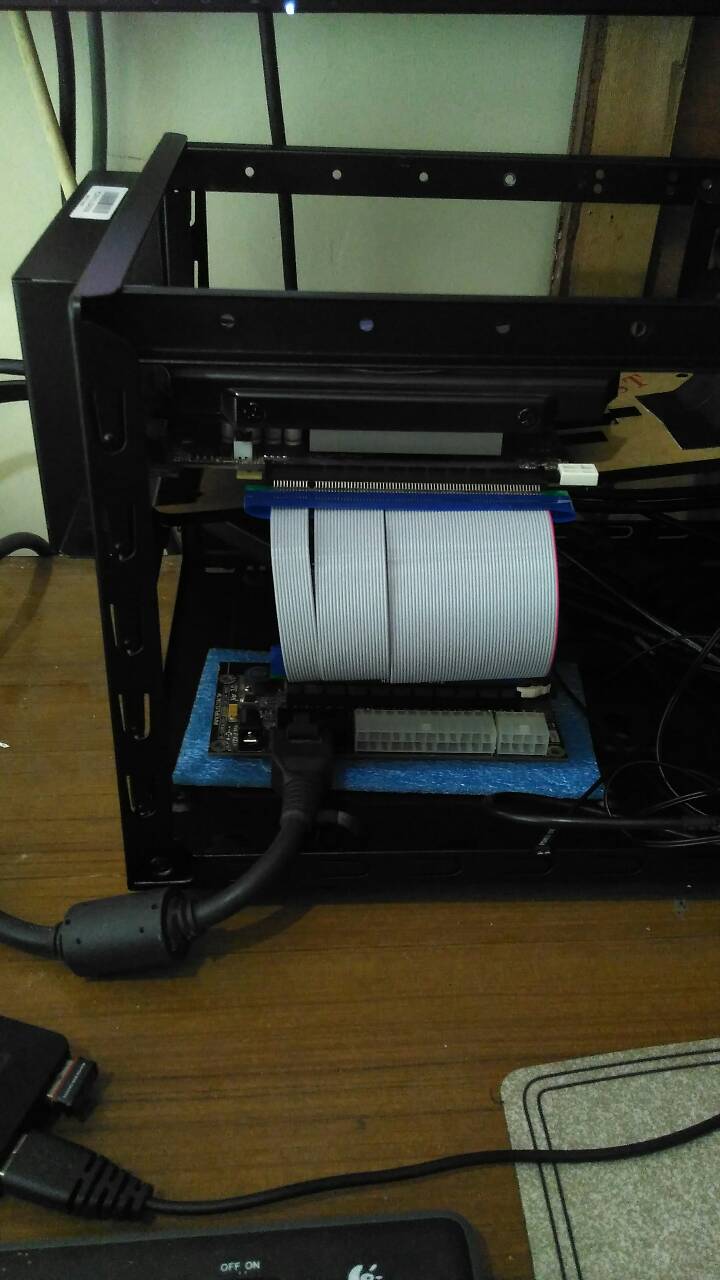

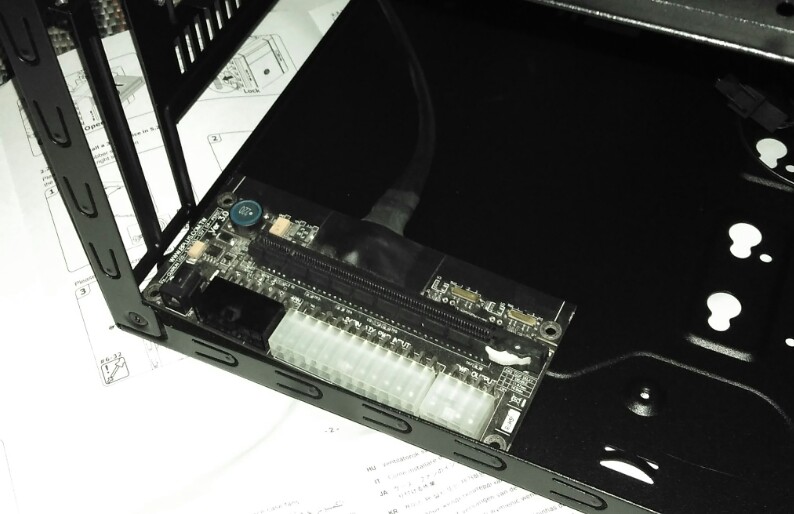

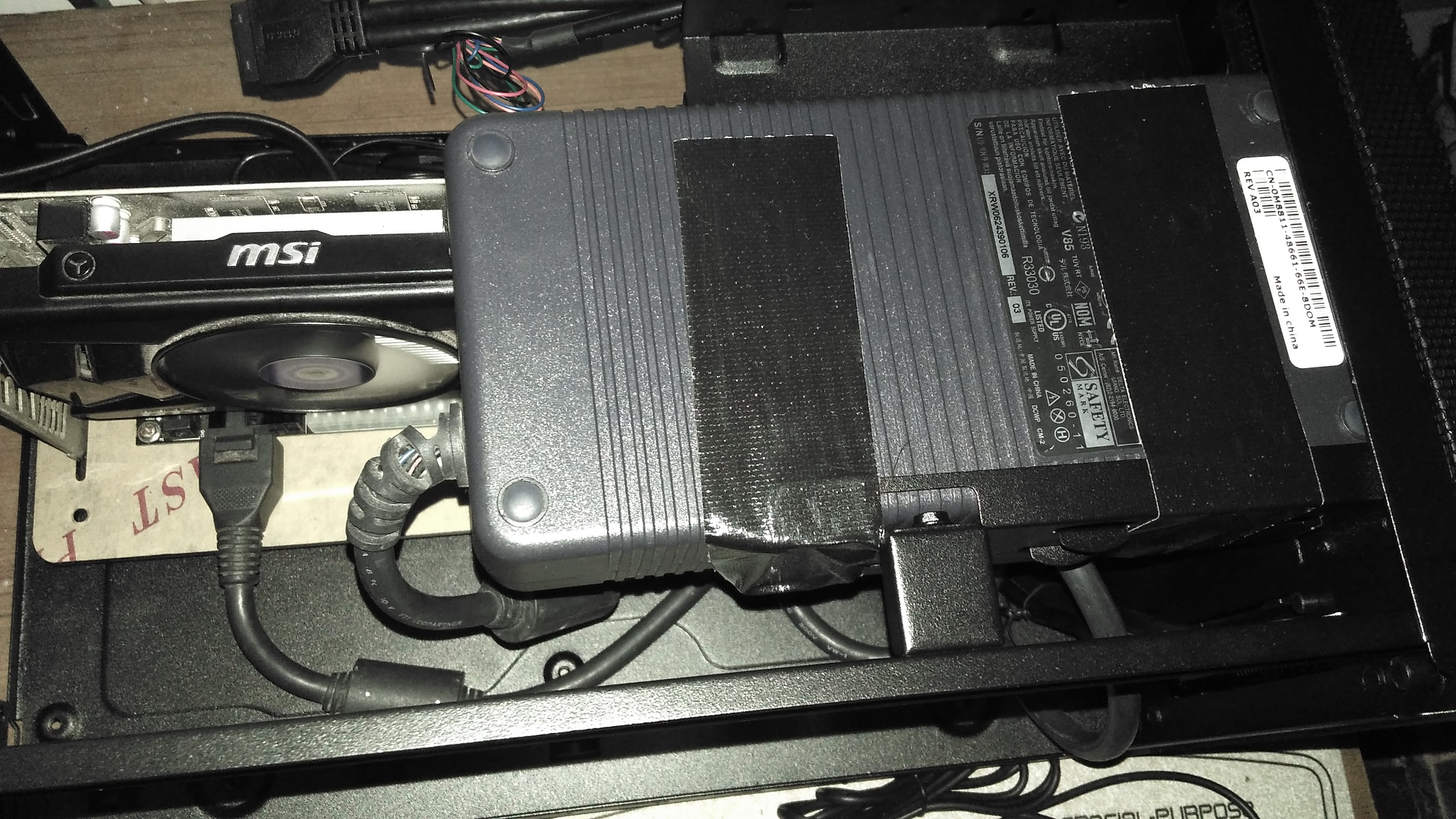

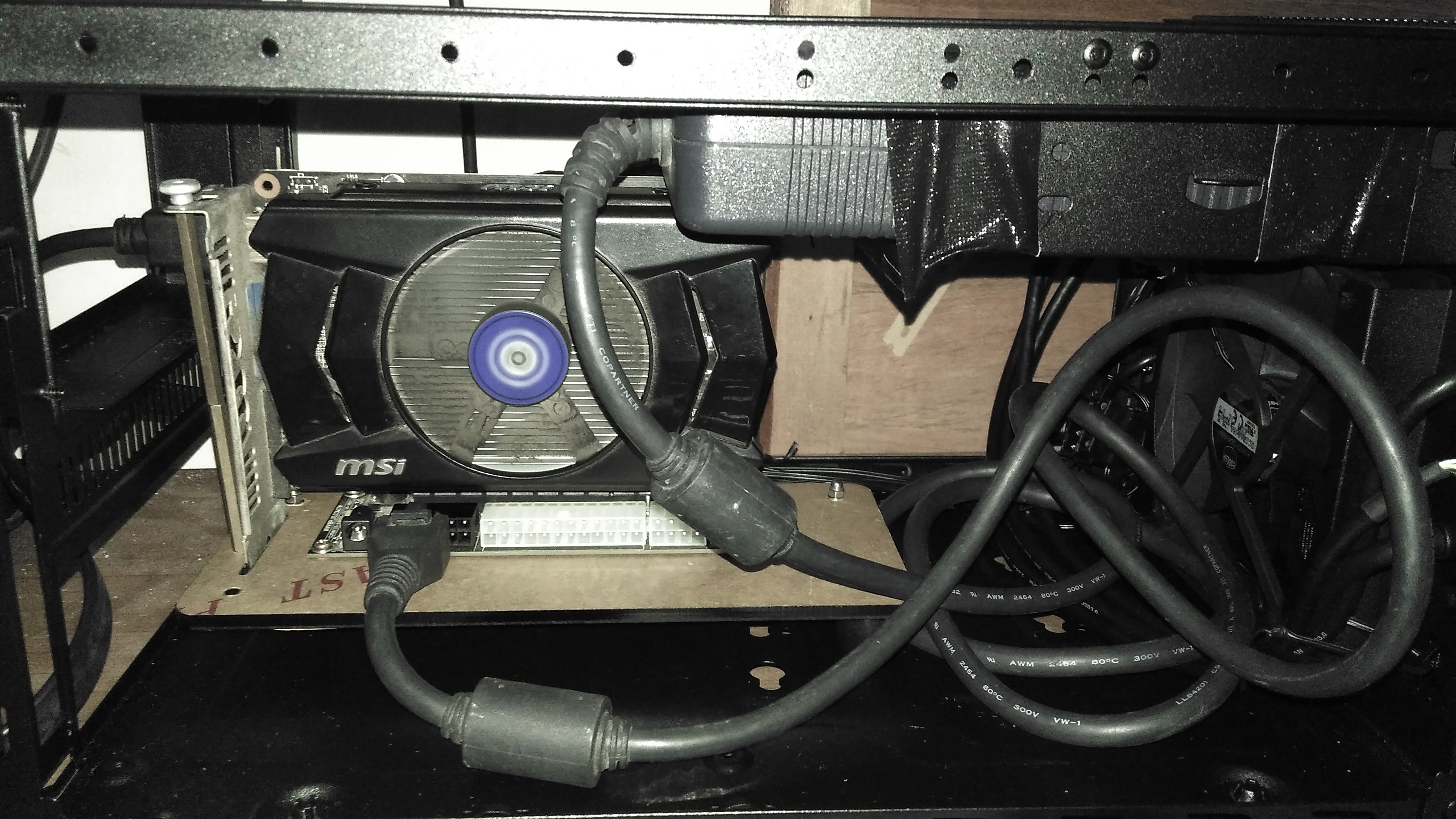

gharimanto Posted March 8, 2016 Share Posted March 8, 2016 19 hours ago, Dschijn said: Try and find this riser: DeLOCK 41788 PCIe x16 Riser You will need exactly this riser to make a 90° turn and you will need a flexible riser cable as well. OR you try and find Li-Heat Riser like this in Type-A: http://www.highflow.nl/hardware/videokaarten/li-heat-pci-e-gen-3.0-ribbon-flexible-riser-cable-black.html This is mandatory for cases like the Elite 130. Li-Heat Riser type A take IDR 500k ~ $ 38 (much expensive for student like me). I hope price of drop down. And now, I'm use a single flexible riser Spoiler But, the performance goes drop down. Firestrike testing was crash The Witcher 3 got half performance ( normally 30-44 FPS, but now only 12-15 FPS) So that, I decided to put PE4C with board into the case and Dell DA-2 too. Spoiler Spoiler Spoiler Link to comment Share on other sites More sharing options...

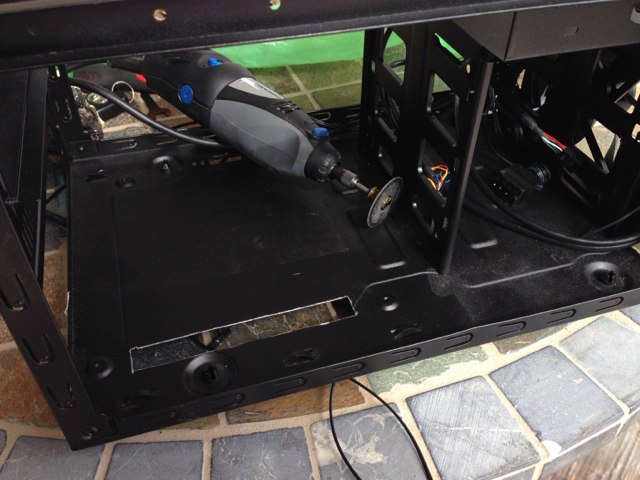

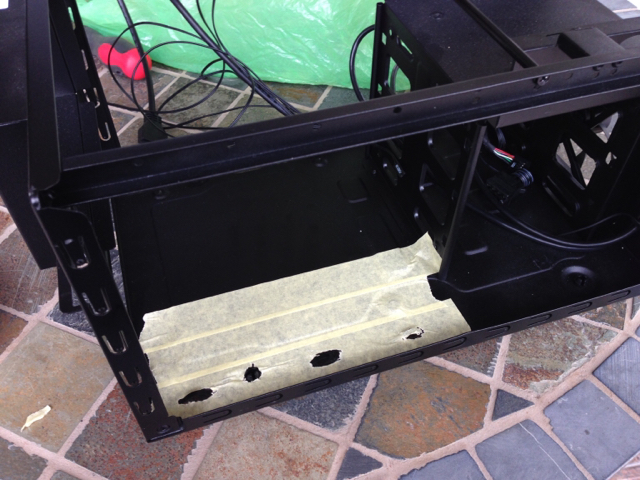

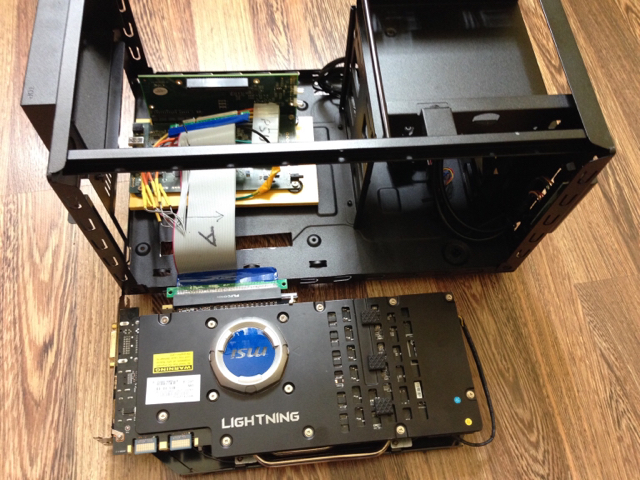

Arise Posted March 8, 2016 Share Posted March 8, 2016 I cut with the dremel in the bottom of my CM120 so I can make room for the extender to go through and return with the cable back. Sent from my iPhone using Tapatalk Link to comment Share on other sites More sharing options...
gharimanto Posted March 8, 2016 Share Posted March 8, 2016 3 hours ago, Arise said: I cut with the dremel in the bottom of my CM120 so I can make room for the extender to go through and return with the cable back. Sent from my iPhone using Tapatalk Nice, But I won't my case bleeding 1 Link to comment Share on other sites More sharing options...
Arise Posted March 8, 2016 Share Posted March 8, 2016 Couldnt find a better solution at that time. So I went ahead and made that hole to let the extender non flexible part some space. Sent from my iPhone using Tapatalk 1 Link to comment Share on other sites More sharing options...
Scooter Posted March 14, 2016 Share Posted March 14, 2016 Hi, very happy with the combination of a Milo ML08 from Silverstone, Highpoint RocketStor 6361A Thunderbolt 2 PCIe, and Silverstone SFX-L 80+ Gold 500W Modular Power Supply. Using the supplied riser from Silverstone, it is possible to mount the naked Thunderbolt PCIe card on the other side of the bay that holds the GPU, if you can insulate it, as the power pins from the molex connector are very close to the divider. As you will have to cut a hole to access the Thunderbolt connection, I chose to cut out a gap in the divider to prevent the possibility of anything shorting. I also had to do a bit of modding to get the pipes through for a Hybrid EVGA 980ti, so I always knew that there would be some cutting involved. Bonus with the Highpoint case is that is perfectly in tact, so it could be re-purposed in the future, and it is the same price as the AKiTiO at B&H. Oh and ofcourse, the power is supplied via 2 molex connectors for the Silverstone PSU, so none of the modding to the power supply is required. Its a very neat set up. Cheers 1 Link to comment Share on other sites More sharing options...
davidexD Posted March 14, 2016 Share Posted March 14, 2016 Photo? Link to comment Share on other sites More sharing options...
Scooter Posted March 17, 2016 Share Posted March 17, 2016 On 14/3/2016 at 7:00 PM, davidexD said: Photo? I'll post the build soon, just looks like a Milo case! Link to comment Share on other sites More sharing options...
Scooter Posted March 20, 2016 Share Posted March 20, 2016 Here is the case build in pictures Cheers Link to comment Share on other sites More sharing options...
shirazigs Posted April 10, 2016 Share Posted April 10, 2016 (edited) I've found these that I can order from Canada. I wanted to know if these are Ok. PCI-E Express 16X 90 Degree Adapter Riser Card For 1U Computer Server Chassis UL http://www.ebay.ca/itm/PCI-E-Express-16X-90-Degree-Adapter-Riser-Card-For-1U-Computer-Server-Chassis-UL-/161868305414?hash=item25b01a5406:g:giAAAOSw~bFWK4E- PCI-E Express 16X 90 Degree Adapter Riser Card For 2U Computer Server Chassis UF http://www.ebay.ca/itm/PCI-E-Express-16X-90-Degree-Adapter-Riser-Card-For-2U-Computer-Server-Chassis-UF-/371472631839?hash=item567d7e881f:g:2bYAAOSwT5tWLg7L New PCI-Express PCI-E 16X Riser Card Ribbon Extender Extension Cable EA http://www.ebay.ca/itm/New-PCI-Express-PCI-E-16X-Riser-Card-Ribbon-Extender-Extension-Cable-EA-/252065399975?hash=item3ab044c4a7:g:TfYAAOSwT6pV2CwF THANKS Edited April 11, 2016 by shirazigs Link to comment Share on other sites More sharing options...
