TBoneSan Posted February 25, 2015 Share Posted February 25, 2015 Yes I disabled Serial Port A & Azalia. I also double checked the HDMI was worked before hand.. 1 Quote Link to comment Share on other sites More sharing options...
J95 Posted February 25, 2015 Share Posted February 25, 2015 Yes I disabled Serial Port A & Azalia. I also double checked the HDMI was worked before hand.. Hopefully it's one of the other settings then, since it's partially disassembled already, try disabling Serial Port A & Azalia and forget the other settings. If it works it will be really easy to flash the cards using an external drive/esata or drive swapping. @J95 damn you've finally solved it Now I'm Alienwareless!!!! Lookin forward to my new Clevo P570WM Yep, flashing the cards. Throttling...is just a temporary solution unfortunately, like everything 980M related, it ends once you raise clocks. Quote Link to comment Share on other sites More sharing options...
TBoneSan Posted February 25, 2015 Share Posted February 25, 2015 From memory the only other setting would be have been "disable lan"...? I had already put it back together otherwise I would have tried. I needed to use my machine... too little time on my end tonight , I didn't expect to be doing a tear down . 1 Quote Link to comment Share on other sites More sharing options...
J95 Posted February 25, 2015 Share Posted February 25, 2015 Thanks for trying, 120Hz AWs limited for now. Added 'backup card' requirement. 1 Quote Link to comment Share on other sites More sharing options...

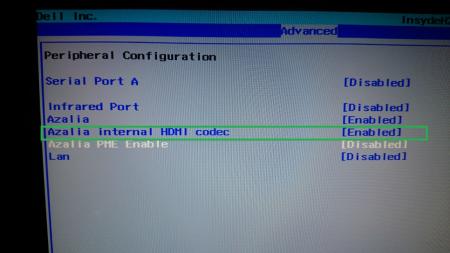

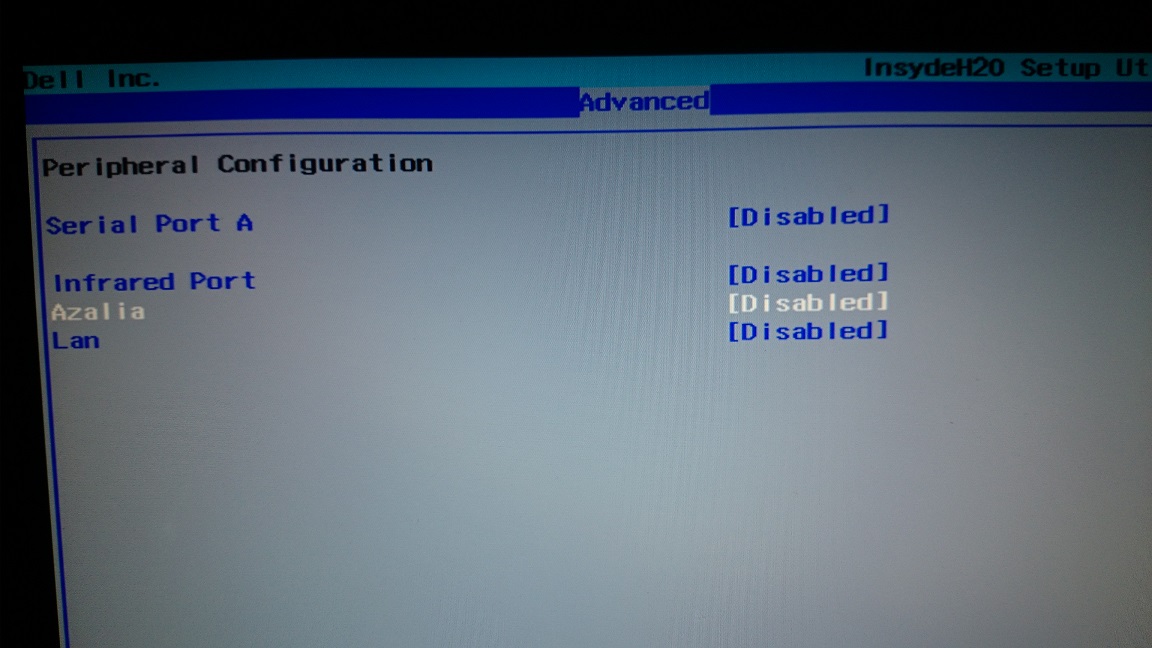

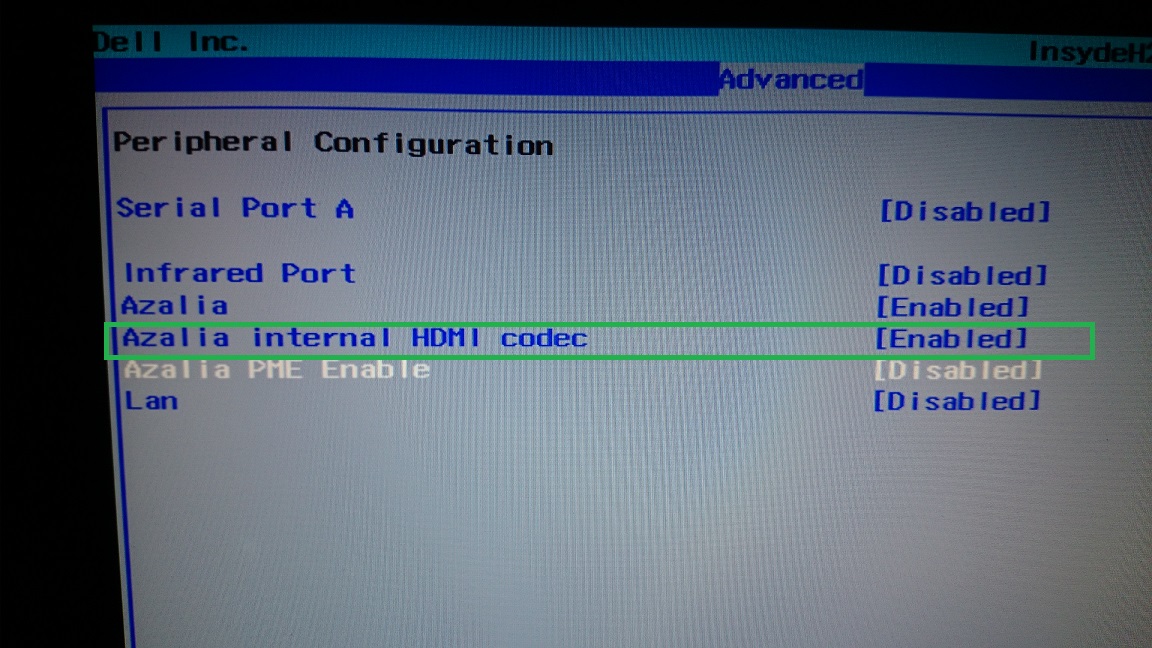

TBoneSan Posted February 25, 2015 Share Posted February 25, 2015 @J95 - It was worth the try still bud . I appreciate what you're trying to do for us all. Here was the selection I tried. I just went back into the BIOS then to make sure If Azalia is left enabled, it's possible to Enable "Azalia Internal HDMI codec" which is normally disabled...? Would have that been why I got an 8 beeb error perhaps? 1 Quote Link to comment Share on other sites More sharing options...
tanzmiester Posted February 25, 2015 Share Posted February 25, 2015 hey guys. just installed 980m in m18x r2 today and noticed it is also flickering at unengine page, actually in 2 different machines - same result.can anyone look? https://unigine.com/products/valley/ Quote Link to comment Share on other sites More sharing options...

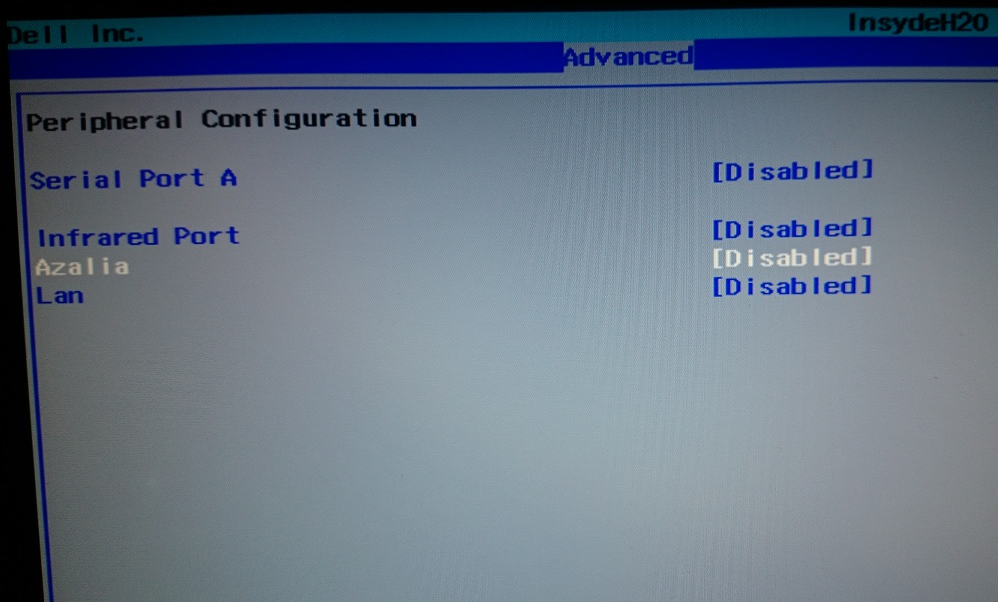

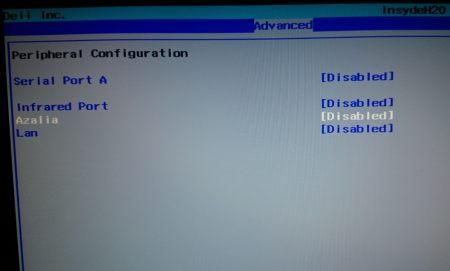

J95 Posted February 25, 2015 Share Posted February 25, 2015 hey guys. just installed 980m in m18x r2 today and noticed it is also flickering at unengine page, actually in 2 different machines - same result.can anyone look? https://unigine.com/products/valley/ That's normal 60Hz, setting 120Hz and the flickering is gone. @J95 - It was worth the try still bud . I appreciate what you're trying to do for us all.Here was the selection I tried. [ATTACH=CONFIG]14220[/ATTACH] I just went back into the BIOS then to make sure [ATTACH=CONFIG]14221[/ATTACH] If Azalia is left enabled, it's possible to Enable "Azalia Internal HDMI codec" which is normally disabled...? Would have that been why I got an 8 beeb error perhaps? Yep, correct settings pic1, all disabled. If there's any HDMI connection issue it will start beeping, the external monitor will stay blank but not the laptop. Enabling 'Azalia Internal HDMI codec' probably won't help. Quote Link to comment Share on other sites More sharing options...
tanzmiester Posted February 25, 2015 Share Posted February 25, 2015 That's normal 60Hz, setting 120Hz and the flickering is gone.But m18x does not have 120hz screen option, unfortunately... Quote Link to comment Share on other sites More sharing options...
tanzmiester Posted February 26, 2015 Share Posted February 26, 2015 btw, has anyone tried editing with Maxwell tweaker the Vbios on 980m to a higher clock and TDP and use newest drivers? does it work?it worked for me with 970m and 344.75 driver perfectly, though that one allows OC on it's own. Quote Link to comment Share on other sites More sharing options...
Wolf Posted February 26, 2015 Share Posted February 26, 2015 On Alienware M17X R14 with UEFI BIOS A11 I tested under both Windows 7 (I have not tried Optimus) that Windows 8.1 but the result I get is always black screen. Windows runs in the background but it remains the home screen. Where I'm wrong someone knows help? Thank You Quote Link to comment Share on other sites More sharing options...
tanzmiester Posted February 27, 2015 Share Posted February 27, 2015 how did you mod the driver?i think i have solved the flickering issue, btw. for now only with 780m that it was flickering with too, but will try similar fix for 980m tomorrow! Quote Link to comment Share on other sites More sharing options...
PrimeNe Posted February 27, 2015 Share Posted February 27, 2015 So I went ahead and read about %75 of this thread and I'm still not sure about some stuff. Can someone answer some of my questions and tell me if I'm right or not please? (Thanks to everyone in advance)1) Will 980M / 970M work with Alienware 18? (I'm under a impression that they will as long as I set the bios to uefi only and use win 8.1)2) Will they work in SLI? (I'm under a impression that they will as long as I set the bios to uefi only and use win 8.1)3) Will there be any issues running them in SLI? (I've read that the second GPU fan is not working?)3) Now that dell sell laptops with 980m / 970m Can we/Should we flash dell vbios? (so far I've read No there isn't / No we shouldn't) Quote Link to comment Share on other sites More sharing options...
tanzmiester Posted February 27, 2015 Share Posted February 27, 2015 anyone experiencing horrible gamma with 980m m18x r2? i have actually fixed the flickering at unengine page and also fixed the gamma state of the originally modded driver. all runs like a solid machine now Quote Link to comment Share on other sites More sharing options...
J95 Posted February 28, 2015 Share Posted February 28, 2015 GeForce Hotfix driver 347.71This is a GeForce Hot Fix driver, version 347.71 that addresses the following issue: Unable to apply optimal settings in GFE w/MFAA supportnv_dispi.inf Dedicated/PEGnvcvi.inf Optimus GTX 980M/970MWin8.1 -> disable driver signing http://forum.techinferno.com/nvidia/6307-%5Balienware%5D-aftermarket-upgrades-driver-support-modded-inf-11.html#post116879GeForce 347.71 HFnv_dispi.inf_v347.71_Dedicated_AW17_M17x_AW18_M18x_GTX_980M_970M_880M_780M_680M.zipnvcvi_v347.71_AW_Optimus_GTX_980M_970M.zip Quote Link to comment Share on other sites More sharing options...
PrimeNe Posted February 28, 2015 Share Posted February 28, 2015 I'm still waiting for someone to reply to my last questions. but meanwhile I have couple of more questions to ask.1) In Alienware 18 which GPU is primary Right Or Left?2) Can I use one 980M (As primary GPU) and one 765M (As dedicated physx card)? Quote Link to comment Share on other sites More sharing options...
domain234 Posted March 1, 2015 Share Posted March 1, 2015 Buenos días, he seguido paso a paso la configuración de MrFox para overclock i7-4940mx a 4,3Ghz en mi Alienware 18 "muchas gracias". Tengo una pequeña duda y es que en "Intel Xtreme Tuing U..." veo que la ram aparece como que esta a 1.5v cuando debería ser 1.35v. Desde la aplicación no me permite bajar a 1,35v, la duda que tengo es si realmente esta a 1.5v y debo desinstalar XTU o si debo ignorar ese apartado y dejarlo tal cual. La ram es Corsair Vengeance 2.133Mhz 2x8 "16gb" Saludos Hello, I followed step by step configuration MrFox to overclock i7-4940mx to 4,3Ghz in my Alienware 18 "thank you very much". I have a small doubt is that in "Intel Xtreme Tuing U ..." I see the ram appears like this to 1.5v when it should be 1.35v. Since the application does not allow me to go down to 1.35V, the question I have is whether or not this to 1.5v and must uninstall XTU or if I should ignore that section and leave it at that. The ram is Corsair Vengeance 2.133Mhz 2x8 "16gb" Greetings Quote Link to comment Share on other sites More sharing options...
Wolf Posted March 2, 2015 Share Posted March 2, 2015 On Alienware M17X R14 with UEFI BIOS A11 I used the drive for LaptopVideo2Go but when I install them gives me error "no ardware compatible detected":numbness: some help? tanks Quote Link to comment Share on other sites More sharing options...
Wolf Posted March 2, 2015 Share Posted March 2, 2015 I used the drive for laptop but when I install them gives me error "no ardware compatible detected":numbness: some help? Tanks Quote Link to comment Share on other sites More sharing options...
TomJGX Posted March 3, 2015 Share Posted March 3, 2015 Did u use nodded inf file which laptopvideo2go provide? Otherwise driver won't install.. If that file doesn't work, @J95 has provided molded inf.. Have a look around.. Quote Link to comment Share on other sites More sharing options...
Wolf Posted March 3, 2015 Share Posted March 3, 2015 It I used to laptopvideo2go inf, where I find those provided by @ J95?Tanks Quote Link to comment Share on other sites More sharing options...
TomJGX Posted March 4, 2015 Share Posted March 4, 2015 Can someone with a Alienware M17x R4 confirm the following? When you switch between Optimus and dedicated modes, have u had to reinstall NVIDIA drivers? Also, I heard that windows 7 works in Optimus mode supposedly in this Alienware upgrade thread.. I might have read wrong but do correct me here if it isn't the case. Quote Link to comment Share on other sites More sharing options...
domain234 Posted March 5, 2015 Share Posted March 5, 2015 ¿Puede del alguien ONU de la estafa Alienware M17x R4 lo confirme siguiente? Al change Entre Optimus MODOS Y Dedicados, Tener u Tenia Que volver a Instalar los Controladores de NVIDIA? : Además, él Oído Que Windows 7 Funciona en el Modo Optimus Supuestamente En Este tema Actualización Alienware .. Yo podria Haber Leído mal, Pero No me corrija here Si No Es El caso. [/ Quote] No, en mi M17x R4, párr switch to de Gráficos Integrados un Dedicados No Es Necesario Volver a Instalar los Controladores "FN + F7". Solo es necessary Reiniciar el equipo. Alguien me Florerias aclarar la duda Que puse en el mensaje anterior? Saludos No, en mi M17x R4, gráficos integrados para cambiar a "FN + F7" dedicado no es necesario volver a instalar los controladores. Sólo es necesario que reinicie el equipo. ¿Puede alguien me ilumine dudo que puse en el post anterior? saludos Quote Link to comment Share on other sites More sharing options...
TomJGX Posted March 9, 2015 Share Posted March 9, 2015 Win7/MBR are basically for flashing the cards and 3DMark11/stock (sound card disabled), the other BIOS settings + NV Inspector will remove throttling for Gaming but not extreme OCing.[ATTACH=CONFIG]14216[/ATTACH]Edit: Core throttling, at least flashing is not a problem anymore for 120Hz AWs...M18xR2? @J95 how can you boot with Windows 7 and 980M? Does it work properly??? You haven't answered my question from earlier..Thanks,Tom- - - Updated - - -Win7/MBR are basically for flashing the cards and 3DMark11/stock (sound card disabled), the other BIOS settings + NV Inspector will remove throttling for Gaming but not extreme OCing.[ATTACH=CONFIG]14216[/ATTACH]Edit: Core throttling, at least flashing is not a problem anymore for 120Hz AWs...M18xR2? @J95 how can you boot with Windows 7 and 980M? Does it work properly??? You haven't answered my question from earlier..Thanks,Tom Quote Link to comment Share on other sites More sharing options...
J95 Posted March 11, 2015 Share Posted March 11, 2015 @J95 how can you boot with Windows 7 and 980M? Does it work properly??? You haven't answered my question from earlier..Thanks, Tom - - - Updated - - - @J95 how can you boot with Windows 7 and 980M? Does it work properly??? You haven't answered my question from earlier.. Thanks, Tom You need to disable the sound card 120Hz/PEG AWs nvflash'ing 900M series - Legacy BIOS Mode, HDMI or USB solution instead. Win7/GPT - UEFI/Legacy option ROM Win7/MBR - Legacy BIOS Mode. - - - Updated - - - February 13th, my card finally arrived... - Clock-block *workaround* ✓ - 120Hz/PEG nvflash'ing ✓ - Win7 both UEFI & Legacy ✓ - PEG throttling ✓ - OCing "" "" *soon*... Quote Link to comment Share on other sites More sharing options...
kenny27 Posted March 16, 2015 Share Posted March 16, 2015 @svl7 Just wondering if there is any hope left for our Alienware machines with regards to the windows 8/uefi requirement and/or the power throttling issue. Quote Link to comment Share on other sites More sharing options...
