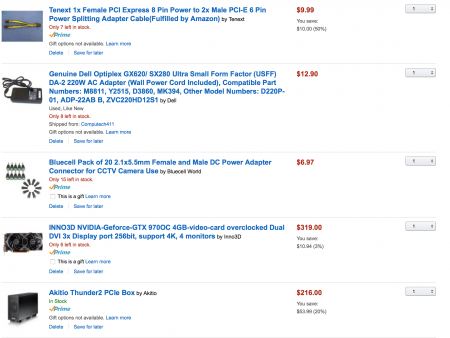

hramos90 Posted January 29, 2016 Share Posted January 29, 2016 First time poster, came here when I was looking into the Bizon Box and @Tech Inferno Fan great post saved me from spending all that money. I had a question for @Dschijn. Found this cable on Amazon: http://www.amazon.com/gp/product/B0196FESSY?psc=1&redirect=true&ref_=ox_sc_act_title_1&smid=A37NR3TXTEOVBF. Would that be enough to make this amazon cart have everything i need to set-up the eGPU? Quote Link to comment Share on other sites More sharing options...
Dschijn Posted January 29, 2016 Share Posted January 29, 2016 Hey, 1. the GPU is long, you will not be able to close the case! 2. the barrel plug is wrong, you need 2.5 and 5.5mm 3. the 8-Pin splitter is good, but you would have to rewire it and solder! Also there wouldn't be any cable left for the length needed for the barrel plug. Maybe consider writing this guy a message and asking him for that all in one cable (which is good!): http://www.ebay.com/itm/Akitio-eGPU-8-PIN-TO-2-x-PCI-E-6-PIN-MALE-AND-1-x-ID-2-5mm-OD-5-5mm-BARREL-/251984919354?pt=LH_DefaultDomain_0&hash=item3aab78bb3a Quote Link to comment Share on other sites More sharing options...
hramos90 Posted January 29, 2016 Share Posted January 29, 2016 thanks for the prompt reply @Dschijn . I am looking for a solution that doesnt involve soldering. I have modified my cart and sent a message to that guy on ebay to see if he can still make me the all in one. If that falls through, is there any other known method that doesn't require soldering. Quote Link to comment Share on other sites More sharing options...
hramos90 Posted January 29, 2016 Share Posted January 29, 2016 @Dschijn continuing to do research, http://www.amazon.com/gp/product/B00MAO7OOE?keywords=RockMiner%20R-Box%20Power%20Cable%2012v%20PCI-E%20to%203x%205.5mm%20x%202.5mm%20DC%20barrel%20plugs&qid=1454095712&ref_=sr_1_fkmr0_1&sr=8-1-fkmr0 would this be something i can use and it doesnt require any soldering? Quote Link to comment Share on other sites More sharing options...
illconn Posted January 29, 2016 Share Posted January 29, 2016 Hi hramos90, I actually have one of these setups thats completely new but not using bc i am waiting for TB3 to TB2 adapter that has not been release yet. I am going to move on to another project so going to sell my setup. GTX 970(Zotac) which fits perfectly Akito box modified so that Zotac fits in with no mods to the gpu(removing fan shroud) -Modded to fit the 8 pin connector cut out rectangle to fit it and Epoxied the connector on -first 8 pin is a dual 8 pin(1 for power to PSU and Solder to PCB(no bullet)(1 8pin to dual 6 pin to feed the GPU) Clean setup, only thing that is outside the box is the 8pin connector for power, and the Thunderbolt 2 cable. I cant send you any direct messages but let me know if you are interested. If not I can also link all the wiring i bought, and post pics of what i did. I actually ordered one of the Dell DA2 as well but have yet to receive it. Thanks. Quote Link to comment Share on other sites More sharing options...
Dschijn Posted January 29, 2016 Share Posted January 29, 2016 @hramos90 Please take a look at the first post here: https://www.techinferno.com/index.php?/forums/topic/7377-220w-dell-da-2-ac-adapter-discussion/ You will see that you need to do some rewiring. So you could get two 6-pin PCIe splitter cables with one sticking into the other and giving you 3x6-Pin. You could than use 2 for the GPU and one for the barrel plug. The 6-Pin to barrel cable is totally an overkill! Quote Link to comment Share on other sites More sharing options...
djmcgreal Posted February 13, 2016 Share Posted February 13, 2016 (edited) Hi, Thanks for all your efforts throughout the site. It reminds me of a conversation I had just as I started uni with a guy in PC World. I had a very powerful laptop that sucked for games. Thank god eGPUs turned out not to didn't exist back then, or I may not have done well in the degree I was hoping someone could check I have the right bits. To connect the power supply, I have bought: "Dell 220W DA-2AC Power Supply for Dell Optiplex SX280 745 620 755 760 USFF" http://www.ebay.co.uk/itm/182011509383 2 of Startech.com 6 inch PCI Express Power Splitter Cable DC BARREL PLUG, 2.5X5.5MM, SCREW TERMS CLB-JL-52Y By CLEVER LITTLE BOX 2.5mm x 5.5mm Male Power Plug Jack DC Connector 14mm Long (in case I can borrow a friend's soldering equipment) Assuming I can source a paperclip without too much effort, I think that fits the bill? Huge thanks again! I'm excited! Dan. PS If I were to get a switch now, to replace the paperclip, is there anything (terminology or something) that I should consider? Edited February 13, 2016 by djmcgreal Quote Link to comment Share on other sites More sharing options...
Dschijn Posted February 13, 2016 Share Posted February 13, 2016 @djmcgreal Seems good to me. The switch should close the circuit if "on" and open the circuit if "off" (AFAIK). So I don't think that soft switches which only give a short contact are enough. Quote Link to comment Share on other sites More sharing options...
djmcgreal Posted February 13, 2016 Share Posted February 13, 2016 Great. The deliveries can't come soon enough! Quote Link to comment Share on other sites More sharing options...
djmcgreal Posted February 16, 2016 Share Posted February 16, 2016 Hi again, The pieces are starting to arrive. When I start putting these components together, is there any safety aspects I should be aware of? Thanks, Dan. Quote Link to comment Share on other sites More sharing options...
Dschijn Posted February 16, 2016 Share Posted February 16, 2016 Kind of... take a look at the first page of this thread and make sure that the 3 yellow pins of your 6-Pin adapter match the 3x 12V pins of the DA-2. Also be aware that the shape of the Pins will not match the shape of some "holes". So you will need some force to get them together or cut the pins into the right shape. Quote Link to comment Share on other sites More sharing options...
Enano Posted February 16, 2016 Share Posted February 16, 2016 56 minutes ago, djmcgreal said: Hi again, The pieces are starting to arrive. When I start putting these components together, is there any safety aspects I should be aware of? Thanks, Dan. I would recommend for you to take take static measures when building. That way your parts won't run the risk of getting damaged. The first thing you need to do is touch the metal of the chasis before doing anything else to equalize your static charge with the component's. Also, the cheapest way to remove a lot of static, is to work on foami paper. Drains most of it, and it's less than a dollar a sheet. I think it's 20 cents ea. Quote Link to comment Share on other sites More sharing options...
djmcgreal Posted February 16, 2016 Share Posted February 16, 2016 Thanks a lot. I have an friend experienced with electronics and will likely try to get him to help me anyway. Thanks again, Dan. Quote Link to comment Share on other sites More sharing options...

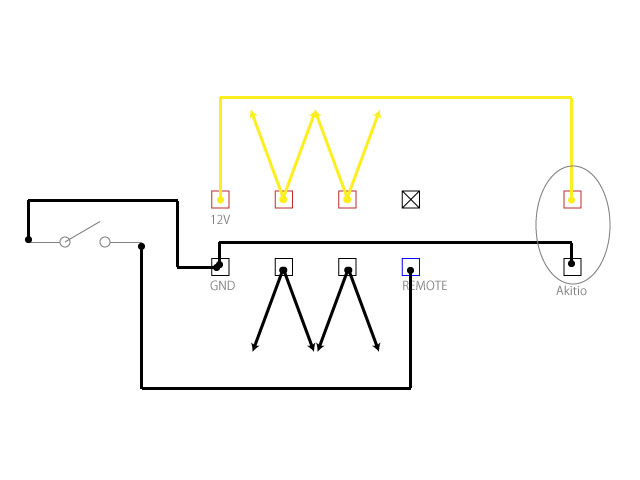

djmonta Posted February 28, 2016 Share Posted February 28, 2016 (edited) RE: https://www.techinferno.com/index.php?/forums/topic/7866-2012-15-macbook-pro-gtx97010gbps-tb1-akitio-thunder2-win107osx1010-bsohn Thank you for sharing the spec. It is very inspired build. Now I'm trying to build almost the same using Dell DA-2 and GTX970. I have completed wiring around (as picture below), 2 x 12V and 2 x Ground to PCIe Auxiliary Power Connector. The left 12V and Ground go to power the Akitio. And DA-2's remote to the last ground through power switch. But DA-2 doesn't start up, is there something wrong? Could you help me please? Edited February 28, 2016 by nando4 reference Quote Link to comment Share on other sites More sharing options...
Dschijn Posted February 28, 2016 Share Posted February 28, 2016 @djmonta What is the perspective of your drawing? is that the output of your DA-2 or the adapter that goes into the DA-2? Did you compare with page1? Quote Link to comment Share on other sites More sharing options...

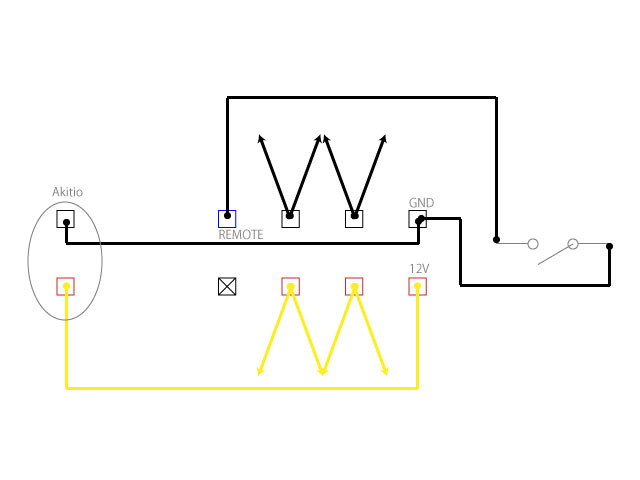

djmonta Posted February 28, 2016 Share Posted February 28, 2016 @Dschijn The picture was upside down. Sorry. Quote Link to comment Share on other sites More sharing options...
Tech Inferno Fan Posted February 28, 2016 Share Posted February 28, 2016 1 hour ago, djmonta said: RE: https://www.techinferno.com/index.php?/forums/topic/7866-2012-15-macbook-pro-gtx97010gbps-tb1-akitio-thunder2-win107osx1010-bsohn Thank you for sharing the spec. It is very inspired build. Now I'm trying to build almost the same using Dell DA-2 and GTX970. I have completed wiring around (as picture below), 2 x 12V and 2 x Ground to PCIe Auxiliary Power Connector. The left 12V and Ground go to power the Akitio. And DA-2's remote to the last ground through power switch. But DA-2 doesn't start up, is there something wrong? Could you help me please? There is a LED on the Dell DA-2 just below where the 8-pin cable attaches to it. It will be orange when you plug power into it indicating it's in standby mode. It will be green when you GND the remote pin, indicating it's providing power. If you get no activity from the LED then your Dell DA-2 isn't powered on or is faulty. For the former check your power socket and power cable. Quote Link to comment Share on other sites More sharing options...
Dschijn Posted February 28, 2016 Share Posted February 28, 2016 Looks fine, LEDs should work the way Nando described it! And just to be 100% sure, that is the pinout of the DA-2 you used and not the cable you maybe confused to have be mirrored!? Quote Link to comment Share on other sites More sharing options...

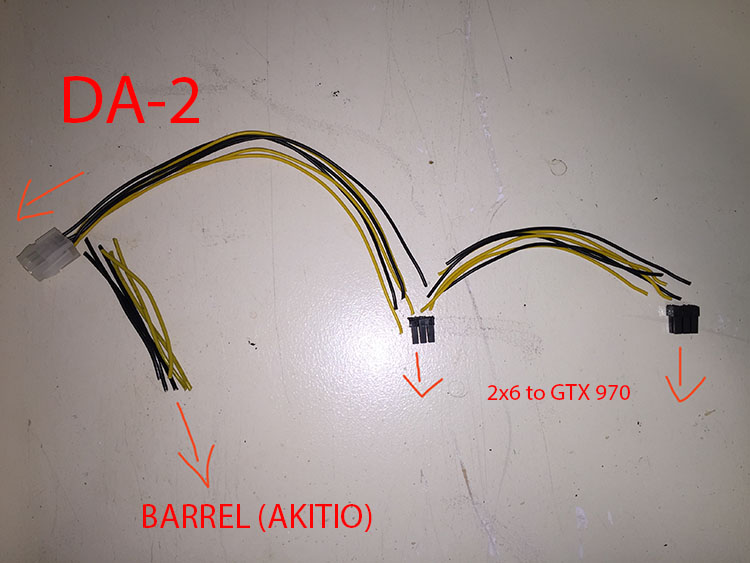

zanoni Posted April 5, 2016 Share Posted April 5, 2016 Hello there, folks! First time posting but I've been reading this forum for quite a few days now. I'm thankful to you all for providing such useful info! I was planning to upgrade my machine but then I realize I could spare a few (many) bucks and build an eGPU instead. So, I bought an Akitio Thunder 2, a Zotac GTX 970 and a Dell DA-2. My soldering skills are somewhat acceptable and I decided to make my own cable, but I lack the technical knowledge necessary to judge if this scheme will work in such setup. Attached is a draft of what I'm planning to do. I wanted to ask you guys first because I've seen that the use of 2 splitters is more common among y'all. Many thanks! Quote Link to comment Share on other sites More sharing options...
Khenglish Posted April 5, 2016 Share Posted April 5, 2016 That should work, but I'd probably not daisy chain the 2nd 6-pin connector off the 1st 6-pin, and instead split from the the DA-2 connector like the barrel connector. Quote Link to comment Share on other sites More sharing options...
Dschijn Posted April 5, 2016 Share Posted April 5, 2016 Could work, but make sure the wires can carry some amps, if you want to daisy chain them. Better to solder them into a parallel setup. One very important thing to keep in mind is, that the pins have to match the pinout of the DA-2 (look at page 1), so you don't mix 12V and ground. You will also need to include the 7th pin to make the DA-2 start. Quote Link to comment Share on other sites More sharing options...
zanoni Posted April 6, 2016 Share Posted April 6, 2016 Thank you very much! I just ordered 2 splitters. Guess it won't harm waiting a few days and doing it the way we all know for sure will work! Quote Link to comment Share on other sites More sharing options...
BTA Posted May 10, 2016 Share Posted May 10, 2016 Little bit wrong place to post, but seems to be most active place. Trying to get DA2 to work with PicoPSU, but when i press on/Off button on pc, Dell PSU goes off, no lights showing. Replugging power cord makes green light active again. Polarity is right, its delivering 12.39V. How to make Dell DA-2 to stay ON, when pc is on? :/ Quote Link to comment Share on other sites More sharing options...
Dschijn Posted May 10, 2016 Share Posted May 10, 2016 @BTAWhich Pico did you get? Quote Link to comment Share on other sites More sharing options...
BTA Posted May 10, 2016 Share Posted May 10, 2016 (edited) @Dschijn 250w, not sure is it made my minibox or who. http://www.amazon.com/250w-DC-ATX-Power-Supply-Supplies/dp/B00NB6U3TS Even if i short picopsu (green+black) to power on it, same happens. Running fans only with dell da2 and no problem, but when i use it with pico no change! Pico running fine with other lower A brick. (shorted test, too less A to power pc) Edited May 10, 2016 by BTA Quote Link to comment Share on other sites More sharing options...
