jegarfor Posted October 16, 2014 Share Posted October 16, 2014 Is the new 970M not compatible with old GT70 heatsinks and from other partners? As you can see in this video you can upgrade the heatsink in a gt72 for the 970M/980M but...... do you think msi will make new heatsinks for other computers? I don't think so..... Quote Link to comment Share on other sites More sharing options...
richang Posted November 1, 2014 Share Posted November 1, 2014 i want know same thing can i upgrade to 980m from 780m my gt70 20D ? Quote Link to comment Share on other sites More sharing options...

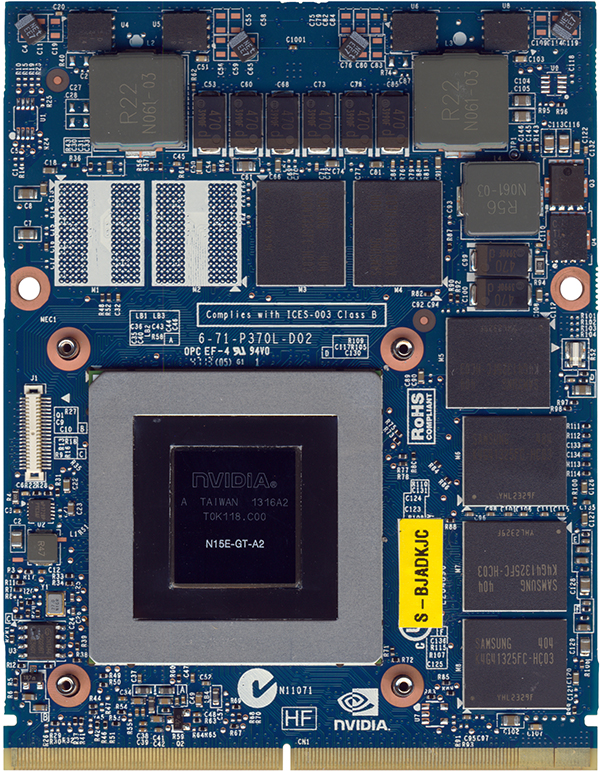

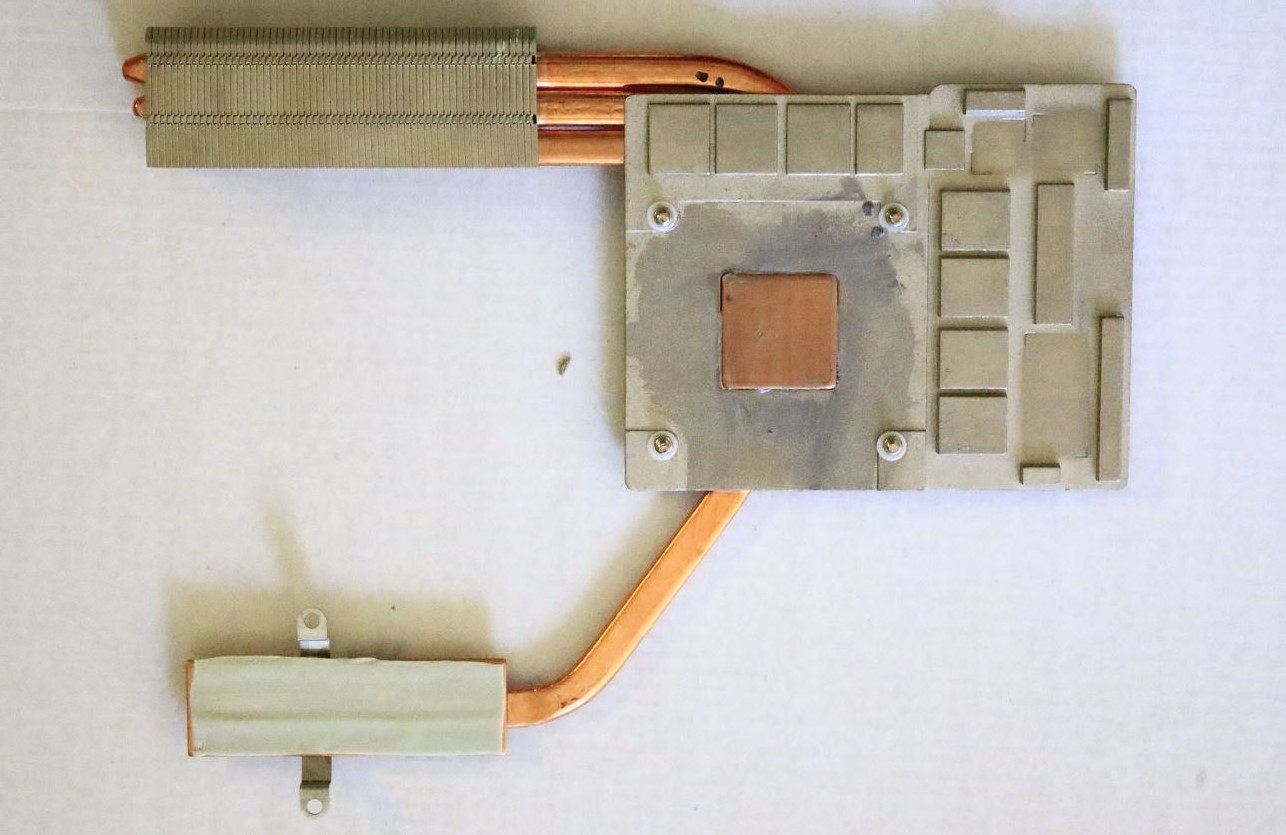

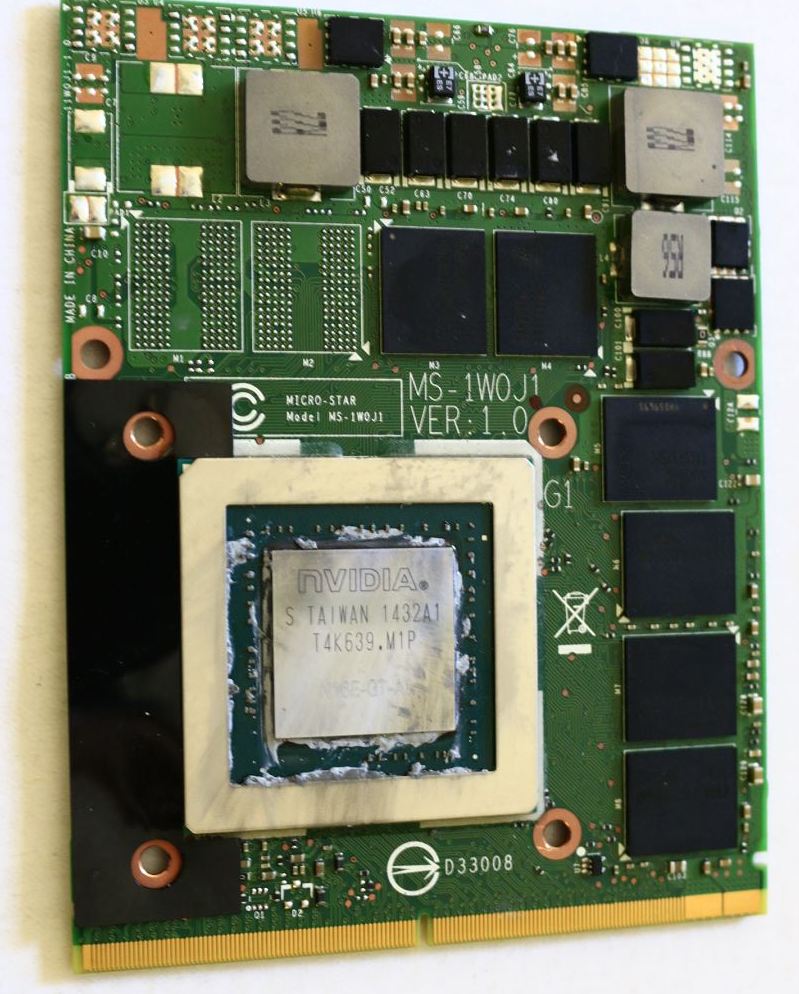

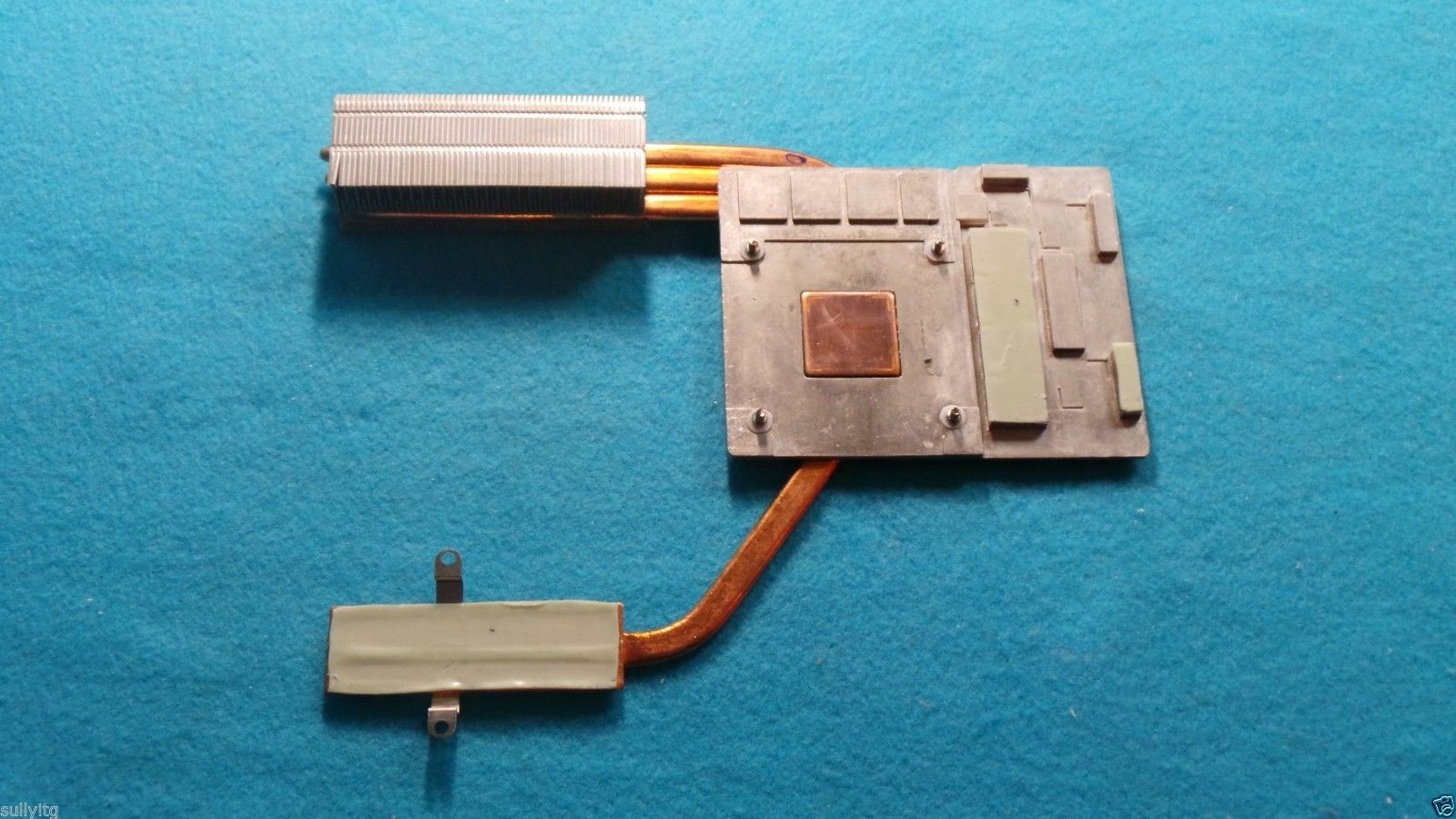

iTzZent Posted November 2, 2014 Share Posted November 2, 2014 Yes, MSI use an other Heatsink for the GTX9**M Series, because the MXM Board has another Layout. GTX9**M Heatsink: GTX8**M / GTX7**M Heatsink: Here you see the difference between the two cards (GTX870M vs GTX970M). Anything above the RAM chips, located at other positions. MSI sells in Canada as just the GT60 2QD and the GT70 2QD with a GTX970M 3GB. When and where you can obtain the heatsink, I do not know. Quote Link to comment Share on other sites More sharing options...
omega939 Posted November 2, 2014 Share Posted November 2, 2014 Yes, MSI use an other Heatsink for the GTX9**M Series, because the MXM Board has another Layout.GTX9**M Heatsink:[ATTACH=CONFIG]13005[/ATTACH]GTX8**M / GTX7**M Heatsink:[ATTACH=CONFIG]13006[/ATTACH]Here you see the difference between the two cards (GTX870M vs GTX970M). Anything above the RAM chips, located at other positions.[ATTACH=CONFIG]13007[/ATTACH][ATTACH=CONFIG]13008[/ATTACH]MSI sells in Canada as just the GT60 2QD and the GT70 2QD with a GTX970M 3GB. When and where you can obtain the heatsink, I do not know.but with the 16f3 and 1762 gt models have a great chance upgrading with this gpu's right? just update to 51x bios? Quote Link to comment Share on other sites More sharing options...
iTzZent Posted November 2, 2014 Share Posted November 2, 2014 maybe yes, maybe not... no one know this answere... i think it will be work. Quote Link to comment Share on other sites More sharing options...
Talon Posted November 11, 2014 Share Posted November 11, 2014 I did the upgrade today.. Its a simple tiny modification to the heatsink needed. See my post here.The Official MSI GT60/70 970m/980m Upgrade ThreadI have provided pictures and links on how to complete the upgrade. 4 Quote Link to comment Share on other sites More sharing options...
nainje Posted November 20, 2014 Share Posted November 20, 2014 MSI officials MXM upgrades kit will be available soon, now the question is: will it work on GT70 instead of the stock 675mx... Quote Link to comment Share on other sites More sharing options...
cresterk Posted November 22, 2014 Share Posted November 22, 2014 MSI officials MXM upgrades kit will be available soon, now the question is: will it work on GT70 instead of the stock 675mx...Wondering the same thing. Quote Link to comment Share on other sites More sharing options...

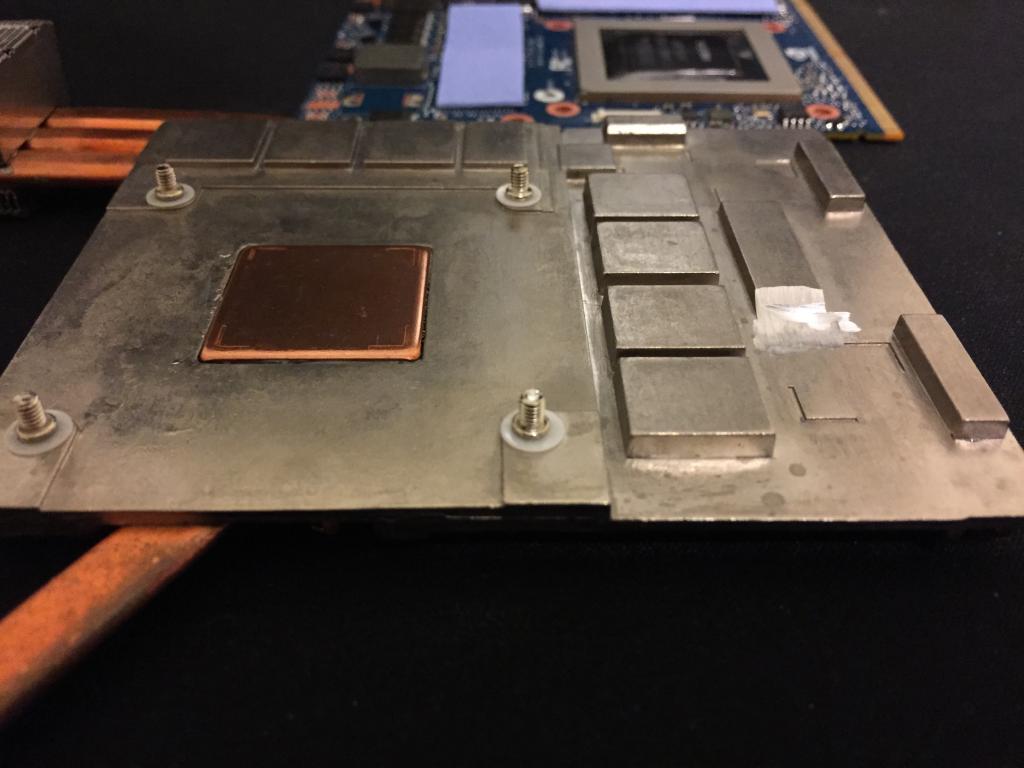

iTzZent Posted November 22, 2014 Share Posted November 22, 2014 yes, but the Heatsink need a Fix 1 Quote Link to comment Share on other sites More sharing options...
omega939 Posted November 22, 2014 Share Posted November 22, 2014 yes, but the Heatsink need a Fix [ATTACH=CONFIG]13201[/ATTACH] I need a dremel soon..ordered one hehe 1 Quote Link to comment Share on other sites More sharing options...
Talon Posted November 22, 2014 Share Posted November 22, 2014 Those pictures look suspiciously like my photos! I hope you guys do the mod soon. I want others to join in on the GT60/70 upgrade party! Next stop we need to get svl7 to unlock those maxwell 970/980m vBios! This +135Mhz limit is killing me. I know this card has some ridiculous potential. Quote Link to comment Share on other sites More sharing options...
omega939 Posted November 23, 2014 Share Posted November 23, 2014 @TalonDid you change your vbios from clevo to msi ? Quote Link to comment Share on other sites More sharing options...
nainje Posted November 24, 2014 Share Posted November 24, 2014 should I flash the Bios if I want to upgrade from a 675mx to a 970m ? Quote Link to comment Share on other sites More sharing options...
cresterk Posted November 24, 2014 Share Posted November 24, 2014 should I flash the Bios if I want to upgrade from a 675mx to a 970m ?Yes, it probably won't even recognize the card on the old bios. Quote Link to comment Share on other sites More sharing options...
iTzZent Posted November 24, 2014 Share Posted November 24, 2014 The GTX970M works also in old MS-16F2 Motherboards with a Bios from the Year 2012 and older... Quote Link to comment Share on other sites More sharing options...
omega939 Posted November 25, 2014 Share Posted November 25, 2014 The GTX970M works also in old MS-16F2 Motherboards with a Bios from the Year 2012 and older...Can you give us a link so i can show to my folks here that their 16f2 can handle these new cards? thanks @iTzZent Quote Link to comment Share on other sites More sharing options...
Decybel1986 Posted May 31, 2015 Share Posted May 31, 2015 heatsinks from gt70-ond is working for 980m or 970m? Quote Link to comment Share on other sites More sharing options...
iTzZent Posted June 2, 2015 Share Posted June 2, 2015 only when you have a GTX675MX, than can you modify the Heatsink. When you have a GTX675M, the Heatsink is not compatible. Quote Link to comment Share on other sites More sharing options...
zedeks Posted June 2, 2015 Share Posted June 2, 2015 What is the heatsink part number for the GTX9xx series for MSI GT70 notebooks, i'm searched it in ebay and appears alot of heatsinks compatible with several gt70 laptops Quote Link to comment Share on other sites More sharing options...
djdblaster Posted August 27, 2015 Share Posted August 27, 2015 I have modded 670M heatsink to fit 970M and it is 'good' for now. I hit 88 C in Far Cry 4 on max settings. I will use laptop cooler and report how that works. Quote Link to comment Share on other sites More sharing options...
