craigy_2013 Posted March 12, 2018 Share Posted March 12, 2018 Hi there i'm new to this forum but am desperately trying to fix my Nvidia GTX 765M 2gb card which i bought on eBay brand new from Hong Kong it allowed me to power up and display bios etc but as soon as windows tried to start started flashing various solid colours i was able to get it into safe mode an did complete uninstall using guru 3d's nvidia uninstaller but same issue when going to load windows again so i flashed the v bios with a dell one for that card from tech power up now i just get 1 long beep and 2 short! i managed to use my failing card in the master slot to let me refresh it with various other vbios versions for that card but still the same any help please? or should i return the card? many thanks in advance! Quote Link to comment Share on other sites More sharing options...

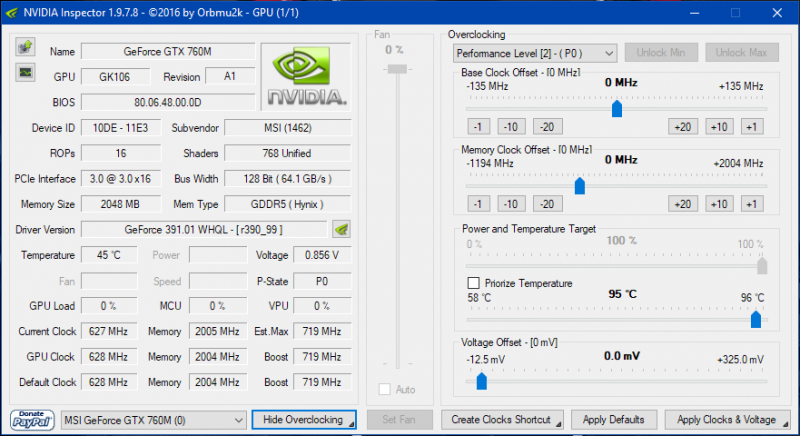

MAAAAAD Posted March 12, 2018 Share Posted March 12, 2018 (edited) Hi guys. I'm new here. I have MSI GE40 with GTX760m. Would like to overclock my Nvidia more than only +135MHz. Here is my backup link: https://www.sendspace.com/file/d9xgx6 Thank you very much Edited March 12, 2018 by MAAAAAD pic Quote Link to comment Share on other sites More sharing options...
Dexter10 Posted March 12, 2018 Share Posted March 12, 2018 Hi guys, I did overclock to my gtx 770m with a mod bios OC edition and I got this performance but I have a question. Does anyone overclock a gtx 770m with more voltage and more frecuency and be stable? anyone can tell me if I can do more overclock to my gtx ? Thanks a lot Quote Link to comment Share on other sites More sharing options...

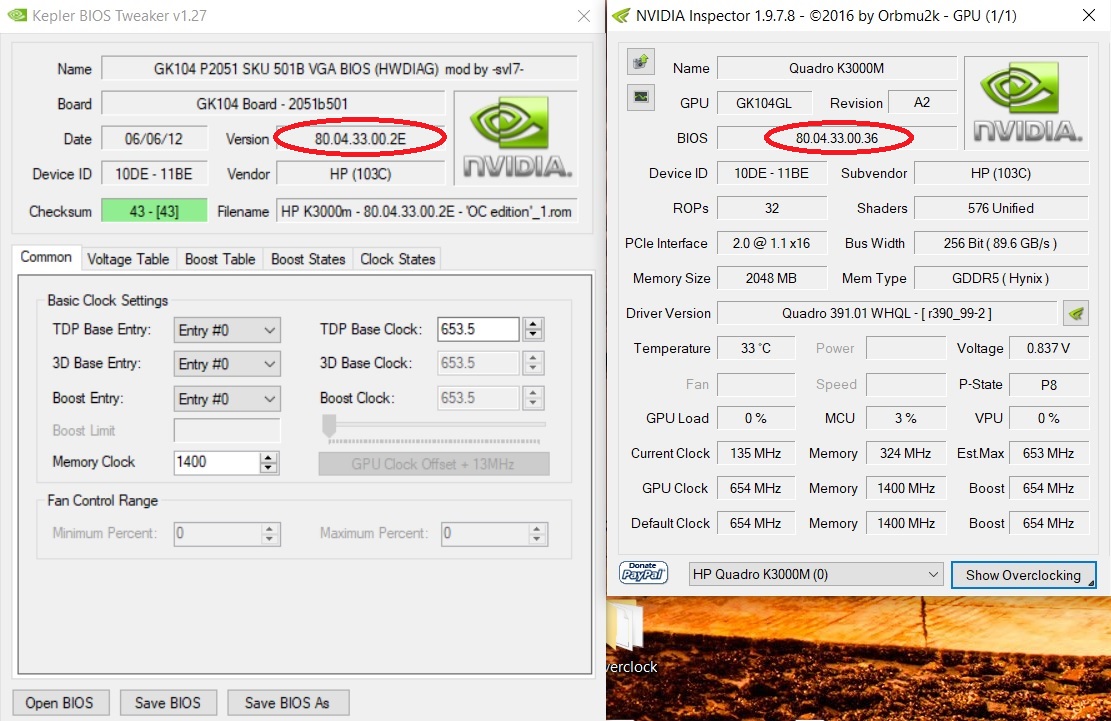

FreddyGoal Posted March 16, 2018 Share Posted March 16, 2018 Hi to all, I just flashed the "HP K3000m - 80.04.33.00.2E - 'OC edition' on my HP 8770W, all gone right, but the +135mhz OC limit still's here Tried to edit original BIOS, tried the other release "Nvidia K3000m - 80.04.3A.00.07_'OCedition'_rev00" but base clock kept 654mhz and OC not more than +135mhz what's wrong with my K3000m??? Quote Link to comment Share on other sites More sharing options...
Bios Modder Klem Posted March 17, 2018 Bios Modder Share Posted March 17, 2018 12 hours ago, FreddyGoal said: Hi to all, I just flashed the "HP K3000m - 80.04.33.00.2E - 'OC edition' on my HP 8770W, all gone right, but the +135mhz OC limit still's here Tried to edit original BIOS, tried the other release "Nvidia K3000m - 80.04.3A.00.07_'OCedition'_rev00" but base clock kept 654mhz and OC not more than +135mhz what's wrong with my K3000m??? Hi! Just try to compare vbios version in your laptop in Nvidia Inspector window and vbios version which you tryed to flash, before flashing and then after flashing. You will see that version doesn't change, even after flashing. It happen because in your laptop placed two different vbioses. Real vbios it is a part of main system bios, and therefore it can't be read or flash with Nvflash utility. Also, your system bios is strong protected from write any modified bios. So, in your case only hardware SPI programmer can help. Quote Link to comment Share on other sites More sharing options...
FreddyGoal Posted March 17, 2018 Share Posted March 17, 2018 Thanks for your fast reply! I saw another old topic where a guy succesfull flash his K3000m on a 8770w, I tryed as him to reinstall various drivers but still haven't results... can the newest nvflash be the problem? (because it run on Win10 cmd instead of DOS) Quote Link to comment Share on other sites More sharing options...
FreddyGoal Posted March 18, 2018 Share Posted March 18, 2018 It is that what you meant? In the meanwhile I flashed from DOS with an older nvflash, upgraded notebook BIOS... I don't want to give up, this K3000m is really underclocked respect it's potential, at least i'll probably use an hardware SPI programmer... Quote Link to comment Share on other sites More sharing options...
dj_reed Posted April 29, 2018 Share Posted April 29, 2018 Great job!!! Quote Link to comment Share on other sites More sharing options...

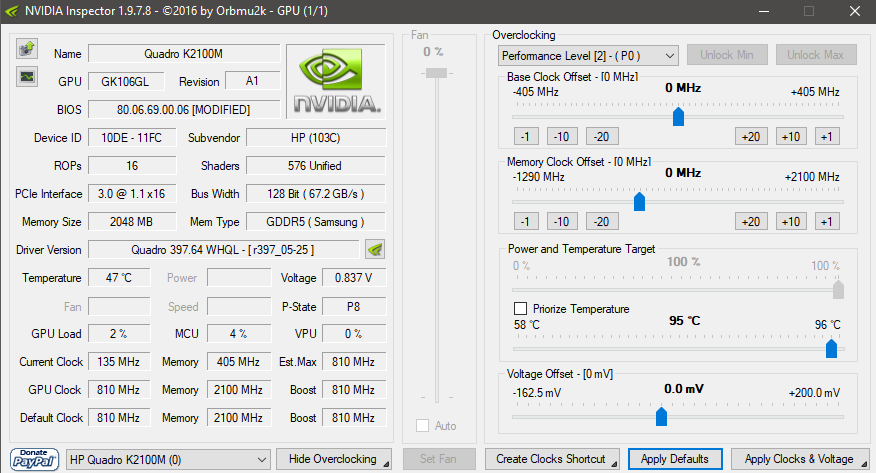

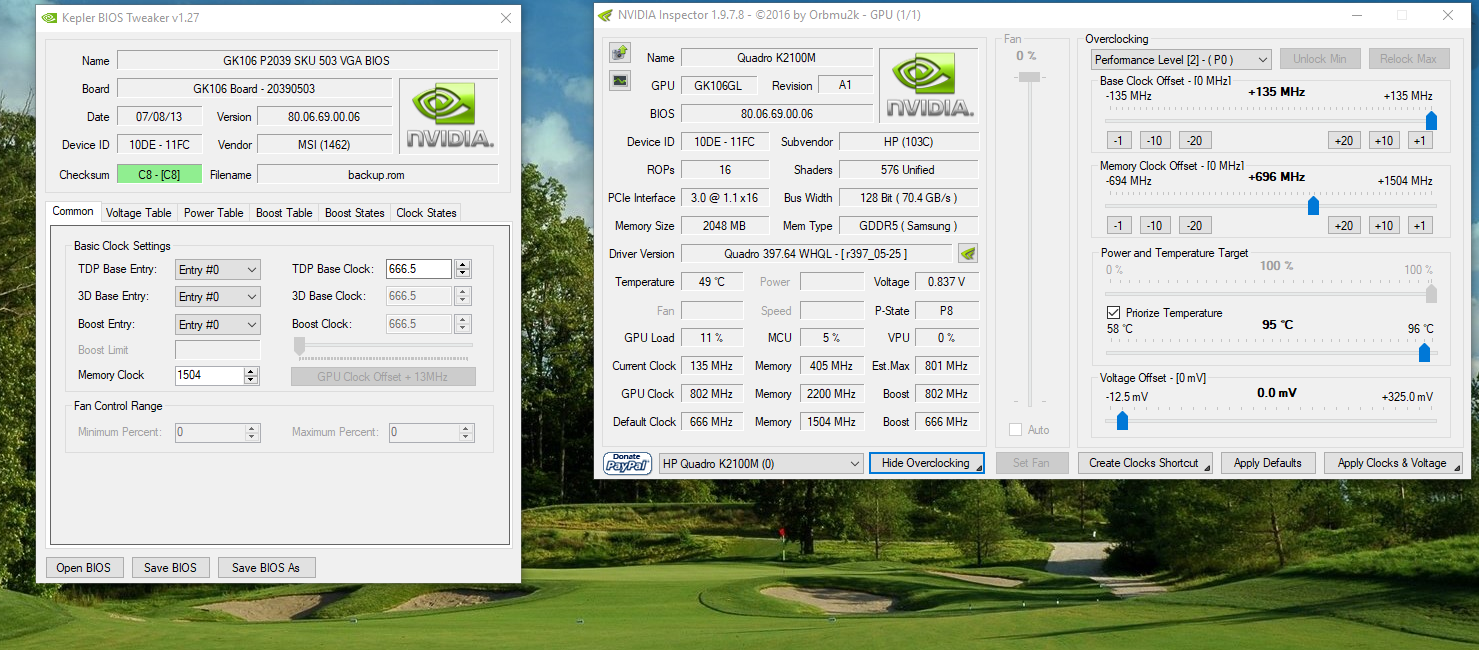

XTeK Posted May 21, 2018 Share Posted May 21, 2018 Hello, I am new to the forum.I was looking for an answer to the 135MHz blocking problem. about half a year.I see that I was able to find a solution through my friend Klem who can modify the rom file.Is not it a big problem for you to modify my rom?I have an old EliteBook 8570w with k2100m.Below is the rom file and screenshot from Nvidia inspector.If rom works please ask for bank account number or paypal to give you a small subsidy backup.rom Quote Link to comment Share on other sites More sharing options...
Bios Modder Klem Posted May 21, 2018 Bios Modder Share Posted May 21, 2018 6 hours ago, XTeK said: Hello, I am new to the forum.I was looking for an answer to the 135MHz blocking problem. about half a year.I see that I was able to find a solution through my friend Klem who can modify the rom file.Is not it a big problem for you to modify my rom?I have an old EliteBook 8570w with k2100m.Below is the rom file and screenshot from Nvidia inspector.If rom works please ask for bank account number or paypal to give you a small subsidy backup.rom Hi! Why you use MSI vbios, for your HP laptop? Quote Link to comment Share on other sites More sharing options...
XTeK Posted May 21, 2018 Share Posted May 21, 2018 (edited) When I bought the card it was this bios and I did not change it because everything worked as it should be. It is possible that the previous owner has modified something or the computer's bios are modified.Although about a year ago, from what I recall, I updated. ps. I have a small problem with the record. Edited May 21, 2018 by XTeK Quote Link to comment Share on other sites More sharing options...
XTeK Posted May 21, 2018 Share Posted May 21, 2018 I apologize for the message under the message.I wanted to give you a small beer but the link unfortunately does not open in my browser. Quote Link to comment Share on other sites More sharing options...
Bios Modder Klem Posted May 21, 2018 Bios Modder Share Posted May 21, 2018 1 hour ago, XTeK said: I apologize for the message under the message.I wanted to give you a small beer but the link unfortunately does not open in my browser. I sent you another link. Check PM. Quote Link to comment Share on other sites More sharing options...
XTeK Posted May 21, 2018 Share Posted May 21, 2018 I do not know how to save this vbios.Previously, when I was editing there were no problems with writing.Although I did it a long time ago but I have nvflash under dos and there were no dilemmas. Quote Link to comment Share on other sites More sharing options...
Bios Modder Klem Posted May 21, 2018 Bios Modder Share Posted May 21, 2018 34 minutes ago, XTeK said: I do not know how to save this vbios.Previously, when I was editing there were no problems with writing.Although I did it a long time ago but I have nvflash under dos and there were no dilemmas. I sent you vbios for HP. Check PM. Quote Link to comment Share on other sites More sharing options...

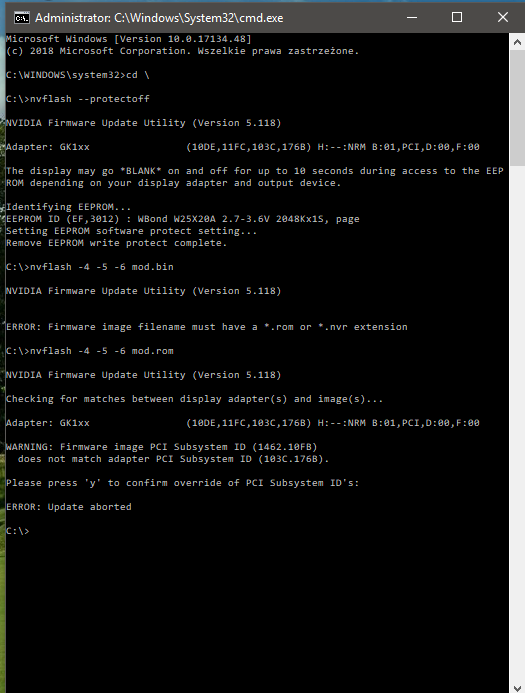

XTeK Posted May 21, 2018 Share Posted May 21, 2018 I remember a long time ago and I had a version of nvflash for dos which had no problem with this ID. "Checking for matches between display adapter(s) and image(s)... Adapter: Quadro K2100M (10DE,11FC,103C,176B) H:--:NRM S:00,B:01,D:00,F:00 WARNING: Firmware image PCI Subsystem ID (103C.197B) does not match adapter PCI Subsystem ID (103C.176B). Please press 'y' to confirm override of PCI Subsystem ID's: NOTE: Exception caught. Nothing changed! ERROR: Update aborted" It's strange because what I gave previously was the rom of my card. Quote Link to comment Share on other sites More sharing options...
Bios Modder Klem Posted May 21, 2018 Bios Modder Share Posted May 21, 2018 44 minutes ago, XTeK said: I remember a long time ago and I had a version of nvflash for dos which had no problem with this ID. "Checking for matches between display adapter(s) and image(s)... Adapter: Quadro K2100M (10DE,11FC,103C,176B) H:--:NRM S:00,B:01,D:00,F:00 WARNING: Firmware image PCI Subsystem ID (103C.197B) does not match adapter PCI Subsystem ID (103C.176B). Please press 'y' to confirm override of PCI Subsystem ID's: NOTE: Exception caught. Nothing changed! ERROR: Update aborted" It's strange because what I gave previously was the rom of my card. Yes, just try to use another Nvflash versions. Quote Link to comment Share on other sites More sharing options...
fcsab Posted May 22, 2018 Share Posted May 22, 2018 Hi, I have read that I can't unlock and flash HP 8770w Nvidia Quadro K4000m vbios, because there is also a vbios stored in the HP BIOS. Also tried to read, modify and reflash the vbios -> no success. Could HEX editing all the 601 mhz values(the default clock for the K400m) to like 800 in the HP BIOS result the card to run on higher frequency? I have successfully found the hex values to search and edit by comparing the original and the modified vbios. I have the HP BIOS + flasher. In the vbios the hex value stored in 7 places while in the HP BIOS I found more than that. Is it even a good approach or I'm just going to brick my MB? Quote Link to comment Share on other sites More sharing options...
showgood163 Posted May 25, 2018 Share Posted May 25, 2018 Thank you for sharing! Quote Link to comment Share on other sites More sharing options...
Ludecan Posted May 25, 2018 Share Posted May 25, 2018 Hi, thank you very much for providing these. Can you tell me if using these modified vBIOS I would be able to undervolt my Clevo GTX 680m SLI? I'm having some unstabilities when under maximum load and wanted to try undervolting to see if it was a problem with power since temps are at a reasonable 85C. Thanks in advance Quote Link to comment Share on other sites More sharing options...

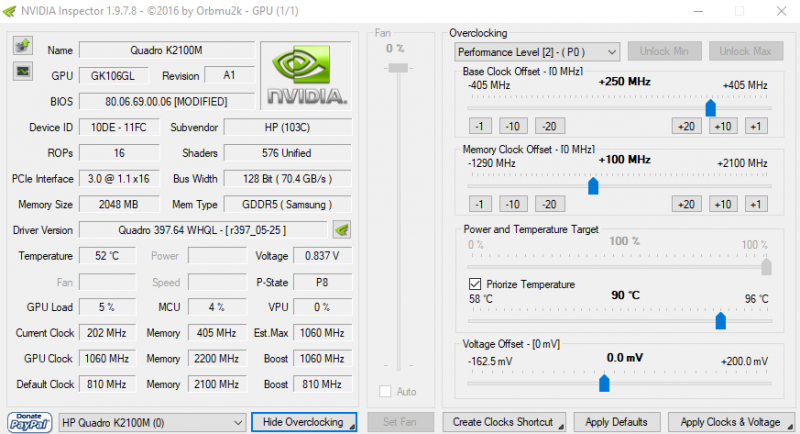

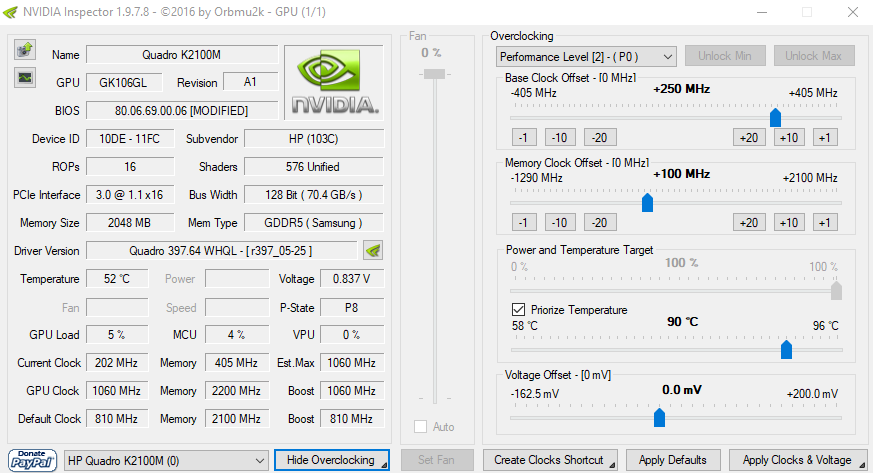

XTeK Posted May 26, 2018 Share Posted May 26, 2018 (edited) I found a way to write vbios on my card. It is best to perform a usb drive or memory card as a boot disk.Record on it NVflash for dos version 5.163.And upload from the dos this vbios with commands:nvflash --protectoffnvflash --overridesub new.romnvflash --protecton The K2100 works perfectly at 8570w and you can manipulate frequencies.Thanks again Klem;) Edited May 27, 2018 by XTeK Quote Link to comment Share on other sites More sharing options...
Ludecan Posted May 28, 2018 Share Posted May 28, 2018 (edited) Hey everybody, I want to undervolt my Clevo GTX 680m to reduce heat and power usage and maybe get a few more FPS due to temps. By what I've read Kepler cards don't support voltage/frequency curves so I should use voltage offsets. Is that so or should I be able to use the curves? Also, when I try to apply the negative voltage offset on MSI Afterburner it resets back to 0 and nothing happens, and using NVidia Inspector the voltage section is grayed out so no go there as well. Do I need a modded VBIOS to be able to change voltage? Thanks in advance Pablo Edited May 28, 2018 by Ludecan Quote Link to comment Share on other sites More sharing options...
gat Posted June 5, 2018 Share Posted June 5, 2018 On 07/04/2017 at 1:44 PM, Klem said: bonjour jaimerai flasher mon sli sur mon mx18r2 mais j ai des 680 2gb c est possible? Quote Link to comment Share on other sites More sharing options...
gat Posted June 5, 2018 Share Posted June 5, 2018 Le 07/04/2017 à 13h44, Klem a déclaré: donc si j ai bien compris il me faut cinq message pour pouvoir profiter je ne comprend pas pouquoi ca pouce a faire cinq message pour rien Le 07/04/2017 à 13h44, Klem a déclaré: aller encore deux plus qu un On 07/04/2017 at 1:44 PM, Klem said: Quote Link to comment Share on other sites More sharing options...
gat Posted June 5, 2018 Share Posted June 5, 2018 Le 07/04/2017 à 13h44, Klem a déclaré: Quote Link to comment Share on other sites More sharing options...
