[M14x R2] - VBIOS mod for higher boost clocks - TEST VERSIONS ONLY

Recommended Posts

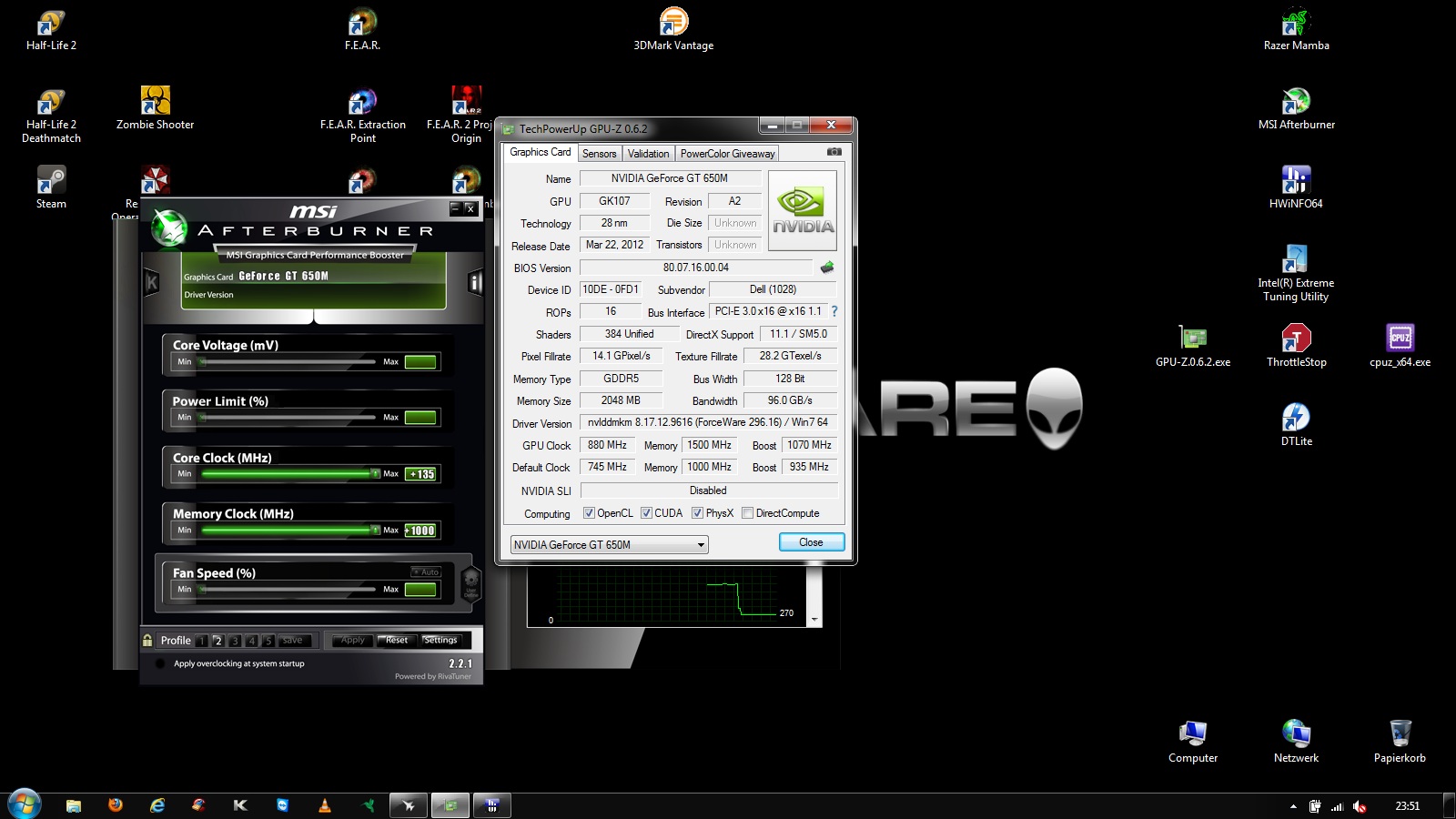

So there's a printscreen of my gpu-z with updated boost clocks while the max overclok in msi AB is added. =)

  • Thumbs Up 1

Share this post


Link to post
Share on other sites
From my testing the battery clocks do not have any boost so you are correct, only the 3d profile turbos

Can you do me a favor and attach a GPU-Z log while you run on battery? Just want to be sure about something... A quick log is fine, just make sure it contains some idling and also a while with the GPU at load. Thanks.

Share this post


Link to post
Share on other sites

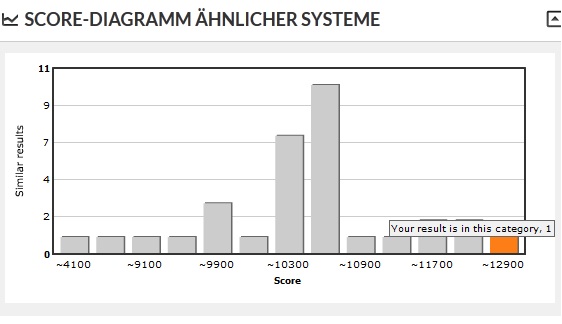

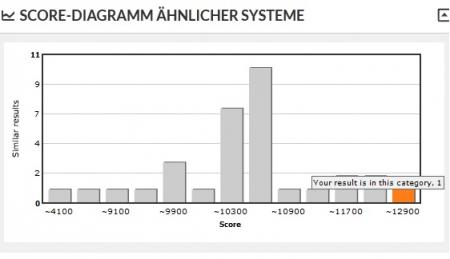

Pretty cool, what are your clock settings?

Share this post


Link to post
Share on other sites

1070 / 2300... I wonder if the power cable is different betwen the R1 and the R2. I was using the old R1 cable before and I switched to the R2 cable (as I just sold the R1). The r1 says 80 and the r2 says 85. I noticed before the benchmark would slow down at mem speeds of 300 but now it just keeps going up. Im pleased...

Share this post


Link to post
Share on other sites

I've got something new for testing... If it works it'll increase the max boost voltage by 0.0375V, which should allow higher boost clocks. I successfully did something similar on a desktop GTX 670 VBIOS, but the structure there is different, so I can't say whether this works as I want it to, but I hope so, would be pretty cool :P

Hope to get a Kepler card soon, so I could test such stuff myself. If anyone is brave enough to test this, awesome - please report back!!

As always, FLASH ON YOUR OWN RISK.

EDIT: Need to tweak this a bit more, will be back shortily

Share this post


Link to post
Share on other sites

SVL sent pm. Please explain what's happening with this one and how its supposed to work. Has the boost actually been increased with this bios or are you just testing the voltage increase to further pave the way for future turbo increases? Thanks so much sir!

Share this post


Link to post
Share on other sites
r are you just testing the voltage increase to further pave the way for future turbo increases?

Yes, that's the idea, the boost clocks are based on the previous mod, now I simply want to do some tests regarding the voltage. If it works I should be able to further tweak the voltage and the boost clocks.

Share this post


Link to post
Share on other sites

GPU-Z Sensor Log.txt@svl - i updated to the new bios you sent me in PM. My scores are now actually going down. Again I believe its that weird deal where the gpu pulls power from the cpu. I ran a 3dmark11 test with turbo disabled and the clocks at 1100/2300 and the score went down by 3 points rather than up. I watched the different frame rates within the test and some seem really great but the physics score plumets and the overall gpu score went down by 20 points . Again this is only 3dmark11. I may try metro2033 since its a much better benchmark.

I will attach gpu-z log from the first section ONLY of 3dmark11. Thanks!

  • Thumbs Up 1

Share this post


Link to post
Share on other sites

Interesting. Impressive clocks. I got some questions... does the core clock stay at the 1100 during the benchmark tests or does it drop sometime? Because if it drops once in a while it would explain the slightly lower score.

I noticed that the voltage is now lower... I got some theories about this, but I'm not sure whether they are true. I shifted the dynamic clock table, and it is possible that each entry there has a certain voltage assigned. By further tweaking the table, some of the previous entries got pushed down, which could explain the lower voltage if my theory is correct. This will need some testing before I can say whether it's true or not, if it is it might allow a different approach for voltage tweaking.

Share this post


Link to post
Share on other sites

Ok.. more feedback.. BF3 MP 64 player crashes after 10 minutes of play. GPU temp gets to 64c then crashes. Clocks are 1100 / 2300 so... (cpu turbo disabled)

Here is what we know so far. I am stable playing BF3 at 1070/2200 without issue. So I believe for gaming I have found my threshold.

The clocks stay the same during gameplay and do not go down. During map changes of course they fluctuate due to gpu load (or lack of).

I really want to go back to the other bios for now as it seems it will be more stable (I think).

In my opinion, its not the clocks that are unstable, I believe I need to either (find a way to keep the GPU under 65c or provide more voltage to keep it stable or both).

Share this post


Link to post
Share on other sites

SVL.. can you try a bios (same as above) except change the voltage back to 1.0370 (original peak voltage) to see if its more stable at that rate?

What I can do is see if the gpu is more stable. Im trying to see if the GPU will turn off or throttle above 65c.

Share this post


Link to post
Share on other sites

GPU-Z Sensor Log.txtWent back to your old bios and found something interesting. Once the GPU gets hot enough, the voltage lowers on its own. Remember this bios was the 100 turbo increase only bios.

Check it out on the gpu-z log. This is from BF3.

Share this post


Link to post
Share on other sites

Okay, cool. The voltage change can be explained through how the boosting works... but it's interesting that the clock stays when the voltage drops slightly :)

I haven't touched the voltage, but as I mentioned before, I got a theory regarding the lower voltage in the second mod (the one I sent you), I can try to adjust the dynamic clocks a bit differently, if it changes the voltage behavior it would indicate that my theory might be right.

Share this post


Link to post
Share on other sites

Alright, another one, tweaked the dynamic clock table, this might bring back higher voltage at higher clocks (see my "theory" in a previous post).

Let me know how it goes. GPU-Z log will be appreciated.

By the way... I need a different idea for the voltage tweaking I mentioned earlier, Conkers just tested a similar mod on his desktop card with no success.

Edit: Attachement removed, needs some more work.

Share this post


Link to post
Share on other sites

This is all i have from hw info.. gpu-z wont work with your new vbios. it fails or locks up and ive tried 2 different versions now.

anyway.. this was taken during bf3 and Im not sure how valuable it will be ... you can rename it to .csv if needed.

bf3 log.txt

Share this post


Link to post
Share on other sites

Thanks, can't really view .csv files properly at the moment... besides the GPU-Z issue, how did it work?

Share this post


Link to post
Share on other sites

Not good. I overclock to 1120 and it clocks back to 950. The bios is very weird. The voltage is stable. Which is a good thing. Here is what I would do.. go back to your original bios release. Change the 100 to 135. Leave voltage alone. Let us test at those levels and see how it goes. Thanks!

Share this post


Link to post
Share on other sites

Alright, here's again the first version, base boost is now 970MHz instead of 935MHz (hope that's what you meant), dynamic clock table stays the same, max entry is about 1100MHz, you can hit this with overclocking, but I assume it doesn't matter if you get above, else let me know.

Hope it works as desired.

Btw, I never touched the voltages, but it seems my theory regarding voltages and dynamic clocks is true... Will see what I can do with this in the future :)

EDIT: File removed, want to improve something.

  • Thumbs Up 1

Share this post


Link to post
Share on other sites

Awesome work that you have done here! :D

I'm really happy to see that the 650m overclocks this well with proper cooling. :)

May I ask, how complicated, and dangerous, is it to increase the base boost of the 650m?

I own a MSI GE60 with a 650m 2GB GDDR5 that just begs to be overclocked beyond 970 MHz core.

Share this post


Link to post
Share on other sites

How dangerous? Well, since I now have a working method for doing this it's pretty safe, as long as I don't start experimenting :D

How complicated? Pretty complicated imo, though practice helps. If you're interested in a mod for your system I can modify the vbios for you - provided you test it and let me know how it works. Send me a PM with a link to a BIOS of your system and also a GPU-Z screenshot and if possible a (short) GPU-Z log while the GPU is at load.

And welcome to T|I!

Share this post


Link to post
Share on other sites

Hi Stevenxowens! Maybe you forgot about this and didnt found the moved thread. here is a link you said you wanted to try to recreate the problem and see what it could be 2 days ago --->

http://forum.techinferno.com/alienware-m14x/1794-usb-issues.html

would be very thankful if you would tell me your results and suggestions what this incompatibility with the USB 3.0 drivers could be.

and good work svl7 on your vbios modding im sure you made many of us enthusiasts very happy :)
