First I want to thank the community, who have inspired me to do this project.

I will give you guys the chance to follow me on this journey.



I hope you will all help me come up with ideas, techniques and parts that could become handy.



This modding may be possible to convert to allot of laptops.



Let's begin!

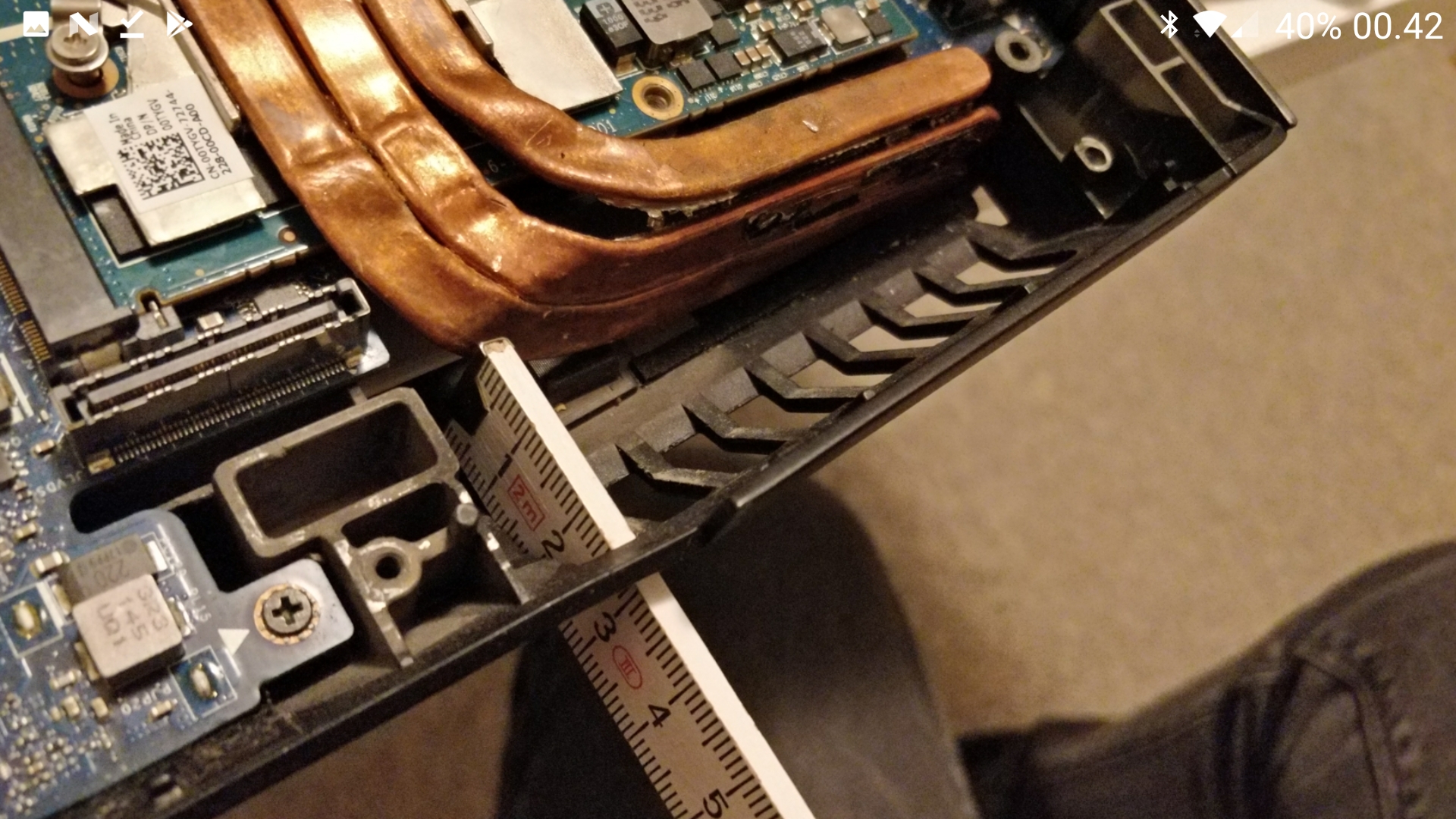

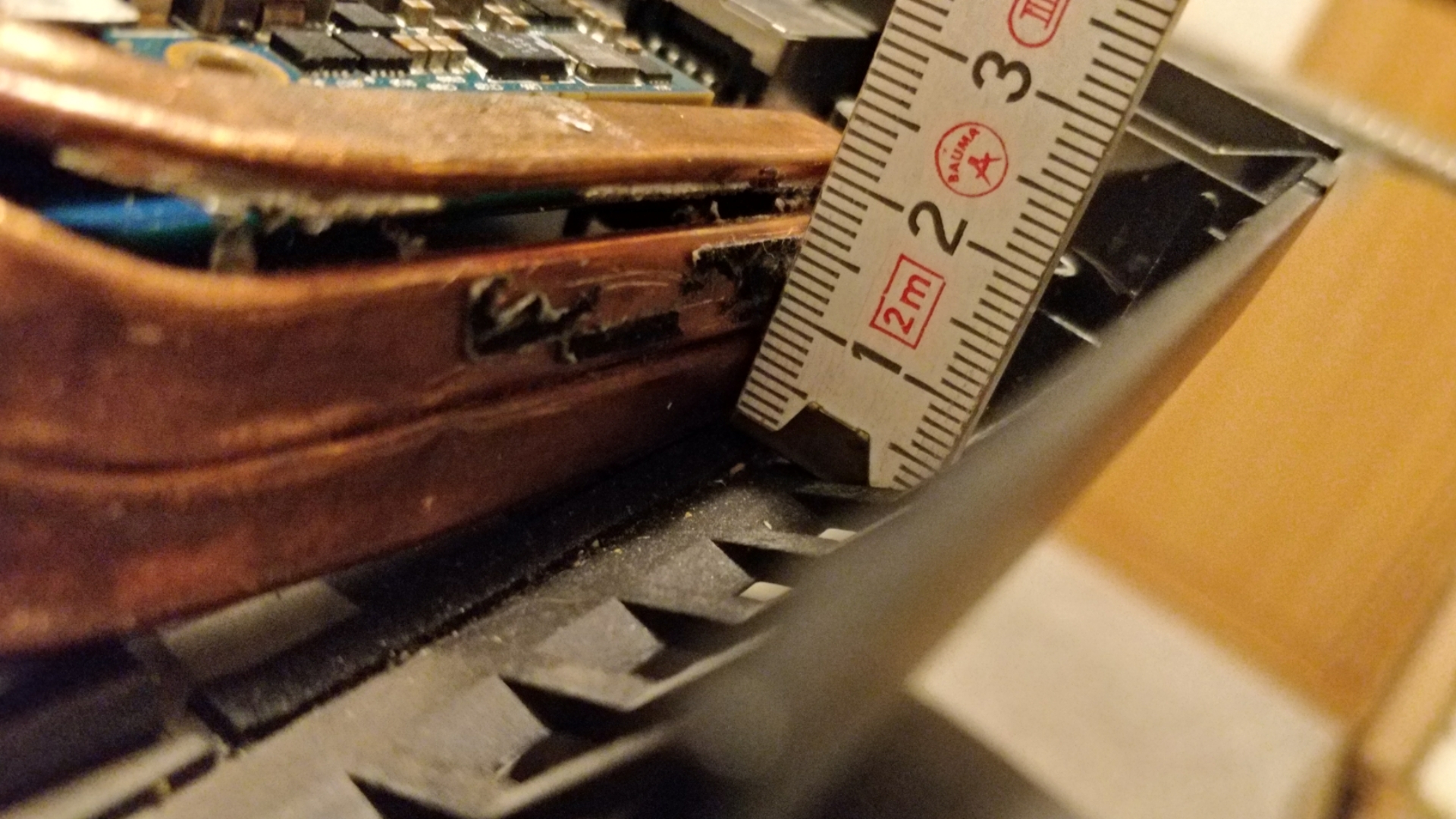

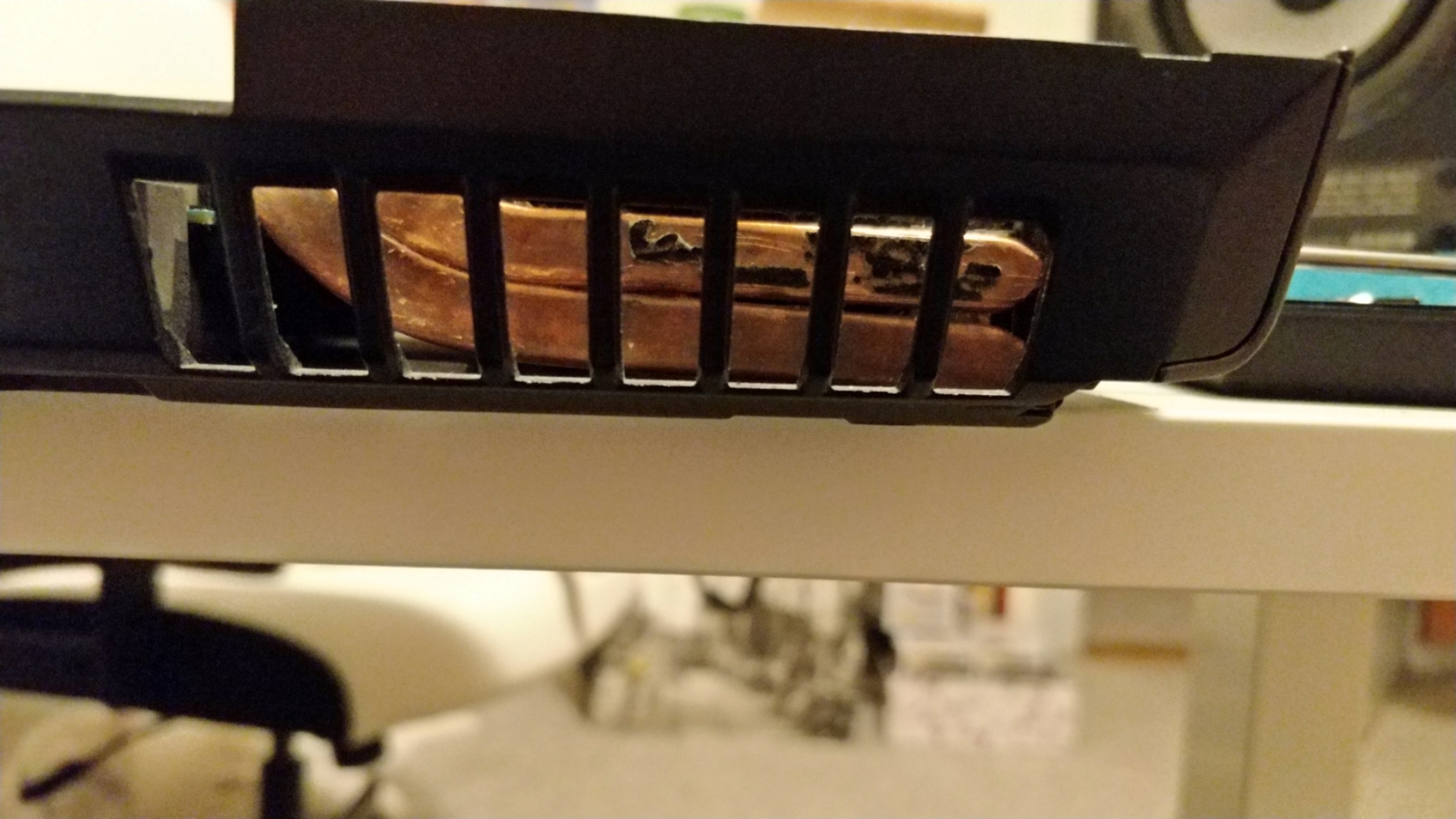

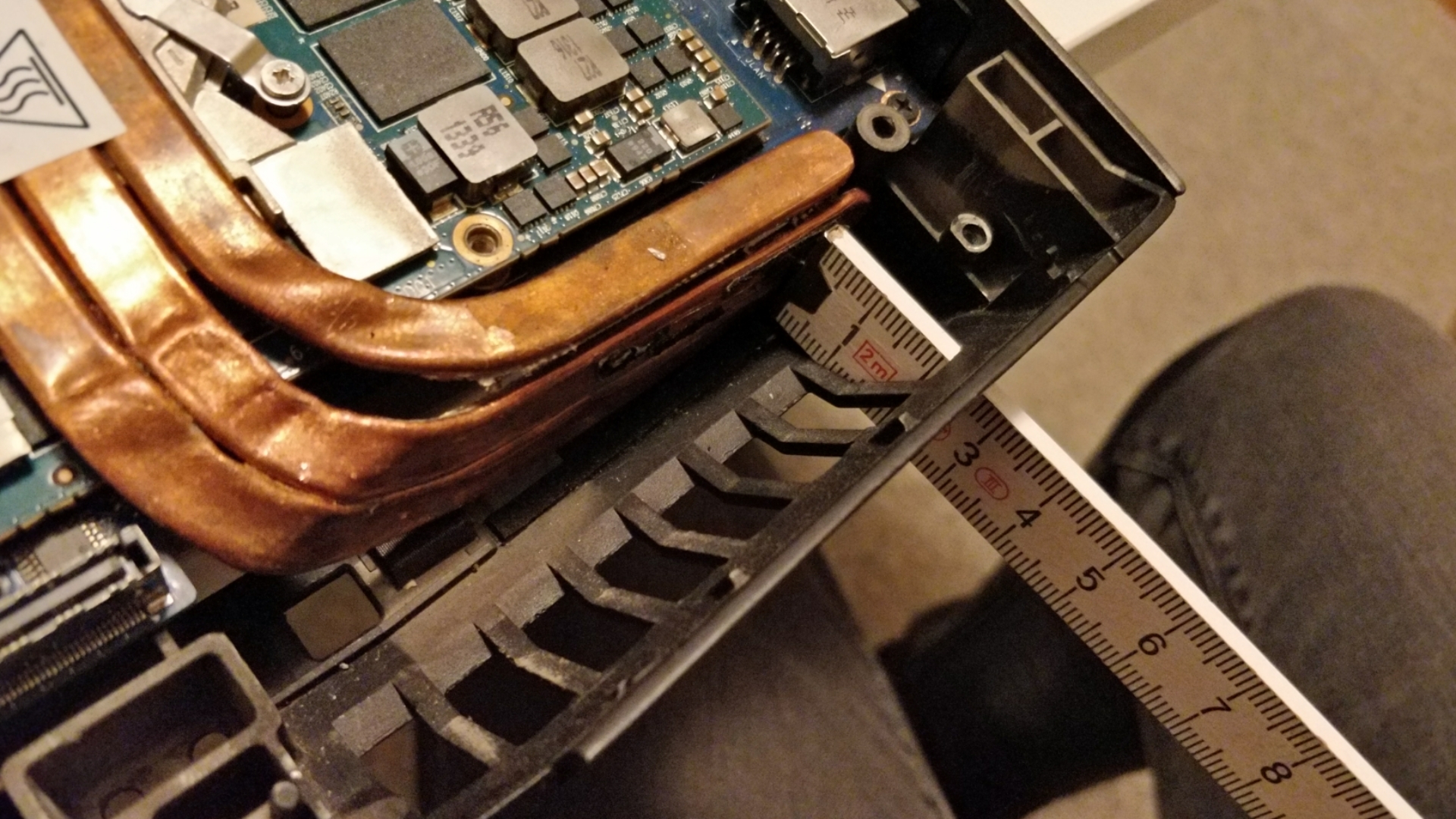

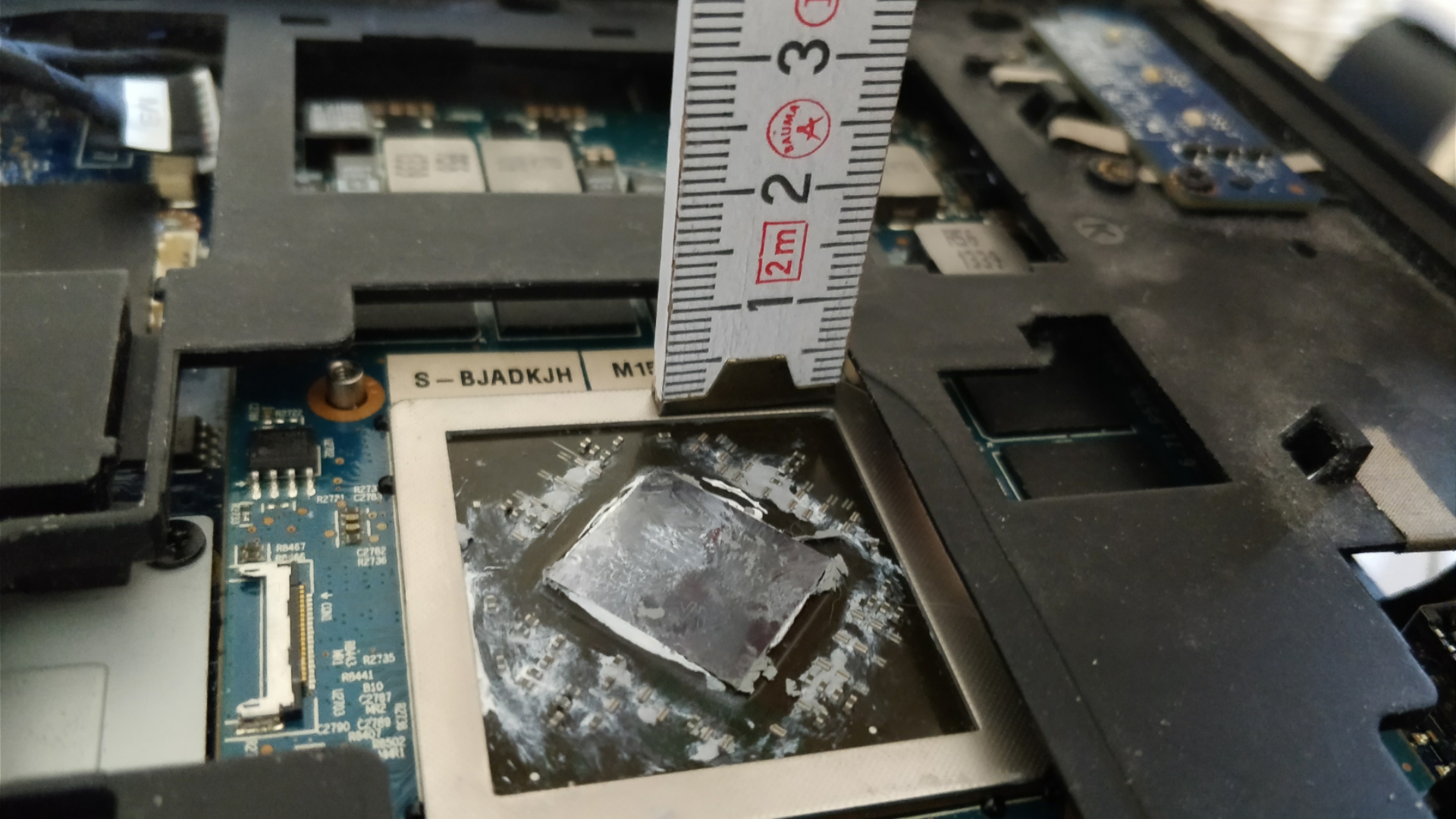

Here is the measurement of the went hole.

77mm X 16mm

Screenshot_20180105-233645.thumb.jpg.5320656b0f77a0fc3598995e81e0bbae.jpgScreenshot_20180105-233658.thumb.jpg.0e96f2730b0b4ede3c6c8dacaf4c0d58.jpg



I have 2 ideas for what can be done.



Edited by Henrik9979

Share this post


Link to post
Share on other sites

Idea number 1:

Cut off the bars where the air is coming out, so I will have a big hole.



Next

I wanted to remove the radiator from the heatsink.




And replace it with a water block like this:

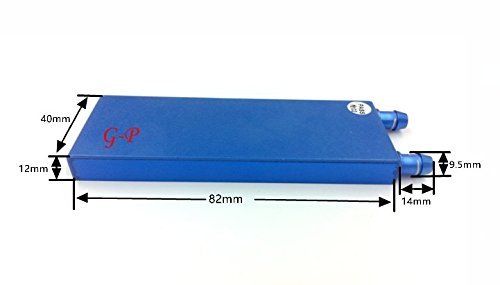

122x41x12mm-Aluminium-Water-Cooling-Block-Heatsink-Block-Liquid-Cooler-For-CPU-GPU-Laser-Head-Industrial-Control.jpg_220x220.jpg.e83bcbb086ef5a1a255917f3d56fb12c.jpg



But finding one in the right size is very hard.



This one on the picture is almost identical besides the connections, but here is the measurements:


The first problem:

It needs to be 77mm long,

82mm is too much of course I can cut the hole bigger.



Wide is 40 mm and this is not an issue, it can stick out of the back of the laptop. Also if a leak should happen it won't damage anything.



12mm thick is perfect. The maximum thickness is 16mm!



But here comes the real problem!



If I solder the water block directly to the copper pipes it will be placed above the went hole.

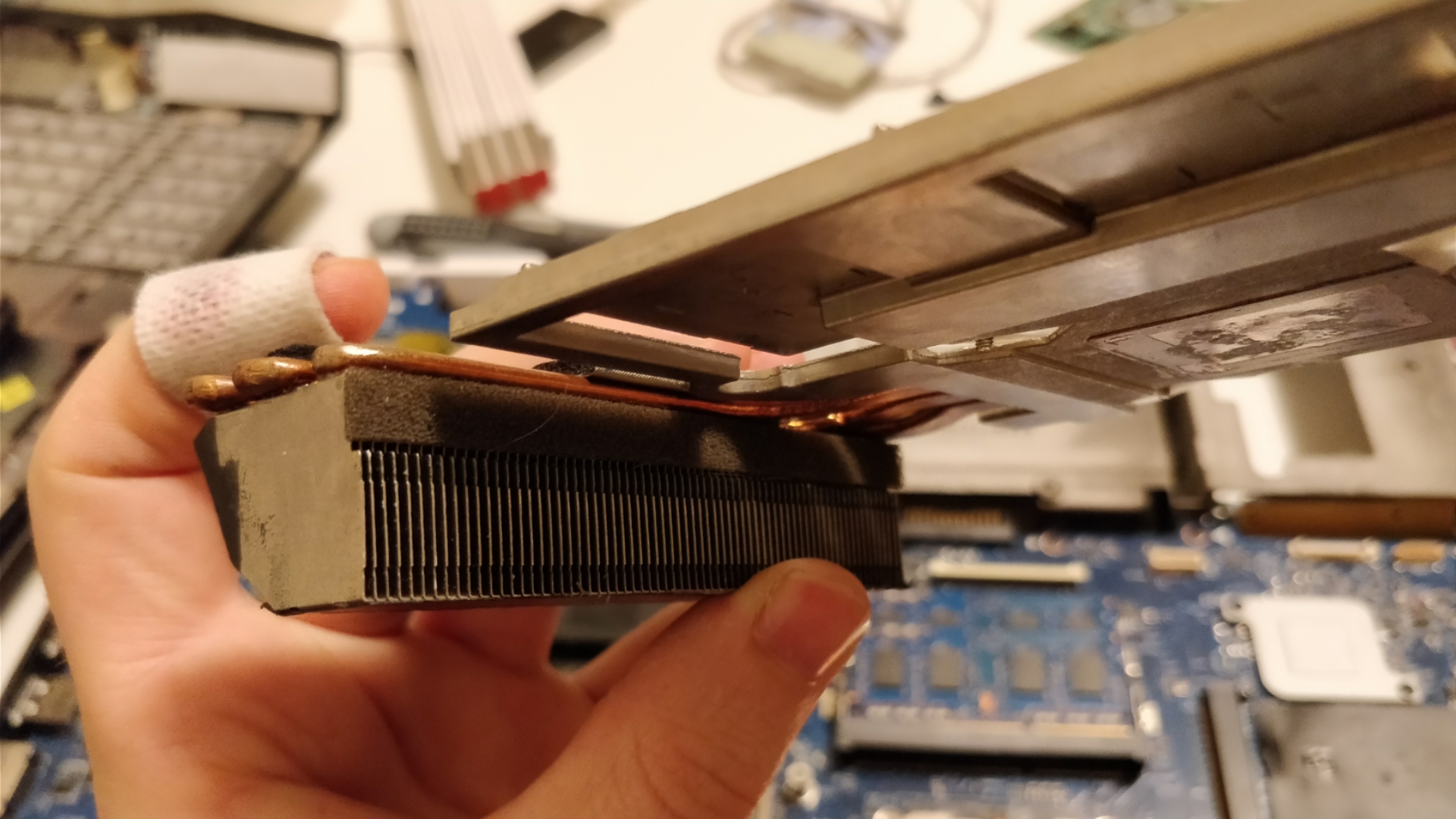

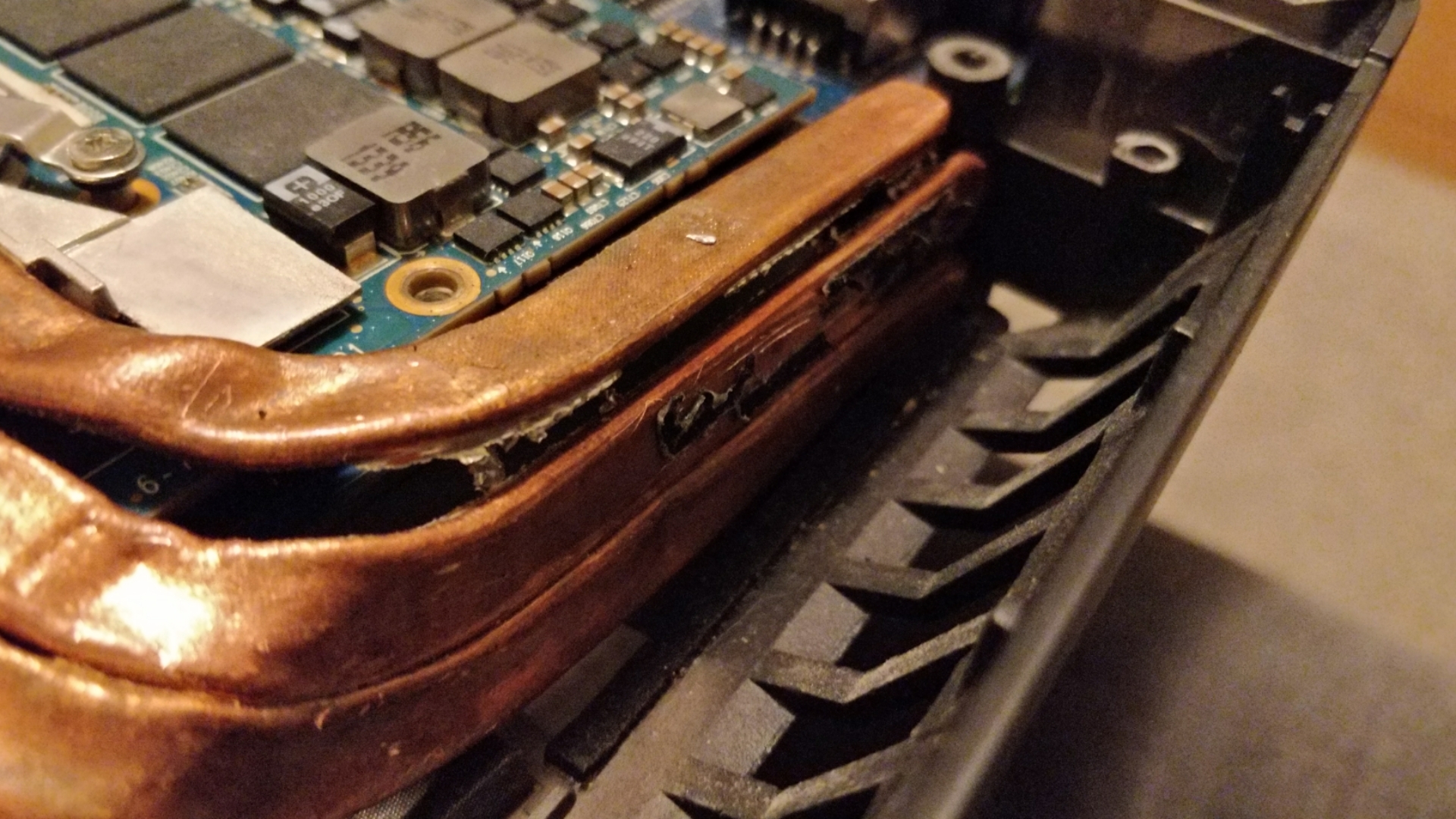

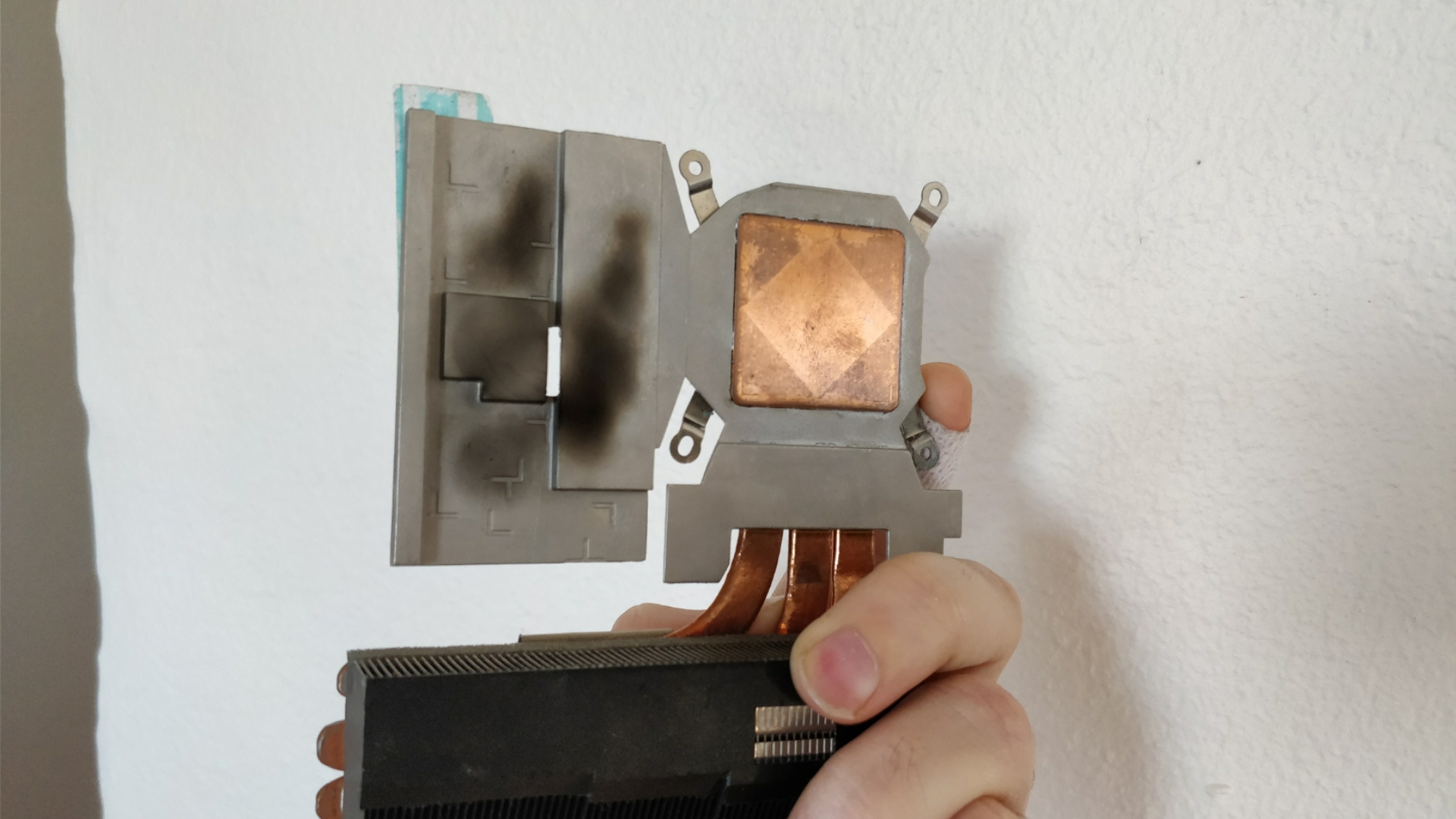

If you look at the photo of the heatsink, the foam is marking where the top of the went hole is.

It means that the water block needs to sit right below the foam.

It also means that I need to put a 6mm copper piece between the water block and heat pipes.



What I am wondering about is will a copper piece transfer the heat good enough???

Share this post


Link to post
Share on other sites

Idea number 2:

Cut off the bars where the air is coming out, so I will have a big hole.



Next

I wanted to remove the radiator from the heatsink.




The next bending the heat pipes so they are vertically.






Share this post


Link to post
Share on other sites

The reason I do not bend all three pipes is because there is not enough place. I will connect the third pipe somehow.



Now it fits perfectly and it is placed directly in front of the went hole.




This however recruires a different kind of water block.





Edited by Henrik9979

Share this post


Link to post
Share on other sites

I found this MOS water block that might fit.

80mm-Multipurpose-MOS-copper-water-cooling-block-liquid-cooing-block-power-supply-by-mainboard-VGA-computer.jpg_640x640.jpg.6eb0758d73d9fe45aca056b403c5f347.jpg

It is 80mm long, 14mm wide and 16mm high. Keep in mind the hight is WITHOUT the connections.



So even though it is 80mm long, the block is only 16mm high so it will not stick out of the went hole.

The connections will stick out and because the is closer together they might fit through the went hole.



Also the wide will not be a problem either.



Now the question, will the heat sink still transport enough heat when have been bend and is this water block big enough???



Share this post


Link to post
Share on other sites

Okay a quick update on a Sunday.

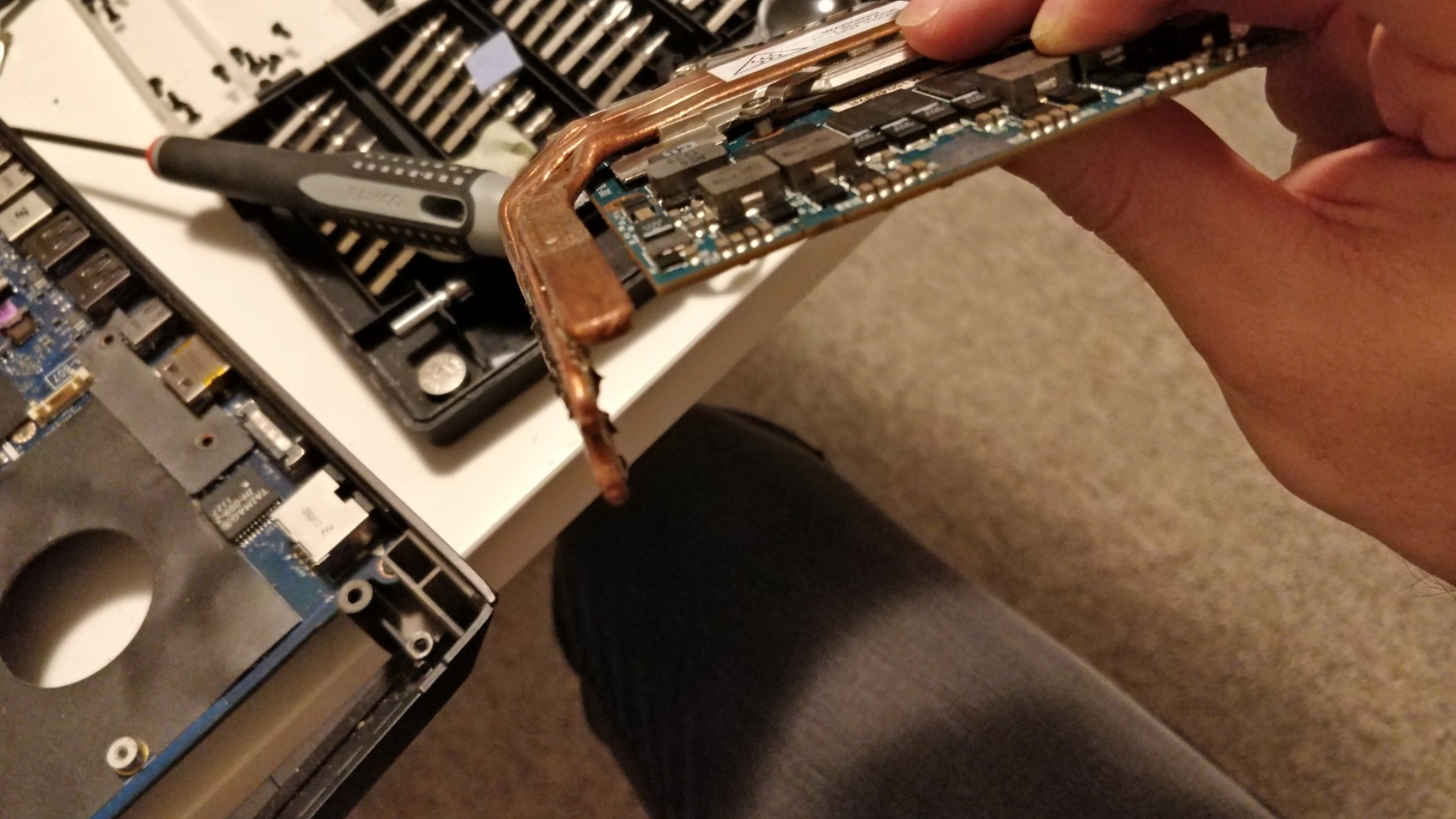

I have been reading alot about how heat pipes are constructed how they work and if they can be faulty?



I have been thinking how I could test if I broke the heat pipes when I bended them.

Then it hit me!

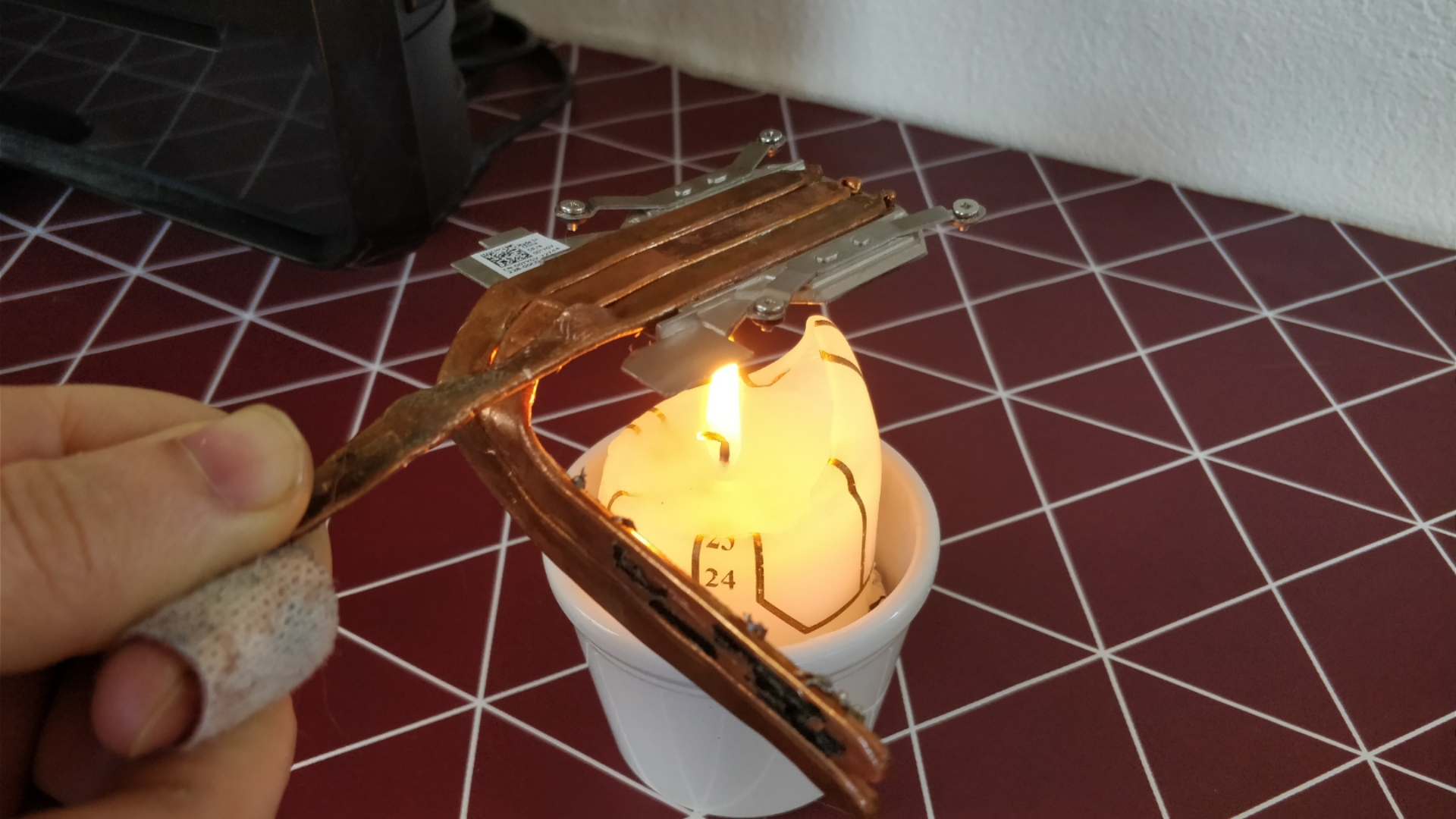

Heat it up with a candle and feel if the heat travels through the pipes.




I straighten one pipe to measure the length, it is 135mm long.



The two bend pipes got very hot very fast. I was happy to discover the still could transfer heat.

How ever the pipe I straighten out was definitely broken.

While the two pipes I bend was too hot to touch the last one was just starting to get warm.



So yes a heat pipe can be faulty.

Share this post


Link to post
Share on other sites

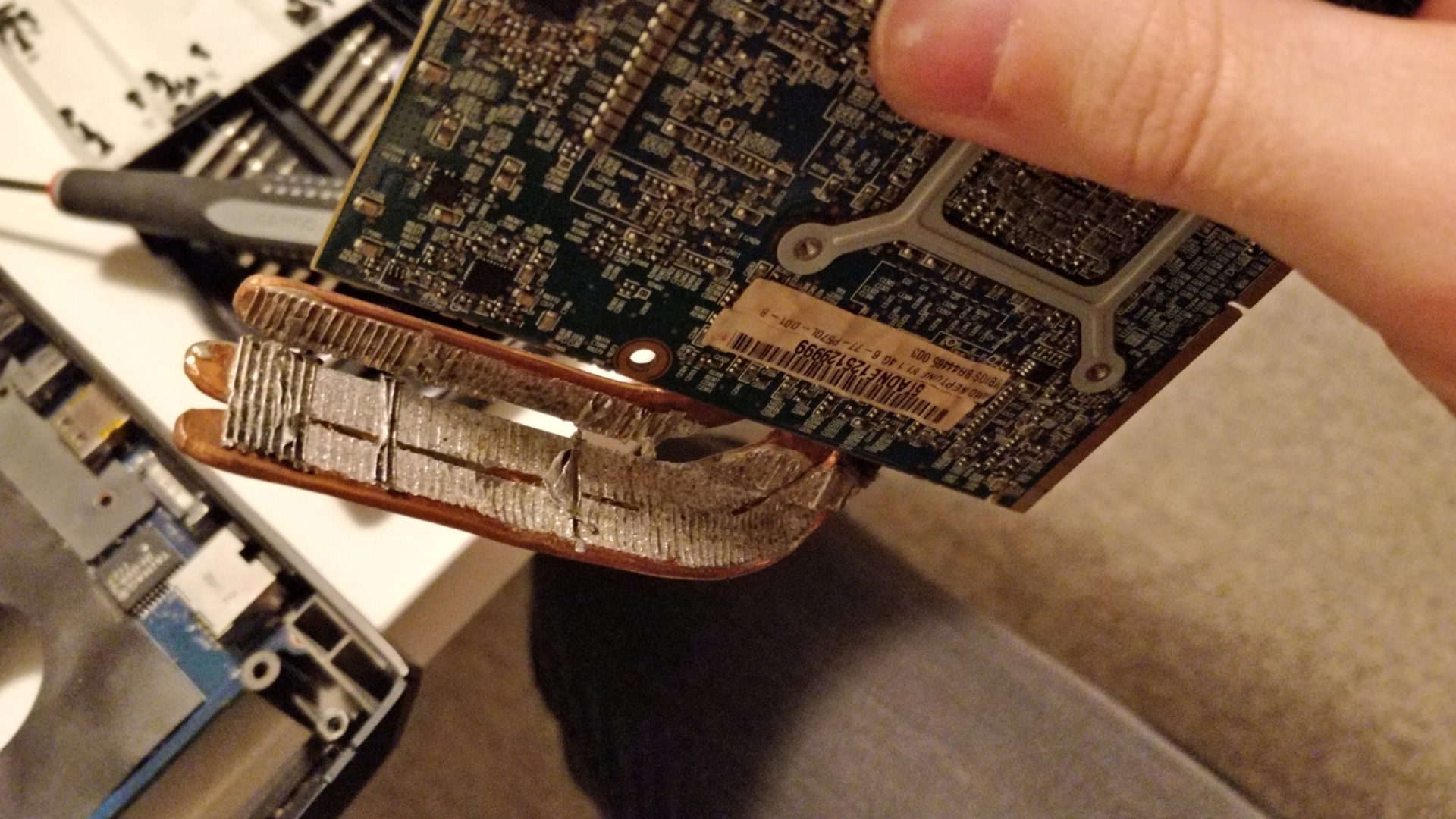

Now another thing I was wondering about, was the GPU memory cooler I accidentally broke off.



It is just barely connected to the copper pipes, also it is made of aluminium. I was wondering how much heat the heat pipes removes from the memory.



I took a working NV100w heatsink and heated up the memory cooler. Alot!




The conclusion is as you see on the picture I could easily hold my hand around the heat pipes.

There is almost nothing being transferred.



Leaving me with new ideas.





Edited by Henrik9979

Share this post


Link to post
Share on other sites

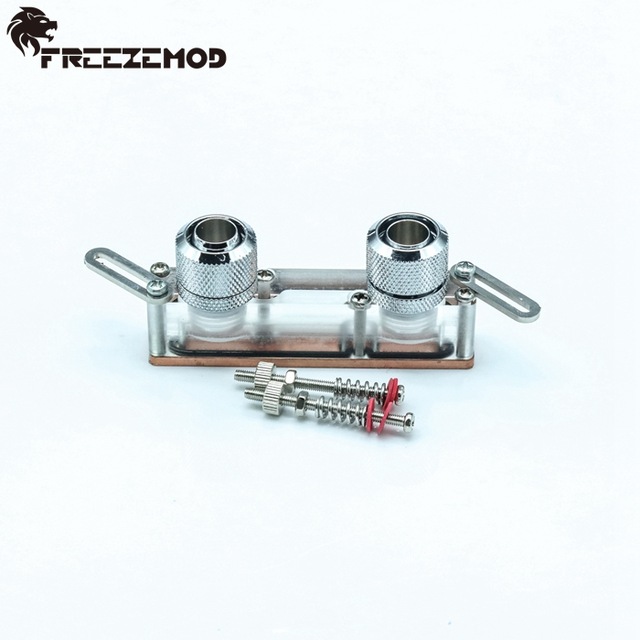

I found this water block from a, Thermaltake CL-W0052 Tide Water.

It is only 8mm thick.

Maybe it could be squeezed in anyway.

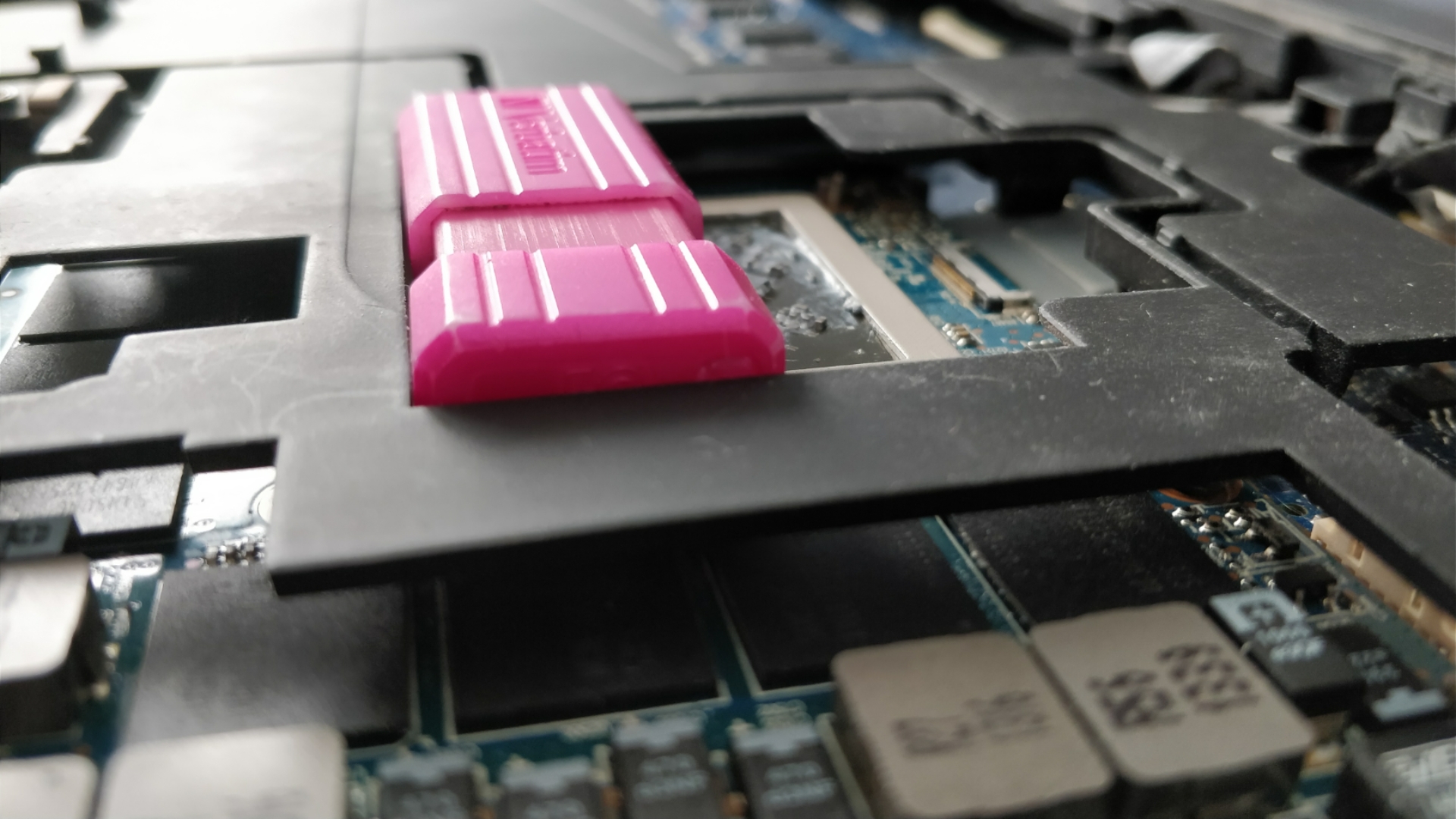

I found a usb drive there is 8 mm thick.

Nope it can not be squeezed in. The keyboard will be bended too much.


Share this post


Link to post
Share on other sites
12 minutes ago, Keltbear said:

Any updates on the mod?

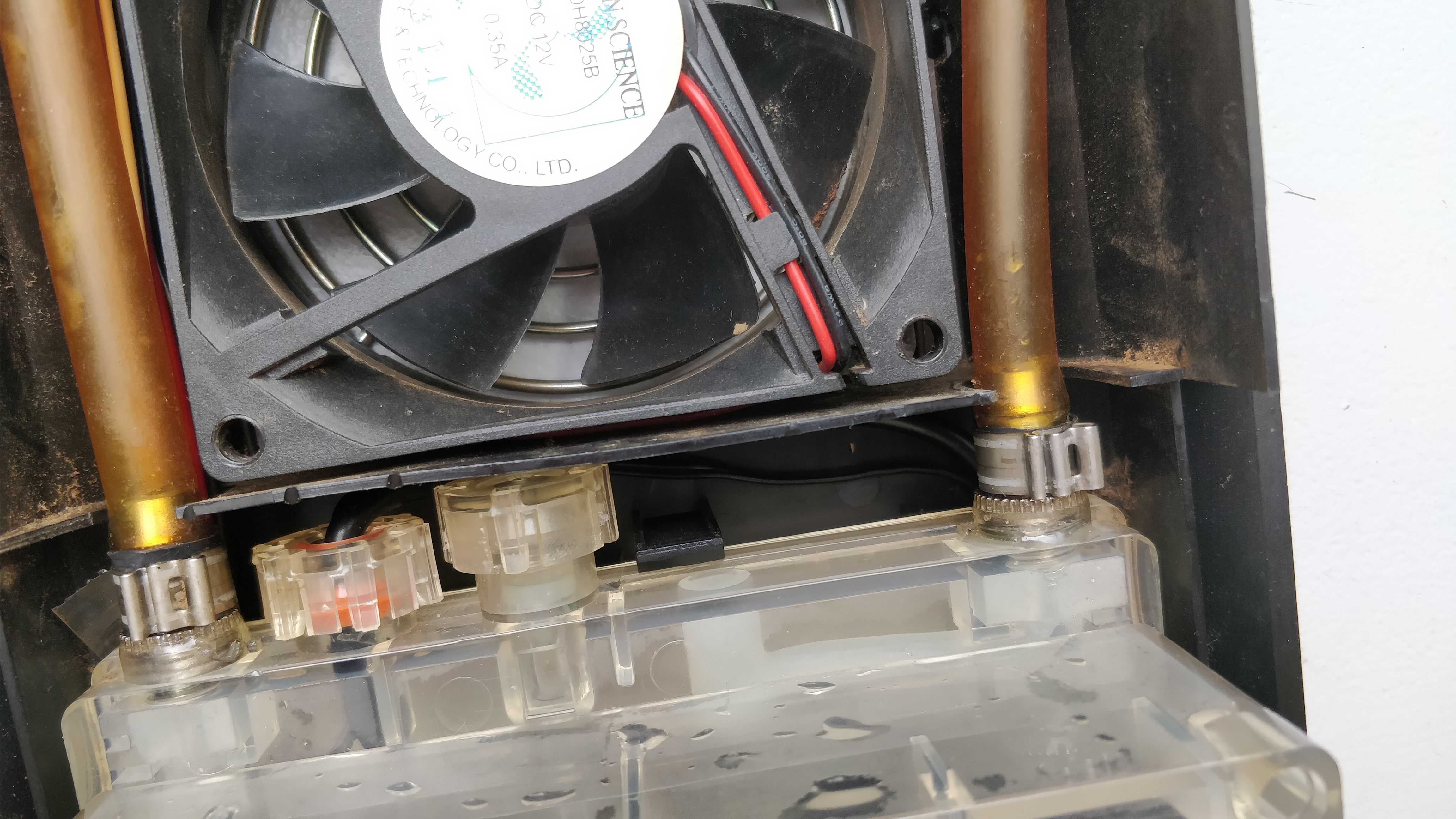

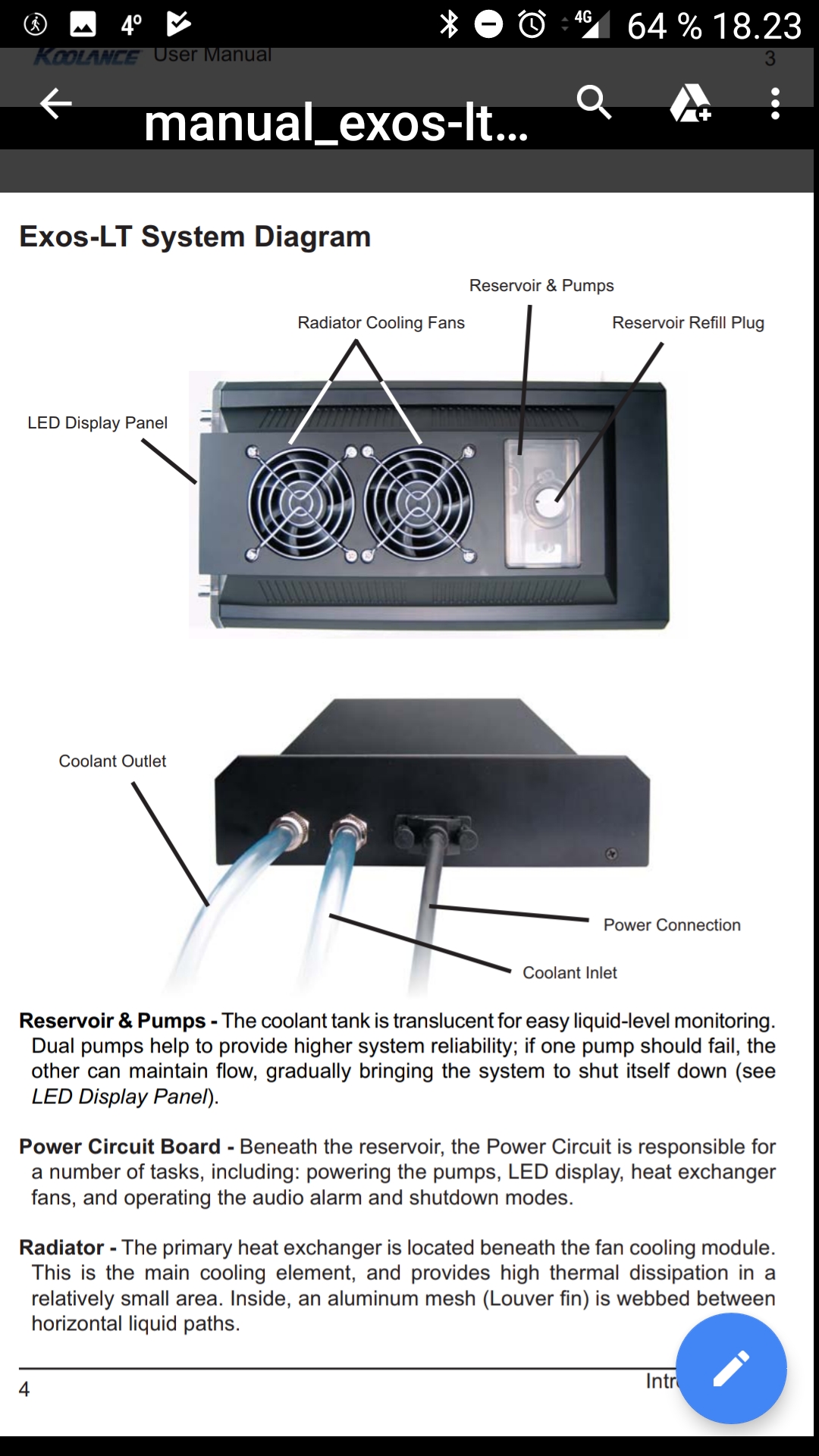

Yes I have just bought a koolance exos-lt, and made some modifications to it.

Now I am waiting for the water blocks to arrive. The shipping is very slow!

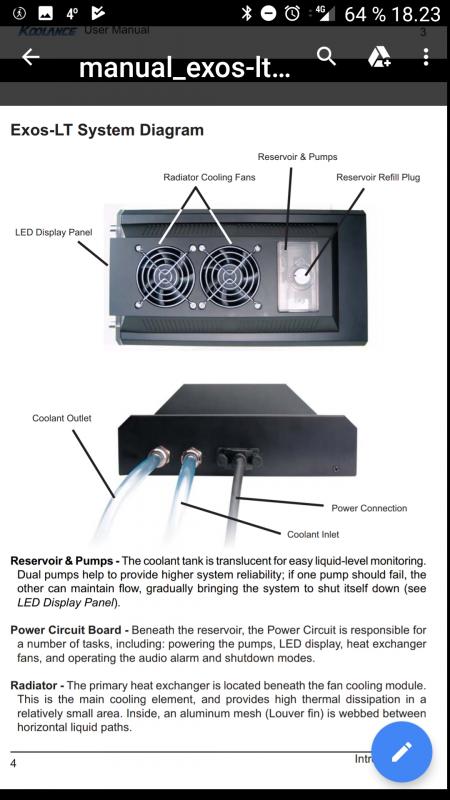

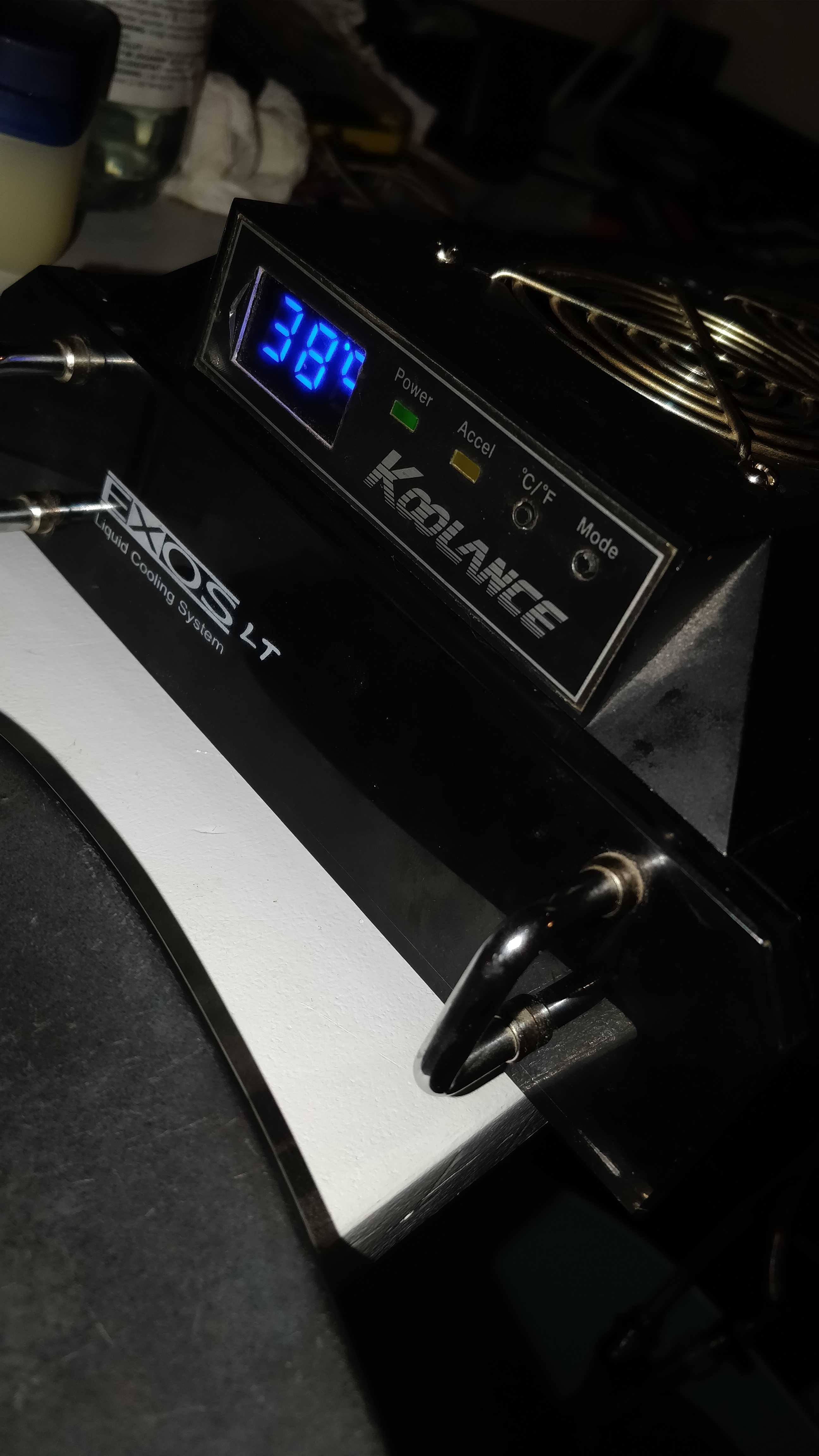

Koolance exos-LT

Share this post


Link to post
Share on other sites

Modifications:

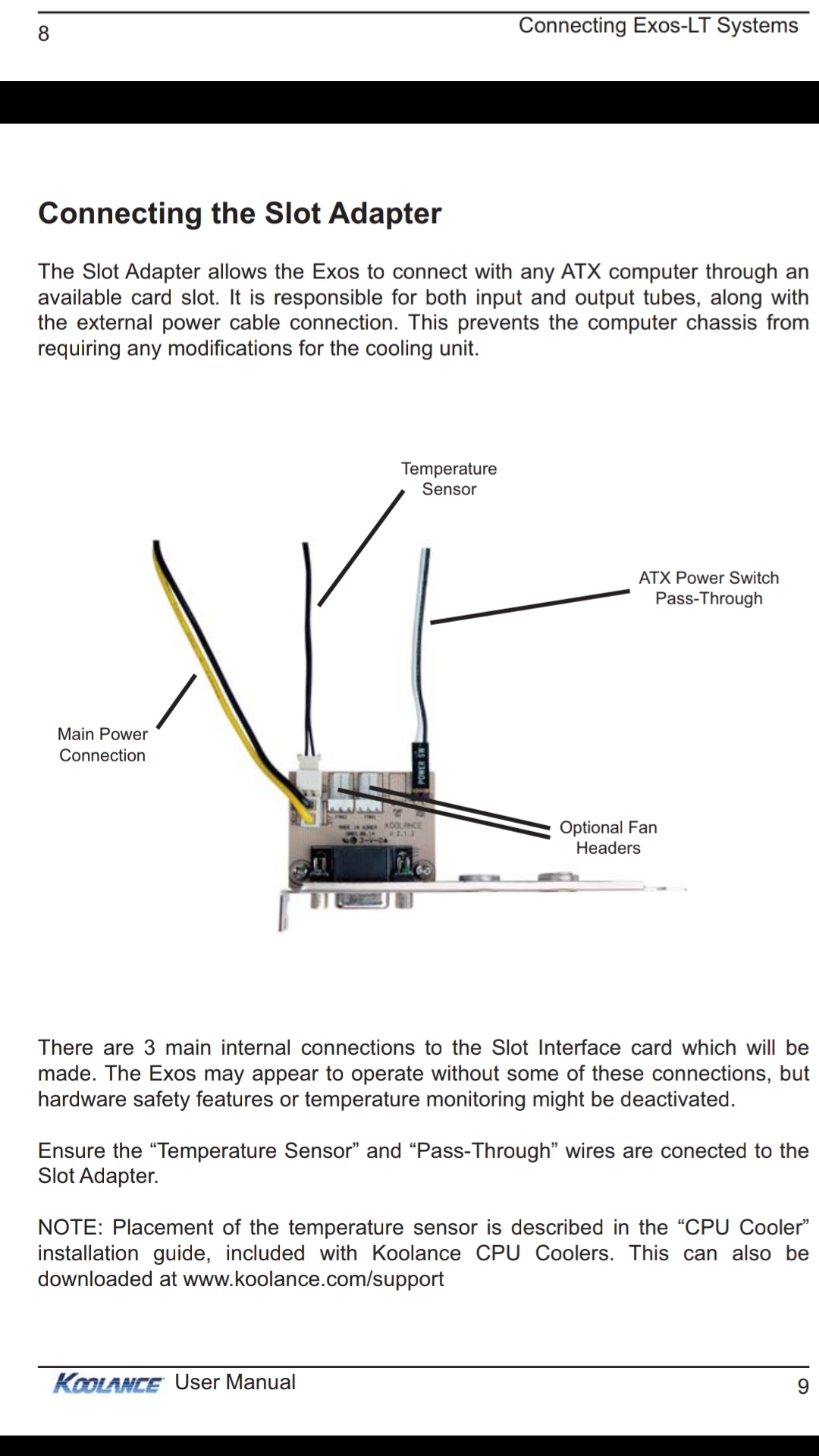

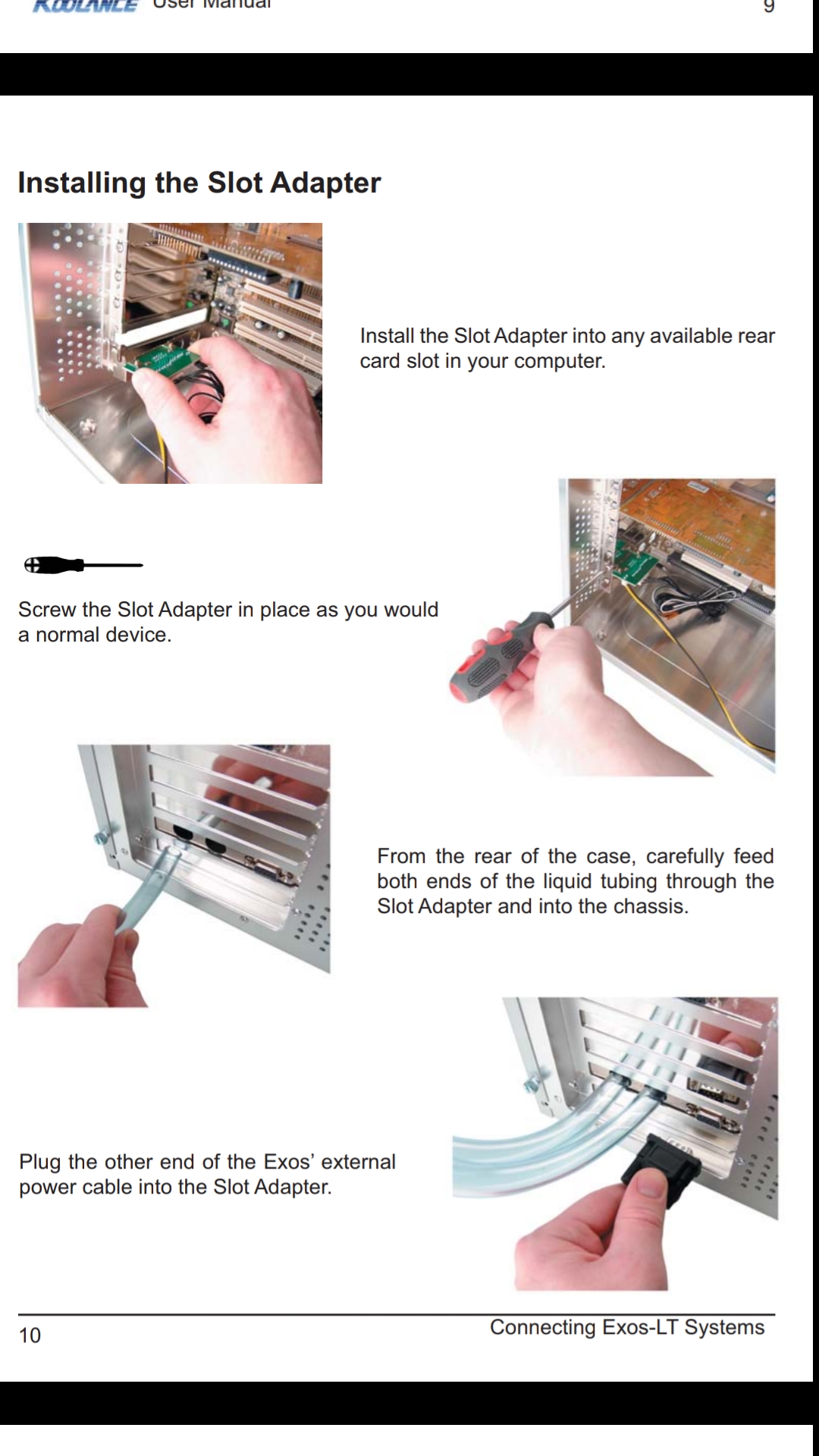

To understand why I modded this device you need to understand how it is supposed to be connected.

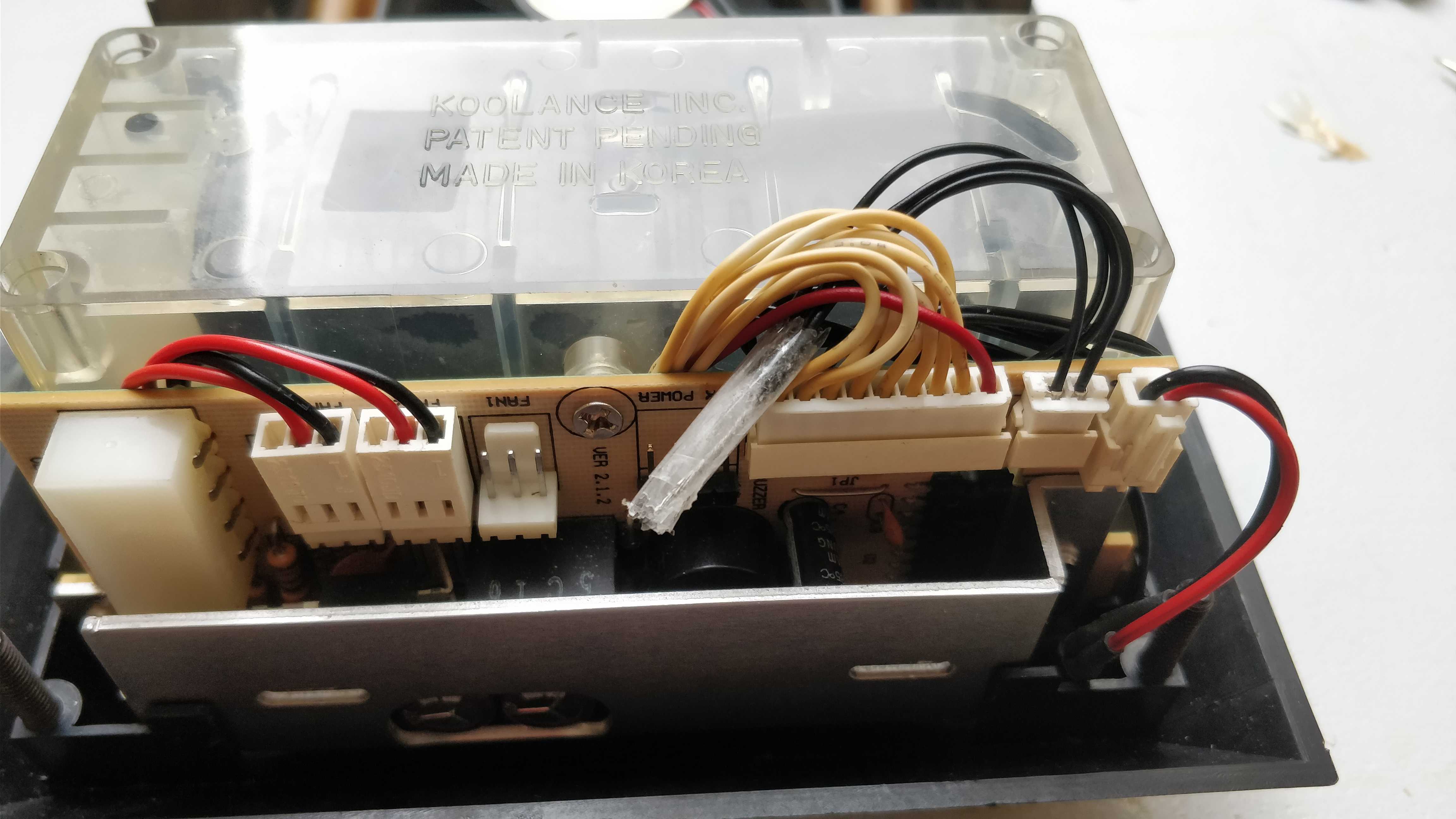

The power connection goes to the slot adapter. At the slot adapter you connect the main power and the thermal sensor. The thermal sensor should be connected to the CPU???? Stupid system I think.




Edited by Henrik9979

Share this post


Link to post
Share on other sites

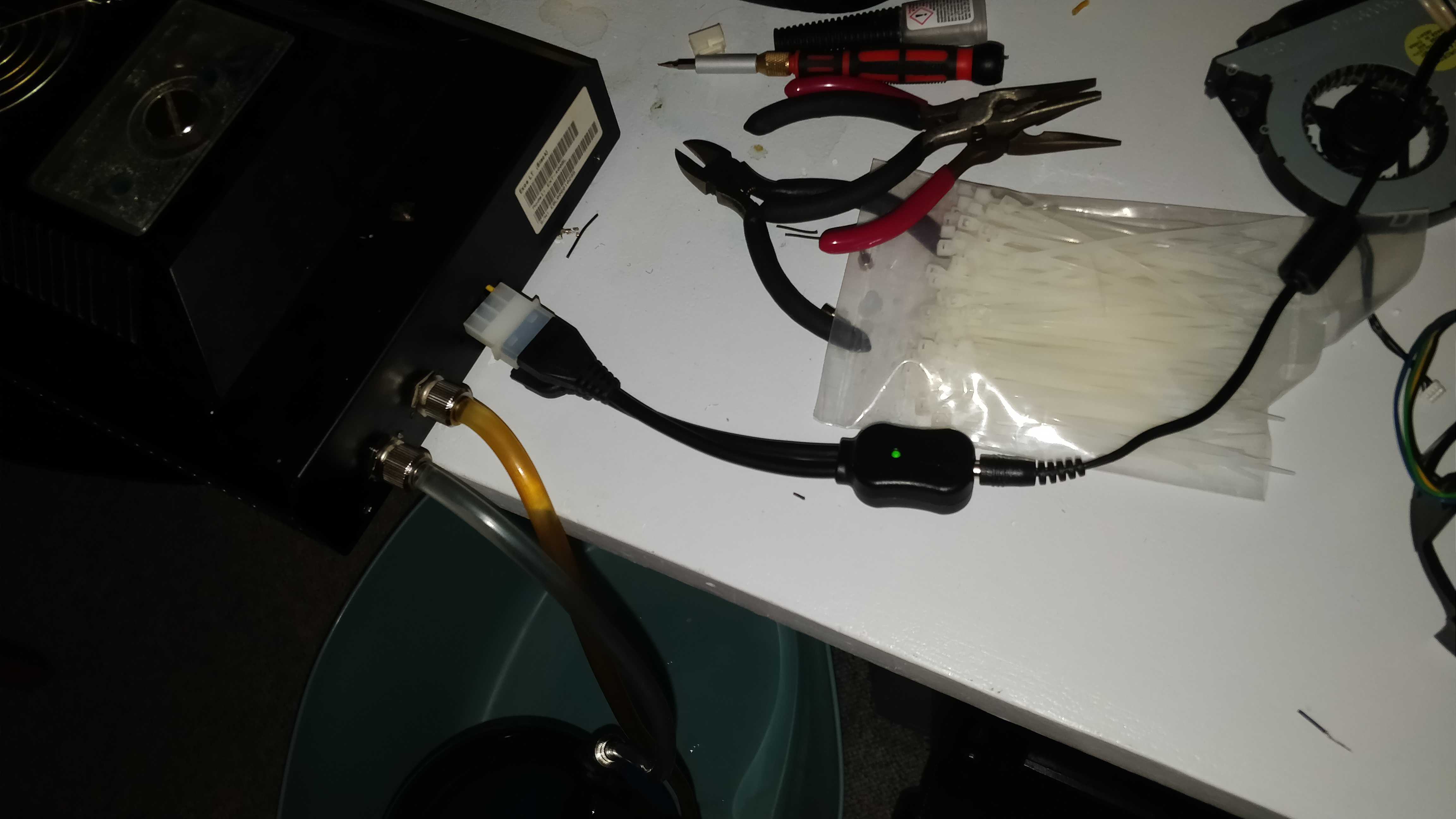

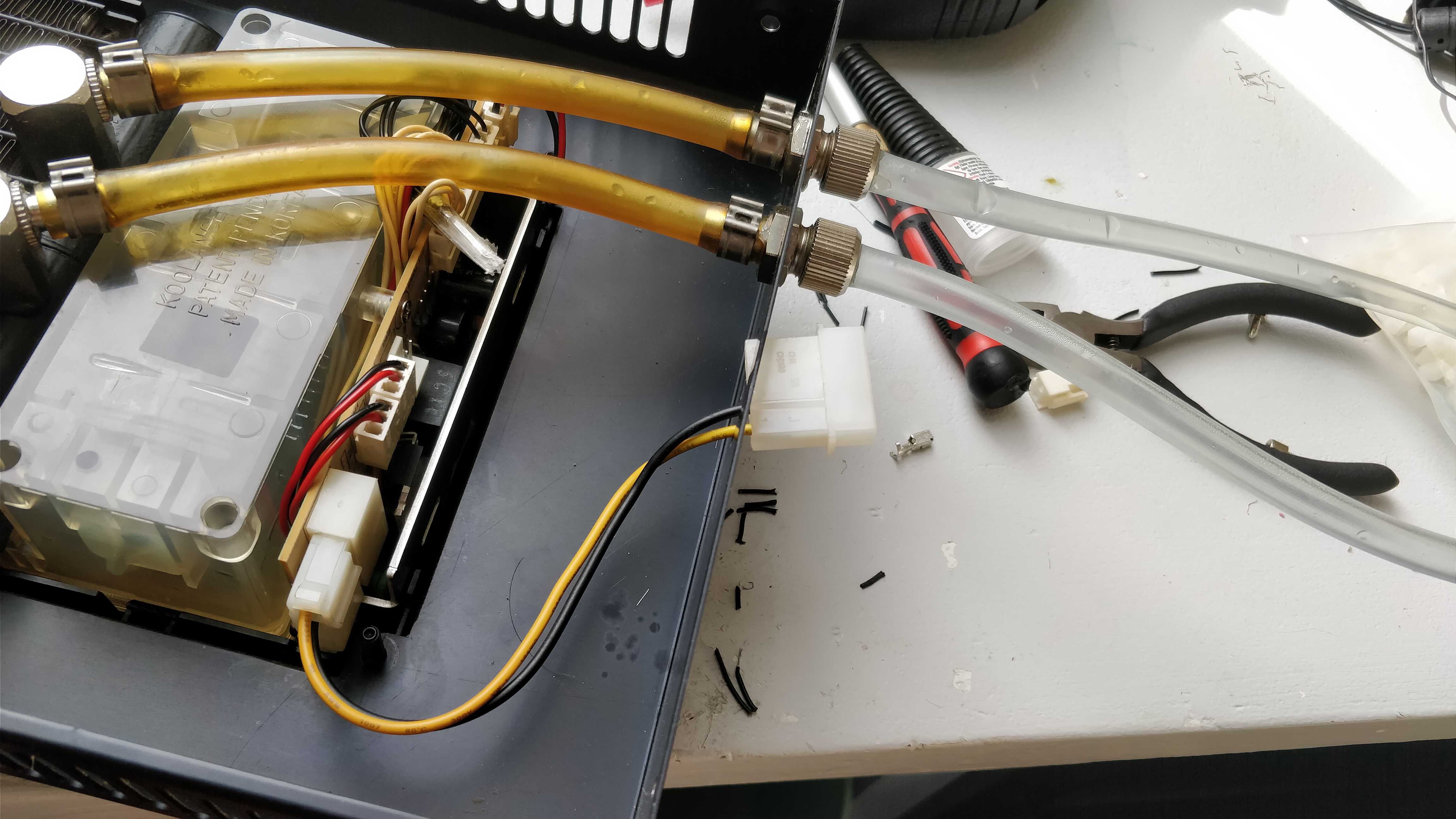

This is how it should be connected. But as you can see I removed it.


I made it way more simple. Now I can connect 12v power directly.



Share this post


Link to post
Share on other sites

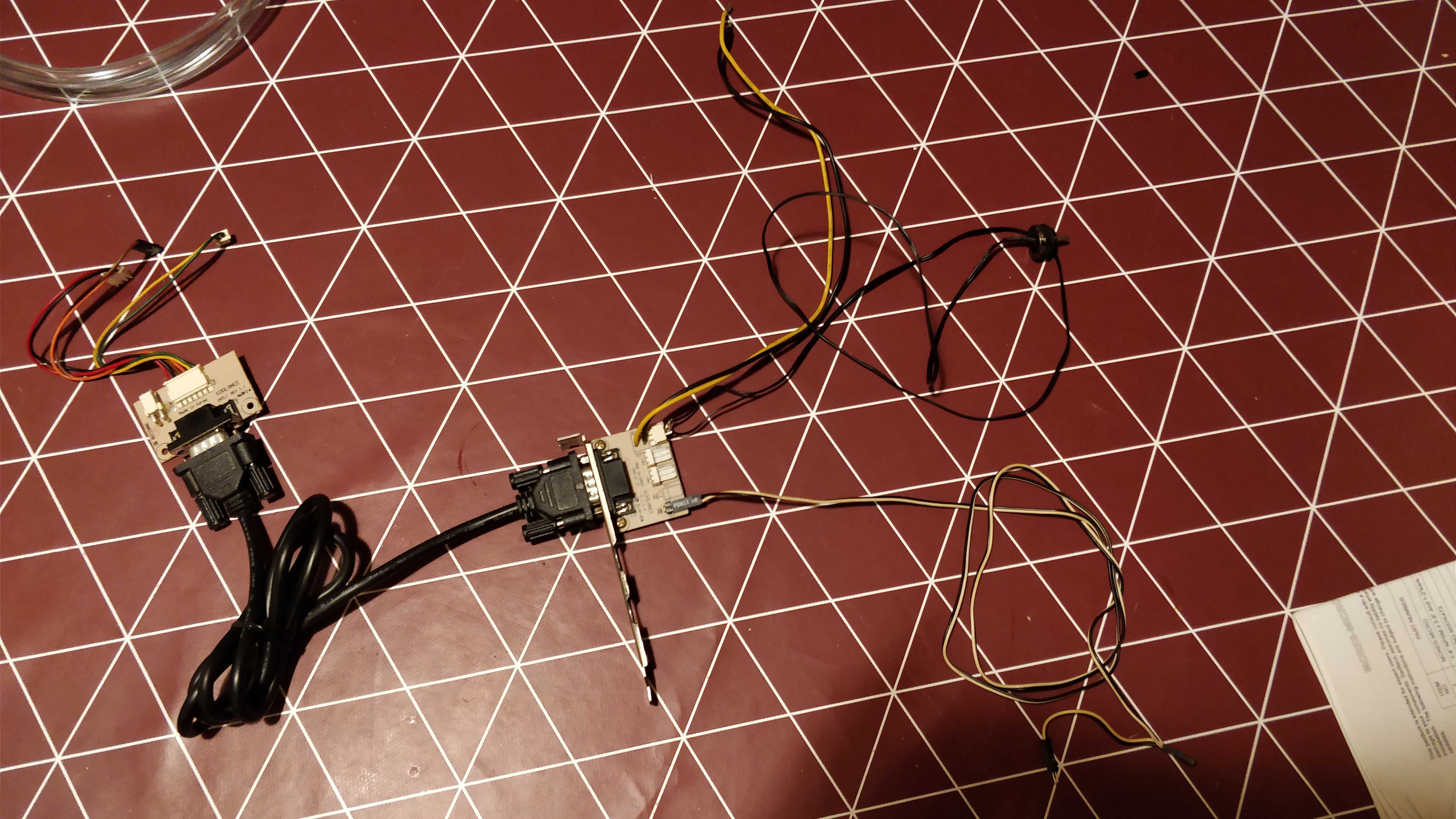

Also I connected the thermal sensor to the main board. Instead off the outside board.

It is the black wire with tape around it.


I connected the sensor to the reservoir, through the same hole as the power cable for the pump.


Share this post


Link to post
Share on other sites

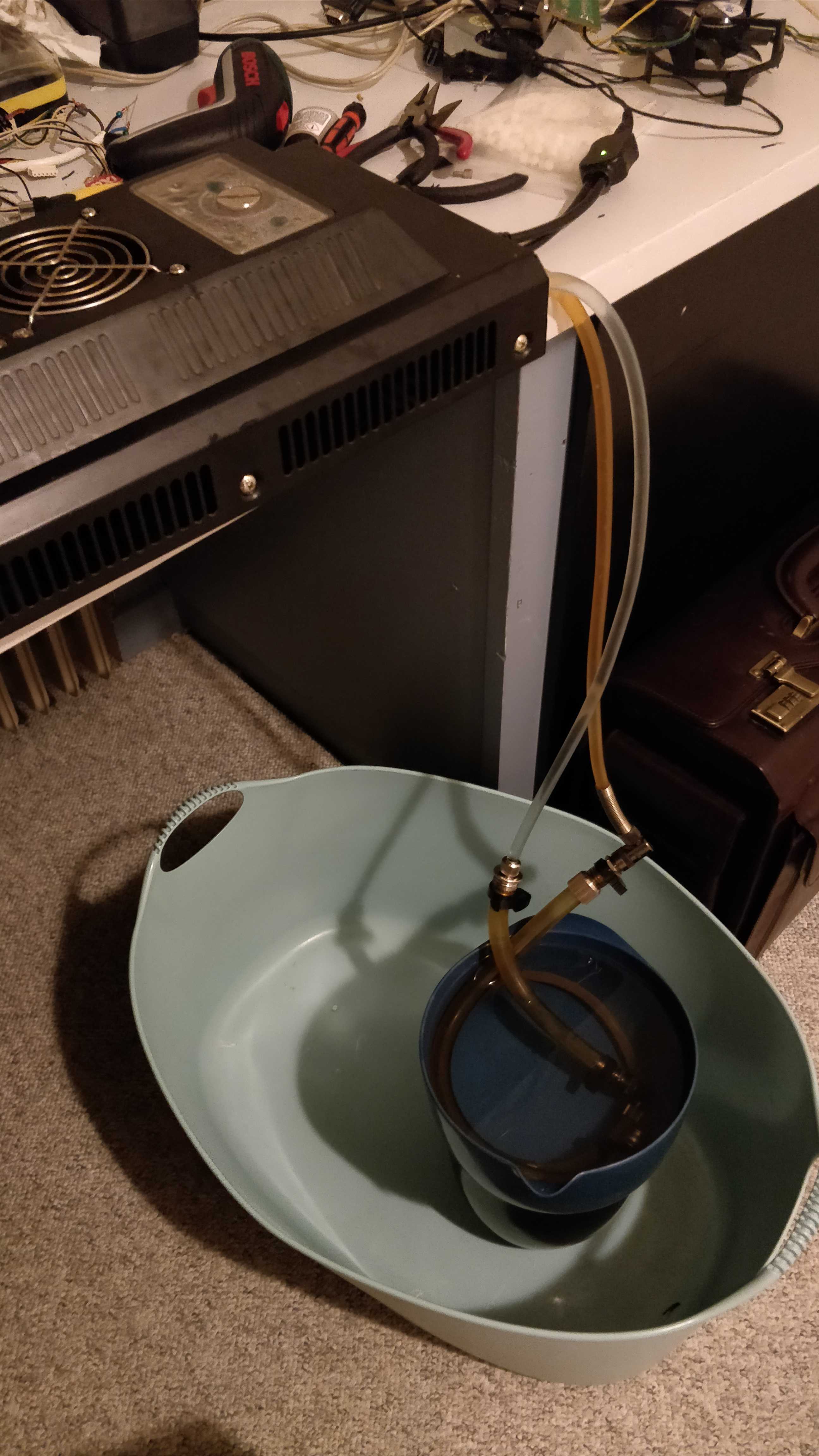

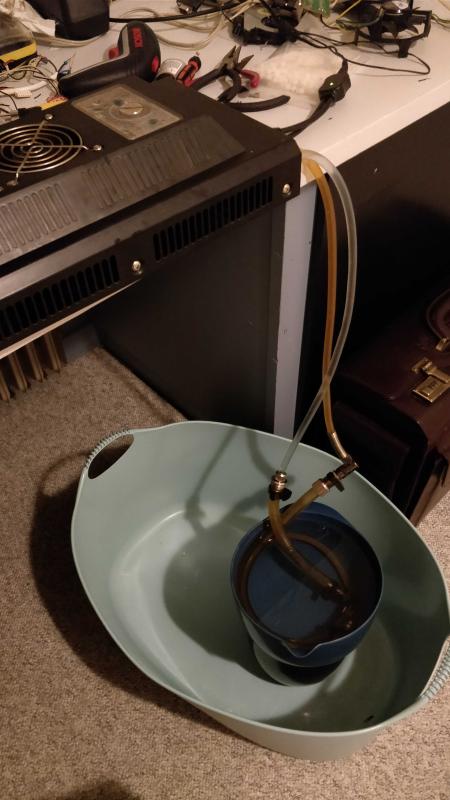

I tested if it was working, by filling a bowl with boiling water and dumped the tubes into it. After 1 hour the fans was still running at idle. The temperature went from 26 degrees Celsius to 38 degrees Celsius. And yes I changed the water 2 times.

I also tried covering the fans and when the temperature raised to 51 degrees I let it spin up to full speed and removed the cover. The temperature went to 38 degrees again fast.





Share this post


Link to post
Share on other sites

I am having a 2960xm i7

Stress testing for 30 minutes with the water cooler only running at idle:

Constant 4.4 GHz on all 4 cores

Max temperature 84 degrees.

Water temperature max 46 degrees.



This is insane! I already have the three piped CPU cooler but i cannot hold 4.4 GHz for more than few seconds before it throttles.

Share this post


Link to post
Share on other sites

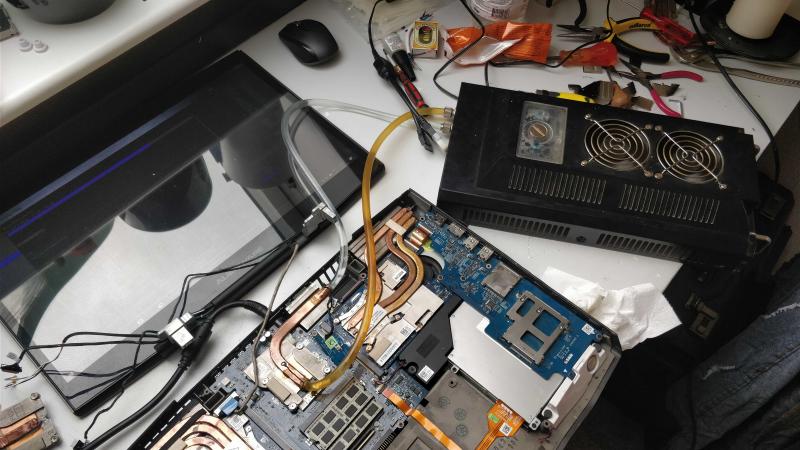

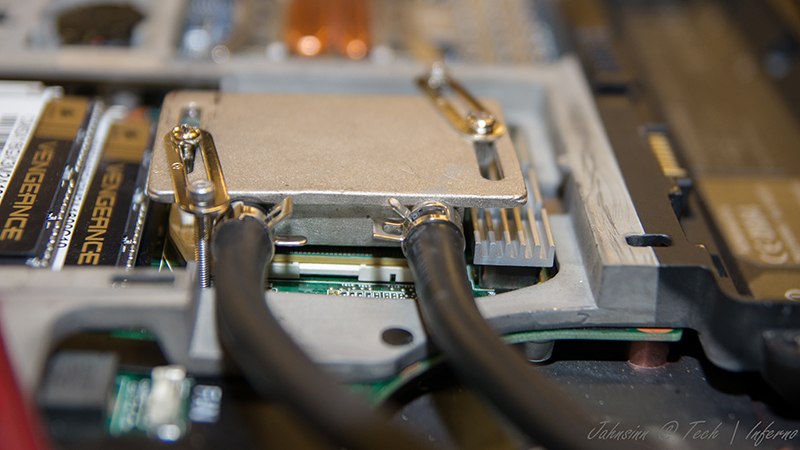

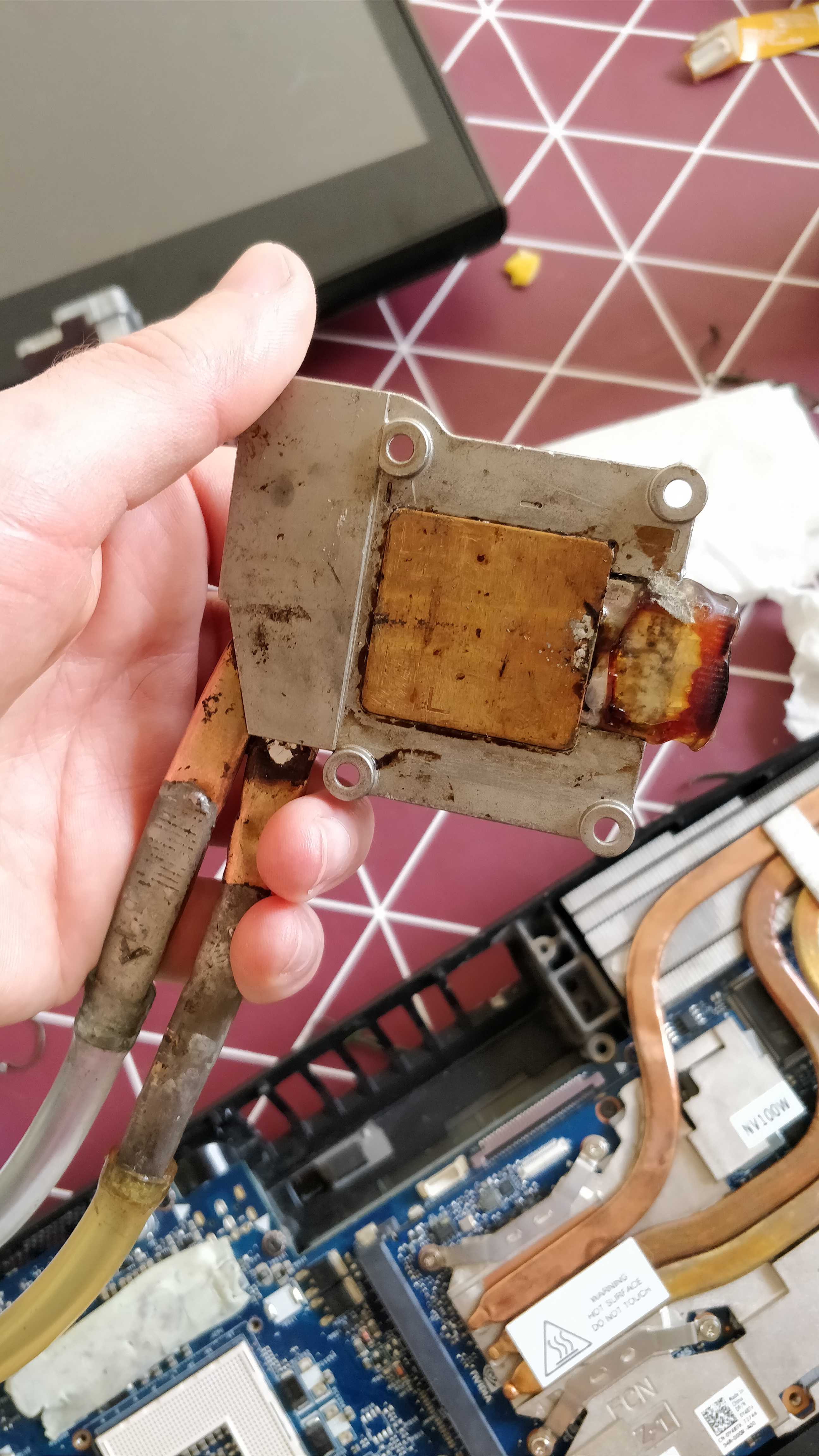

My first solution didn't work out, I could not put the laptop back together. Not enough space.

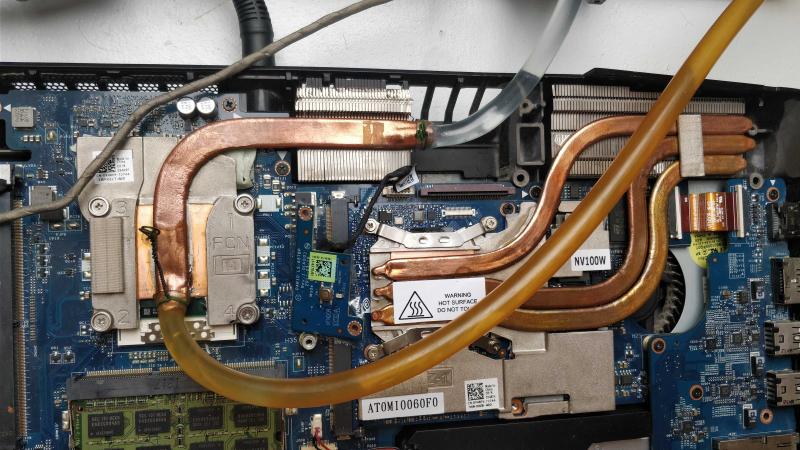

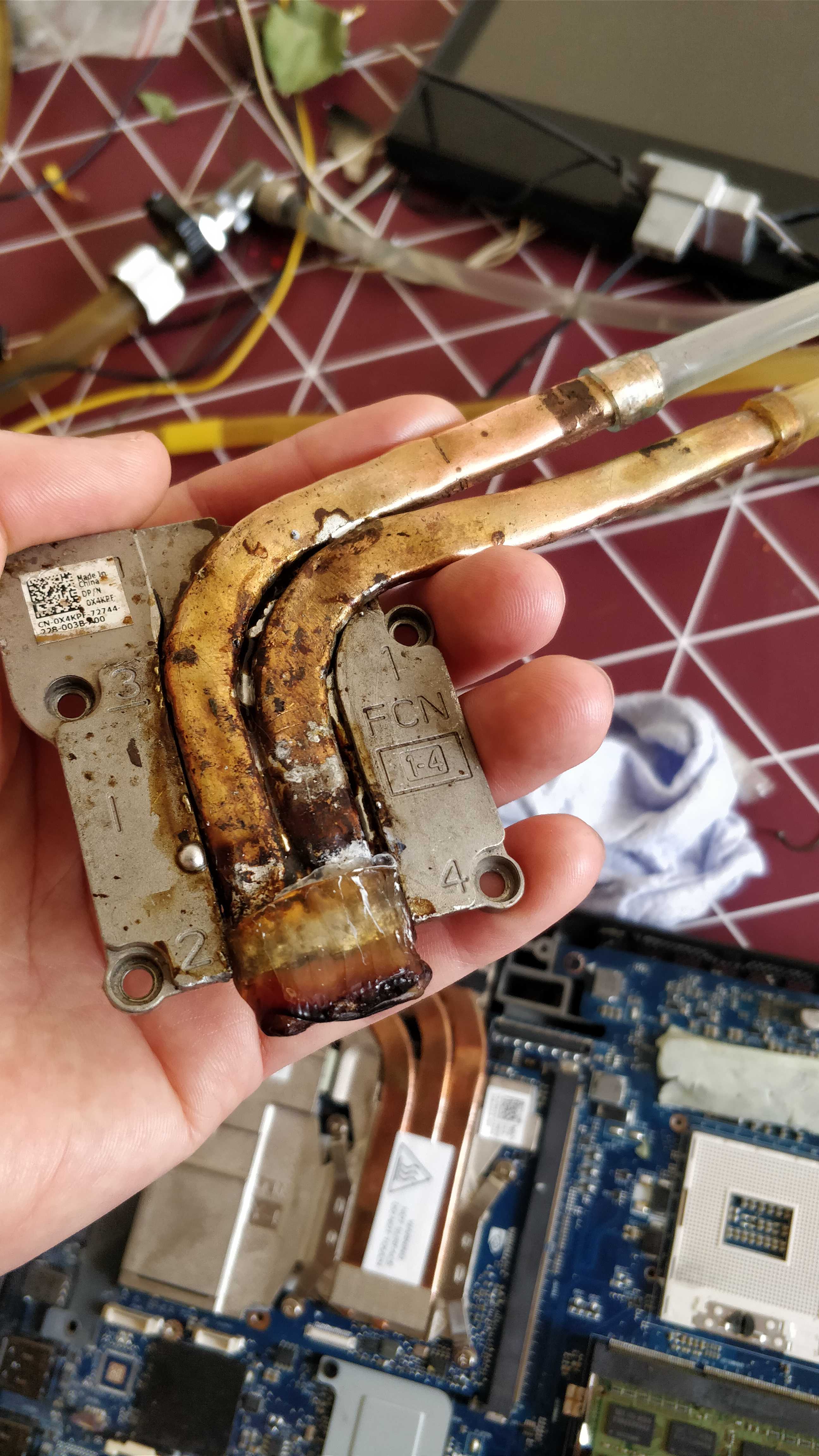

So I decided to make a new heatsink and connected two single pipes heatsinks into 1 heatsink.

I put som rubber tube at the end of the pipes, glued it together so it would connect the two pipes.



It was hard as fuck soldering every together, if I had a second chance I would have done it differently.



If any one would make this mod, just buy the two piped heatsink on eBay, drill/cut the ends put something around them and glue the hell out of it to keep it from leaking.





Share this post


Link to post
Share on other sites

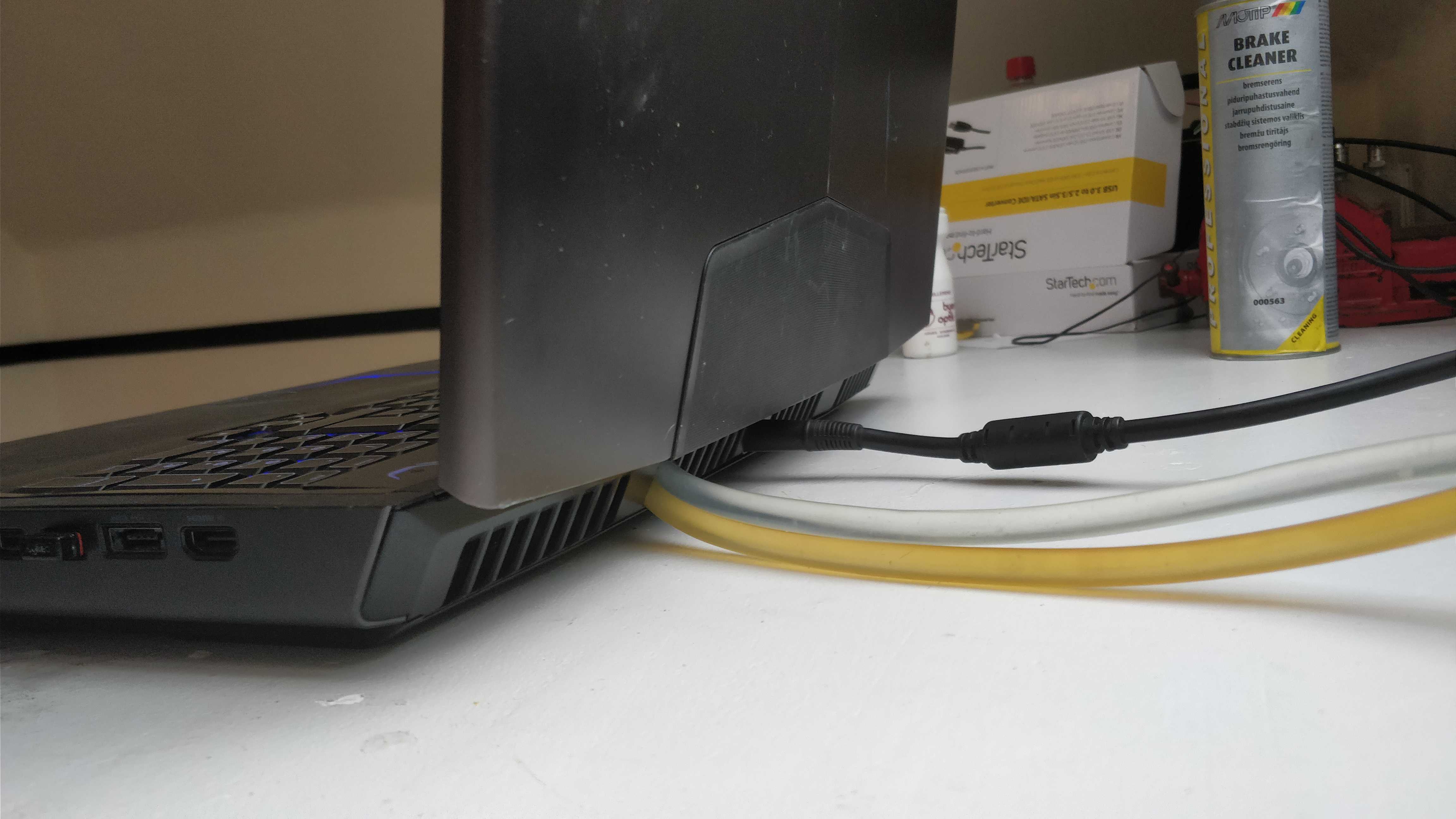

Now here comes the fun part that all have been waiting for. The performance.

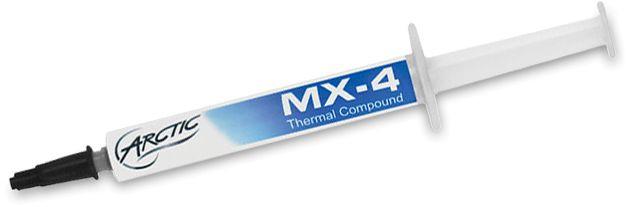

I use Artic MX-4 thermal compound. It is very good, but not the best for overclocking.

Billedresultat for Arctic Mx4

My room temperatur is about 23 degrees.

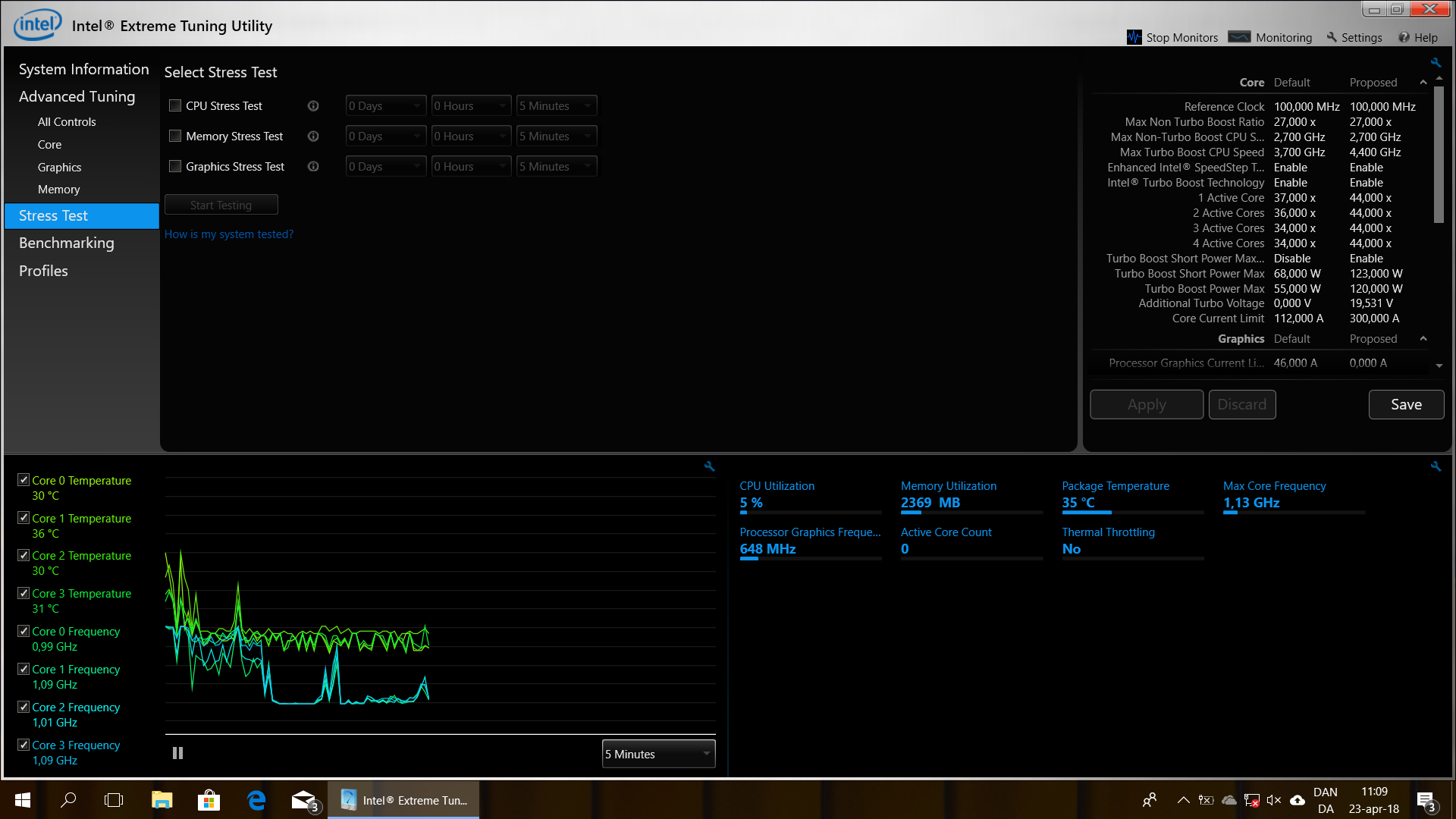

Idle temperature

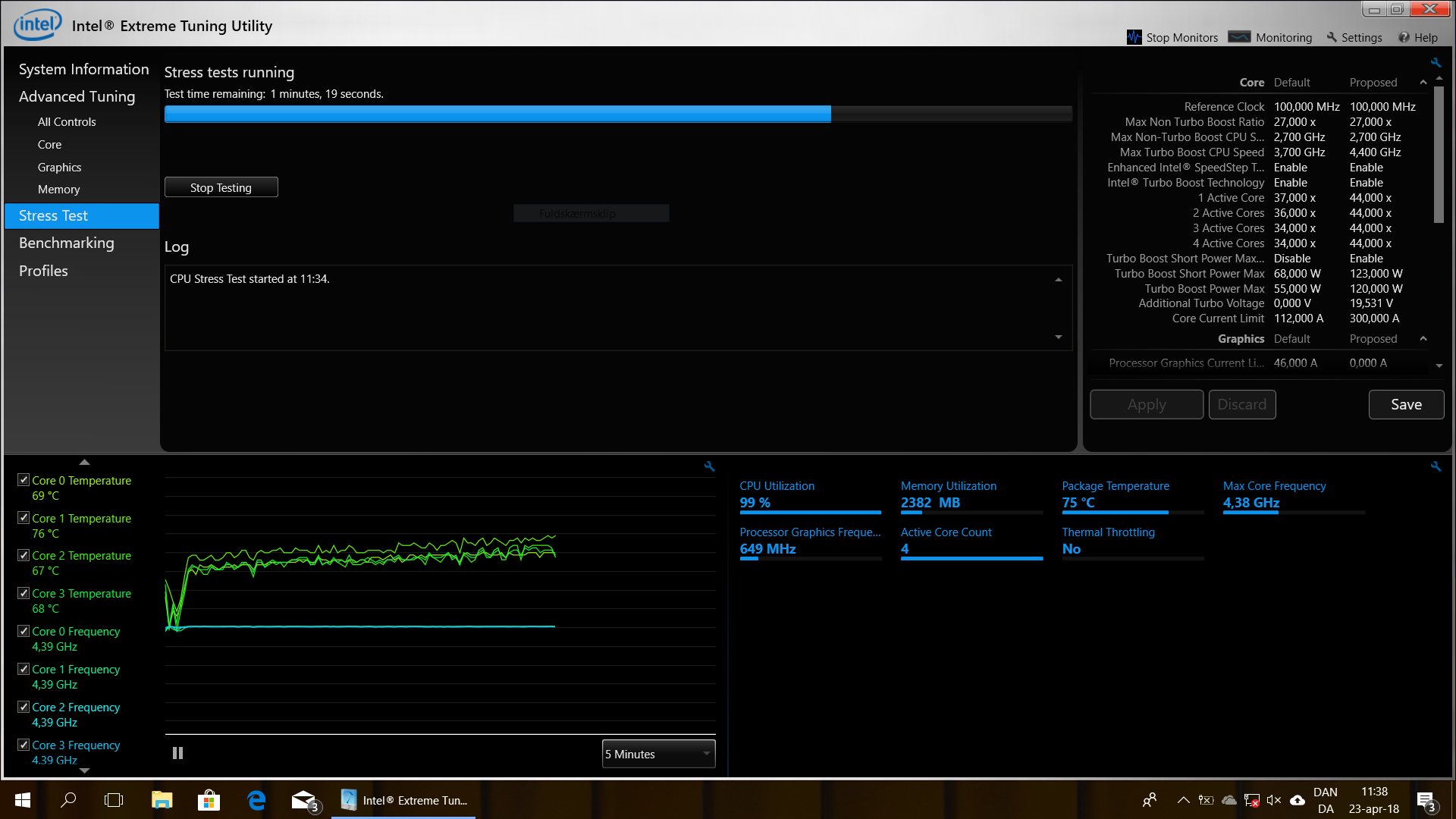

Overclocked to 4.4 ghz. After 30 minuts with stress test, it never got any higher than 80 degress. That is amazing!!! Specially because I do not use any overclocking thermal paste!!!


Share this post


Link to post
Share on other sites

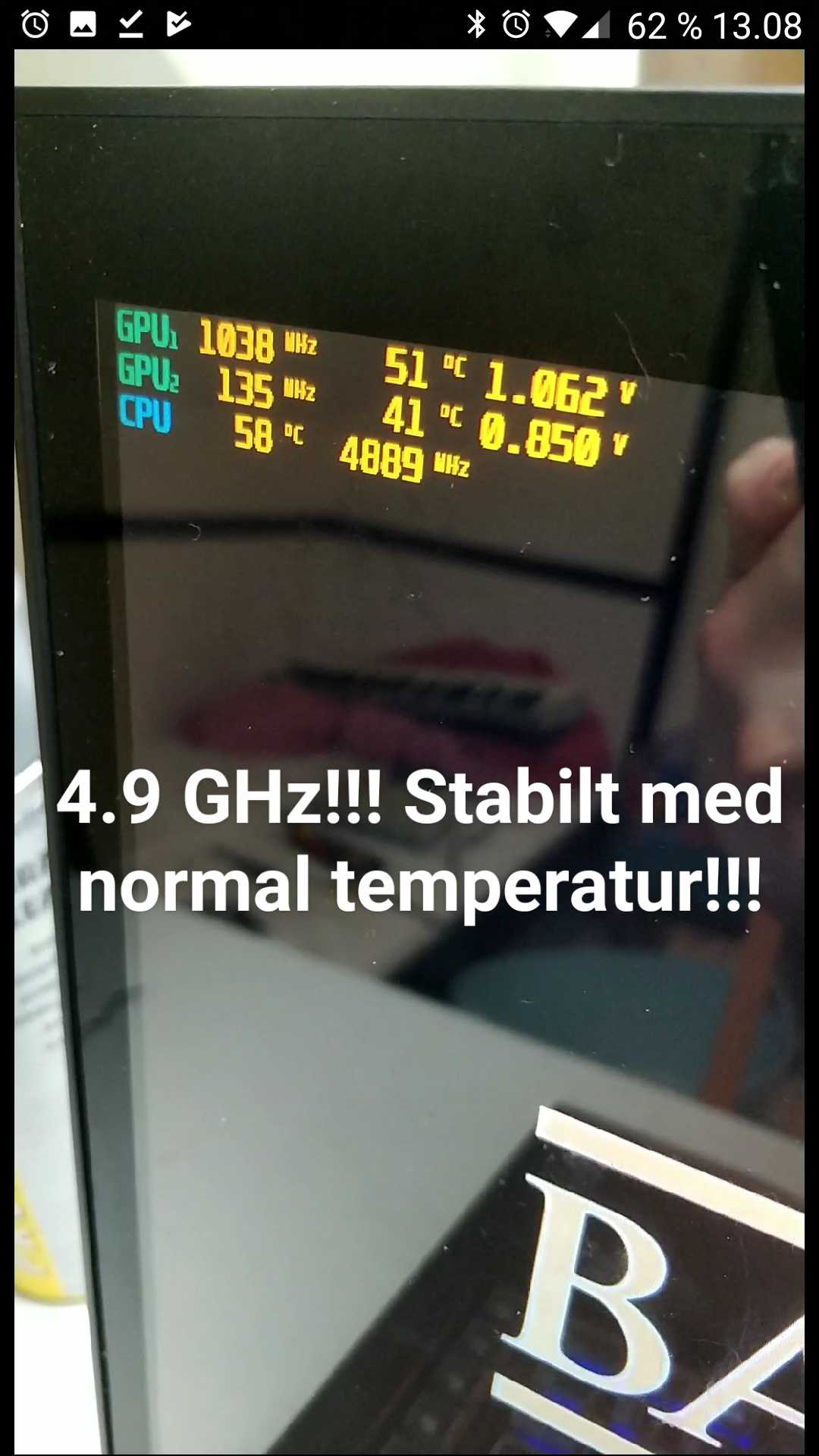

Because a stress test isn't a realistic load on the CPU I tried overclock it even further, and test under normal load.

I managed to overclock it to 4.9 ghz!!!

I played Star Wars battlefront and the temperature and performance was amazing!!!



"4.9 ghz stable with normal temperatures!"


Share this post


Link to post
Share on other sites

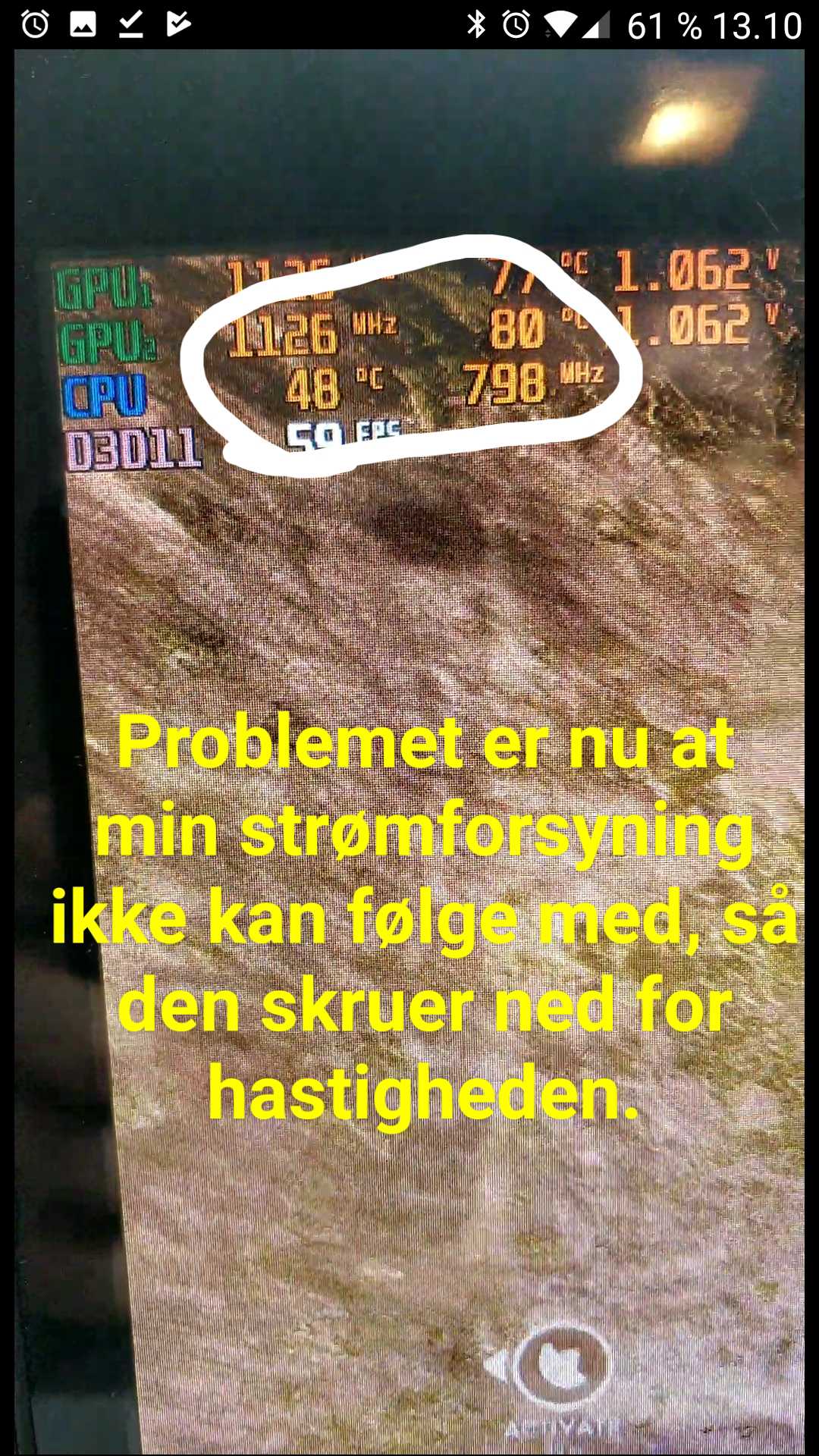

The biggest bottleneck now is the power supply.

When both my gtx 980m runs at full speed the CPU throttles to 800mhz for a brief second and goes back up to 4.9 ghz again.

It does not really affect the FPS. Maybe in more CPU heavy games.



"Now the problem is, that the power supply cannot keep up and the performance is dropping"


Share this post


Link to post
Share on other sites

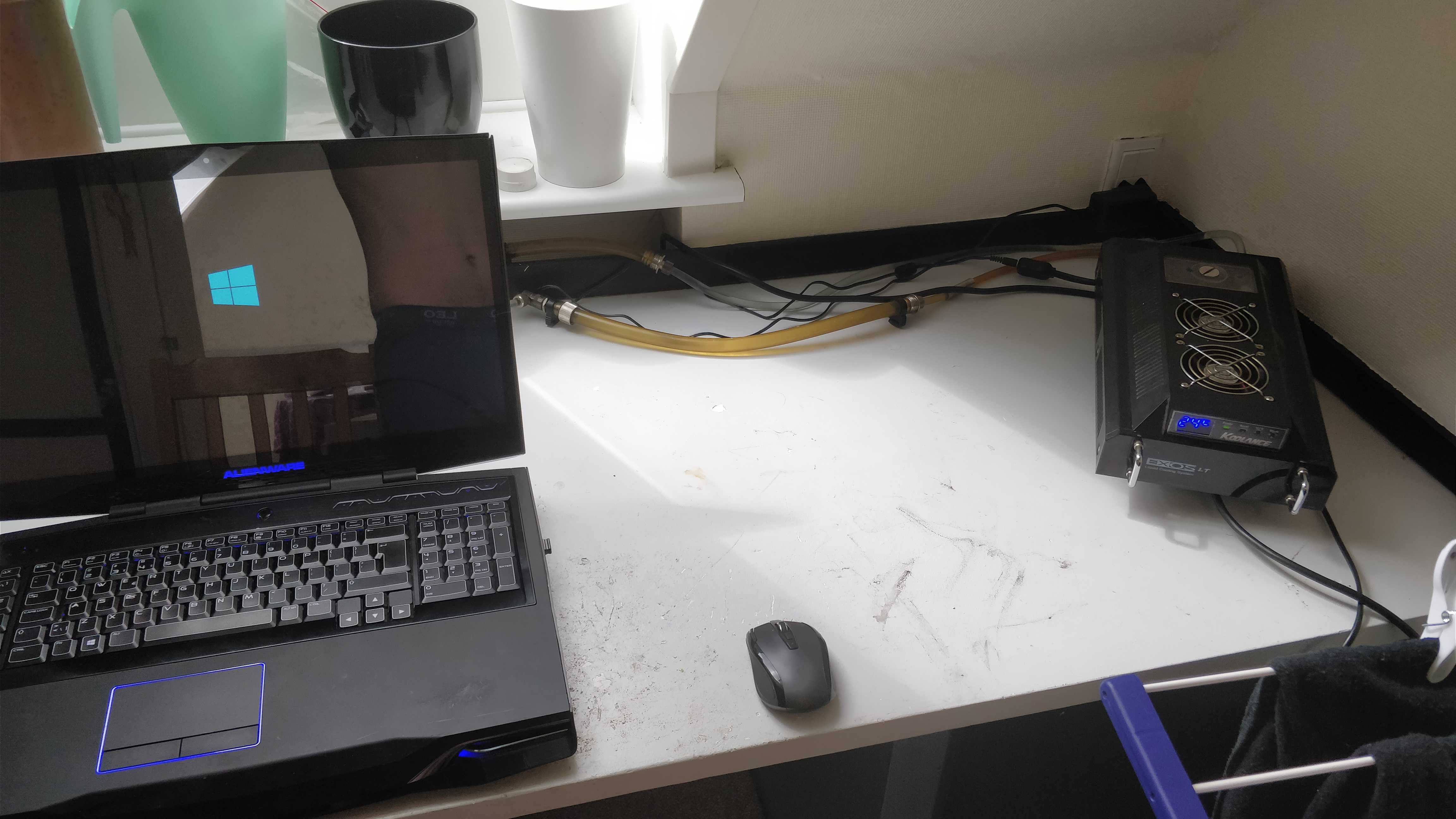

The conclusion is that this watercooling increases the performance alot!!! Also the fans on the water cooler newer speeds up. The water temperatur never go past 32 degrees.



Small update:
I had to reposition the thermal sensor because it touched the pump. It made temperatur rise to 51 degrees even without hocking it up to my laptop.

Now it measures the temperatur coming out it instead.

Share this post


Link to post
Share on other sites

Am I done?

NO!

I have a big big suprise coming up. When it arrives and I have installed and tested it out I will show you what I have made,

Actually I have two new water cooling mods comming up. One may be a little hard to make, the order one will blow you mind.

The only thing I will say, is you will be able to use the stock air cooling together with the watercooling, making it possible to still use the Alienware without the watercooling!!!

The first part of the mod have already arrived, now I am just waiting for the last package. :whistle:

Edited by Henrik9979

Share this post


Link to post
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.


  • Similar Content

    • By Henrik9979
      Okay here is what's going. I have a alienware m18x r1 running an amd 8970m, I wanted to upgrade it to crossfire but I could see a 8970m was more expensive than a r9 m290x
      So I decided to buy a r9 m290x and see if I could make it work in my alienware and also run crossfire.
      Even though many shops refused to sell me one because the didn't think it would work in an alienware m18x r1 only in the r2.

      Here is the whole process.

      19/08/17 23:15
      No post bios showing when booting, so impossible to enter bios menu, but can boot into windows 10 with no problems.

      19/08/17 23:20
      Because I haven't deleted the old AMD 8970m the r9 m290x shows as a 8970m with no problems.

      19/08/17 23:34
      First performance test was a success. The r9 m290x changed p-state normally. The gpu fan start spinning normally. But because of no thermal paste, the test lasted 20 seconds because the temperature raised fast.

      20/08/17 00:00
      Created a backup of the vbios version
      015.032.000.004.044450

      20/08/17 00:10
      Flashed a new clevo vbios version 015.032.000.003.044465
      Caused the card to be corrupted and resulted the 8 beep code.

      20/08/17 00:35
      Finally managed to flash the back and return the graphics card to its original state.

      20/08/17 00:50
      Flashed a new dell vbios version 015.046.000.014.045579
      No change in behavior

      20/08/17 01:07
      After trying multiple vbios with no luck I finally found one.
      Dell vbios Version 015.041.000.000.044966
      Brings back the post bios screen and I can now enter the bios menu through the r9 m290x.
      Note: This vbios reduce the cards performance from 900 mhz to 850 mhz

      20/08/17 01:21
      After more testing I found one that is working with no limits.
      Clevo vbios version
      015.036.000.005.044618
      Brings back the post bios screen and I can now enter the bios menu through the r9 m290x.
      This will be the vbios I will keep at the moment.

      20/08/17 01:56
      I completely uninstalled the previous driver and installed the newest driver. The graphics card is recognized as a 8970m but works normal.

      21/08/17 20:15
      I have inserted my old 8970m in the secondary slot and will start testing crossfire.

      21/08/17 21:45
      I have found out that the fan for the secondary fan did not spin. The is a cable that have felt out. I will fix it now.

      21/08/17 22:00
      In my try to test crossfire compatibility, I installed the newest AMD driver 17.7.2 but as soon it installed the driver for the secondary card it caused black screen. Only booting the computer in safe mode brings the screen back.

      21/08/17 23:02
      After many frustrating hours I finally managed to get crossfire working with the r9 m290x as the primary card and my old 8970m as the secondary.
      I have flashed the same vbios on both cards so the r9 m290x shows up I device manager as a 8970m.

      I first installed AMD driver version 16.2.1

      Then installed AMD driver version 16.6.1 in order to play battlefield

      21/08/17 23:20
      First test run in battlefield 1

      21/08/17 23:40
      Battlefield 1 is flickering bad, this can maybe be solved with a new patch or driver.
      Other games I have tried is working perfect with crossfire on.


      Now what I would like to try is somehow force the r9 m290x driver to be installed and see if it will make it possible to run the latest AMD driver without getting a blackscreen.

      I have tried to edit the .inf file like you would do with nvidia but no luck.
      I have also tried to figure out how to edit the device id in the vbios, but I find it too complex.
