msi gt70 Really high GPU temps even after repaste with 680m

[Paul Kadoshnikov 11]

Alright, so my Gpu has hit very high temps, like today i hit 96 C in Company of Heroes (cpu hit 68 C). I have repasted 3 times with shin etsu x23, and arctic silver 5. right now the arctic silver 5 is applied. I have the MSI 1762 barebone flashed with the gt 70 ONE bios, I7 3610qm, gtx 680m, the 680m is flashed with svl7's OC msi bios (i have the msi 680m). these are with stock clock and voltage. i have to note the fans were not full speed when it was at 96, it was more of the slightly annoying level.

What could possibly be the issue. could it be that the gt 70 bios isnt working properly with the barebone? is it the OC 680m bios running it to 96C? how can i ensure the gpu and heatsink are actually tight fitting? when i went to repaste my repastes, i can see that there was contact because the paste moved as it would when you tighten the heatsink.

If anyone has a link to a better EC for the barebone that would be nice as well, but 96C is really high for me.

[BAKED 224]

Make sure to apply AS5 correct, spread it very thin with a razor or creditcard and screw it back on tight, screw it off again and see how it spreads and when satisfied clean, and redo.

[Paul Kadoshnikov 11]

Make sure to apply AS5 correct, spread it very thin with a razor or creditcard and screw it back on tight, screw it off again and see how it spreads and when satisfied clean, and redo.

Well, i have. ive done that twice on the cpu and gpu so far to ensure it spread well, as well as the 3 repaste testdrives, and the cpu seems to be fine now, but not the gpu. i have made sure the spread looks good before the heatsink. im wondering if this is a gpu to heatsink issue somehow... it was also was hitting 93 or so before the repaste... so it seems like maybe its not a paste issue

[BAKED 224]

Make sure the thermal pads are all in place, if one is a bit off the heatsink and gpu might not make sufficient contact.

[omega939 30]

I had this issue before with my msi gt60 and with gtx680m. The screws where soo tight also but hitting @96 degrees while playing dx11 games like BF3.. I did put several pads that must be put on the chips, re-paste several times but to no avail the temps on BF3 still reaches 96 degrees celcius. Then in one forum a member told me that the gpu is not in full contact with the heat sink. What I did is I literally remove the heat sink and the mxm gpu. (While looking at the gpu/heatsink) to my surprise, the gpu is not in contact with the heatsink. I replaced a 0.5m on the mem chips and took off several pads until the gpu touches the heatsink.. Put some copper shims on the gpu heatsink to lower the gpu temps and successfully the temps lowered. While playing dx games like BF3 I still reach temps (gradually) of up to 93 degrees but temp lowers drastically after the game level finishes. I am still waiting for my pair of shims to arrive in my place so that i put additional copper shims.

[Paul Kadoshnikov 11]

I had this issue before with my msi gt60 and with gtx680m. The screws where soo tight also but hitting @96 degrees while playing dx11 games like BF3.. I did put several pads that must be put on the chips, re-paste several times but to no avail the temps on BF3 still reaches 96 degrees celcius. Then in one forum a member told me that the gpu is not in full contact with the heat sink. What I did is I literally remove the heat sink and the mxm gpu. (While looking at the gpu/heatsink) to my surprise, the gpu is not in contact with the heatsink. I replaced a 0.5m on the mem chips and took off several pads until the gpu touches the heatsink.. Put some copper shims on the gpu heatsink to lower the gpu temps and successfully the temps lowered. While playing dx games like BF3 I still reach temps (gradually) of up to 93 degrees but temp lowers drastically after the game level finishes. I am still waiting for my pair of shims to arrive in my place so that i put additional copper shims.

about how many shims or at what thickness are the shims? do i apply thermal paste and shims together? or do i somehow adhere the shim to the heatsink? do i just put it inbetween and just attach the heatsink? or do i apply thermal paste to gpu, place shim, apply paste to shim, then place on heatsink? just wanting to get everything straight before i do it

[debianik 17]

@Paul Kadoshnikov

remove all paste,thermalpads and stick card and heatsink - check if gpu sticks with heatsinks and also ram should sticks with heatsinks- then you can use paste on ram and ofcourse for gpu core

if you don't like paste on ram then use 0.5mm thermalpads on ram

[Paul Kadoshnikov 11]

@Paul Kadoshnikov

remove all paste,thermalpads and stick card and heatsink - check if gpu sticks with heatsinks and also ram should sticks with heatsinks- then you can use paste on ram and ofcourse for gpu core

if you don't like paste on ram then use 0.5mm thermalpads on ram

so basically anywhere highlighted should have either padding, shim, or paste then right? (http://static07.techinferno.com/wp-content/uploads/2012/08/680M-308x370.jpg) because when i repasted the vertical right column of 4 did not have anything but the horizontal few at the top had some adhesive.

and thanks will buy some shims on ebay

[debianik 17]

yes exactly - thermalpads or paste

first time see shim /copper plate to gpu core option

you do like I said previous to check how heatsinks sticks to gpu core and ram ?

[Paul Kadoshnikov 11]

no i didnt check it yet, i will do that when the copper shims arrive. i dont want to waste more thermal paste until i have too.

thanks for clarifying though. now at least i know what to do

[omega939 30]

ill post pic when i have time to open my laptop

[Paul Kadoshnikov 11]

ill post pic when i have time to open my laptop

awesome, ill also take some pics when i redo it cause i asked another member how their gpu was adhered, and apparently im missing thermal pads on the ram modules. so maybe that will do some good as well. thanks you guys

[omega939 30]

awesome, ill also take some pics when i redo it cause i asked another member how their gpu was adhered, and apparently im missing thermal pads on the ram modules. so maybe that will do some good as well. thanks you guys<!-- google_ad_section_end -->

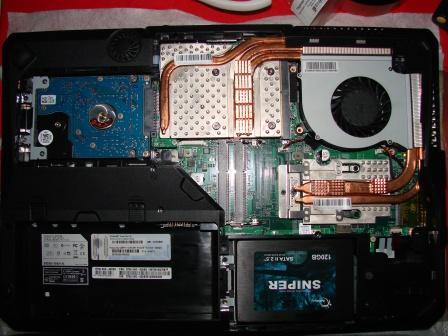

here's the pic of my gpu heatsink.

I put some copper shims on the heatpipes and removed the thermal pads, cleaned it and put a thermal adhesive instead. The heat transfer is very effective and the back plate can be closed with the original screws. Still waiting for the next batch of copper shims i ordered.

[Paul Kadoshnikov 11]

ok since there is really nothing to post picture wise ill try to textually describe everything, I took the gpu out (even though it wasnt necessary) and i simply put a copper shim 2 cm X 2cm X .7 mm and put shin etsu x23 on both sides re applied the gpu and now im getting a max of 79 C on 3d mark 11. im contemplating putting a double layer of shims to see if it lowers it more. what temps are you recieving Omega939?

update: hit 89 C in metro 2033

[omega939 30]

On Crysis2 I'm hitting max of 85 degrees celsius.. But in bf2 max temp gradually reaches at 93 degrees celsius... It would be better if you could post a pic on where u put that on your heatsink or put a link of that shin etsu so that i can get one too, btw... What monitoring software u using for 3dmark11

[Paul Kadoshnikov 11]

On Crysis2 I'm hitting max of 85 degrees celsius.. But in bf2 max temp gradually reaches at 93 degrees celsius... It would be better if you could post a pic on where u put that on your heatsink or put a link of that shin etsu so that i can get one too, btw... What monitoring software u using for 3dmark11

well the copper shims is different than the fins you got. i used a flat one between the gpu and heatsink. (6X DV2000 DV6000 DV9000 TX1000 F500 F700 Copper Shim | eBay)

i bought the shin etsu x23 from ebay, and hopefully its the legit stuff: 2G Shinetsu Thermal Heatsink Compound Paste Grey x23 7783D for Overclocking | eBay

monitoring software was Gpuz and throttle stop

[omega939 30]

Whats the temp before and after u put that shim on 3dmark 11? It would be better if u put a 2x2x.5 shim. The thinnest. U might bend the mxm board that much. So rhat u can either apply a thermal adhesive on the other heatsink side. Then apply a thermal paste pn the gpu side. Im thinking both of our ideas beneficial though :-D

[Paul Kadoshnikov 11]

temp before: as high as 96 C

temp after: 83 C

its been doing way better after the shim.

I even tried 2 shims on top of each other, so 1.4 mm hasnt broken my card..

but im back to a single shim. i really need a better EC cause my fan barely spins at 83 C or higher

[omega939 30]

Hmmm....makes me think to get that shims and put thermal adhesive to the heatsink so that it wont slip when i put it back

[debianik 17]

check his tools to fan regulations - maybe its works

Laptop Forums and Notebook Computer Discussion

turbofan button works ?

[Paul Kadoshnikov 11]

check his tools to fan regulations - maybe its works

Laptop Forums and Notebook Computer Discussion

turbofan button works ?

turbo fan works but its too drastic.. my fan probably never goes above 40% by itself

yeah i read that forum and tried to do what it said but i got lost and confused

[Zuppo 10]

Perferable way for me is to stick with non overvoltage vbios, repaste and turbo fan mode. Overall my temps never hits 90C threshold

[Paul Kadoshnikov 11]

actually my heatsink did have all of the heat pads, i just didnt pay too much attention when i did it the first time.

Those are the copper shims, that was my attempt after i soldered them together, it didnt work too well so i went back to a single layer shim

[debianik 17]

You still don't stick both card and heatisinks without any paste/thermopads to know how much you need paste/copper plate or what prevent to stick gpu core to heatsink ?

[omega939 30]

@Paul

nice mem's you got there... Corsair 1866mhz?
