A few weeks ago Innovation Cooling began a survey on our forum concerning Diamond 24 carat thermal compound by giving away 100 syringes to Tech|Inferno forum members who have registered prior to June 26th in order to test it against thermal compounds they have already installed and use on their computers.

According to Innovation Cooling, Diamond 24 Carat Thermal Compound maximizes thermal heat transfer between the CPU core and heatsink by taking advantage of diamond’s superior thermal conductivity. Purified synthetic diamond has a thermal conductivity of 2,000-2,500 W/mK compared to 406-429 W/mK for pure silver. Diamond’s five times better thermal conductivity compared to silver makes it a superior heat transfer material for cooling high performance CPUs and is electrically non-conductive and non-capacitive.

In each tube of IC Diamond 24 Carat Thermal grease there are 24 carats of micronized diamond with diamond particle loadings @ 92% by weight. Material loading above 90% is recommended as the best combination of rheological and thermal properties to minimize interface pump out due to thermal cycling.

Key Features

• Superior bulk conductivity
• Excellent thermal impedance
• Tight particle distributions
• Silicone free
• Lower viscosity
• Greater stability
• Non capacitive or electrically conductive
• Thermal Conductance: 4.5 W/m-K (data acquired with an ASTM D – 5470 thermal interface test instrument)
• Thermal Resistance: 0.25oC-cm2/W@ 100 µ BLT
• Average Particle Size:
• Compliancy: RoHS Compliant.

IC Diamond is designed for stability and it will not bleed or separate in normal use. The curing time IC Diamond 24 requires is minimal and in most cases it will reach peak performance after two hours of use (optimized pressure of 50 PSI since lighter load pressures will increase cure times to a week or more)

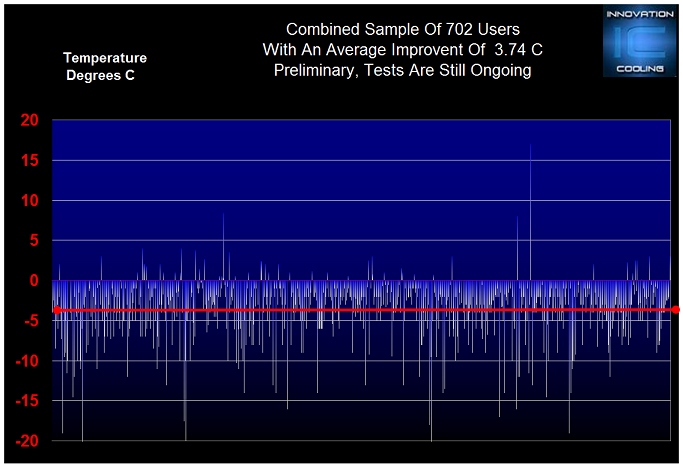

The existing results from other surveys seem very promising

therefore I could not pass the opportunity to test ICD 24 against Arctic Cooling MX-4 used on my Alienware M17x-R2′s CPU and both GPUs along with a couple of other laptops that I was able to acquire for the occasion.



Testing systems

For my tests I primarily used the Alienware M17x-R2 that has undergone a retention modification for both CPU and GPUs in order for the heatsink to apply greater pressure. I have used various thermal compounds in the past, the latest one and the one currently used on my R2 is Arctic Cooling MX-4. CPU and both GPUs including their memories have been repasted and their thermal pads replaced with a thick layer of MX-4.
Except from the Alienware M17x-R2, I decided to compare ICD 24 with the stock thermal compounds used by companies like Dell and Gateway and find out how much of a difference it would make to a low priced laptop. I also decide to use ICD 24 to a very old Clevo laptop I have, the D870P with a Pentium 4 desktop CPU that I use as a LAMP server and remains on 24/7. That particular laptop had been re-pasted with a Shin-Etsu thermal compound but unfortunately there is no further information about it since it came as a gift with the purchase of a CPU.



Below you can see the specs of each system

Among those 4 laptops, only M17x-R2 was able to provide temperature measurements for its GPUs since the rest of them didn’t return any value at all except from their clock frequencies.



Methodology

Since I had plenty of ICD 24 syringes I decided to re-paste each laptop twice and from those results to keep the best ones. According to Innovation Cooling, the proper application method is this:

Figure 1-Proper Application of an approximately 5.0-5.5 mm bead on center example on left utilizing a synthetic IHS. The primary reason we recommend a compression type spreading is that we have found that the best results are attained with a compression type spreading.The grease spreads uniformly and minimizes the introduction of air bubbles in to the thermal interface joint, a potential cause of grease failure that will affect long term reliability which can be observed in the following examples



For a full explanation with instructions and examples provided by Innovation Cooling please see here.

Given though that the surface of a mobile CPU is significantly smaller than that of its desktop counterpart and that not all them are square shaped (ie i7-940XM is a rectangular) I had to figure out the proper amount by trial and error.

The steps I followed for the CPU tests were as follows:

• Set the power plan to performance
• Deactivated the screensaver and set the display not to turn off
• Powered off the laptop and waited for 5 minutes
• Powered on the laptop and let it idle for 10 minutes making sure that no updates were running and with the monitoring programs being in the background

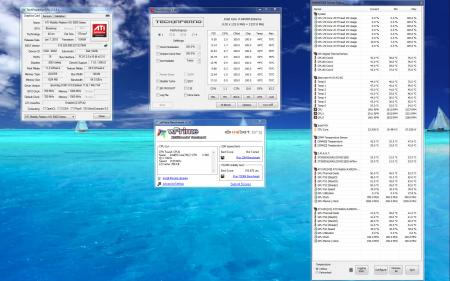

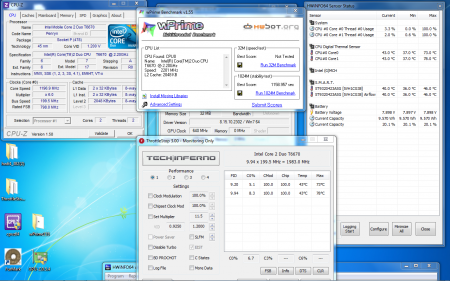

• Recorded idle temperatures and took screenshots
• With the monitoring programs minimized and running in the background, I run wPrime v1.55 1024M (ie for the i7-940XM the number of threads used were 8, same number as reported by CPU-Z )
• Recorded maximum temperatures and took screenshots
• Took pictures of the CPU and heatsink with the previous thermal compound
• Applied ICD 24 and took pictures of the application method
• In order to break in the new thermal compound I powered on the laptop and run wPrime two times in a row with the same settings as before
• Powered off the laptop and waited for 5 min
• Repeated those 2 steps twice
• Powered on the laptop and let it idle for 10 minutes making sure that no updates were running and with the monitoring programs being in the background
• Recorded idle temperatures and took screenshots
• With the monitoring programs minimized and running in the background, I run wPrime v1.55 1024M (same settings as before)
• Recorded maximum temperatures and took screenshots
• Took pictures of the CPU and heatsink with ICD 24

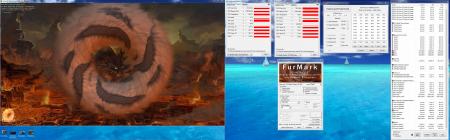

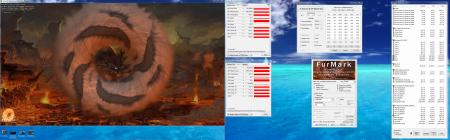

The steps I followed for the GPU tests are similar to those of the CPU with the difference that I used FurMark (Multi-GPU) instead of wPrime in order to stress the GPU and I kept if running for 7 minutes in order to measure maximum temperatures. Another thing to mention is that I had a Dell U2410 external monitor connected via the DisplayPort during those tests that kept the clocks of the primary card @ 405/1000 while idle and it is the reason behind the big difference in temperatures between the primary and the secondary card whose clocks remainded @ 100/150.



As I mentioned before, Innovation Cooling recommends 2 hours of curing time using pressure of 50 PSI for optimal performance. I deviated from that curing time only with my R2 (but complied with it for the other 3 laptops) since I found that it wasn’t necessary to wait for that long in order to get optimal results, plus you have to remember that my M17x-R2′s heat-sinks apply more pressure than normal due to the retention mod.



i7 940XM – After reapplying ICD 24 (minor scratches)

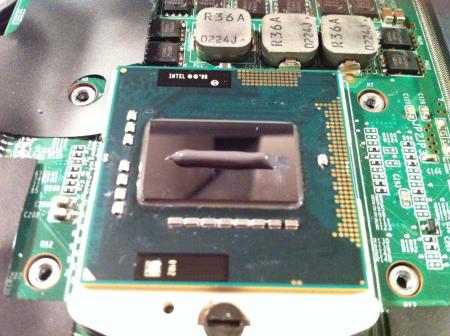

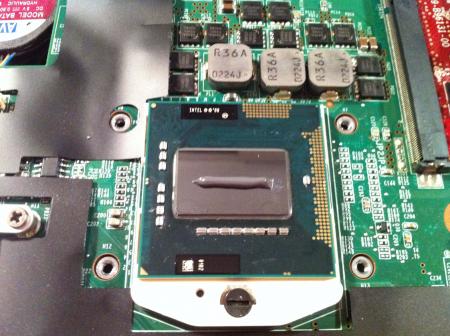

i7 940XM – After applying ICD 24

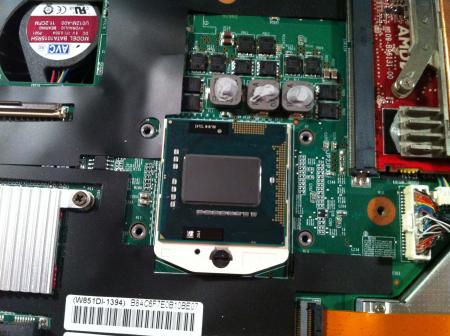

i7 940XM – After removing MX-4

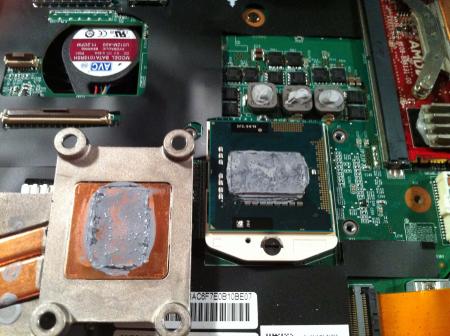

i7 940XM – MX-4



GPU #2 – ATI Mobility Radeon HD 5870 – Cleaned from MX-4

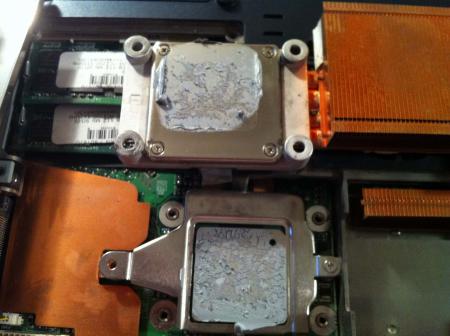

GPU #2 – ATI Mobility Radeon HD 5870 – MX-4

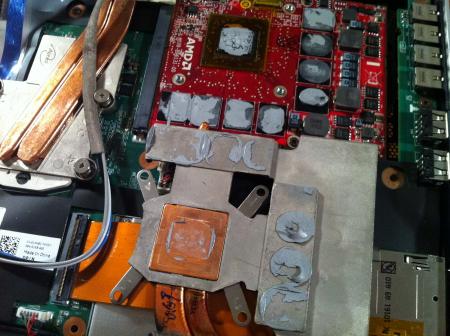

GPU #2 – ATI Mobility Radeon HD 5870 – MX-4

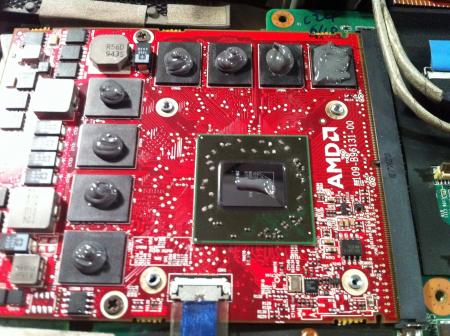

GPU #1 – ATI Mobility Radeon HD 5870 – After applying ICD 24

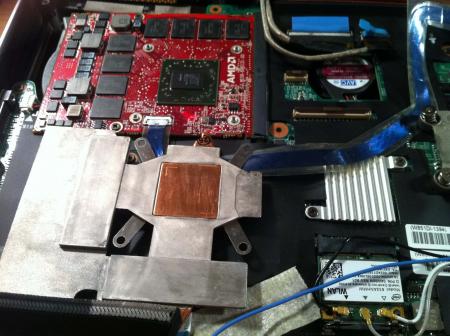

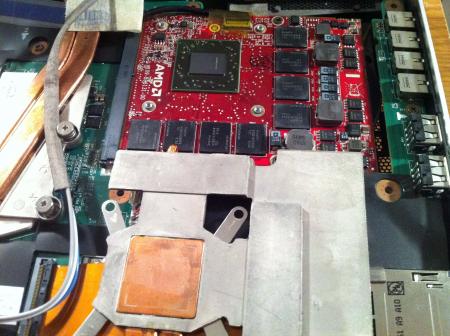

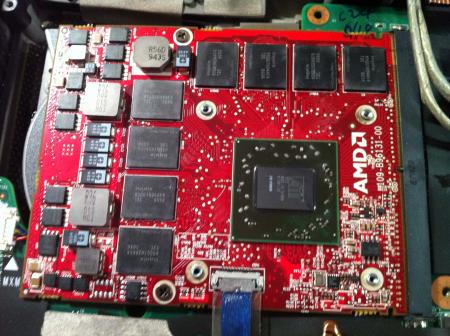

GPU #1 – ATI Mobility Radeon HD 5870 – Cleaned from MX-4

GPU #1 – ATI Mobility Radeon HD 5870 – Cleaned from MX-4

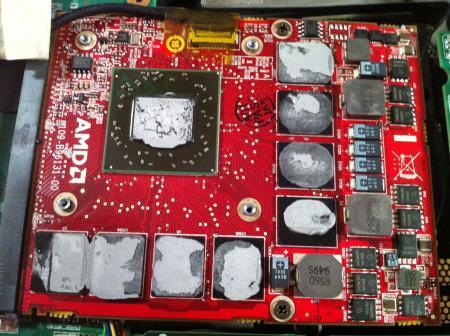

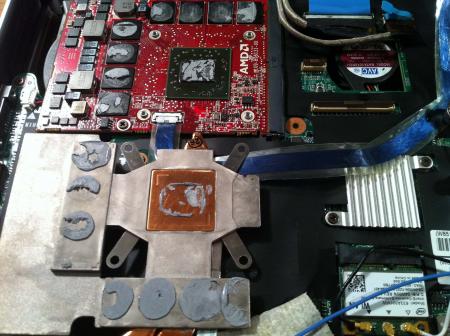

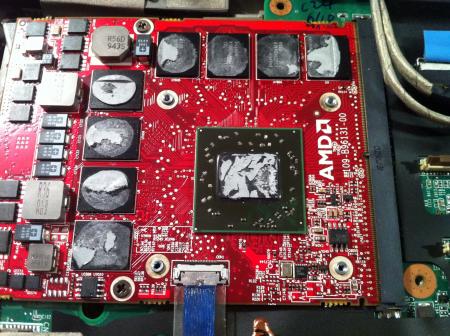

GPU #1 – ATI Mobility Radeon HD 5870 – MX-4

GPU #1 – ATI Mobility Radeon HD 5870 – MX-4



At this point I had to calibrate the pressure each screw was applying to the heatsink and the only way to do it was by leaving the laptop open and adjusting the screws one by one until the temperatures were almost identical across all cores. It is a procedure that requires at least half an hour of monitoring the temperature fluctuations and finding which screws and how much they have to be adjusted in order to achieve optimal conduct between the heatsink and the die. I managed to get the same temperature across five threads but as you can see from the screenshots and graphs below one core was off by 3 C.

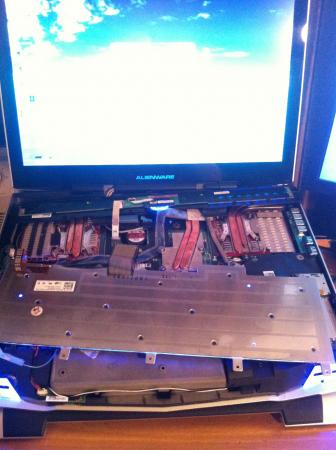

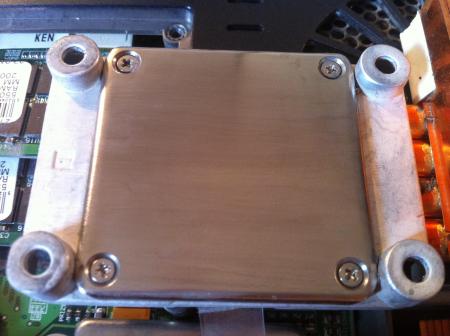

Alienware M17x-R2 – During CPU’s heatsink calibration

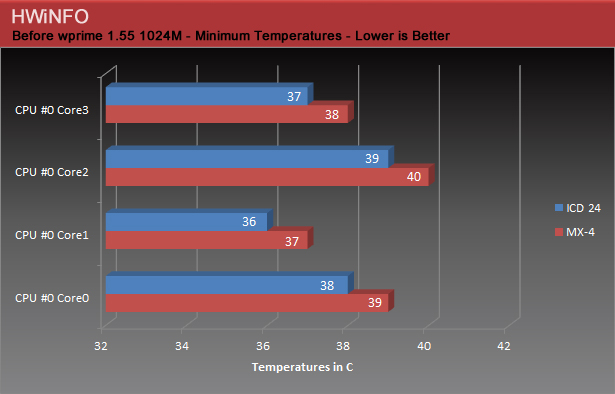

CPU Temperatures

Temperatures with MX-4

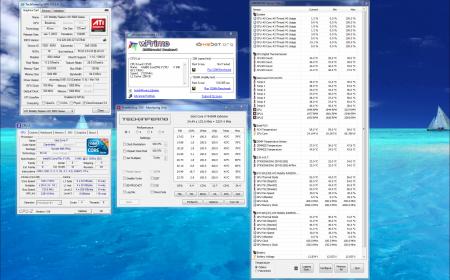

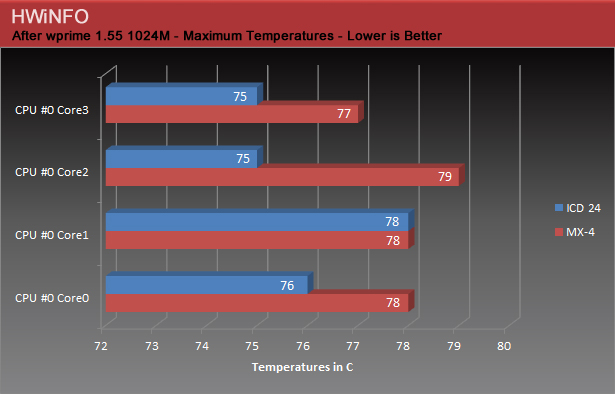

Temperatures with ICD 24

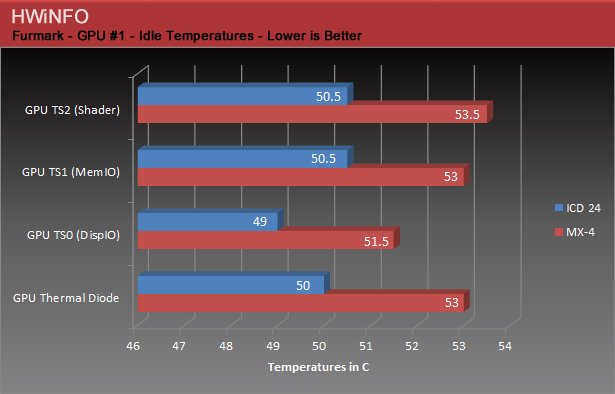

Primary GPU Temperatures

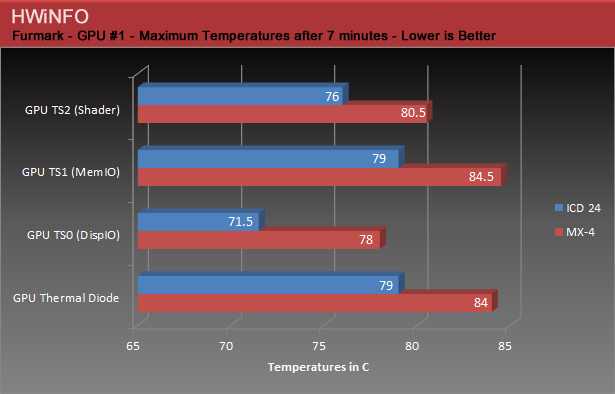

Alienware M17x-R2 – Temperatures with ICD 24

Temperatures with MX-4

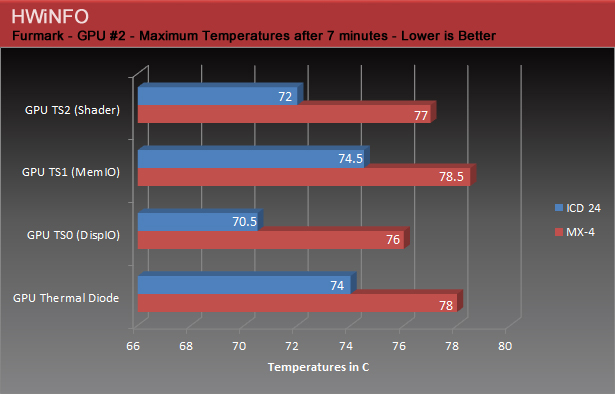

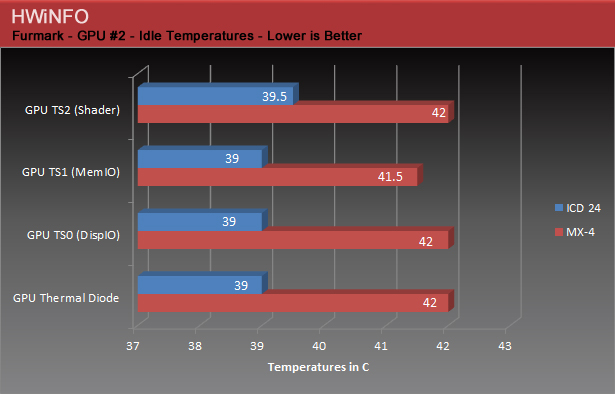

Secondary GPU Temperatures

[StamatisX]

Dell Vostro 1520



After cleaning the GPU from ICD 24 (notice some minor scratches)

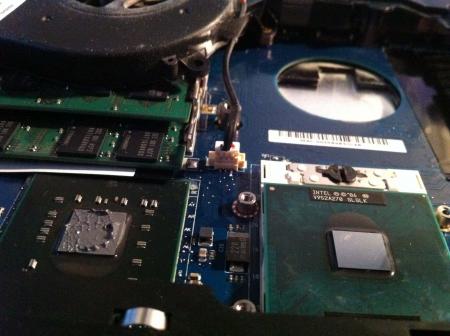

After cleaning the CPU from ICD 24 (notice some minor scratches)



After cleaning the CPU from ICD 24 (notice some minor scratches)



ICD 24



ICD 24

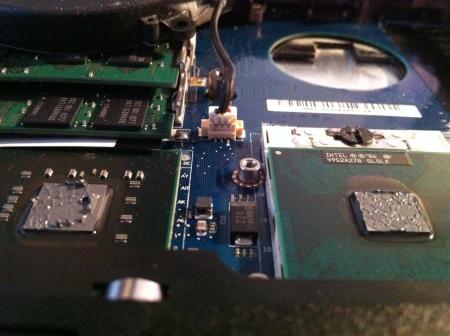

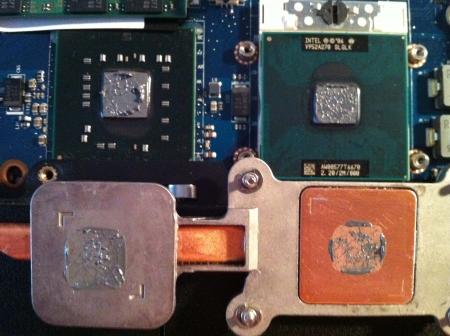

After applying ICD 24

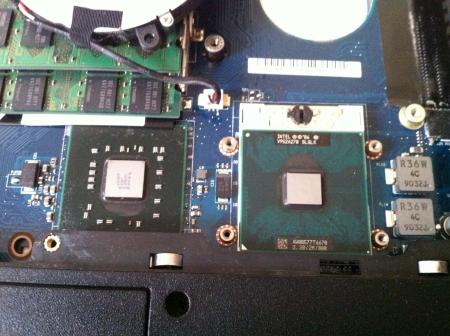

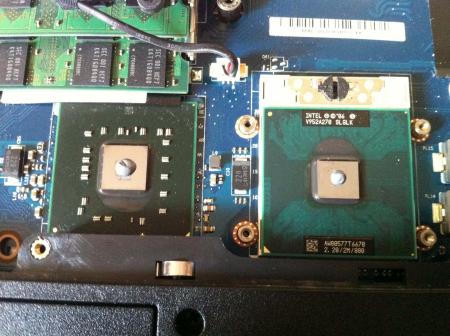

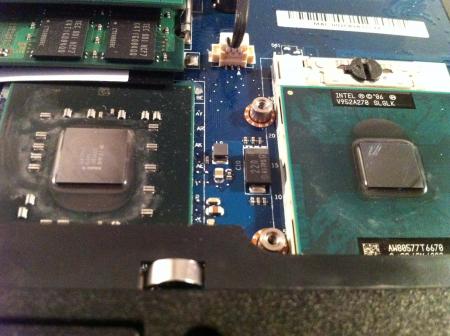

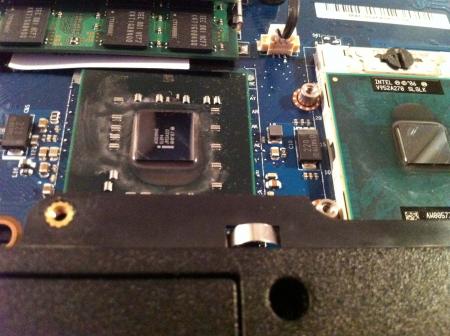

After removing the stock thermal paste

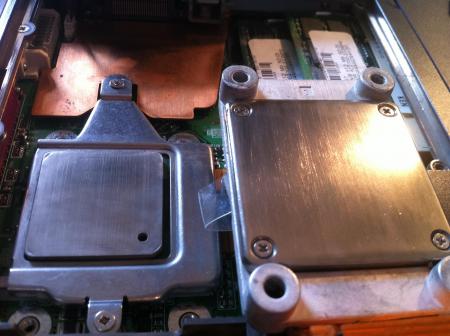

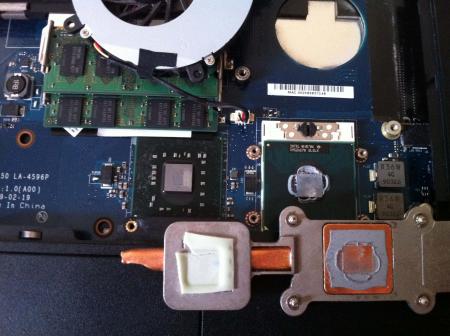

Stock Thermal Pads/Paste

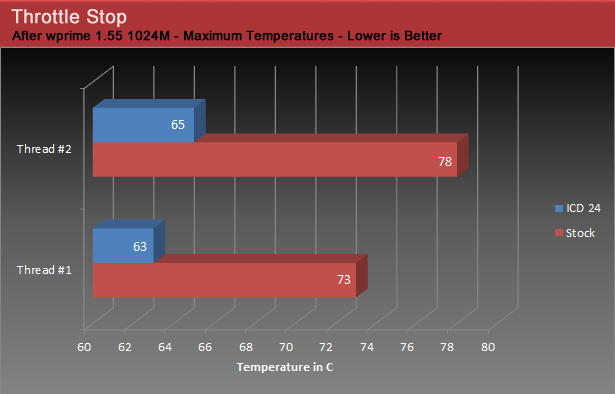

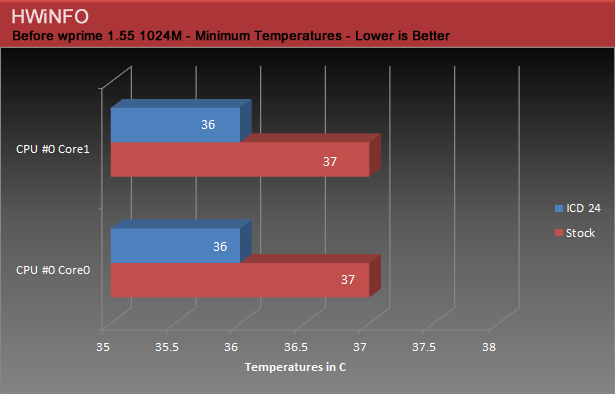

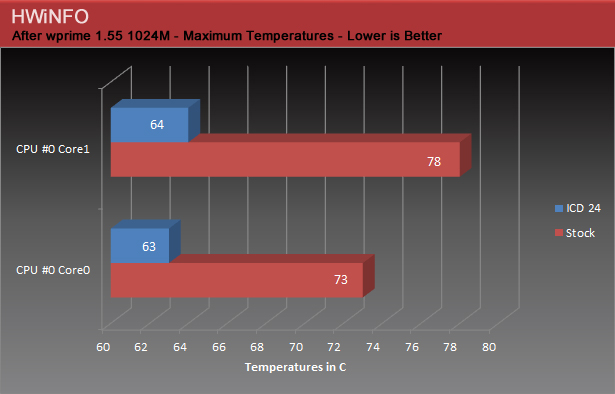

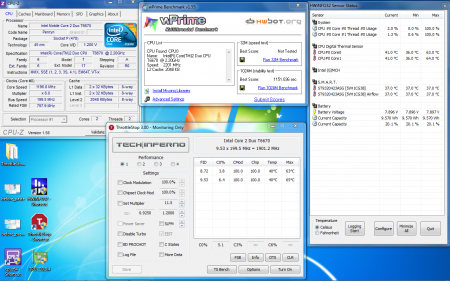

Temperatures with ICD 24



Temperatures with Stock Thermal Pads



[StamatisX]

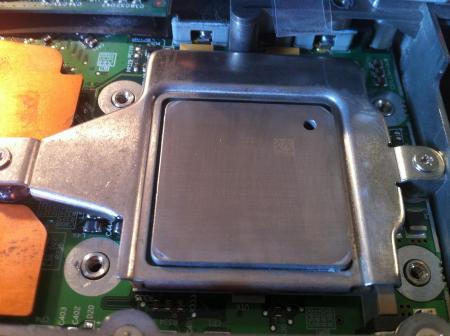

Clevo D870P



Clevo D870P – Pentium 4 @ 3.2GHz HT – Both surfaces from a different angle after applying ICD 24



Clevo D870P – Pentium 4 @ 3.2GHz HT – The heatsink surface after applying ICD 24

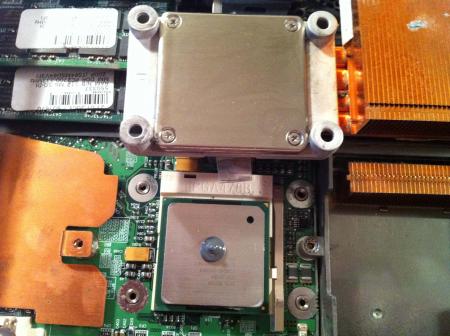

Clevo D870P – Pentium 4 @ 3.2GHz HT – The CPU surface after removing ICD 24

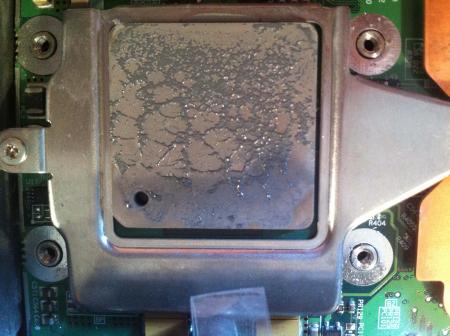

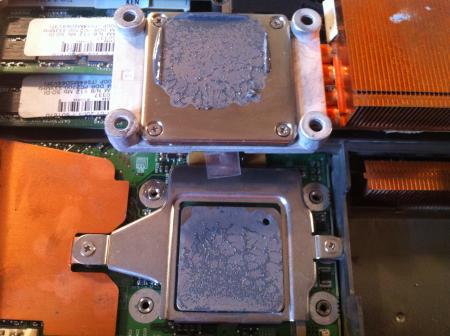

Clevo D870P – Pentium 4 @ 3.2GHz HT – After removing ICD 24



Clevo D870P – Pentium 4 @ 3.2GHz HT – After applying ICD 24



Clevo D870P – Pentium 4 @ 3.2GHz HT – After applying ICD 24



levo D870P – Pentium 4 @ 3.2GHz HT – After applying ICD 24

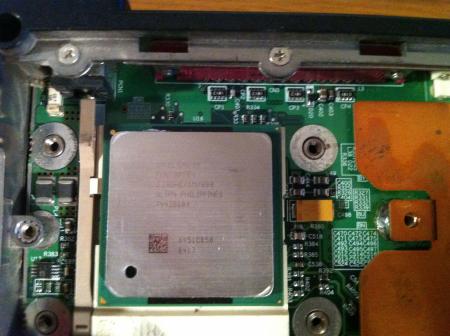

Clevo D870P – Pentium 4 @ 3.2GHz HT – After the removal of Shin-Etsu



Clevo D870P – Pentium 4 @ 3.2GHz HT – Shin-Etsu

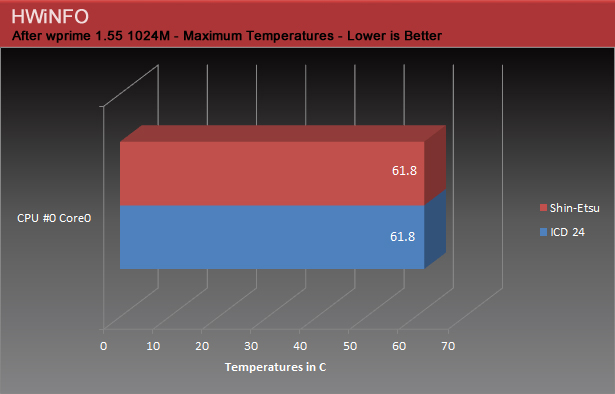

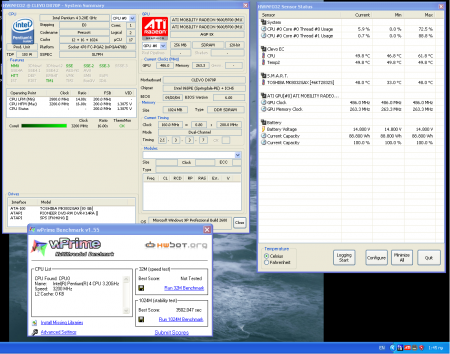

Clevo D870P – Pentium 4 3.2GHz HT – Temperatures with Shin-Etsu

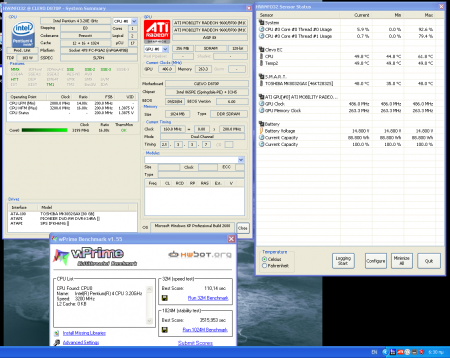

Clevo D870P – Pentium 4 3.2GHz HT – Temperatures with ICD 24



At this point I have to mention that while the laptop was idling with the Shin-Etsu thermal compound, the ambient temperature was 1 C higher.







[StamatisX]

Final Thoughts



I have to admit that I was very skeptical when I first saw the preliminary results that showed an average drop of -3.74 C and I thought that this number was too big to be true, but, when I started calibrating the heatsink of the Alienware M17x-R2 and watched as the temperatures began to drop, it was then that I realized this number could actually be accurate.



According to ThrottleStop, for the Alienware M17x-R2, the average drop during load was 3 C and according to HWiNFO64 the drop was 2.66 C when ICD 24 was used instead of MX-4, while the average idle temperature drop as recorded by HWiNFO64 was 1 C. The same average drop ( 1 C ) was reported by HWiNFO for the Clevo D870P with the desktop CPU (given that the ambient temperature was 1 C lower during the tests with ICD 24) while the maximum temperatures were exactly the same for both ICD 24 and Shin-Etsu.



For the Gateway laptop with the stock thermal compound, the average temperature drop during idle was 1 C as well, but during load according to both HWiNFO32 and Throttle Stop, the average drop was 4 C, matching this way the rest of the reported results by Innovation Cooling. 1 C average temperature drop during idle was reported for the Dell Vostro laptop as well, but an amazing 11.5 C and 12 C drop according to Throttle Stop and HWiNFO64 respectively was achieved under load when the stock Dell thermal compound was replaced by ICD 24.



Now for the GPU results, the primary card of the R2 idled 2.875 C lower on average when ICD 24 was used, while during load the drop was even bigger, reaching 5.125 C on average, which is pretty impressive in my opinion. The secondary card idled 2.75 C lower compared to the temperatures achieve by MX-4, while during load the difference increased to an average drop of 4.625 C.



Personally I am very satisfied with the temperature drop ICD 24 was able to achieve since it allowed me to push the cards even further when overclocked, kept the fans at lower RPM when gaming and allowed me to overclock the CPU even higher by increasing the TDP/TDC from 92/90 to 96/94 respectively and complete wPrime v1.55 1024M 10 seconds faster than my previous overclock.



At this point I would like to mention that there were concerns expressed by our forum members about the ICD 24 scratching the surface of the CPU. An answer to those concerns was given here, nevertheless from the pictures I took you can see that there are a few minor marks on the glossy surface of the mobile CPUs after removing ICD 24. Hopefully this is something that can be reduced to minimum by simply being very gentle when removing the compound and especially if you use isopropyl alcohol 91% or higher and soak the cotton stick used, as well as both surfaces where ICD 24 was applied, before proceeding with the cleaning.



This is something I wouldn’t worry about since it didn’t seem to affect the performance of the compound. Another thing I would like to mention is that many people consider the thickness of this product as a disadvantage. I on the other hand, consider its thickness as one of its main advantages since I was able to use ICD 24 instead of thermal pads in places like the GPU were the distance between the memory and the heatsink was too big for thinner compounds to be used and bleeding would be inevitable.



Therefore this product is highly recommended to those who need to maximize the thermal heat transfer as well as for the enthusiasts/overclockers that push their hardware to its limits and even the slightest drop in temperatures can make the difference, that’s why ICD 24 is our editor’s choice.

[Exper1mental]

I used to use ICD 24 in my CZ-17 (basically a MSI MS-1762) and it really helped bring down the temps compared to the stock thermal compound. ICD 24 brought my idle temps down into the mid 40s (Celsius) for my i7-3630QM and upper 30s to lower 40s for my 770M. My room temperature is usually around 70^oF or 21^oC. When maxed out ingame my GPU could still soar into the lower to mid 80s.



Since then I have moved on to Thermal Grizzly Kryonaut and I've been able to further decrease my temperatures. My CPU idles in the mid to upper 30s and lower 40s while my GPU idles in the mid to lower 30s. Maxed out my GPU now rarely even hits 75^oC.



Summary

ICD 24 is a great product, and still is one of the best thermal compounds out there, but if you are looking for maximum cooling without going to liquid metal this compound probably isn't for you. Gelid Solutions GC-Extreme or Thermal Grizzly Kryonaut are my personal favorites, particularly for OCing.
