pants_problems Posted November 30, 2015 Share Posted November 30, 2015 I tried searching, but didn't see anything in particular regarding this:With the AKiTiO Thunder2, should ANY Thunderbolt cable work with the adapter? I have a late 2013 iMac with a GTX 970 connected via the AKiTiO adapter and Thunderbolt. The stock Thunderbolt cable works just fine, but it's too short for my current setup. I ordered a 2m OWC Thunderbolt cable, and the card is no longer recognized when using that cable. Reverting back to the stock cable works perfectly.I've already returned it, but I would like to get a longer cable if it has a chance of being compatible. Anyone have any experience with a longer, non-included Thunderbolt cable for the AKiTiO setup? Quote Link to comment Share on other sites More sharing options...
Dschijn Posted November 30, 2015 Share Posted November 30, 2015 2m Apple TB cable is working perfekt. Quote Link to comment Share on other sites More sharing options...
pants_problems Posted November 30, 2015 Share Posted November 30, 2015 2m Apple TB cable is working perfekt.Thanks! I just ordered an official 2m cable. Quote Link to comment Share on other sites More sharing options...
sdedlus1 Posted December 1, 2015 Share Posted December 1, 2015 Can anyone confirm:-Thunder2 -GTX 750 Ti-quality 120W 12v 10a power supplyis stable and working? Or if it's not ...OP seems a little contradictory on the matter:INFO: using a 120W AC adapter with PCIe power see http://forum.techinferno.com/enclosures-adapters/8848-%24299-owc-mercury-helios-16gbps-tb2-discussion.html#post121898 for board modifications needed[...]INFO: 75W can be safely passed to the slot with an upgraded power supply explained here hereAnd the few examples I've skimmed from the board don't sound encouraging (although they're not always using an upgraded power supply):https://forum.techinferno.com/enclosures-adapters/7205-us%24189-akitio-thunder2-pcie-box-16gbps-tb2-144.html#post146568https://forum.techinferno.com/apple-egpu-discussion/7910-diy-egpu-macbook-experiences-150.html#post149195https://forum.techinferno.com/apple-egpu-discussion/7910-diy-egpu-macbook-experiences-150.html#post149243https://forum.techinferno.com/apple-egpu-discussion/7910-diy-egpu-macbook-experiences-153.html#post149481I'd prefer to simply plug in a 120w psu and close the case, but will need to decide whether to buy a 750 Ti with or without a 6-pin connector (can't simply upgrade to Dell DA-2 later if 120w + 750 without connector is insufficient). Or I could just build an i3 hackintosh for $50–75 more ...(I have Macbook Air mid 2013 TB1.)Thanks to everyone who has contributed their knowledge so far ... Quote Link to comment Share on other sites More sharing options...
Enano Posted December 17, 2015 Share Posted December 17, 2015 Hey guys, I just realized my big fat mistake, and it is that I don't have a raiser with a moltex. Which basically leaves me with a Card that won't receive enough power from the mount. Was wondering if there is a way of using my psu to feed the 16 pin mount and the card and leave my card in the base as it is right now. I mean i modified the box to be able to stick the card on it. If u need more info, let me know, but please help me out. Quote Link to comment Share on other sites More sharing options...
Dschijn Posted December 17, 2015 Share Posted December 17, 2015 @sdedlus1 Take a look here: https://forum.techinferno.com/index.php?/forums/topic/8938-2014-13-mbp-gtx750ti16gbps-tb2-akitio-thunder2-win81osx1010-flinch/ @Enano You need to make an adapter that will feed power from that big PSU into the AKiTiO with a barrel plug: https://forum.techinferno.com/index.php?/forums/topic/6543-guide-making-a-molex-to-barrel-adapter/ Easiest would be to get a 2xMolex -> 6-Pin PCIe adapter cable, cut off the 6-Pin and use the remaining 2xMolex plugs to connect to a barrel plug. That is also described in my basic hardware guide: https://forum.techinferno.com/index.php?/forums/topic/7832-the-basic-egpu-hardware-guide-for-macs/&page=1 Quote Link to comment Share on other sites More sharing options...
Quinalha Posted December 19, 2015 Share Posted December 19, 2015 Hi guys, this is my fist post here. I have a macbook pro retina w / 750m and I am interested in purchasing AKiTiO Thunder2 PCIe Box. I will use a GTX 970. I wonder if this PSU http://www.ebay.com/itm/111783350941?_trksid=p2055119.m1438.l2649&ssPageName=STRK%3AMEBIDX%3AIT works with AKiTiO T2? Thanks. Quote Link to comment Share on other sites More sharing options...
Dschijn Posted December 19, 2015 Share Posted December 19, 2015 @Quinalha No! It has 19.5V, you want to use 12V only! Quote Link to comment Share on other sites More sharing options...
sdedlus1 Posted December 20, 2015 Share Posted December 20, 2015 On December 17, 2015 at 8:45 AM, Dschijn said: @sdedlus1 Take a look here: https://forum.techinferno.com/index.php?/forums/topic/8938-2014-13-mbp-gtx750ti16gbps-tb2-akitio-thunder2-win81osx1010-flinch/ Thanks @Dschijn, very helpful. As you said in that thread, because there isn't a way to underclock in OSX, I'll look for a GTX 750 Ti or 950 with 6-pin connector + larger PSU instead. Quote Link to comment Share on other sites More sharing options...
Quinalha Posted December 23, 2015 Share Posted December 23, 2015 On 19 de dezembro de 2015 at 7:18 AM, Dschijn said: @Quinalha No! It has 19.5V, you want to use 12V only! Thanks. I'll use a ATX PSU. When my project is ready, I show here. Quote Link to comment Share on other sites More sharing options...
blaine_sieck Posted December 25, 2015 Share Posted December 25, 2015 I just got my Akitio and GTX 970 Gigabyte Mini ITX and it fits but just barely, and it's not wide enough so the graphics card will actually plug in...how do I get it to fit?! Quote Link to comment Share on other sites More sharing options...
Dschijn Posted December 25, 2015 Share Posted December 25, 2015 2 hours ago, blaine_sieck said: I just got my Akitio and GTX 970 Gigabyte Mini ITX and it fits but just barely, and it's not wide enough so the graphics card will actually plug in...how do I get it to fit?! With the Gigabyte card, just like the ASUS one, you will not be able to close the case while the PCIe power plugs are plugged in. Only if you make a cut into the case above the PCIe plugs, it might work. Without the PCIe plugs it fits, right? Quote Link to comment Share on other sites More sharing options...
blaine_sieck Posted December 25, 2015 Share Posted December 25, 2015 10 minutes ago, Dschijn said: With the Gigabyte card, just like the ASUS one, you will not be able to close the case while the PCIe power plugs are plugged in. Only if you make a cut into the case above the PCIe plugs, it might work. Without the PCIe plugs it fits, right? No I can't even fit the card into the slot with the casing off. Like I said the card fits into the akitio just barely, but the slot isn't lined up so I can't plug in the graphics card. How do I get it to work?? I can provide a picture if that doesn't make sense Quote Link to comment Share on other sites More sharing options...
charliehsmith Posted December 25, 2015 Share Posted December 25, 2015 1 hour ago, blaine_sieck said: No I can't even fit the card into the slot with the casing off. Like I said the card fits into the akitio just barely, but the slot isn't lined up so I can't plug in the graphics card. How do I get it to work?? I can provide a picture if that doesn't make sense Assuming you're talking about the actual graphics card connection to the Akitio, not the PCIe power, you may need a bridge to make a flexible connection then. Quote Link to comment Share on other sites More sharing options...
blaine_sieck Posted December 25, 2015 Share Posted December 25, 2015 Okay I got it to fit and have everything ready. One last question? Do I need to plug an HDMI cable into the GPU or does everything go via thunderbolt? Quote Link to comment Share on other sites More sharing options...
blaine_sieck Posted December 25, 2015 Share Posted December 25, 2015 How do I boot into the GPU? It won't show up when I restart then hold option Quote Link to comment Share on other sites More sharing options...
Dschijn Posted December 25, 2015 Share Posted December 25, 2015 HDMI into the GPU is the best option to get most performance. Quote Link to comment Share on other sites More sharing options...
charliehsmith Posted December 25, 2015 Share Posted December 25, 2015 9 minutes ago, blaine_sieck said: How do I boot into the GPU? It won't show up when I restart then hold option You've installed Windows via bootcamp or an alternative option right? Then you can boot into Windows and it should find drivers for the GPU Quote Link to comment Share on other sites More sharing options...
blaine_sieck Posted December 25, 2015 Share Posted December 25, 2015 3 minutes ago, Dschijn said: HDMI into the GPU is the best option to get most performance. I can't get the computer to recognize the GPU, I installed the drivers before plugging in everything and it won't recognize it. Any ideas? Quote Link to comment Share on other sites More sharing options...
Dschijn Posted December 25, 2015 Share Posted December 25, 2015 Can you please explain what hardware/software you are using? Can you post a picture of your eGPU hardware? Quote Link to comment Share on other sites More sharing options...

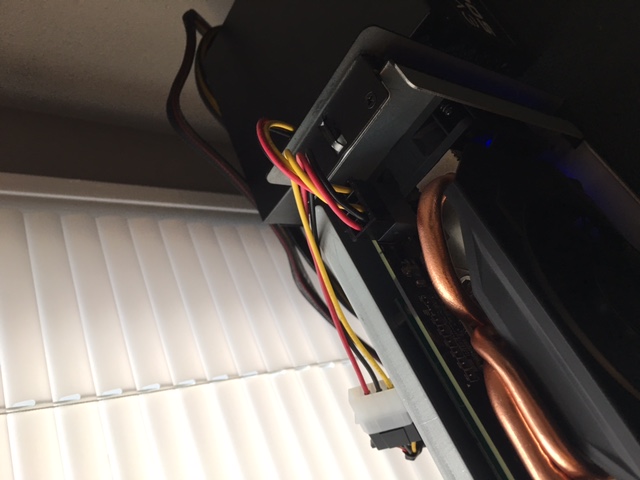

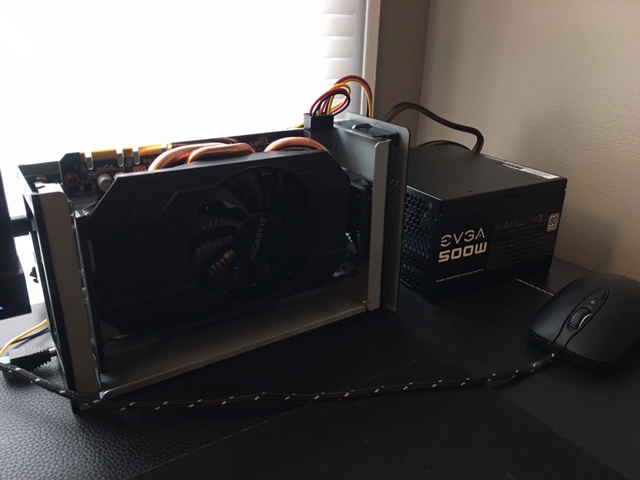

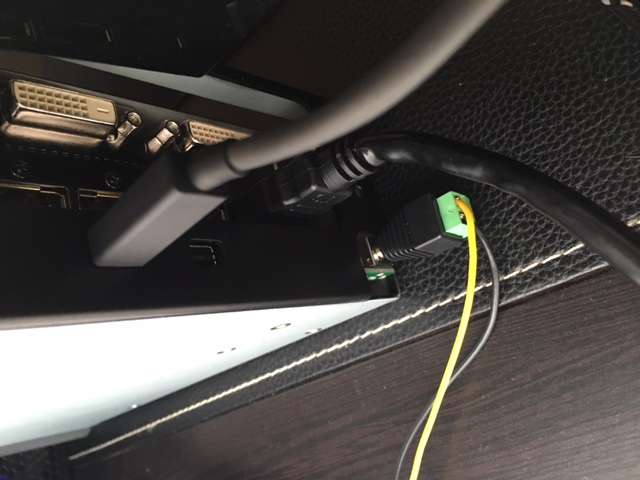

blaine_sieck Posted December 25, 2015 Share Posted December 25, 2015 6 minutes ago, Dschijn said: Can you please explain what hardware/software you are using? Can you post a picture of your eGPU hardware? I am using a 2013 15" Retina MacBook Pro with the 750M, Akitio Thunder2, Gigabyte 970 Mini ITX, and EVGA PSU. I am running Windows 10 via Bootcamp on my MacBook Pro. Here are the pictures: Quote Link to comment Share on other sites More sharing options...
blaine_sieck Posted December 25, 2015 Share Posted December 25, 2015 What do you think the problem is? The GPU fan is spinning so I'd assume its functioning. Does it matter which HDMI port I have plugged into on the Akitio? Anything I did wrong? Quote Link to comment Share on other sites More sharing options...
blaine_sieck Posted December 25, 2015 Share Posted December 25, 2015 Alright well I tinkered with it for a few hours and it appears to be working. Thanks for your help!! Quote Link to comment Share on other sites More sharing options...
Dschijn Posted December 25, 2015 Share Posted December 25, 2015 What is that 8-Pin plug going into the GPU? That looks not healthy. Can you make a close up off that? Doesn't the PSU have a native 8-Pin plug? Did you also apply the paperclip trick on the PSU? Quote Link to comment Share on other sites More sharing options...
blaine_sieck Posted December 25, 2015 Share Posted December 25, 2015 11 minutes ago, Dschijn said: What is that 8-Pin plug going into the GPU? That looks not healthy. Can you make a close up off that? Doesn't the PSU have a native 8-Pin plug? Did you also apply the paperclip trick on the PSU? No the PSU doesn't have a native 8 pin. It has a 6pin thing with a 2 pin next to it but I don't think they fit into the 8 pin. I can't remember but I think either my PSU or GPU came with this adapter thing that took the 2 wide 4 pin things and it converts to 8 pin. And yes the guy who did my electrical work did the paper clip trick Quote Link to comment Share on other sites More sharing options...
