Please follow the instructions below.

• Specs.

• Device manager ->Display Adapters ->Details ->Device Description ->Hardware Ids, post results (request).

- Extract downloaded driver using 7-Zip/winrar.

- Extracted Nvidia...International\Display.Driver folder\ -> copy/overwrite nvdmi.inf

- Nvidia...International folder\ -> run setup.exe

- Windows 8 - disable driver signing

Command Prompt (Admin) Win key + X Type:


bcdedit /set {current} testsigning yes

-> "The operation completed successfully" ->reboot ->Install drivers.

Exit test mode, cmd (admin).


bcdedit /set {current} testsigning no

->reboot.

- Use DDU to remove previous drivers/GPU installations (Nvidia & AMD), create restore point then select first uninstall option (safe mode).

GeForce 334.89 WHQL

Modded nvdmi.inf v334.89 AW M17XR2/R3/R4 3D + M18XR1/R2 GTX 680M / 780M

Modded nvdmi.inf v334.89 AW M18XR1/R2 GTX 680M / 780M SLI Enabled

- - - Updated - - -

Quadro Notebook Driver 334.95

PhysX 9.13.1220

- Extract

- Nvidia...International folder\ -> delete the following folders:

Display.NView

Display.Update

Display.Optimus

NVWMI

- Display.Driver copy/overwrite nvdmwi.inf

- Nvidia...International\ -> run setup exe

- Install Physx -> reboot

Fire Strike NVIDIA GeForce GTX 780M video card benchmark result - Intel Core i7-3940XM,Alienware M17xR4

[

nvdmwi.inf_v334.95_AW_M17XR2_R3_R4_3D_M18XR1_R2_GTX_680M_780M.zip

nvdmwi.inf_v334.95_AW_M18XR1_R2_GTX_680M_780M_SLI_Enabled.zip

  • Thumbs Up 9

Share this post


Link to post
Share on other sites
- Download GeForce 334.89 WHQL

- Extract driver 7-Zip/winrar

- Display.Driver folder -> open nvdmi.inf (notepad) Edit -> Replace -> Find What: 05AE Replace With: 0490 -> Hit 'Replace All' -> Save.

- Nvidia 334.89...International folder\ run setup exe.

Repeat using 335.23 instead.

Share this post


Link to post
Share on other sites

Share this post


Link to post
Share on other sites

I have been trying to use these mod ini files for versions 320.49, 335.23, and 337.88 but I'm never able to pass the compatibility check, it is always saying could not find compatible graphics hardware. I am downloading the drivers from NVidia and then using 7zip to extract the download exe to a folder which I then am downloading the modified ini files and putting them in the Display.Driver folder overwriting the file with the larger mod file, then I go up a folder level and am running setup.exe as admin but I'm never getting past this compatibility check. Anyone know what I am missing or failing to do? Thanks for the helps

Share this post


Link to post
Share on other sites

Hi @magusstorm, welcome to T|I.

- Device manager -> Display adapters -> Details -> Hardware Ids. Post result.

- Specs?

Share this post


Link to post
Share on other sites

Hi thanks for responding, my hardware ids are as follows:

PCI\VEN_10DE&DEV_11A0&SUBSYS_04BA1028&REV_A1

PCI\VEN_10DE&DEV_11A0&SUBSYS_04BA1028

PCI\VEN_10DE&DEV_11A0&CC_030000

PCI\VEN_10DE&DEV_11A0&CC_0300

The device instance path is: PCI\VEN_10DE&DEV_11A0&SUBSYS_04BA1028&REV_A1\4&361D66C5&0&0008

my machine is a m17x r3 running Win 7 SP 1 and recently has been reformatted and bios was updated to a12. the gpu I'm installing is a gtx 680m. I have 11A0 strings in my inf files, but none have the 04BA1028 SUBSYS value.

This is what is in my inf file for the 11A0 values:

%NVIDIA_DEV.11A0.0270.1558% = Section135, PCI\VEN_10DE&DEV_11A0&SUBSYS_02701558

%NVIDIA_DEV.11A0.0271.1558% = Section139, PCI\VEN_10DE&DEV_11A0&SUBSYS_02711558

%NVIDIA_DEV.11A0.0371.1558% = Section135, PCI\VEN_10DE&DEV_11A0&SUBSYS_03711558

%NVIDIA_DEV.11A0.0372.1558% = Section139, PCI\VEN_10DE&DEV_11A0&SUBSYS_03721558

%NVIDIA_DEV.11A0.5105.1558% = Section098, PCI\VEN_10DE&DEV_11A0&SUBSYS_51051558

%NVIDIA_DEV.11A0.7102.1558% = Section098, PCI\VEN_10DE&DEV_11A0&SUBSYS_71021558

  • Thumbs Up 1

Share this post


Link to post
Share on other sites

That worked to get the driver installed, but it has a problem showing in device manager:

Windows has stopped this device because it has reported problems. (Code 43)

Share this post


Link to post
Share on other sites

Really sorry, I'm not sure why it is redirecting me to the downloads page, but even clicking on it from the downloads page is just taking me back to the downloads page. I tried to find it thru google and the link I chose took me to a new thread: http://forum.techinferno.com/alienware-m17x-aw-17/2279-%5Bm17x-r3%5D-bios-a12-unlocked-sata-tweak.html

but that link took me to a page saying that the downloads have moved and are now hosted on tech inferno forum pages and the link it provides takes me to the downloads page where I seem to be stuck in a loop

Share this post


Link to post
Share on other sites

OK managed to flash the bios and gained access to a second advanced menu but when I changed SG to PEG and F10 reboot the system came back and lit the screen but it was all black. I heard the windows chimes in the background and knew everything booted fine except the black screen. I had to pull the card out in order to view anything again. I guess this means something happened to the card and it isn't working now :(

Share this post


Link to post
Share on other sites

- Under Programs and Features, uninstall everything Nvidia related.

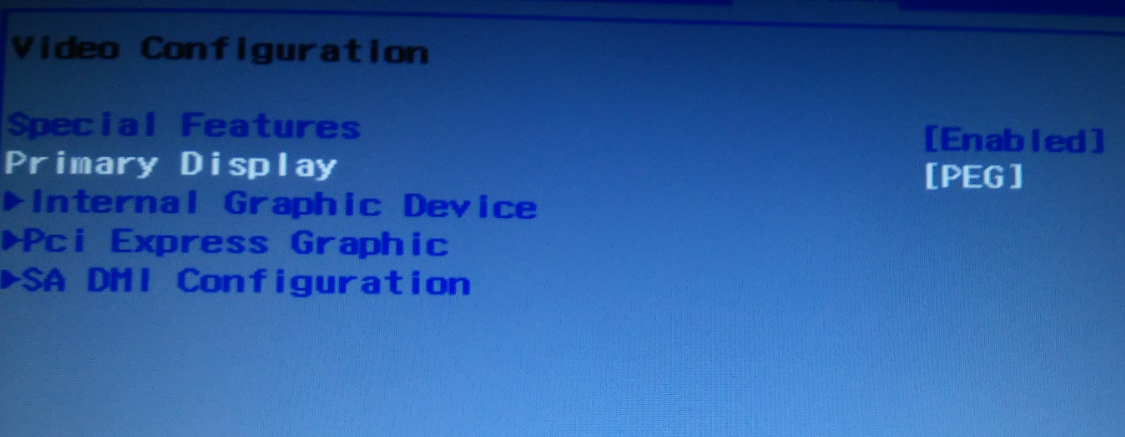

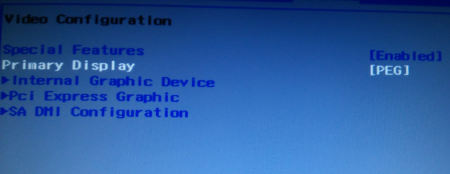

- BIOS, disable IGP.

- BIOS, set display to PEG.

- Install drivers nvdmi.inf v337.88

Share this post


Link to post
Share on other sites

Could I be missing a step in bios? By disable IGP you mean change the display from SG to PEG and that is it? Whenever I am setting the display to PEG from SG and press F10 to save the pc reboots and when it comes back on the screen lights up but remains all black, I can hear windows boot in the background but I can't actually see anything and I have to unseat the card in order to view anything on screen again.

Share this post


Link to post
Share on other sites

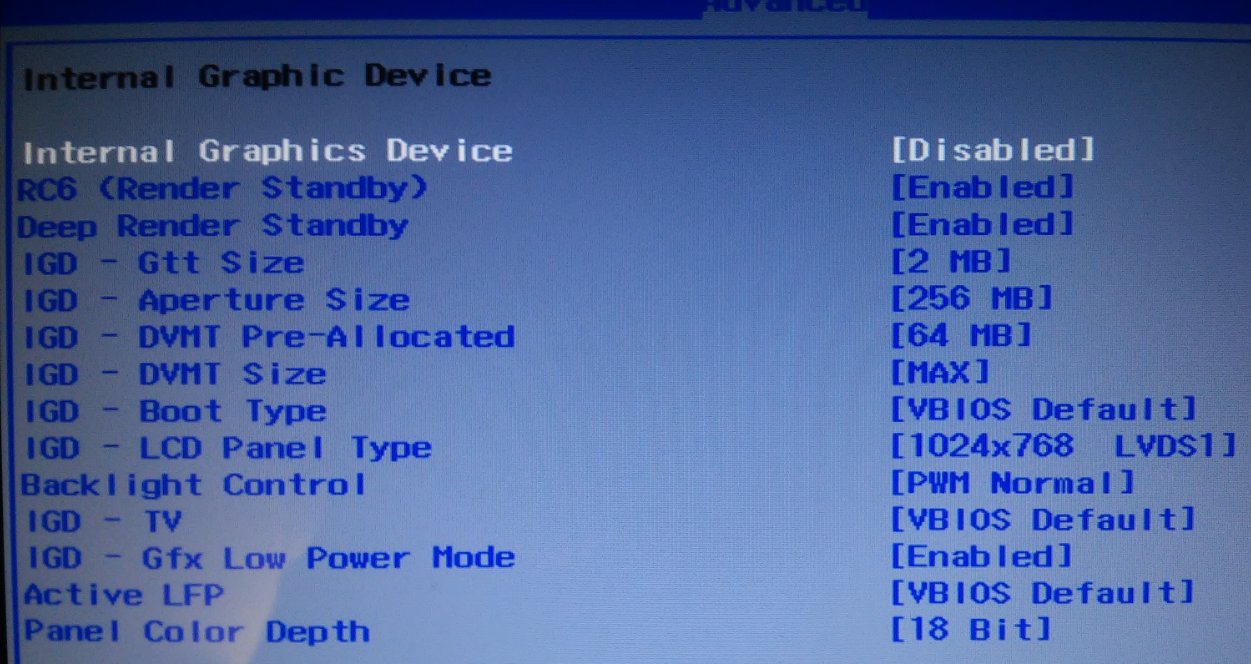

You need to disable the integrated graphics (HD3000) and set display to PEG.



Share this post


Link to post
Share on other sites

Unfortunately that also caused the black screen with no view and windows booted in the background. When I unseated the card to get back into bios the machine started to beep a series of 6 beeps. I had to put the old video card back in to get past that.

Share this post


Link to post
Share on other sites

With IGP disabled and PEG enabled are you able to see the BIOS screen?

Try cleaning the golden connectors and if needed reseat the card a couple of times, boot into safe mode (F8) and uninstall drivers.

Share this post


Link to post
Share on other sites

No, in every case when I select the PEG instead of SG the screen goes black but not dark for everything. The ROM messages on startup don't show, if I hit F2 during the loading nothing displays, if I just let it boot normal I can hear windows load but cannot see anything. It always takes to unseat the card to get any display back. I've gotten the drivers to load several times but in each case when Device Manager sees the card it sees it with the error 43, and if I force it to be used I end up with the black lit screen

Share this post


Link to post
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.


  • Similar Content

    • By DragonRai
      After the most recent Windows 10 update, my Clevo Control Centre has stopped working properly. When I try to change the fan speed nothing happens and this is causing my laptop to overheat when playing certain games. This has happened before but using malware bytes seemed to work; that was a free trial so I no longer have access to this.
      Please can someone help? I'm at my wits end with this.

    • By Guardian241
      So I just received a 980m in the post and after installing it I was greeted by multiple system crashes on my Alienware m17xr4 and was unable to install new drivers.

      Is there a step in the intallation process I missed? A bios setting I was supposed to change? The laptop is already set to UEFI mode in preperation for this and upon putting the old 680m back in the system it now works again. I have heard that I need to change INI files to install drivers but I expected it to at least function without large bugs such as these. Do you think that this GPU is faulty or have I done something wrong?

      Thanks for any help you can give.

      - M
    • By Guardian241
      Hi,

      I've recently got my hands on an M17x R4 Alienware Laptop from 2013 which I love. I've replaced the screen, keyboard, RAM, and hard drive to make it into a fully modern laptop. However, I'm currently waiting on a replacement for the 680m GPU with a 980m from ebay. My question for you all is, do I need to do anything with the BIOS to make this 980m work? Is there a way to prevent the laptop from using Intel HD Graphics with Optimus? I think the Intel HD Graphics on this laptop are currently broken as I see static-looking dots flash on the screen. (See image below for example). My theory is that because Intel HD Graphics with Optimus is still in-use while in-game, the dots are being caused by it.

      Thanks for any help in advance.

      - M




    • By ReverseEffect
      3dMark11 Performance Preset Benchmark: http://www.3dmark.com/3dm11/11262792

      Required items:
      1.) Lenovo u310 (I have a Core i3 - Ivy Bridge, 8GB RAM)
      2.) 65CN99WW unwhitelisted.
      3.) eGPU (I used a EVGA GTX 750 Ti from another computer I had).
      4.) EXP GDC mPCIe Edition adapter (got from eBay - banggood seller).
      5.) ATX power supply (I used a 600W PSU from another computer I had).
      6.) USB wireless.
      7.) External monitor, keyboard, and mouse.

      Steps:
      1.) Obtain and install a unwhitelisted BIOS. If you are unable to obtain a unwhitelist BIOS, I think it might be possible to bypass it with Tech Inferno Fan's Setup 1.x (may need confirmation as I haven't used it myself yet.)
      2.) Shutdown computer and remove all USB devices, ethernet cables, power cables, card reader cards.
      3.) Remove mPCIe wireless card and detach antennas.


      4.) Attach EXP GDC external mPCIe cable to the former wireless slot and screw down.


      5.) Attach HDMI end of the mPCIe cable adapter to the EXP GDC device.


      6.) Attach graphics card to the EXP GDC device (I moved my laptop off the desk and onto the side shelf to make room on the desk for the monitor/keyboard/mouse).


      7.) Using the power cable adapters that came with the EXP GDC device, I hooked in my ATX power supply's 20 pin and CPU 4 pin cables. Then hooked the other end (8 pin) into the EXP GDC device. My EVGA 750 Ti also required that I use an additional PCIe power cable (6 pin) in the top of the card.





      8.) Then I attached my misc devices (HDMI monitor, USB keyboard/mouse/wireless adapter), and hooked in my PSU and powered it on (below is image of final product, also moved HDMI cable out of the way).



      9.) Power on your computer and let it install the standard VGA drivers and then install your drivers (I didn't have to go in the BIOS for any graphics settings, which it doesn't have anyways, nor did I have to disable iGPU in Device Manager before the card was added).

      Extra Info:
      I found that most games will play on med settings with about 45 FPS with this particular card.
      BDO: Upscale on - Anti Aliasing on - SSAO off - med settings.
      Skyrim: Med-High settings.
      Fallout 4: Med settings.

      (EDIT 5/19/2016) > Images added.

×
×
