2014 Mac Mini + [email protected] (AKiTiO Thunder2) + OSX10.11 (single power mod) [ikir]

[ikir 8]

Hi all! Still work in progress, i will publish photos soon.



Mac mini 2014 - i5 2,8Ghz

16GB RAM

512GB PCIe blade SSD

960GB SanDisk Ultra2 SSD sata3



Just a quick benchmark for show you 15x increase performance!!!



Valley 4K high 2x

iris 5100 integrated: fps 1.9 score 78

Nvidia GTX 970 AKitio: fps 32.4 score 1357



updste: selling it at 550€!











final result!

Edited November 23, 2016 by ikir
photos added!

[lucas979797 12]

Can you bench this on the Extreme preset please

[ikir 8]

@lucas979797 Yes, do you still need it? It runs in 4K on a LG UltraWide. 2xAA?





And finally photos of my implementation (did with a friend of mine who is a super expert)



Just one plug for power, a frontal fan and connected the PCIe power with one cable



The box works ok closed thank to a new 1cm fan in the front of the box. Anyway its get too hot so i'm planning to put bigger fan in the gfx card and makes big holes in the chassis.





Edited August 10, 2016 by ikir

[ikir 8]

Akitio seems to be working on a eGPU



Edited August 11, 2016 by ikir

[ikir 8]

Final result! (not true!)



Edited September 5, 2016 by ikir

[shopkeeper 1]

Can you provide more details about how the 'single power plug' is setup as shown in the second photo of the Akito?

[ikir 8]

From the ATX plug the Dell-AC2 power the graphics card, the frontal fan and also the Akitio box. Soldering is needed, we removed the barrel and powered the akitio motherboard directly

Edited August 16, 2016 by ikir

[ikir 8]

Now running with 10.12 beta and Nvidia beta drivers! Everything is super!!!

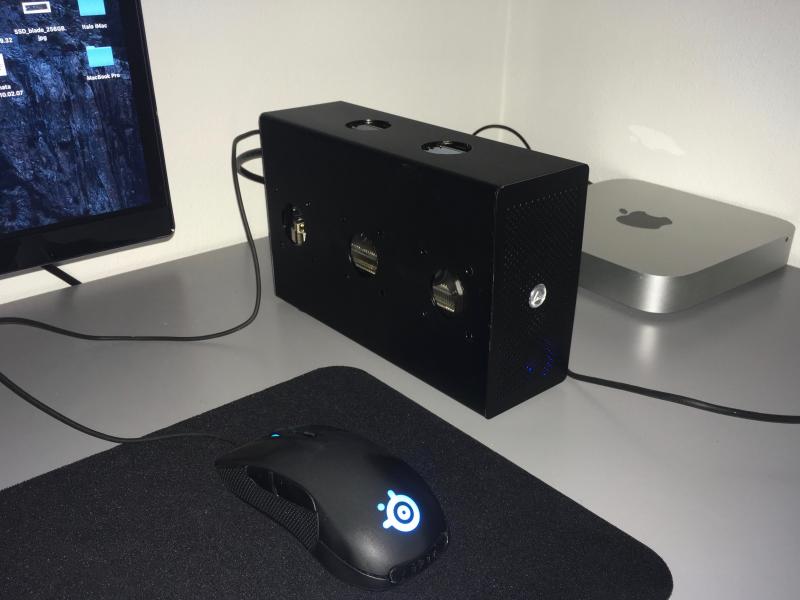

Added final setup photo (protected the ventilation holes)!





Edited September 5, 2016 by ikir

[ikir 8]

If anyone is interested i'm selling my beloved eGPU for 650€

One cable for power, all inside AKitio, modded 970 4GB.

[naz 0]

10 hours ago, ikir said:

If anyone is interested i'm selling my beloved eGPU for 650€

One cable for power, all inside AKitio, modded 970 4GB.



How is easy is to to replace the 970 with a newer/better GFX card when the time comes to upgrade?

[ikir 8]

Hi! But it not so easy because i modify the powerplug pciexpress to be lateral. So with a newer card you should solder the pic power plugs like the second image. Very easy. The only card would fit this would be 1060

[ikir 8]

Added thermal sensor for silencing the frontal fan when the card is cold. it will start to blow hot air away when app are demanding gfx power.

Edited September 25, 2016 by ikir

[shopkeeper 1]

Can you provide some information on how you added the thermal sensor please? Thanks



[ikir 8]

I've added this



http://www.ebay.it/itm/271967755577?_trksid=p2060353.m2749.l2649&ssPageName=STRK%3AMEBIDX%3AIT







[ikir 8]

New price 550€

[ikir 8]

No one? Sigh

[Frooom 0]

Just curious, eGPU only or whole kit and kaboodle?

[ikir 8]

Kaboodle?

price is for Akitio Mod + GPU + PSU

[kritskiy 0]

Hi there, just in case: I've sent you a private message!

[ikir 8]

Sold!

[liranda 0]

Hello, I come from China. my egpu GTX660 + 2015  15 "is MBP Iris. My OS is 10.11.6 my video card driver doesn't under MAC osx, but modified file has been identified is GTX660 2 gb. Graphics display is connected HDMI but no response,  could you tell me what to do. Very afflictive recently. Thank you very much
