2015 15" MBP M370x + GTX1070@16Gbps-TB2 (AKiTiO Thunder2) + Win10 [MattGarlandUK]

[MattGarlandUK]

THANKS TO ENCOURAGING GUIDES ON THIS SITE, I HAVE MANAGED TO GET MY EGPU SETUP WORKING



Macbook Pro Retina 15” Mid 2015

AMD Radeon R9 M370X 2048 MB

2.8 GHz i7, 16GB RAM



Windows 10 64bit ( bootcamp )

OSX Sierra



Enclosure:

AKiTiO Thunder2



Graphics card:

EVGA NVIDIA GeForce GTX 1060 6 GB GDDR5 Memory PCI Express 3 Graphics Card



Power supply:

EVGA 100-W1-0500-KR - 500W 80 Plus Power Supply (100-W1-0500-KR)



Connections:

Molex to barrel adapter to connect PSU to GPU and enclosure

GPU powered by the PSU directly

HDMI cable to connect GPU to monitor

Thunderbolt cable to connect Thunder2 to Macbook

PSU powered on using the 'paper clip technique'



Monitor:

Dell U2715H 27-Inch Widescreen IPS LED Monitor



Info and guides:

https://www.techinferno.com/index.php?/forums/topic/7947-the-basic-egpu-hardware-guide-for-macs/#comment-118751



Process:

Power on and connect the GPU, check that the Nvidia is showing up in the device manager

Install Nvidia drivers

Disable discrete AMD GPU in the device manager and shut down

Boot back up into Windows10 and BOOM, Windows10 should now be using the GPU.


Results:

I can reliably get the eGPU to work every time and have experienced NO CRASHES!  I still play games using the AMD when I'm not at my desk, which just requires re-enabling the AMD.  Sometimes switching the AMD on and off can cause the device manager to hang, but restarting Windows 10 sorts this out so I've not had any problems using the system both ways.



Games Performance:

Doom - 1440p max settings - 60pfs ( WOW!!! )

Deus Ex Mankind Divided - 1440p max settings - 30-45 fps

Just Cause 3 - 1440p max settings - 30-45 fps

Star Wars Battlefront - 1440p max settings - 30-45 fps

Overwatch - 1440p max settings - 60fps



Getting Windows10 to select the eGPU as the primary display device:

As far as I can tell, all that is required to get the GPU to power the external display is to disable the discrete graphics chip (AMD R9 M370X) via the device manager in Windows10.

In my experience, provided the eGPU is connected, disabling the AMD R9 will automatically cause the OS to switch to the eGPU.  Although a couple of times when I've done this without restarting, the AMD has switched itself back on!

Provided the eGPU is connected and powered on, and the AMD is disabled, booting into Windows 10 will automatically select the eGPU and you're away!





Edited October 24, 2016 by MattGarlandUK
update

[Himmellaeufer]

Hey, I'm gepsannt how you manage under Win10. I use the same hardware including the EVGA GPU + AKiTiO2 combination with another power supply. From the housing I cut nothing.



The 1060 is recognized with me under Win10 but unfortunately I get it not to start (on an external TV / monitor) although I can install Nvidia drivers.

I hope you come soon with updates)

Edited August 30, 2016 by Himmellaeufer

[MattGarlandUK]

Hey there.  I think all you need to do is disable your discrete graphics chip ( the AMD ) via the device manager.

[1366921]

Hi, can help me T-T

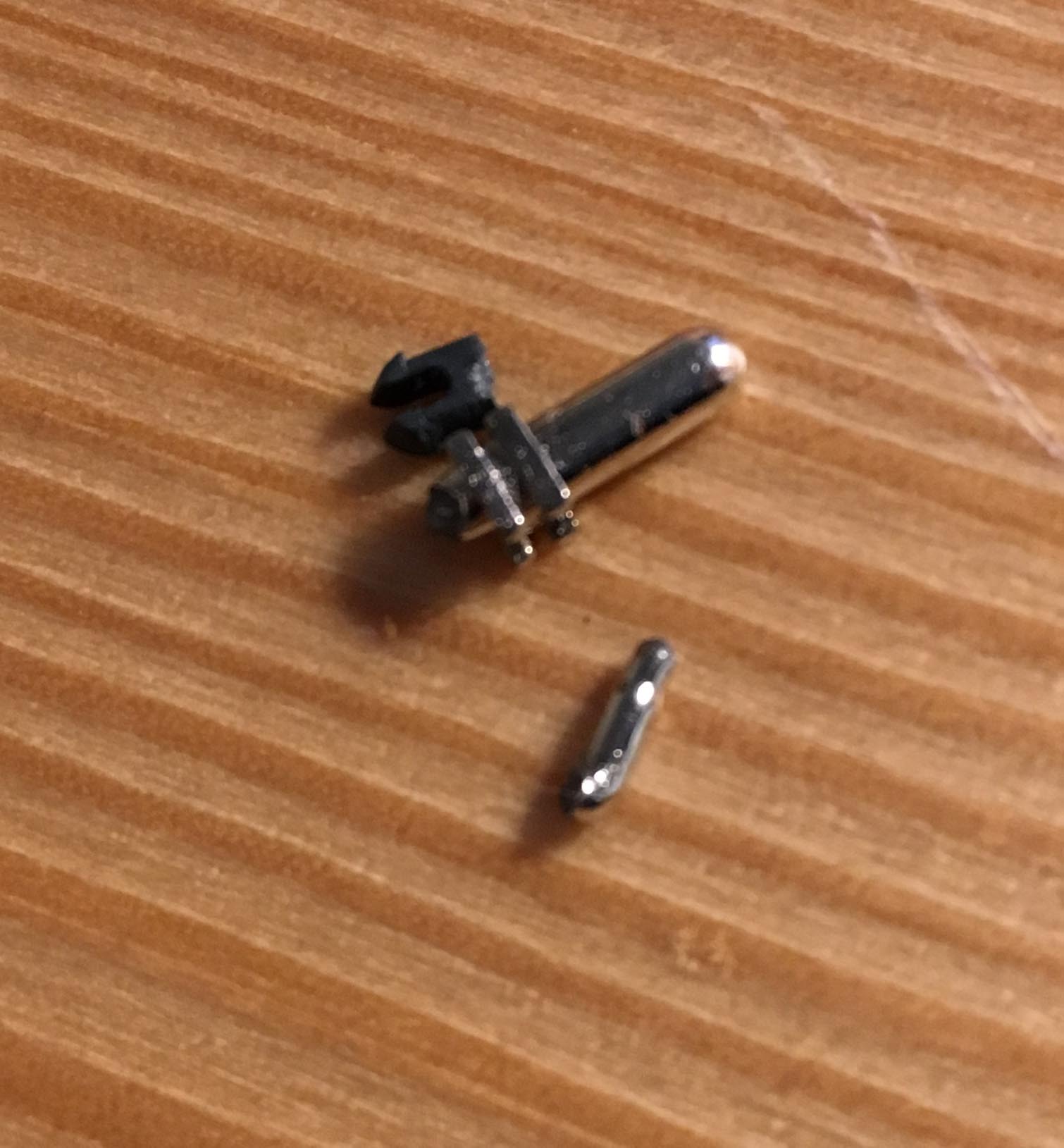

Today, I received every component I bought from eBay and tried to set up my eGPU. I intended to power the Akitio and graphic card using the Dell DA-2. However, I didn't realize the barrel plug was not compatible and I pushed it so hard that the central part of the connector broke as the photo showing. Is there another way to power my Akitio?

Edited November 25, 2016 by 1366921
