Hey all, just got my m17xr4 and put my 980m from my m15x (old) in it. I was able to score much higher graphics score in firestrike even though it is a much older machine. I made a custom vbios for the m15x to get rid of any throttling, and am in the process of making on for the m17xr4 but I'm wondering if there is anything else I have missed to deal with the throttling. any help would be appreciated
-
I posted about this over here, but that has not gained much traction, so I figured that this might be a better place to ask. The full details are in the Reddit post, in case I forget something here, but essentially, I am having trouble with what appears to be a CPU TDP throttle restricting my 3920xm overclock when the package power reaches 55W. My specs are: System: M17x R4 CPU: 3920xm GPU: GTX 980m RAM: 16GB (4x4GB) DDR3 1333MHz OS: Windows 8.1 64-bit (MBR/legacy boot with Optimus) PSU: 330W BIOS: A11 Unlocked No matter what multiplier I set in the BIOS or Intel XTU for any combination of 1, 2, 3, or 4 cores active (currently trying 42x for all) my CPU still throttles back to 3.6GHz under a benchmark. Moderate loads of around 50% see a max ratio of 40x~41x but still not meeting the overclock I set. Under a full load at 3.6GHz my CPU is only reaching about 88º C with both an upgraded CPU fan and a repaste, so I don't think that thermal throttling is causing this trouble at the moment. ThrottleStop lights up the "TDP Throttle" indicator when this happens, and looking under TPL shows that ThrottleStop is reading a Turbo Boost power limit of just 55W (which is Intel's factory max). I do have "Turbo PWR Limit MSR Lock" disabled in my BIOS, and current limits maxed. To be fair, though, this BIOS is still very unfamiliar and difficult to navigate for me, so I could very well have incorrectly adjusted some values. Is there a way to force the (Turbo) TDP limit higher than 55W? Is my system actually capable of sending more power than this to the CPU? Is there maybe something wrong with my CPU that causes it to ignore my BIOS settings?
-
Hi, I am trying to do the "Ultimate" G73jh upgrade and I have power related issues. So I have the most "basic" G73jh, with i5-430m and 5870m. This version is the one with the brown MB, with only 2 memory slots. What I did: - Opening the whole laptop - Swapping 5970m to 7970m - Blind-Flashing 7970m vBios - It boot ! But GPU/RAM frequency stay at 450/300 maximum, because of my 120W PSU I think (throttle), So I ordered a 240W One - Swapping i5-430m to i7-920XM - It boot but I almost didnt use it because I was affraid of my weak PSU (dont want to burn it !) Then I received my new PSU, from ebay ( http://www.ebay.fr/itm/201638674476). And... Nothing change !! My 7970m is stil throttling. And I cant OC the 920XM, if I go over 70W TDP, the G73 instent shutdown :-/. I need your help to be sure Its a PSU related issue, and not something else, like my mobo etc. I dont want to buy a 100+€ PSU if this is not the problem. As my G73 is still out of his case, I manage to solder the PSU wire directly on the MB, and then I measured voltage during full load (prime95). IDLE 19,4-19,5V LOADED: 19,3-19,4V Not that bad ! I am very confused because the PSU seams to work. I have no oscilloscope to watch the signal in real-time... For sure it is not a real DELL but if voltage is not droping, whats wrong ? Its very frustrating to know that everything work but can't be "feeded" with Amps ! Any ideas ? EDIT: All temps are OK ! Furmark : 58° GPU... (because of the low Freq :-/ ) EDIT2: new info: I tried on battery, It is the same, is it a common behavioor ? (My battery is almost dead, only 30% capacity) EDIT3: Do you know if the "metalic" part of the case (under the keyboard) have somthing to do with the power delivery in the mobo ? EDIT4: I reassemble the laptop, so no, the metal plane have nothing to do with ground...
-
I have an Asus laptop with hm76 Ivy Bridge chipset with Intel i7-3630qm, the CPU is 2.4Ghz and can Boost up to 3.4Ghz. What happens is the CPU throttles to x12 (1.2Ghz) when Turbo Boost is enabled, this at less than 70°C, the TCC activation temperature should be 95°C! The bios has the latest microcode patch v. 1C from Intel and before had the v. 15. I made a test with cinebench and monitored the behavior of the cpu with Intel Power Gadget, ThrottleStop and SpeedFan, I made a video. As you can see what happens is if I disable Turbo Boost with ThrottleStop the multiplier goes straight to x24 and the temperature goes up yet no PROCHOT signal is sent. If I disable BD BROCHOT the temperature goes up but never arrives to 95° .. it arrives to 80° / 81° C. So what is going on with this CPU?? I am now uploading the video to youtube and it will appear here And here another test: GeekBench with prochot disabled: and here enabled:
-

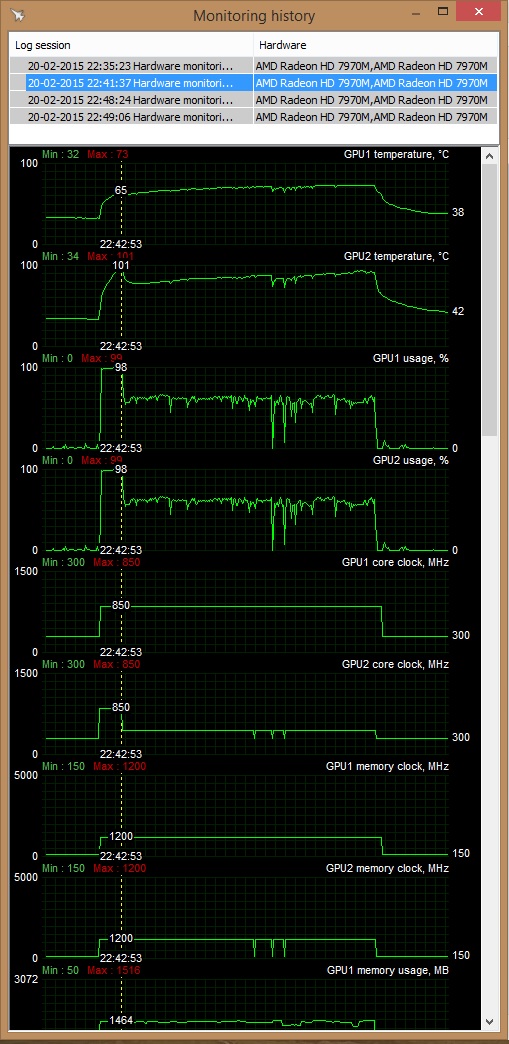

Helllo everyone, I have a Clevo P370EM running 7970m in Crossfire. GPU1 never crosses 72 C at full load but GPU2 takes about a minute to spike all the way to 100C and throttles down to the minimum clocks and my FPS are suddenly half as before. I cleaned everything inside, reapplied thermal paste and bought a cooling pad. I also flashed a Prema Mod for the fan control and run them at full speed. This dropped the temperatures by a few degrees and both cards run at around 30 to 35 C each when idle. The problem with GPU2 remains. I'm attaching a screenshot of MSI Afterburner log after running Heaven Benchmark 4.0 at full settings. As you see, I'm running stock core and memory clocks. I looked in other threads to find a solution but even though I found some useful suggestions for other temperature problems I couldn't find anything that would relate directly to my issue. Would anyone be willing to share their expertise and help me out with this?
-
- 7970m
- clevo p370em
-
(and 3 more)
Tagged with:
-
Hi Guys So i'm new to this site, though i've read through some posts from which i can conclude that many users are facing the same throtling issue with this particular model. stable fps with sudden fps drops. slowdown of game play in some games. unstable play in general. I don't want to overclock my system to the point where the lifespam will decline. All i want is a stable computer, running at its full potential. I hope i can get some help from you Guys, as you seem to have it all figured out! Ian
