2013 nMP + Tesla K40c @ 16Gbps-TB2 (AkiTiO Thunder2) + OS X 10.11.6


Recommended Posts



I am trying to get this eGPU configuration to work with my new Mac Pro. The GPU (Tesla K40c) is installed in the Akitio, and powers on (300W external power supply, 6-pin + 8-pin connectors). After connecting the TB2 cable to the Akitio, I ran goalque's automate-eGPU.sh version 0.9.9. Output:


*** automate-eGPU.sh v0.9.9 - (c) 2016 by Goalque ***


Detected eGPU

 GK110BGL [Tesla K40c]

Current OS X

 10.11.6 15G31

Previous OS X

 10.11.4 15E65

Latest installed Nvidia web driver

 Version: 346.03.15f02

 Source: 3rd Party

 Install Date: 8/16/16, 4:12 PM


You are running official Nvidia driver.

Checking IOPCITunnelCompatible keys...


Missing IOPCITunnelCompatible keys.

Mac board-id found.

Searching for matching driver...


Driver [346.03.15f02] found from:


Do you want to download this driver (y/n)?




I have tried this multiple ways, each after an uninstall, reboot, and a fresh install. The options I've tried:






In all cases, the behavior has been the same. The eGPU is visible under System Report (see attached screen shots). However, since this is a Tesla card, it does not have any video out connections (strictly for GPGPU / CUDA). I do not have an external monitor connected to the eGPU. This appears to cause problems after reboot (main monitor, Apple Thunderbolt) is on, but "dark" (slight blueish glow, but nothing displayed, shortly after the Apple logo appears).


Also, if I logout, I lose the main display, same features as above.


It looks like the driver really really wants a monitor attached to the eGPU.


Is anyone aware of a potential fix for this issue?


Any help appreciated

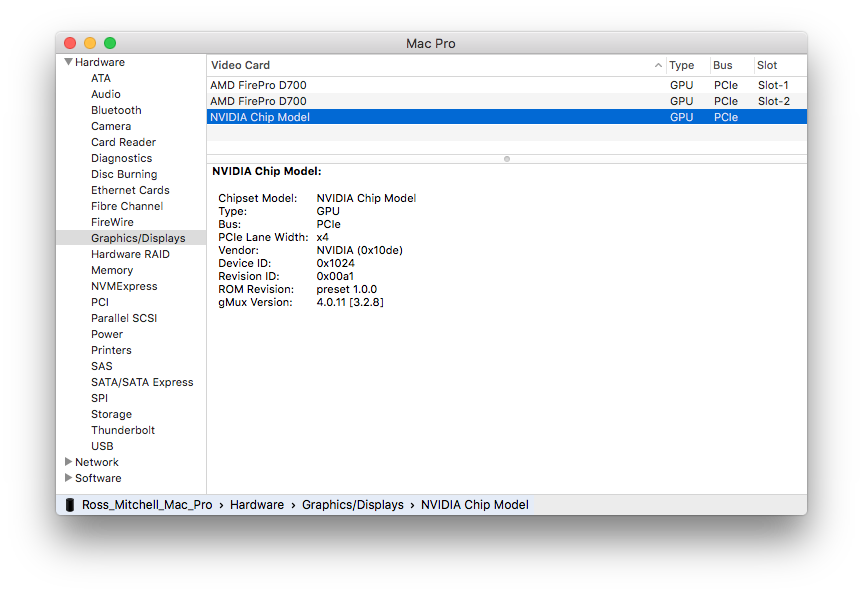

Screen Shot 2016-08-23 at 3.47.48 PM.png

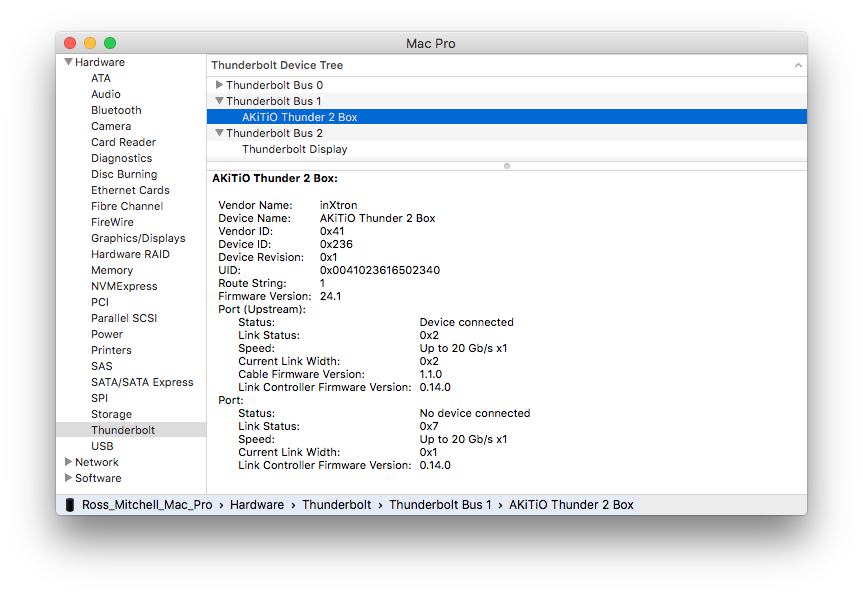

Screen Shot 2016-08-23 at 3.49.25 PM.png
