Found 4 results

  1. I added this post in the another forum a few months ago but felt like it could also help someone here, enjoy... So ive owned quite a few Alienware laptops but out of all of them my favorite has always been the great m17x R4. I love its aggressive looks, its lines and grills remind me of lamborgini design, the 1 glass sheet screen, the media keys looked futuristic and its laser etched name plate added a touch of personalization and attention to detail that they used to have. So considering it still has powerful specs for modern standards, i7 processors, 32gb ram, 2ssd and 1msata slots, 120hz 3D display, mxm slot, sd card reader, I couldn't help but to sell my 2 current laptops (15 R1 980m, 4k, 15 R3 1060) and purchase a pristine example of this machine with all its original packaging to upgrade it up to todays specs. The Original Specs of this particular system were: * Intel i7 3820qm 2.7ghz / 3.7ghz * Nvidia GTX680m 2gb * 8gb DDR3 RAM 1600mhz CL11 * 250gb Samsung 840pro SSD * 1tb Seagate Momentum HDD * 17" 1080p 120hz 3D display Desired Upgrades: * Intel i7 3940mx 3.0ghz / 3.9ghz * Nvidia GTX 1070 8gb * 32gb DDR3 Ram 1600 CL10 Corsair * 1tb Samsung 860 EVO SSD * Liquid Metal and better thermal pads 2019 Specs: * Intel i7 3940mx 3.0ghz / 3.9ghz * Zotac GTX 1070mxm 8gb * 32gb DDR3 Ram 1866 CL9 Corsair Vengeance * 1tb Samsung 860 Evo SSD * 256gb Samsung 840 Pro SSD * Liquid Metal and Fujipoly 17w/mk thermal pads * 17.3" 1080p 120hz 3D display I already purchased the GTX 1070 mxm, 32gb RAM and the 1tb SSD. The GTX1070 is installed and working at its full power. I applied Thermal Grizzly Conductonaut liquid metal thermal compound to both CPU and GPU and Fujipoly ultra extreme 17.0 W/mK thermal pads with my modified GPU heatsink and new X-bracket. CPU is overclocked from OEM BIOS to stage1 4.1ghz 3.9ghz 4cores. No chasis or board was cut or damaged during this process as I wanted to keep its integrity and no throttle issues what so ever. As I already had the 120hz edp screen, it was an easier job to do and thanks to @Striker123 and to @D4ddy for their threads as they made me have the guts to go through the project and to Rick for selling me this perfect example of a computer. Alienware m17x r4 1070 mxm http://forum.notebookreview.com/threads/msi-gtx-1070-mxm-successfully-working-on-alienware-m17x-r4-another-socket-victory-against-bga-crap.803637/ Alienware m17 Ranger 1070 mxm http://forum.notebookreview.com/threads/alienware-17-r5-gtx-1070-mxm-3-1b.800137/ Here are some before and after benchmarks so you can see this baby flying let me know what you think about these numbers... I will be uploading more pictures soon as it only lets me upload 5. If you guys have any questions id be glad to help out. current issues: - the GPU fan does not automatically work so I have to use HWinfo to manually build the fan table but HWinfo sucks balls at this and doesn't start them automatically either, also with HWinfo I take control of both CPU and GPU fans at the same time and sometimes I just want my CPU fan to be spinning. so if someone has a fix for this man that would be great!
  2. No issue up to now, everything is stable, easy and cheap setup. However, Nvidia Optimus isn't working with latest Nvidia drivers. Hardware: - Mac mini Late 2012 (MD387LL/A) / Macbook Pro Retina Late 2013 (ME293LL/A) - Akitio Thunder2 - Zotac GTX1050Ti - Samsung T3 Portable SSD - 250GB (for Windows To Go) - DC 12V/12.5A from Aliexpress Setup: - Install Windows 10 as Windows To Go with Rufus; - Install Bootcamp; - Reboot to Windows with Akitio connected and install latest Nvidia Driver; System Start: - Connect External SSD with Windows To Go to your Mac; - Power up and hold down ALT keyboard; - Connect Akitio and wait 2-4 minutes; - Choose Windows from boot menu; sorry guys, I can't attach files here, every times it gives me an error. I uploaded images and benchmarks to my google drive here

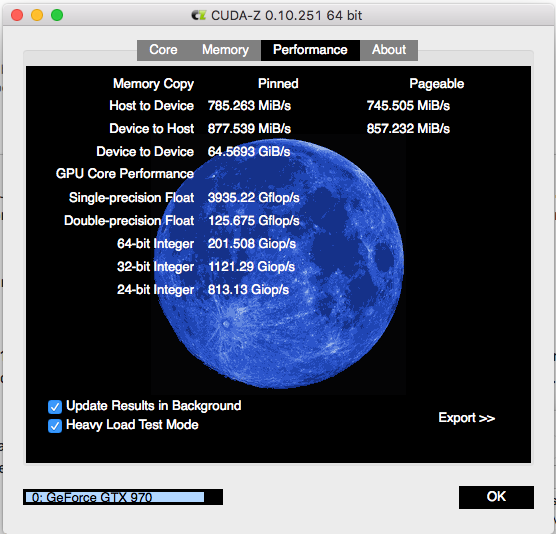

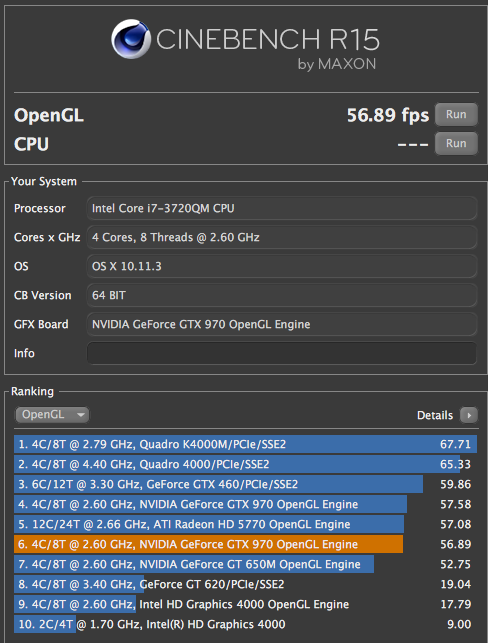

  3. TL;DR: 2012 Mac Mini w/ GTX970 in AkitioTB2 setup installed smoothly & continues to work reliably. ~300% OpenGL performance increase over built-in Intel graphics. Thanks to all who came before me, especially [goalque] with the fantastic "automate eGPU" script. ------ UPDATE 2016-11-06 Setup continues to work flawlessly under OS X 10.11.6. eGPU and monitors are recognized shortly after system power-on 100% of the time. Sleep / wake works fine. Same reliability as built-in graphics, just a lot faster. NOTE, after some security updates were applied (through the App Store updater,) it was necessary to connect a display to the HDMI port, then re-run the 0.9.9 version of automate-eGPU. (But I did not have to turn off system integrity protection again.) ------ UPDATE 2016-05-26 Setup continues to work flawlessly under OS X 10.11.5. GPU / monitors are recognized shortly after system boot-up 100% of the time. Sleep / wake works fine. Same reliability as built-in graphics, just a lot faster. ------------ Setup Specs & Parts **See firmware revisions & other details in footnotes at bottom of this post. Pre-existing hardware/software CPU: late-2012 Mac Mini, Core i7/2.6Ghz (macmini6,2) / 16GB RAM / 500GB Samsung EVO 850 SSD (internal SATAIII bus) OS: OS X 10.11.4 "El Capitan." (Setup initially done & tested under Mac OS X 10.10.5 "Yosemite") Displays: 2 x DELL U2412M, 1920 x 1200 each panel = 3840 x 1200 total pixels. Each display connected via a DVI cable directly to eGPU card. Other peripherals: (2) USB 3. drive docks (for SATA drives) from different makers. Fujitsu ScanSnap ix500 (USB3). (3) printers of various kinds. All-in-one USB card reader. New eGPU hardware (all purchased through Amazon) eGPU: ZOTAC-brand GeForce GTX 970 [hereafter called "GTX970"] basic edition (2 fans,) part #ZT-90101-10P eGPU enclosure: Akitio Thunder2 [hereafter called "Akitio"] as described elsewhere on these forums. part #T2PC-TIA-AKTU eGPU external power supply (hereafter called "PSU") : EVGA "Supernova" 550G2 (550 watts), ATX-style power supply, part #220-G2-0550-Y1 eGPU cabling: good-quality GPU-card power cabling came included with the EVGA 550 G2 PSU above. I also ordered a custom-made 4-pin to 5.5/2.5mm barrel adapter to run the Akitio off the PSU, ~$20 on eBay, and a pair of low-profile, "right-handed" 6 pin cables also from eBay. Total cost ~$700 w/ tax & ship. New Software driver (free download) NVIDIA Web Driver CURRENT: 346.03.06f01 Past Versions: 346.02.03f05 (Originally tested driver, worked fine with OS X 10.10.5 and 10.11.3) eGPU hardware setup, driver install, testing Unpacking Notes 3 product cartons shipped in 1 Amazon delivery box. No damage to boxes. Did note a very major rattling sound, metal-on-metal, in the Akitio box. Turned out to be a blank slot cover plate and screw, completely loose & knocking about inside Akitio unit itself (!). With bare circuit boards exposed inside I feared there might be damage but the Akitio unit works normally so far, no worries there. The EVGA 550-watt PSU comes with a full complement of high quality ATX-spec power cables, and also includes a handy & professional-looking tester block to make "the paper clip test" a no-brainer. But it turns out that on the 24-pin wiring harness itself there must be a bad ground, because the included tester block did not work (!). After a call to EVGA tech support (24/7, American english speaking, highly competent,) they had me do an actual paper-clip test and we verified that the issue was just a bad ground in the wiring harness, no problem with the PSU itself. So I am using a paper clip for now. See more about the paperclip below. The Enclosure (Akitio Thunder2) I read elsewhere that this particular ZOTAC GTX970 card (part #ZT-90101-10P) fits inside the Akitio enclosure "without modifications," i.e. completely inside the Akitio, without having to permanently bend open the rear metal flap of the Akitio box. This is a bit misleading for 2 main reasons: 1) In order to get the card to fit at all, even with the Akitio case cover removed, you have to remove both the case fan on the Akitio box, and the metal fan shroud from the GPU card. (These are reversible changes, i.e. you just unscrew the parts.) 2) In order to have the card fit completely inside a closed Akitio case, custom low-clearance GPU-card power connectors (ATX --> 6-pin PCI power) are required. This has been discussed in other posts. 3) Even with the proper low-clearance connectors, if you close the Akitio case completely you must use a fan on the outside of the Akitio to draw air through the box for cooling. In mild climates and with mild usage (i.e. 3d cad modelling where the GPU usage is light) this might be adequate. For continuous / hard use, e.g. 3D gaming, I am sure that the other mods I've seen that involve cutting large air-flow openings in the side and/or top of the Akitio case would be required. But as far as just testing the basic setup with the Akitio case top not installed, this you can do without any permanent modifications. (This was important to me because I wanted the option to return some or all of the parts if things weren't working.) You will definitely need a screw driver and 30 minutes or so. I had to un-mount the rear case fan on the Akitio Thunder2 to get the GTX970 card to fit inside, and remove the fan shroud on the GTX970 card itself. The Power Supply I purposely over-sized the PSU: I wanted it to operate quietly, have a long life, feed the GTX970 all the power it needs, and have headroom for future upgrade to a higher-wattage card. This model also has a 7-year warranty. I have a barrel-connector adapter cable on order from eBay so that I can power the Akitio box off this PSU too, tidying up cabling and eliminating any possibility of ground loop current. Here's a photo of "the paperclip solution" I am currently using to get the PSU to activate and supply power. I took off the tape that is usually on it to keep the paperclip from slipping out. Note that the "TOP" of the connector in the photo is the part with the clip on it. (Be sure to get the orientation correct.) The Power Connections Current setup has everything powered from the PSU: (2) low-profile PCI 6-pin cables for the GPU, and (1) 4-pin molex-to-barrel adapter for the Akitio. When I first tested the setup I did not have a 4-pin-molex-to-barrel adapter, so at that time I just used the provided 60W power brick for the Akitio, and I had no problems with that. (But YMMV, watch out for ground-loop issues when running w/ separate power supplies.) The GTX970 Card As mentioned above I had to remove 4 screws to lift off the metal fan shroud on the GTX970. A completely reversible change in case the card needed to be returned, or if I want to re-sell the card later when I upgrade. The card slotted neatly into the case with some care, it sits square, plumb, and level with the cover off. (Haven't tried putting the Akitio cover on yet.) Data / Video Connections Thunderbolt cable from Akitio to Mac Mini's Thunderbolt-1 (10 Gbps) port. 2 DVI cables from the 2 displays to the 2 DVI ports on the GTX970 card. Software / Driver Install The Akitio box & GTX970 were fully powered up & connected at time of driver install. Downloaded most-recent version of "automate eGPU.sh", ran it in auto mode. Took about 2 or 3 minutes to complete. No errors or warnings occurred. Rebooted, displays came right up without any issue. No problems. Thanks again to [goalque] for making this so easy. Benchmarks: I made no special effort to optimize, i.e. I had my full load of normal apps running in the background, i.e. Mail, Firefox, Safari, Filemaker Pro. Nothing extremely CPU or GPU-intensive, all apps basically idle during benchmarks. Cinebench R15 OpenGL: Before (internal Intel HD4000 graphics): ~19 FPS After (external GTX970 card): ~57 FPS Speedup: about 300% Unigine Valley 1.0: Preset: "Extreme HD" (all settings maxed, 1920 x 1080 full screen): Score 1898, 45.4 FPS avg, 19.6 min, 84.7 max Preset: "Basic" (1280 x 720, windowed, medium quality): Score 2084, 49.8 FPS avg, 23.7 min, 61.7 max Cuda-Z 0.10.251 64-bit (note: requires install of free Mac OS X CUDA driver from Nvidia) Operational Notes (will update in future months) Reliability - Under all conditions & OS's, from 10.10.5 Yosemite through current 10.11.4 El Capitan, I not had any stability, GPU-related crashing, or pixelation/screen-glitch issues. Stress-tested by running Unigine Valley + CUDA-Z in the background for an hour continuously. Noise - GTX970 card: No coil whine. With a bare card the fans are barely audible from 3 feet away in a quiet room (~38 dB(A) background in the room,) with no cover on the Akitio box. Noise - Akitio box: The case fan that comes with the Akitio box is lower-quality Sunon model which has a quiet but noticeable hum. I will be replacing this with a high-quality fan at some point. Noise - PSU: Dead silent so far, fan does not even turn on due to low power draw / cool ambient temps. [Comment: This is a very good-quality power supply.] Note: These noise figures are with ~55ºF / 90% rel. humidity in winter. Will update these noise remarks in summer when it is ~90ºF ambient / ~40% RH. Heat - GTX970: Copper heatsink tubes stay at ambient temperature when card is idle. Under stress-testing running BOTH Unigine Valley at Ultra settings AND CUDA-Z in "stress test" mode, I estimate the heatsink tubes at ~140ºF by touch. But even under heaviest continuous load the GTX970 fans never spun up past idle. Will update this in future when I complete a closed-case / cover-on-the-Akitio-box setup. Heat - PSU: case is barely warm to the touch so probably ~78ºF or so. System integration: Putting the Mac to sleep works flawlessly, no delays or glitches. Once in sleep mode the GTX970 powers down completely, fans stop spinning. Akitio case also appears to sleep properly. Wake-from-sleep also works without any issues: 1 mouse click & everything fires up normally. Disconnecting & re-connecting display cables (i.e. HDMI / DVI) works fine & is auto-detected on the fly in the normal way. However, the GTX970 itself (via Thunderbolt cable) must remain connected, it is not "hot-pluggable." Note: The "built in" Mac OS X Nvidia drivers do not work with this card in an eGPU configuration. You must use the "NVIDIA Web driver." Performance Analysis TL;DR the GTX970 takes a ~15-20% performance hit when communicating over Thunderbolt 1. Subjectively the GTX970 is just plain fast, it handles Unigine Valley at "Ultra" settings (maxed out) without stutter or lag. Using my CAD software (Vectorworks 2016) with complex, hi-polygon-count models (>10K to 100K polygons) in OpenGL rendering mode is a dream. Very smooth 3D pan/zoom/rotate experience even with Vectorworks OpenGL settings maxed out & all features on. (Anti-aliasing, edges, shadows, etc.) Many other threads on this forum have exhaustively analyzed the performance impacts of various connection methods (PCIe / Thunderbolt / ExpressCard / etc,) please refer to those for in-depth discussion and test results. Closing Thoughts Thanks again to all who came before & shared their experiences & suggestions. If anyone has or is considering a similar setup & has questions or wants me to try testing a configuration feel free to ask. FAQ's: Q. I just updated from OS X 10.9.x / 10.10.x / 10.11.x to the latest revision and my card is no longer recognized?? A. Major OS updates seem to reset the System Integrity Protection flag. You need to reboot into a Recovery Partition, then open Terminal and do "csrutil disable". Then reboot and re-run the latest automate-eGPU script. Q. Can I use the provided Akitio 60-watt power brick to power the Akitio case, with a separate ATX power supply for the GPU card at the same time? A. In theory this is not optimal because there could be ground-loop current issues. But in practice I did this for over a week (waiting for a barrel connector to arrive) and I experienced no problems whatsoever. YMMV and use caution. Footnotes: -------------- Mac Mini (late-2012,) 16GB RAM Model Name: Mac mini Model Identifier: Macmini6,2 Processor Name: Intel Core i7 Processor Speed: 2.6 GHz Number of Processors: 1 Total Number of Cores: 4 L2 Cache (per Core): 256 KB L3 Cache: 6 MB Memory: 16 GB Boot ROM Version: MM61.0106.B0A SMC Version (system): 2.8f0 Serial Number (system): C07KMxxxxxx (redacted) Thunderbolt Bus (on board): Vendor Name: Apple Inc. Device Name: Mac mini UID: 0x0001000D1421FFA0 Route String: 0 Firmware Version: 23.4 Cable Firmware Version: 1.1.0 Link Controller Firmware Version: 0.12.3 AKiTiO Thunder 2 Box Vendor Name: inXtron Device Name: AKiTiO Thunder 2 Box Vendor ID: 0x41 Device ID: 0x236 Device Revision: 0x1 UID: 0x00410236155001A0 Route String: 1 Firmware Version: 24.1 Port (Upstream): Status: Device connected Link Status: 0x2 Speed: Up to 10 Gb/s x2 Current Link Width: 0x1 Cable Firmware Version: 1.1.0 Link Controller Firmware Version: 0.14.0 ZOTAC GeForce GTX 970 card Chipset Model: NVIDIA GeForce GTX 970 Type: GPU Bus: PCIe PCIe Lane Width: x4 VRAM (Total): 4095 MB Vendor: NVIDIA (0x10de) Device ID: 0x13c2 Revision ID: 0x00a1 ROM Revision: VBIOS 84.04.36.00.6e ==== Kernel_2016-03-18-120144-Mac-mini.zip Kernel_Panic_2016-03-18-120144-Mac-mini.zip
×
×
