OFFICIAL: SSD Benchmarking Thread

Recommended Posts

got an samsung 830 128 GB. It´s running in my aw m17x R4 with 498 MB/s reding und 343 MB/s writing. Has anyone the 256 GB model? I´m interestet in reading performance.

Share this post


Link to post
Share on other sites
got an samsung 830 128 GB. It´s running in my aw m17x R4 with 498 MB/s reding und 343 MB/s writing. Has anyone the 256 GB model? I´m interestet in reading performance.

Sequential real isn't the determining factor. In fact it's the least important one. Run a crystal disk benchmark and post the results here. @Brian could post his since I believe he has the 256 GB version of it.

----

Asylumized!

Share this post


Link to post
Share on other sites

Crucial M4 512GB in my HP EliteBook 8760w:

-----------------------------------------------------------------------

CrystalDiskMark 3.0.1 x64 © 2007-2010 hiyohiyo

Crystal Dew World : Crystal Dew World

-----------------------------------------------------------------------

* MB/s = 1,000,000 byte/s [sATA/300 = 300,000,000 byte/s]

Sequential Read : 496.328 MB/s

Sequential Write : 216.603 MB/s

Random Read 512KB : 420.827 MB/s

Random Write 512KB : 252.774 MB/s

Random Read 4KB (QD=1) : 20.041 MB/s [ 4892.8 IOPS]

Random Write 4KB (QD=1) : 62.026 MB/s [ 15143.0 IOPS]

Random Read 4KB (QD=32) : 199.576 MB/s [ 48724.6 IOPS]

Random Write 4KB (QD=32) : 223.034 MB/s [ 54451.6 IOPS]

Test : 1000 MB [C: 47.6% (219.0/460.5 GB)] (x5)

Date : 2012/12/10 15:25:08

  • Thumbs Up 1

Share this post


Link to post
Share on other sites

I wonder why are the range of speeds is so huge? It might be 100+ MBs even on the same sata6 connection. Is it have something to do with chipset controller on your motherboard? I heard somewhere the bind of sandforce + intel (moterboad chipset) shows the best results, is it true?

Share this post


Link to post
Share on other sites
crystal disk mark doesnt want to run on my laptop mhhh

Does it throw any specific error?

Sent from my GT-N7100 using Tapatalk 2

Share this post


Link to post
Share on other sites

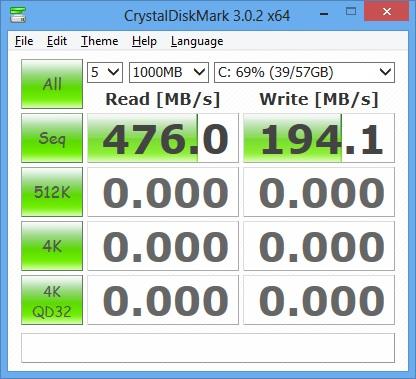

Kingston SSDNow 200 V+ 240GB [ATTACH=CONFIG]6054[/ATTACH] Sorry, I only did sequential test

:-) that's like the most useless number. Show us 4k performance.

Share this post


Link to post
Share on other sites

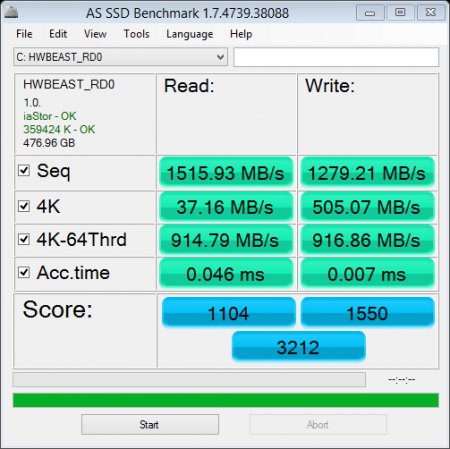

Here's mine...new build with M6E Z87 and 4770k @ 5.0ghz

[ATTACH=CONFIG]8609[/ATTACH]

  • Thumbs Up 1

Share this post


Link to post
Share on other sites

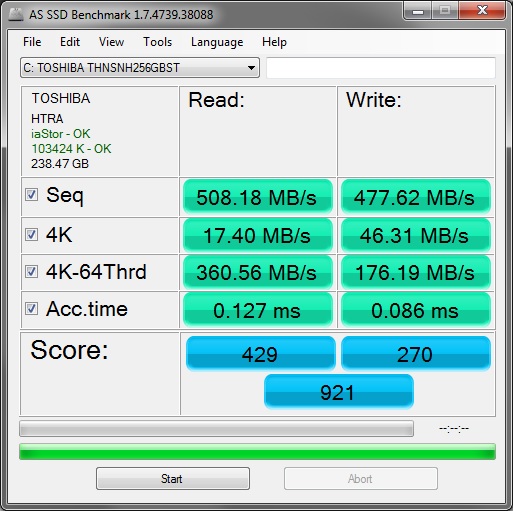

Toshiba Q series 256gb

Definitely a bit slower than the guys running raid but can't beat the performance for $135 shipped.

Share this post


Link to post
Share on other sites

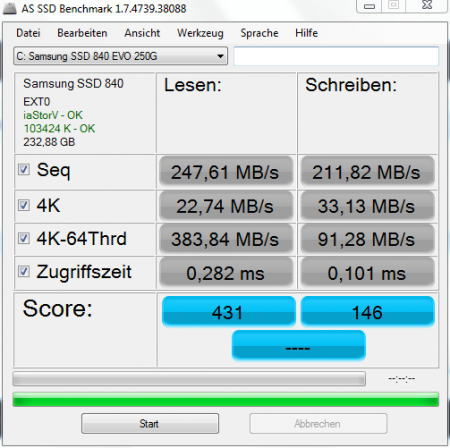

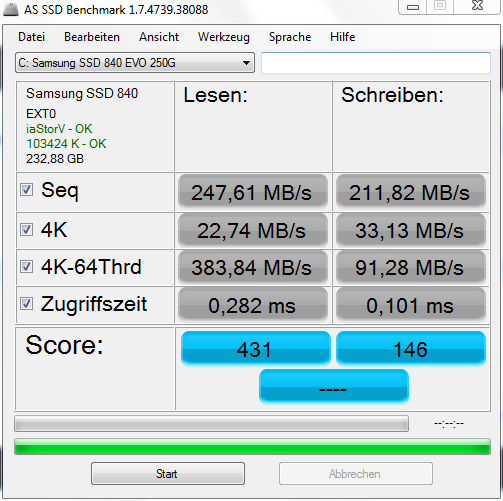

So far i can't see any other results (not enough posts) but i'm sending from work Samsung 840 EVO 256GB


Results are much worse than my 830 256GB from home :/

Share this post


Link to post
Share on other sites

256GB Samsung SM841 (MZ-7PD256D) benchmarks: after secure erasing drive and applying tweaks at Dozty | How to Improve SSD Performance, disabling C1E and setting highest multiplier with EIST disabled using Throttlestop:


Pros

- can be had for considerably lower $$ on ebay than a Samsung 840 Pro but delivers similar performance as shown here

- very low power consumption drive -> improve notebook battery life over other SSDs/HDDs

- massive improvement in boot times and system responsiveness over a HDD

- quietens system as has no HDD spin noise

Cons

- Samsung Magician will not recognize the drive -> does not work

- Samsung 840 Pro firmware cannot be installed on drive and there are no Dell updates that I can find

Share this post


Link to post
Share on other sites

@Jimbo

Your RAM is 2fast4me ;-;

ADATA XPG 2x8GB @ 2400. I did nothing but enable XMP (I'm completely new to OC'ing stuffs)


Shizuku is pleased.

---

Samsung 840 EVO 120GB. 36.8GB free. 2nd OS install. I didn't really close my applications. Had chrome, foobar (music on other drive), steam open.


---

Samsung PM830 mSATA 64GB ( @deadbydawn thanks again!) . 32GB free


  • Thumbs Up 2

Share this post


Link to post
Share on other sites
