This is going to be a more hardware based guide, because I will switch from my large eGPU setup with an ITX case to an "all in the AKiTiO case" setup.

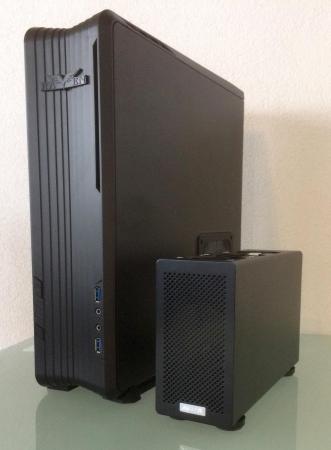

A significant difference in size as shown in the spoiler:







The software setup is going to "reuse" my current instalation of Windows 8.1 from this guide: http://forum.techinferno.com/implementation-guides-apple/8571-2014-15-macbook-pro-iris-gtx970%4016gbps-tb2-akitio-thunder2-win8-1-%5Bdschijn%5D.html

Other builds

I made 3 builds until now:





• 2013 13" Macbook Pro + GTX970@16Gbps-TB2 (AKiTiO Thunder2) + Win8.1/OSX10.10 [Dschijn]
• 2014 15" Macbook Pro Iris + GTX970@16Gbps-TB2 (AKiTiO Thunder2) + Win8.1 [Dschijn]
• 2014 15" Macbook Pro Iris + GTX970@16Gbps-TB2 (AKiTiO Thunder2) + Win8.1 [Dschijn#2]





GPU

To achieve that I will switch my GPU from a EVGA GTX 970 FTW+ to a much smaller Galax GeForce GTX 970 Gamer OC (Galax is known as a different brand in Germany: KFA2). That GPU is so short it can directly fit into the AKiTiO case without any modifications.



Cooling

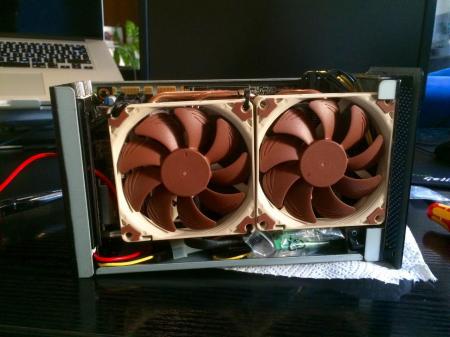

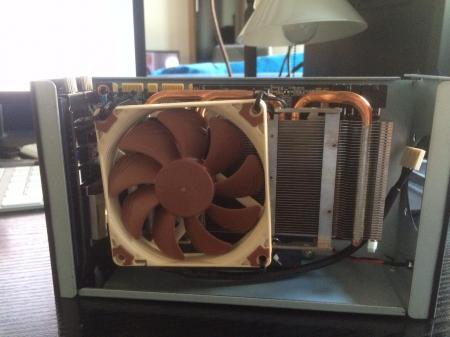

For better cooling I will remove the stock fans and replace them with two 92x14mm Noctua PWM fans. I ordered a Mini 4-Pin GPU (Female) to Mini 4-Pin GPU (Male) y-cable to connect both fans directly to the GPU (fingers crossed that the PWM signal is good will give me a low Idle fan speed).



Case modifications

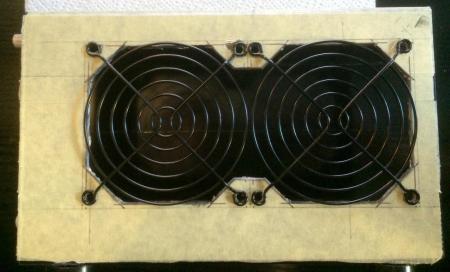

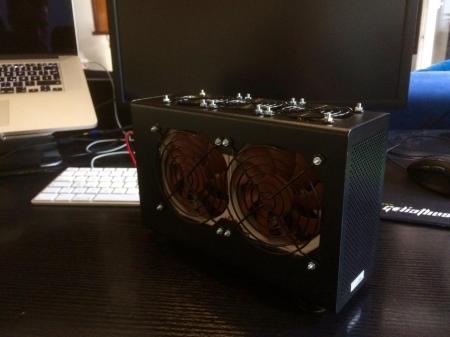

I will make two big openings two improve the cooling. 2x92mm cuts on the left side of the case, right in front of the new fans. This cut will be covered with 2x92mm black fan grills.

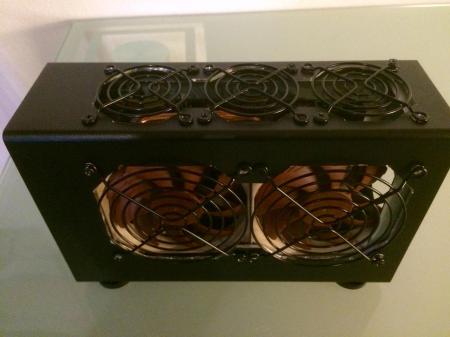

3x60mm cuts on the top for a good and easy exhaust of the hot air. This will be covered with 3x60mm black fan grills.



Power Supply

I will use parts of an old Dell OPTIPLEX GX620, that I got really cheap from eBay. That parts are the 220W Dell DA-2 PSU and the male plug that the PSU can connect to. That plug was directly attached to the mainboard of the Optiplex and will give me the opportunity for a small plug on the AKiTiO case.

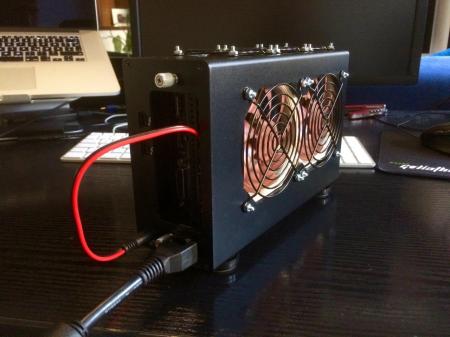

The AKiTiO itself will get power from a barrel plug. I am not really comfortable to solder wires directly to the AKiTiO PCB, so I will try the barrel plug first. Currently my idea of routing the cable for the barrel plug is to route it through the GPUs ventilation slots on it's IO shield.



Overclocking (or maybe underclocking)

If stability is good with the stock seetings and the cooling will keep the GPU cool, I will consider a bit OC.

If the stability isn't good because of the PSU and the cooling can't handle the heat without a lot of noise, I consider underclocking the GPU based on this guide: https://translate.google.de/translate?sl=de&tl=en&js=y&prev=_t&hl=de&ie=UTF-8&u=http%3A%2F%2Fwww.tomshardware.de%2Fhtpc-gtx970-modding-cool-quiet%2Ctestberichte-241708.html&edit-text=



Progress

(x) ordering all the parts

(x) remove the stock GPU fan

(x) attach the new fans to the GPU

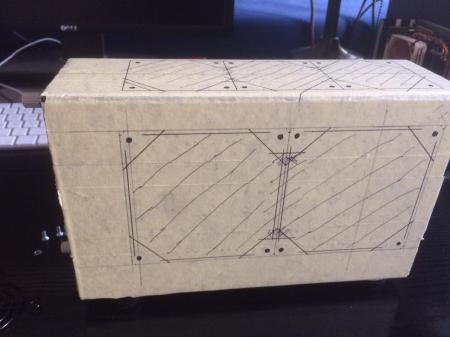

(x) tape the case and draw cutting and drilling positions

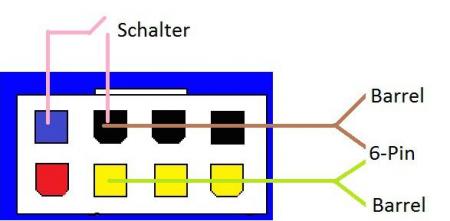

(x) solder the cables: 6-Pin PCIe

(x) solder the cables: barrel plug

(x) solder the cables: power switch

(x) cut the ventilation holes: top side

(x) cut the ventilation holes: left side

(x) drill the holes for the fan grills

(x) cut the case for the fan (92mm in front is beeing partially blocked be the case structure)

(x) cut the case 3x for the DA-2 power plug

(x) glue the power plug into the case with two-component adhesive



(x) cut the case for a power switch (currently planning to place it in the front, because there is no other good option yet)

I changed my mind and will keep the switch inside the case. Not happy with any other solution yet.



Pictures

(Schalter = switch)



Windows 8.1 installation

Since I already had Windows 8.1 running with my previous eGPU, it was just plag and play.

Old guide: http://forum.techinferno.com/implementation-guides-apple/8571-2014-15-macbook-pro-iris-gtx970%4016gbps-tb2-akitio-thunder2-win8-1-%5Bdschijn%5D.html



OSX 10.10.3 installation (update 14th June 2015)

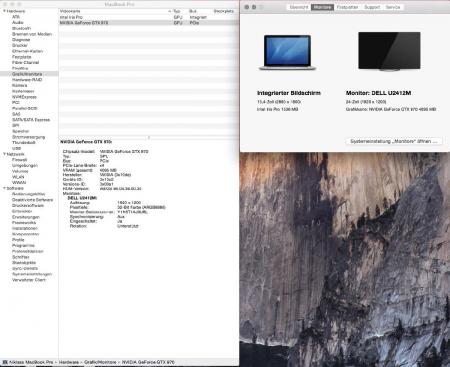

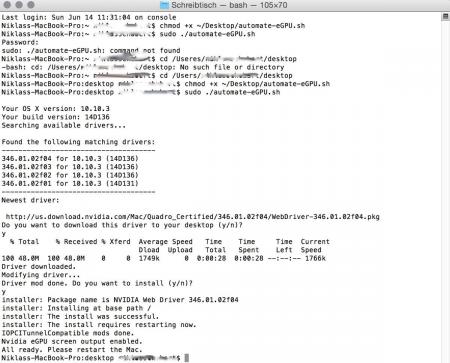

Thanks to goalque! He wrote an awesome script to enable display output in OSX on eGPUs: http://forum.techinferno.com/mac-os-x-discussion/10289-script-enabling-nvidia-egpu-screen-output-os-x.html#post136780



I just followed the instructions and have the eGPU running now in OSX as well:

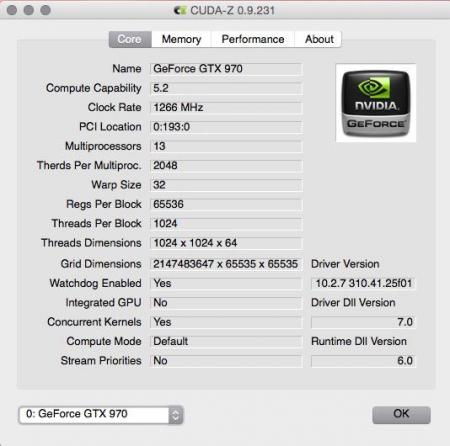

For Cuda support I also installed the latest Cuda driver: http://www.nvidia.de/object/mac-driver-archive-de.html



Tested stability

Soldering is done! Created a bundle of wires in which

- all 12V wires are connected to all 3x12V DA-2 ports

- all ground wires are connected to all 3xground DA-2 ports

Setup is working flawless and booted right into windows (windows had to install the new GPU though...).

First benchmark "3d Mark FireStrike" with stock GPU settings (new fans at 100%):

NVIDIA GeForce GTX 970 video card benchmark result - Intel Core i7-4870HQ Processor,Apple Inc. Mac-3CBD00234E554E41



Windows Benchmarks (110% Power target, +100MHz clock speed, +75MHz memory speed, external display):

3dMark - FireStrike (Score: 9012, Graphics Score: 11027): NVIDIA GeForce GTX 970 video card benchmark result - Intel Core i7-4870HQ Processor,Apple Inc. Mac-3CBD00234E554E41

3dMark - 11 (Score: 11988, Graphics Score: 14150): NVIDIA GeForce GTX 970 video card benchmark result - Intel Core i7-4870HQ Processor,Apple Inc. Mac-3CBD00234E554E41

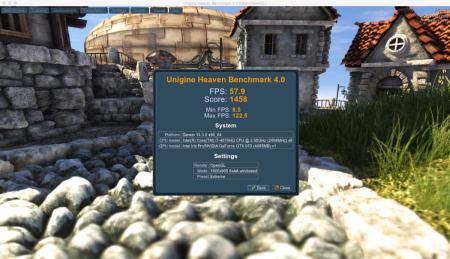

Unigine Heaven (Preset: Extreme): Score: 1624

Unigine Valley (Preset: Extreme HD): Score: 2266

Unfortunately the GPU can't keep the Boost clock speed of 1480MHz with the fans at 9V, because it is running into the 80°C temperature target. High load clock speeds are between 1430-1460MHz.

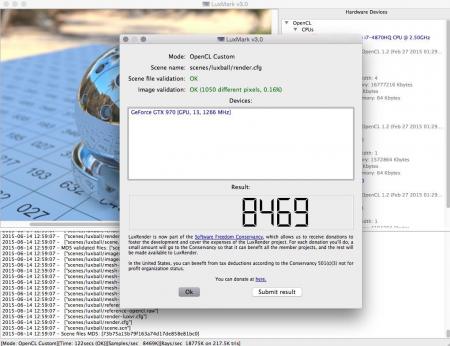

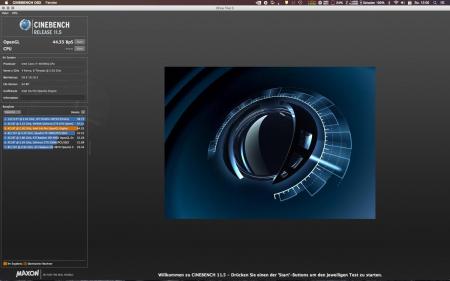

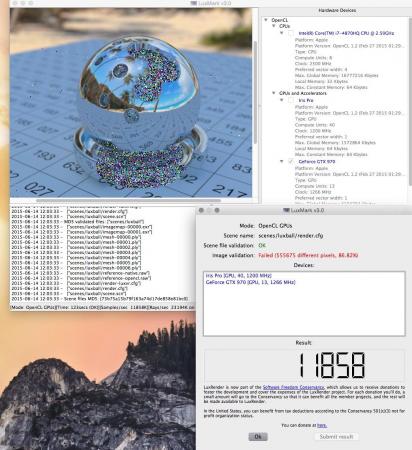

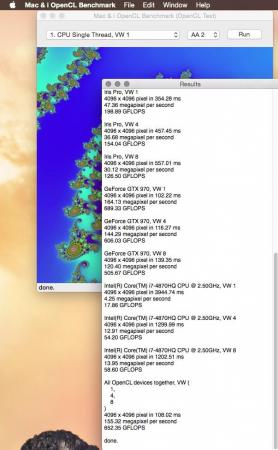

OSX Benchmarks

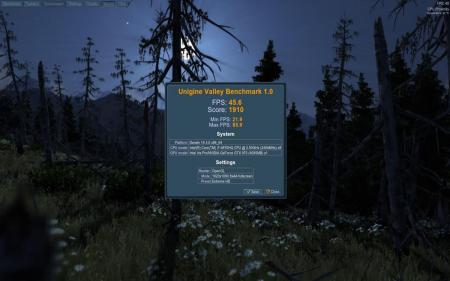

Unigine Valley: https://unigine.com/products/valley/



Unigine Heaven: https://unigine.com/products/heaven/



Cinebench: http://www.maxon.net/products/cinebench/overview.html



Luxmark: http://www.luxmark.info/



Mac&i OpenCL Benchmark: http://www.heise.de/mac-and-i/downloads/65/1/1/8/0/8/7/8/Mac___i_OpenCL_Benchmark.app.zip



GFX Bench: https://gfxbench.com/result.jsp

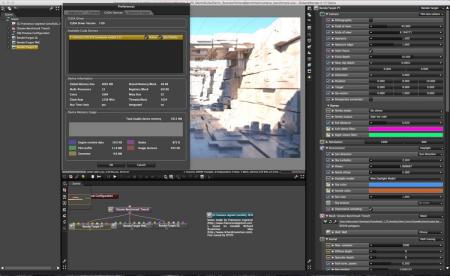

Octane Render: http://home.otoy.com/render/octane-render/demo/





Videos (all captured on an external display, only Firestrike running on the internal display):



3dMark Firestrike via Optimus on the internal display (changed the music, you like it):



The Witcher 3:





Diablo III in 4k resolution (downsampling to 1980x1200) - FPS counter in the bottom right corner:





Battlefield 4 - FPS counter in the upper right corner:





Far Cry 4 - FPS counter in the upper left corner:









GTA V- FPS counter in the upper left corner:





Running 8 displays on one Thunderbolt connection with two daisy chained eGPUs:





Heroes of the Storm:















Edited February 21, 2016 by Dschijn
