kman4you Posted March 19, 2015 Share Posted March 19, 2015 Hi Members, Good-afternoon to all.i have a problem regarding my gpu. A week ago my laptop's gpu gtx 670m was fried and i took a friends graphic card gtx 580m from its alienware m18xr2. Now my laptop is not detecting that gpu. Is there anyway to unlock BIOS or any other thing like that,from which i can made that alienware card compatible for my laptop.here are specs of my laptopMSI GT60 0NC / Model Name: MS-16F3CPU : i7-3610QMVGA : GTX 670M / 3GB (Dead)LED : 15.6 FHDRAM : DDR3 12GB (4GB * 3)HDD : 1TB (500GB*2 RAID 0)7200RPMRF : 802.11/b/g/nOS : Windows 8.1 x64Sata Mode : RAID 0 Quote Link to comment Share on other sites More sharing options...
Bios Modder Klem Posted March 20, 2015 Bios Modder Share Posted March 20, 2015 Hi Members, Good-afternoon to all.i have a problem regarding my gpu. A week ago my laptop's gpu gtx 670m was fried and i took a friends graphic card gtx 580m from its alienware m18xr2. Now my laptop is not detecting that gpu. Is there anyway to unlock BIOS or any other thing like that,from which i can made that alienware card compatible for my laptop.here are specs of my laptopMSI GT60 0NC / Model Name: MS-16F3CPU : i7-3610QMVGA : GTX 670M / 3GB (Dead)LED : 15.6 FHDRAM : DDR3 12GB (4GB * 3)HDD : 1TB (500GB*2 RAID 0)7200RPMRF : 802.11/b/g/nOS : Windows 8.1 x64Sata Mode : RAID 0Can your laptop now boot in Windows, when you insert 580M? Quote Link to comment Share on other sites More sharing options...
kman4you Posted March 20, 2015 Author Share Posted March 20, 2015 yes my laptop boot in windows but device manager only shows the intel HD4000 graphics and dont recognize 580m Quote Link to comment Share on other sites More sharing options...

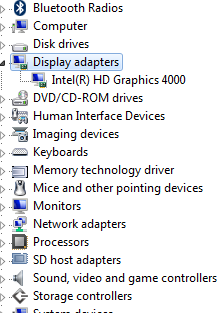

kman4you Posted March 21, 2015 Author Share Posted March 21, 2015 @Klem brother, my laptop boot in windows but no 580m is available. as you can see Quote Link to comment Share on other sites More sharing options...
Bios Modder Klem Posted March 21, 2015 Bios Modder Share Posted March 21, 2015 yes my laptop boot in windows but device manager only shows the intel HD4000 graphics and dont recognize 580mI think MSI GT60/70 does not compatible with GTX 580M, even if you flash MSI vbios. Quote Link to comment Share on other sites More sharing options...
kman4you Posted March 21, 2015 Author Share Posted March 21, 2015 thank you @Klem for replying, actually due to absence of gpu my notebook's fan is running on full speed, so the whole point of this bios unlocking was to recognize alienware's gpu in my notebook. now as u said that it will not help even i flash bios.i want to ask that is there any way to make the fan silent, i tried every software but i got nothing. fan is running on full speed as usual,because i read in msi forums that fan is controlled by embedded controller (ec).Is there any way to unlock my bios and change the settings of ec to silent my notebook's fan. Quote Link to comment Share on other sites More sharing options...
Khenglish Posted March 21, 2015 Share Posted March 21, 2015 yes my laptop boot in windows but device manager only shows the intel HD4000 graphics and dont recognize 580mThis is normal. The card will not appear until you install a driver. You will have to .inf mod the driver to get it to install. See how to here: http://forum.techinferno.com/nvidia/5249-%5Bguide%5D-modding-nvidia-oem-inf-files.html Quote Link to comment Share on other sites More sharing options...
kman4you Posted March 21, 2015 Author Share Posted March 21, 2015 @Khenglish i've done the same but at the point (Device manager -> Display Adapters ->) i only see intel HD4000 graphics.no nvidia gtx 580m is shown there. Quote Link to comment Share on other sites More sharing options...
Bios Modder Klem Posted March 22, 2015 Bios Modder Share Posted March 22, 2015 Also you can try flash in to 580M, vbios from MSI 675M. But you need programmer device or your friends laptop Alienware m18xr2. Quote Link to comment Share on other sites More sharing options...
kman4you Posted March 22, 2015 Author Share Posted March 22, 2015 i don't have anyone of those. now it means i can't do any thing ? Quote Link to comment Share on other sites More sharing options...
Bios Modder Klem Posted March 22, 2015 Bios Modder Share Posted March 22, 2015 Try find your card in DOS. Create bootable USB stick, put on this stick nvflash, boot laptop in real DOS mode, and run nvflash with key --list Quote Link to comment Share on other sites More sharing options...
kman4you Posted March 22, 2015 Author Share Posted March 22, 2015 @Klem can you send me the link how to do the stuff that you mentioned above. Quote Link to comment Share on other sites More sharing options...
Bios Modder Klem Posted March 22, 2015 Bios Modder Share Posted March 22, 2015 @Klem can you send me the link how to do the stuff that you mentioned above.http://forum.techinferno.com/nvidia-video-cards/2166-%5Bguide%5D-nvidia-vbios-flashing.html Quote Link to comment Share on other sites More sharing options...
kman4you Posted March 22, 2015 Author Share Posted March 22, 2015 appreciated @Klem - - - Updated - - - @Klem where can i find VBIOS file?? which i want to flash? Quote Link to comment Share on other sites More sharing options...
Bios Modder Klem Posted March 22, 2015 Bios Modder Share Posted March 22, 2015 appreciated @Klem- - - Updated - - - @Klem where can i find VBIOS file?? which i want to flash? Video Bios Collection | techPowerUp Quote Link to comment Share on other sites More sharing options...
kman4you Posted March 22, 2015 Author Share Posted March 22, 2015 @Klem how can i control fanspeed in BIOS. I didn't find any option to control fan speed,because discrete graphic card is missing ,my nb fan is running on full,i am using unlocked bios made by Xonar.link <http://forum.techinferno.com/msi/1839-msi-g-series-unlocked-bios.html> . there are alot of options and i am not messing with any option because i am new to BIOS stuff Quote Link to comment Share on other sites More sharing options...

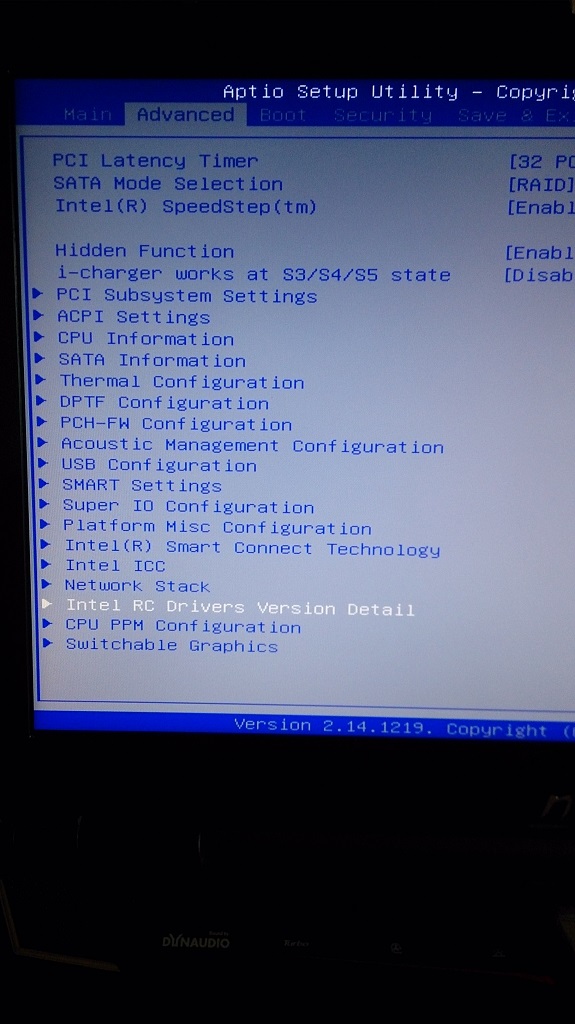

kman4you Posted March 22, 2015 Author Share Posted March 22, 2015 @Klem these are the options of my nb BIOS Quote Link to comment Share on other sites More sharing options...
Bios Modder Klem Posted March 22, 2015 Bios Modder Share Posted March 22, 2015 @Klem how can i control fanspeed in BIOS. I didn't find any option to control fan speed,because discrete graphic card is missing ,my nb fan is running on full,i am using unlocked bios made by Xonar.link <http: forum.techinferno.com="" msi="" 1839-msi-g-series-unlocked-bios.html=""> . there are alot of options and i am not messing with any option because i am new to BIOS stuffWithout discrete graphic card in this model of laptop, fan will run at full speed. It is normal, and this you cant solve. Unlock or mod bios does not solve this issue, and you need connect discrete graphic card.</http:> Quote Link to comment Share on other sites More sharing options...
kman4you Posted March 22, 2015 Author Share Posted March 22, 2015 580m is not shown in DOS mode.nvflash says no card is available Quote Link to comment Share on other sites More sharing options...
Moderator BAKED Posted March 22, 2015 Moderator Share Posted March 22, 2015 580m is not shown in DOS mode.nvflash says no card is availableAre you sure the card works? Try reseating the card.If I remember correctly the Dell version of 580M works in 16F2 but that laptop supported a lot of cards.. Quote Link to comment Share on other sites More sharing options...
kman4you Posted March 22, 2015 Author Share Posted March 22, 2015 yes card was in working condition when i pulled it from alienware @Suoah Quote Link to comment Share on other sites More sharing options...
Bios Modder Klem Posted March 22, 2015 Bios Modder Share Posted March 22, 2015 Vbios 580M does not support Optimus tecnology, but vbios MSI 675M are support this tecnology. Now you need the laptop where you pulled it from (Alienware), or the same laptop, or programmer device. Quote Link to comment Share on other sites More sharing options...
kman4you Posted March 22, 2015 Author Share Posted March 22, 2015 ok @Klem what should i do after getting the alienware? Quote Link to comment Share on other sites More sharing options...
Bios Modder Klem Posted March 22, 2015 Bios Modder Share Posted March 22, 2015 ok @Klem what should i do after getting the alienware?Just flash in 580M, vbios from MSI 675M. Quote Link to comment Share on other sites More sharing options...
kman4you Posted March 22, 2015 Author Share Posted March 22, 2015 ok thank you @Klem Quote Link to comment Share on other sites More sharing options...
