Clevo W2xxHNx/W2xxHPx series Modded & Stock BIOS [Mods]

Recommended Posts

Clevo W2xxHNx/W2xxHPx series Modded & Stock BIOS



Note: This thread is no longer updated. You can find the latest info HERE.



Notice: Make sure you have downloaded the correct Mod for your specific model and that the laptop's or a UPS battery backup is present during the update process.



Disclaimer: I do not hold any responsibility for any problems that may occur by using the mods in a wrong way. Remember that you flash these at your own risk. I have personally tested the W25xHNx mod. Since the laptops mentioned here are of the same series and thus almost identical, you shouldn't face any problems with the rest of them. The same changes were made to all models after ensuring that their stock counterparts are identical to the tested W25xHNx laptop.



Note: All mods contain both the Modded and Stock BIOS image files so that you can go back in case you want to. Use Mod.bat or Stock.bat at a DOS environment respectively. Check the Flashing Guide below for detailed instructions.



W2xxHNx/W2xxHPx Mod Changelog:



v1.2



Intel Sandy Bridge 206A7 CPU microcode 29 --> 2D



v1.1



Intel Management Engine 1.5MB firmware 7.1.60.1193 --> 7.1.80.1214
Intel HD Graphics 3000 vBios 2170 --> 2171
Updated flashers to AFUDOS v3.07.01 and FWUpdate v7.1.50.1166



v1.0



Intel Management Engine 1.5MB firmware 7.0.4.1197 --> 7.1.60.1193
Intel HD Graphics 3000 vBios 2117 --> 2170
JMicron JMC25x Gigabit Ethernet Controller 1.0.9.0 --> 1.0.10.0
Intel Sandy Bridge 206A7 CPU microcode 12 --> 29
Removed redundant Intel Sandy Bridge 206A7 CPU microcode 14
Added support for Intel Core i7-2820QM ES/QS processor (W25xHPW)
Fixed grammar mistake at Resuming from Hibernation image
Fixed spelling mistakes at Advanced tab (Alart --> Alarm)
Merged BIOS & EC firmware into a single image file
Correct BIOS version & date reported in Windows



Clevo W25xHNx series BIOS v1.01.07 & EC v1.00.06 [Mod v1.2]






Supported Models (*): W251HNQ, W251HNQ-C, W255HN, W253HNQ1, W253HNQ, W258HNQ etc...



Clevo W25xHPx series BIOS v1.01.07 & EC v1.00.08 [Mod v1.2]






Supported Models (*): W251HPQ, W251HPQ-C, W255HP, W253HPQ1, W253HPQ, W258HPQ etc...



Clevo W27xHNx series BIOS v1.01.05 & EC v1.00.04 [Mod v1.2]






Supported Models (*): W270HNQ etc...



Clevo W27xHPx series BIOS v1.01.05 & EC v1.00.05 [Mod v1.2]






Supported Models (*): W270HPQ etc...



Clevo W25xHPW series BIOS v1.01.05 & EC v1.00.04 [Mod v1.2]






Supported Models (*): W251HPW, W255HPW, W258HPW, W253HPW1, W253HPW etc...

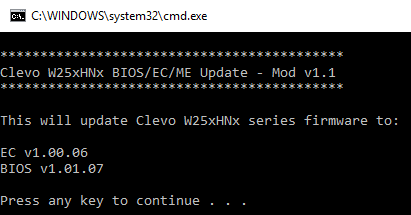

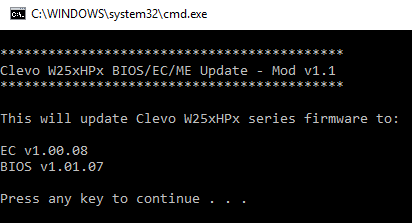

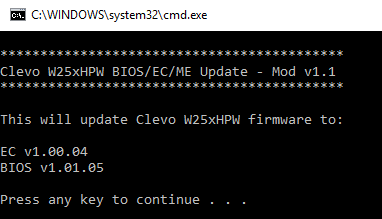

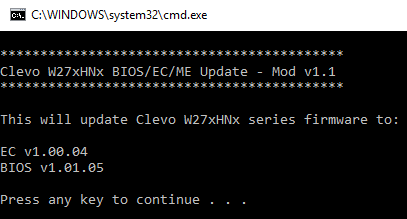

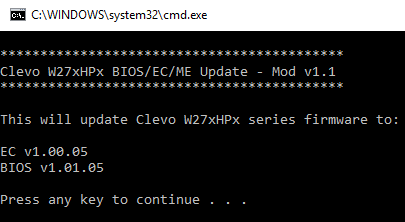

Flashing Guide (Text & Video):



1. Create a bootable MSDOS/FreeDOS USB flash-drive using Rufus

2. Copy all files relevant to your model at the USB flash-drive's root directory

3. Plug the USB flash drive at your laptop's USB 2.0 port

4. Restart and press F2 to enter BIOS to make sure that you do not have any BIOS or HDD password protection

5. Restart and press F7 to enter the Boot Order menu at which select your USB flash drive

6a. To update your BIOS & EC to the latest modded version, type Mod

6b. To update your BIOS & EC to the latest stock version, type Stock

7. Follow the easy on-screen prompts to finish the update process

8. The first time after the update, the laptop will boot and automatically restart quickly

9. Press F2 to enter BIOS and Load Setup Defaults followed by Save Changes and Reset

10. You have successfully updated your BIOS & EC to the latest modded/stock versions



Spoiler



(*) As shown at Clevo Bios Mirror and laptop Service Manuals



Special thanks to Lordkag for the help and advice.

Edited by plutomaniac
  • Thumbs Up 1

Share this post


Link to post
Share on other sites

New Clevo W2xxHNx/W2xxHPx series BIOS Mods



v1.1

  • Intel Management Engine firmware from v7.1.60.1193 (31/08/2012) --> v7.1.80.1214 (23/07/2013)
  • Intel HD Graphics 3000 vBios from v2170 (07/08/2013) --> v2171 (08/12/2014)
  • Updated flashers to AFUDOS v3.07.01 and FWUpdate v7.1.50.1166
Edited by plutomaniac

Share this post


Link to post
Share on other sites

s.o.s NEED HELP  :hi everyone  ! i have been flashing bios on a w251hnq and i had a power supply failure due the procces ,so i have corrupted bios . now only black screen,power lights and fan works, is there a way to fix this or just sent it  to rubbish?

Share this post


Link to post
Share on other sites
