my M14x R2 "experimental cooling mod" success!!!

[thanats007]

So after gathering different ingredients i did my first "experimental cooling mod" for the M14x R2. The idea was to use this awesome formfactor powerful toy at full performance without disturbing fan noise, too high temperatures and extreme wear off effects.

My first idea was to repaste it with better thermal paste since alot of people did this with great success. i used MX4 before and now in this mod IC Diamond for both CPU and GPU. Then i did a PCH cooling mod you can find details about in my thread :

http://forum.techinferno.com/alienware-m14x/1874-my-m14x-r2-pch-cooling-mod.html

The next step was to cut alot of fitting peaces of 2mm thick 1 w/mk adhesive thermal pads for all voltage converters / chips on the upper mainboard side since heat dissipates upwards and there are alot more surfaces on the upper side of the board (not the GPU / CPU side). Since overclocking also raises temps of these chips and converters + the fact that wear off due to heat is a big issue in all electronic components i thought this wont be a bad idea.

After this i cut pieces of 0,5mm thick Phobya 7 w/mk thermal pads for the CPU and GPU so the heat can dissipate also horizontal and reaches more surface of the heatspreader downside. I also added 1 layer for the PCH as an addition for the PCH cooling mod.

Then i tried to stick as much copper heatsinks as possible on the heatpipe / heatsink to add more surface as a passive cooling addition. However success was not too great due to the highly compressed vertical design and i ended up only sticking 2 of my bought 16 copper pieces on the heatsink. It wasnt possible to reassemble the chassis with more than these 2 pieces attached to the heatsink or pipes. So i used bigger parts of the 2 mm 1 w/mk thermal pads on top of the CPU end of the heatpipe since it can be pressed to 1/2 of its size.

The most trickiest part was the many small thermal pads on chip / converters thingy since you have to be very patient with all the tiny pieces that stick to everything but not the surface you wanted it on.

The result of my mod is very good. Now i can use my M14x R2 with Turbo on without the horrible hair dryer mode and no 80 C + temps no matter if i do OC or not. GPU stays at max 62 C in stress tests / 59 C while gaming. CPU never reaches 80 C anymore and stays in the mid 70´s C. The only downside is that the temps do climb down slower now but i think this is a small tradeoff for the fact that i can use Turbo all the time now without noise and heat problems anymore. Plus the fact that my system can survive much more years as with temps of 80 C +.

Here is the step by step with result comparison.

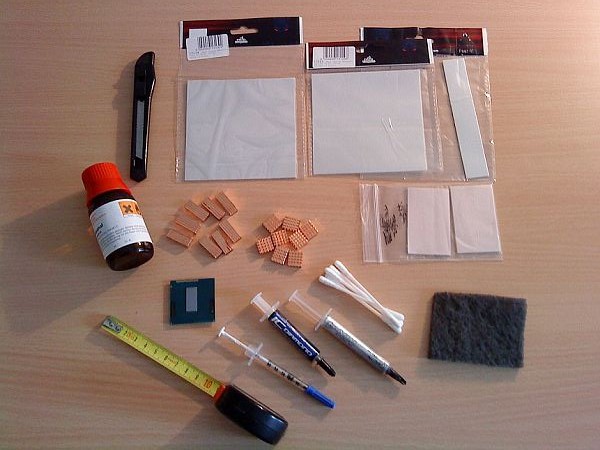

1. Preparations and Ingredients

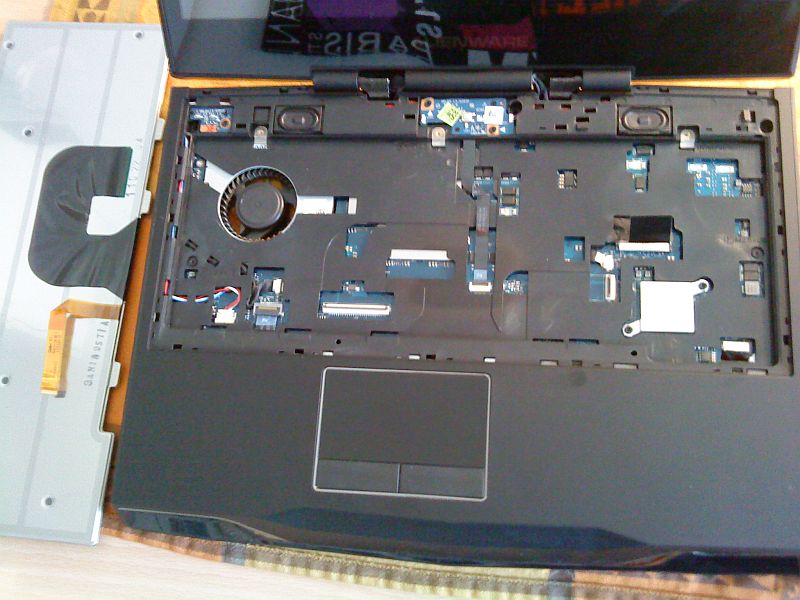

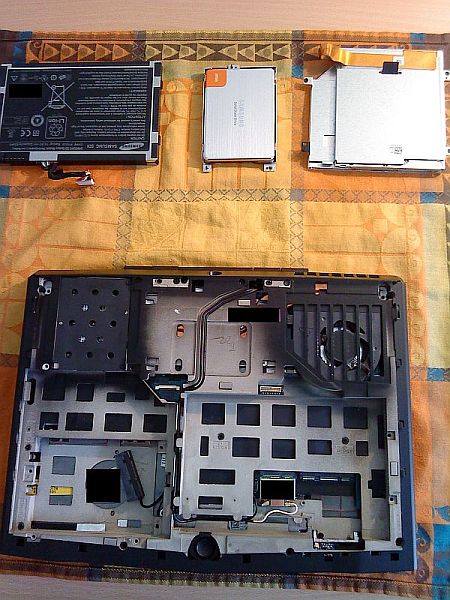

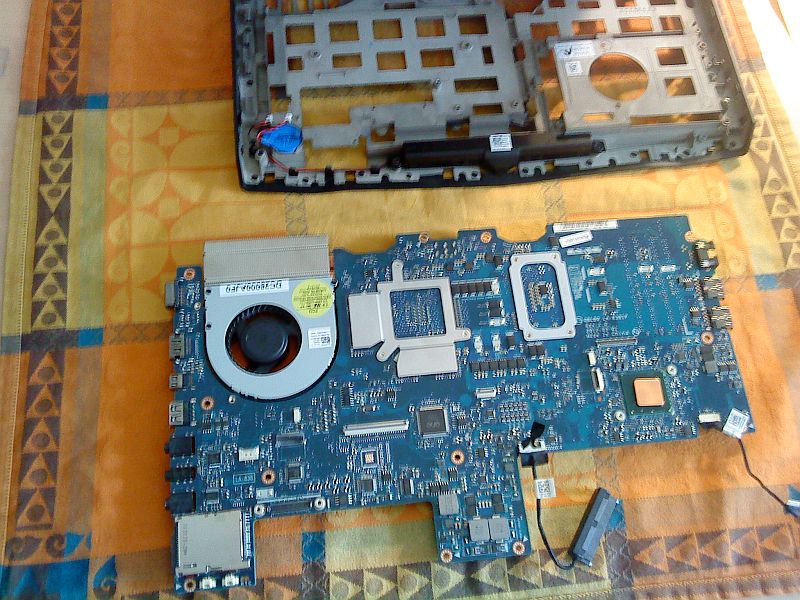

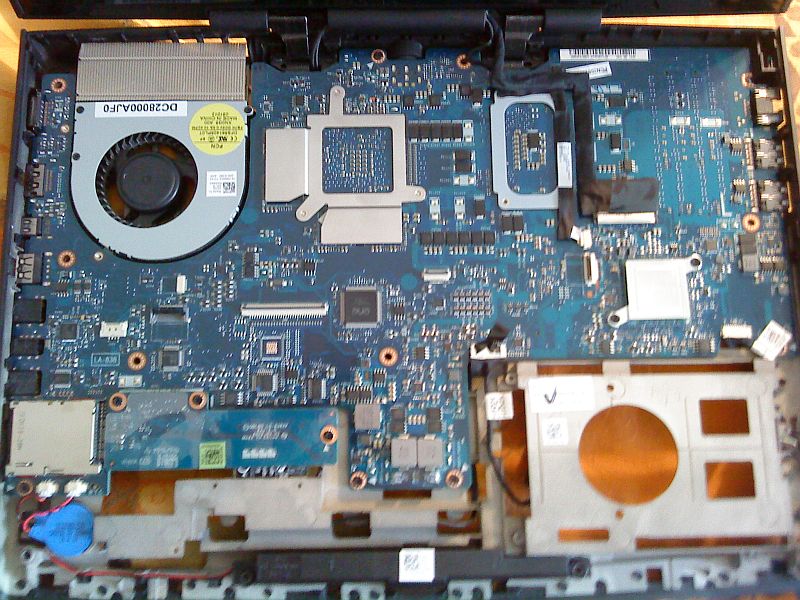

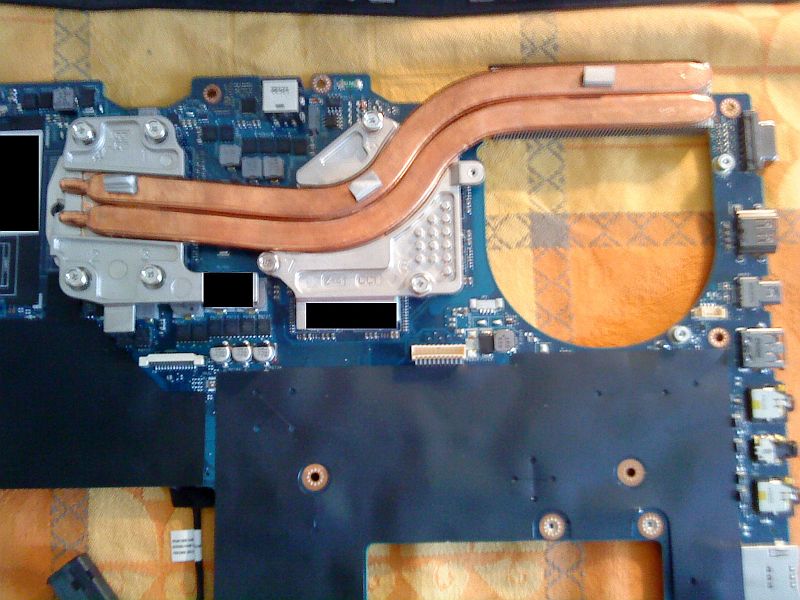

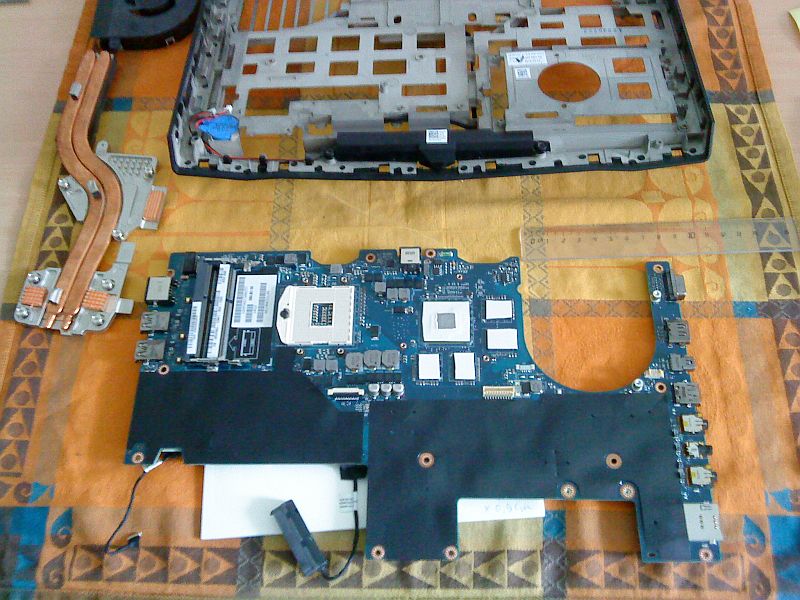

2. Disassembly

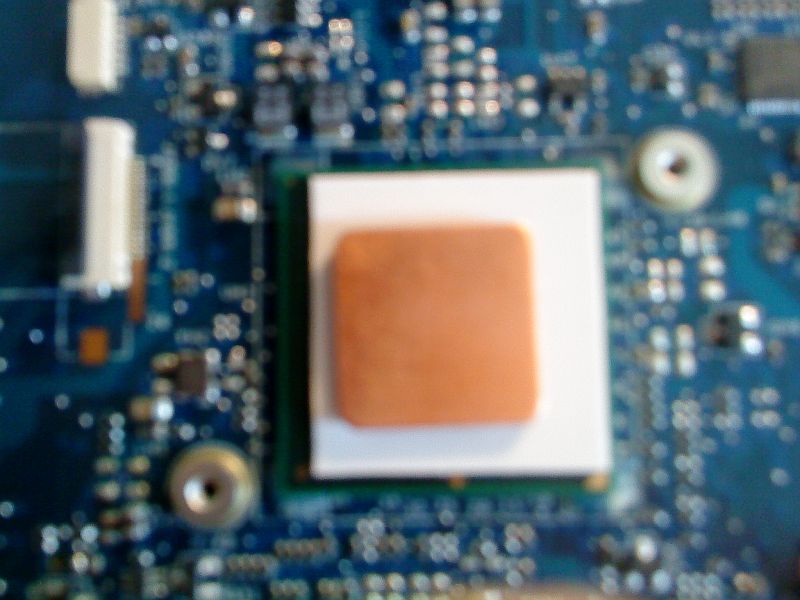

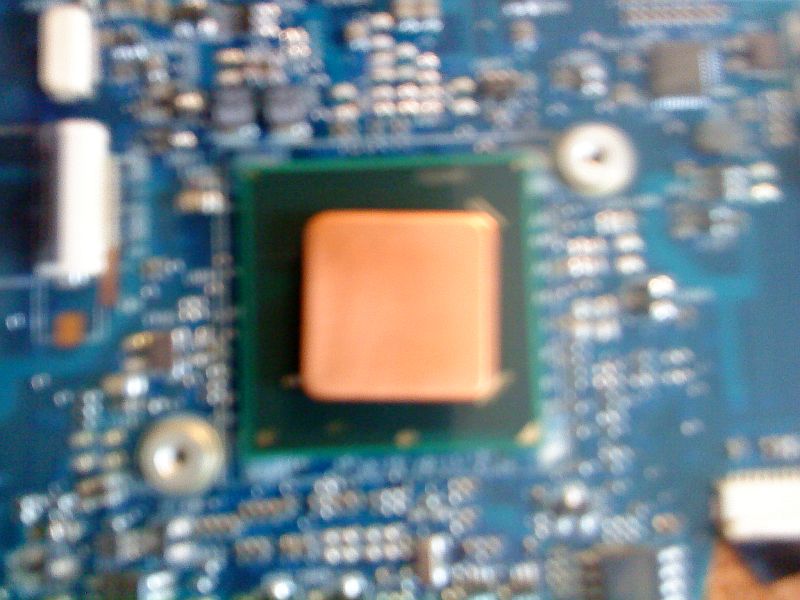

3. PCH mod addition

before

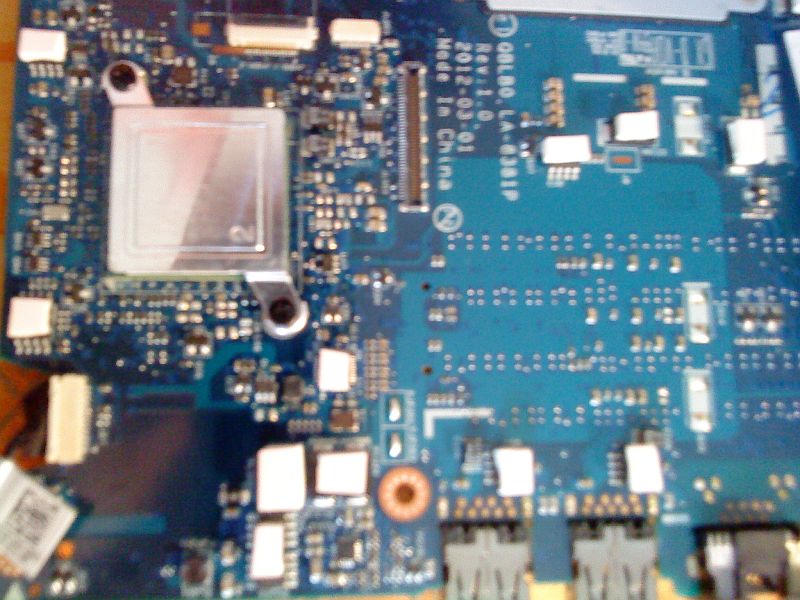

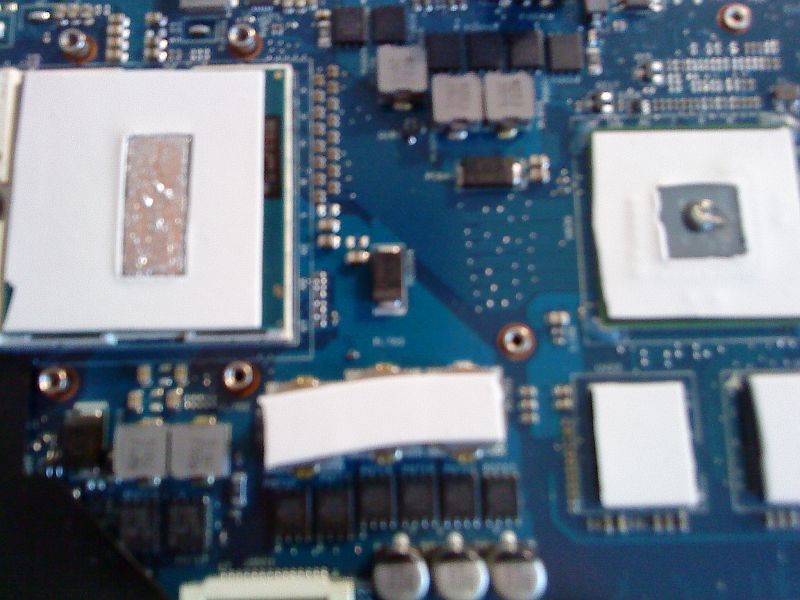

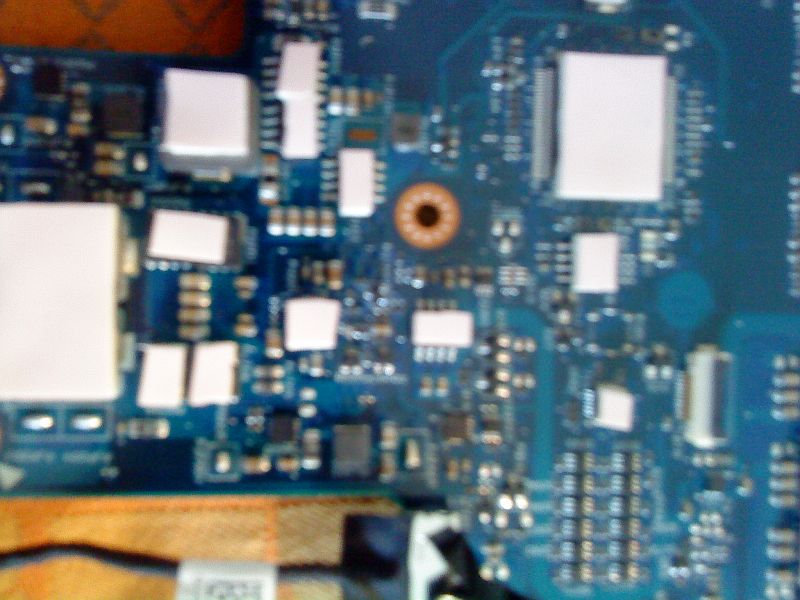

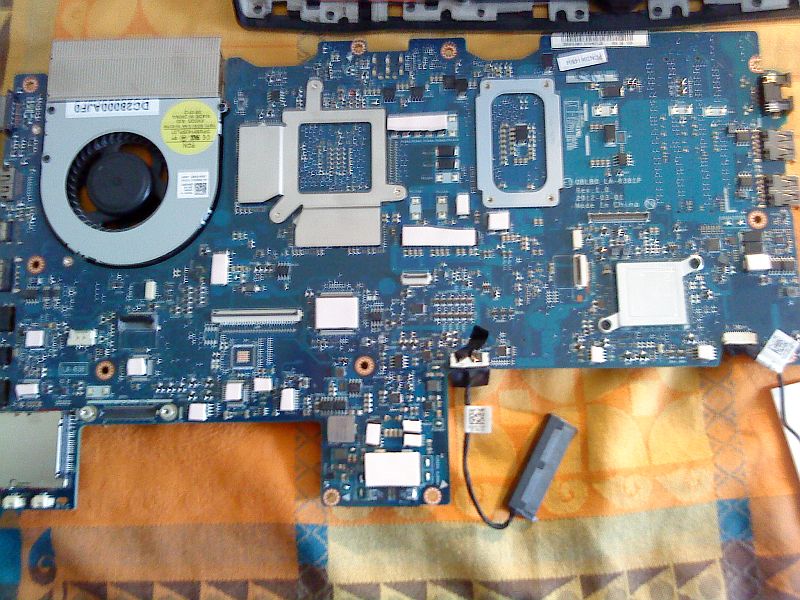

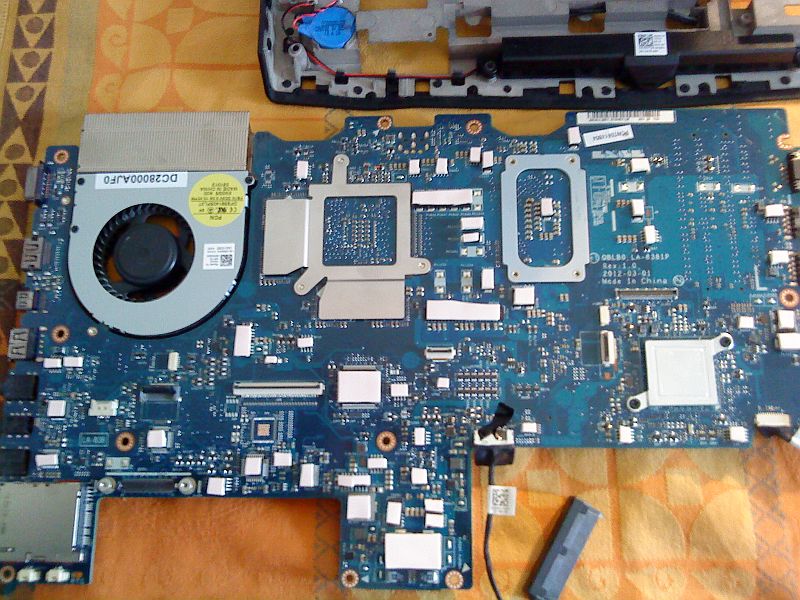

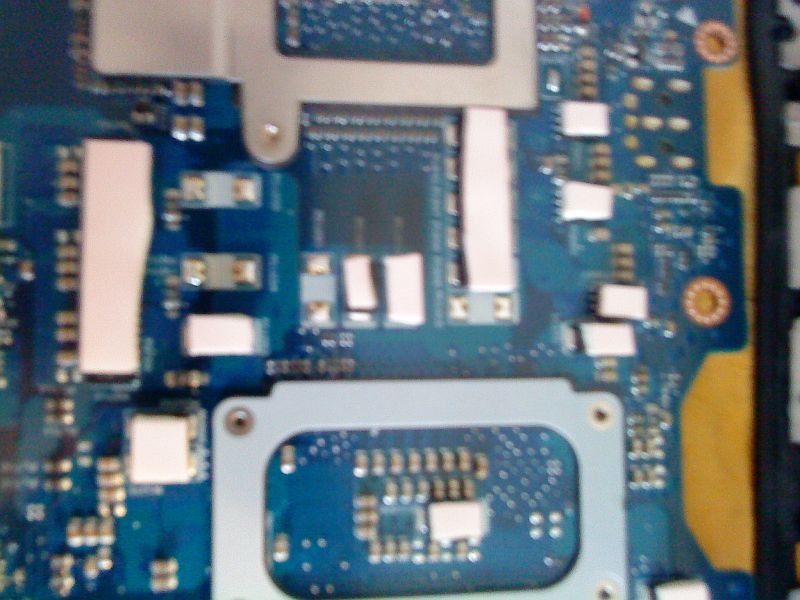

4. Thermal Pads 1 w/mk 2mm thick upper mainboard voltage converters and chips

part 1

closeups:

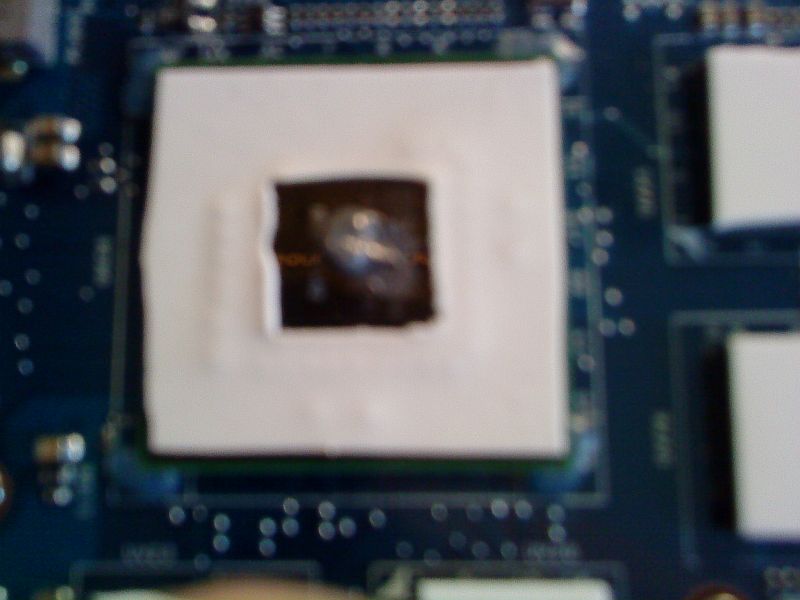

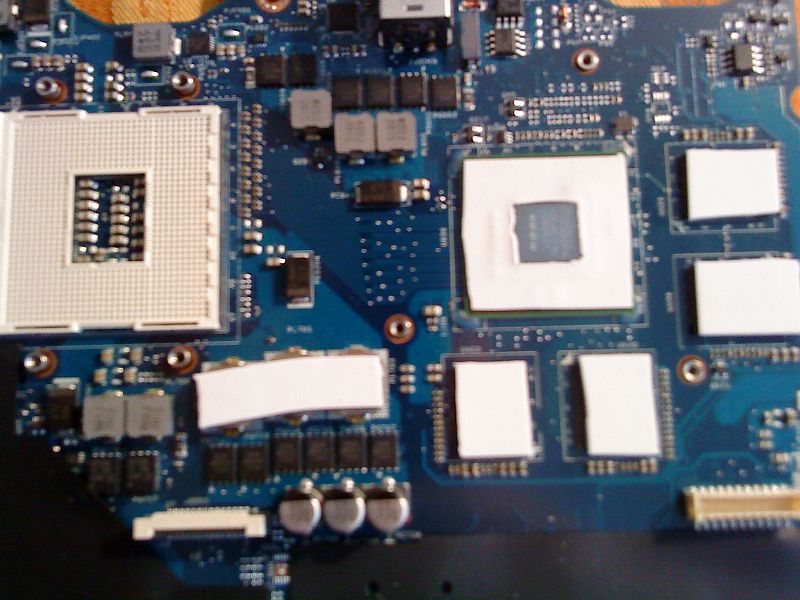

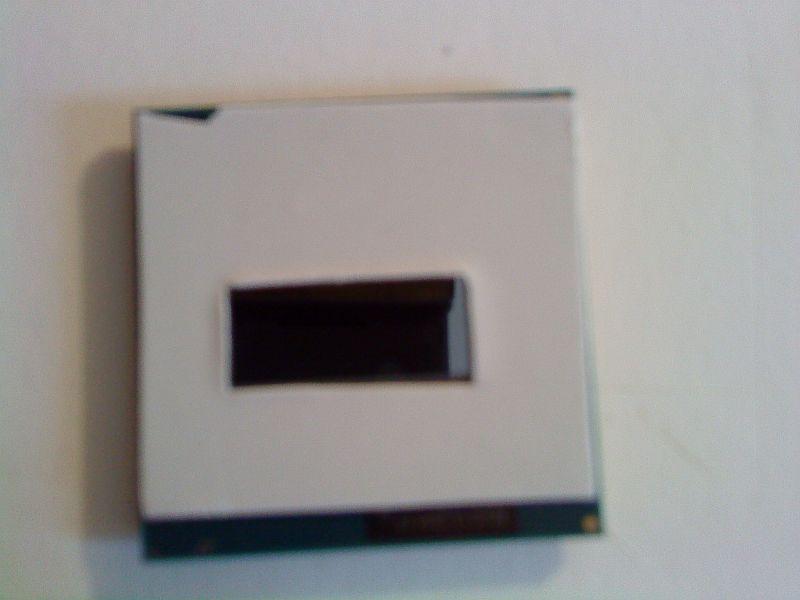

5. GPU thermal pad 7 w/mk mod + GPU layer mod + IC Diamond Repaste

before:

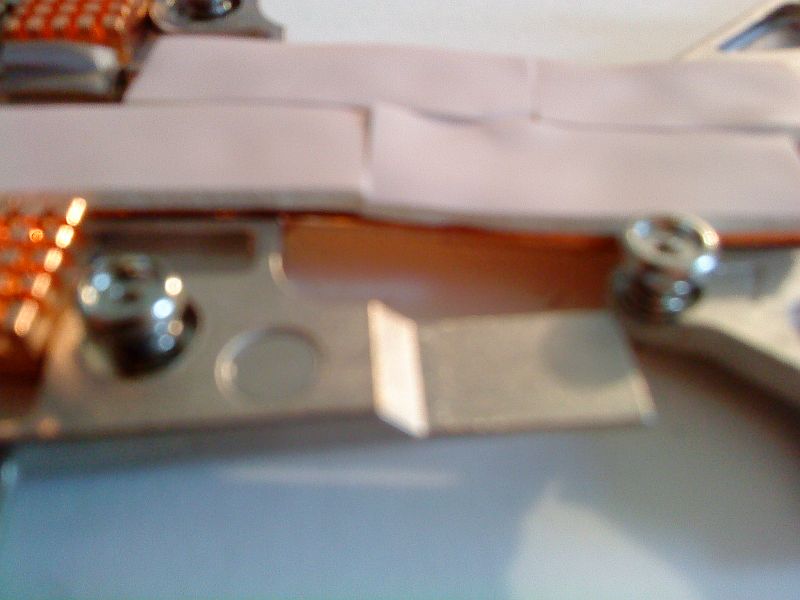

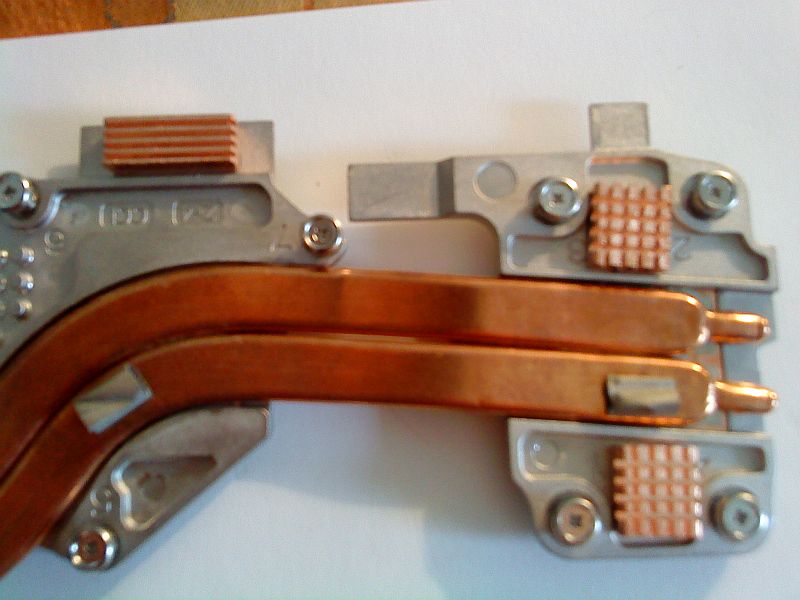

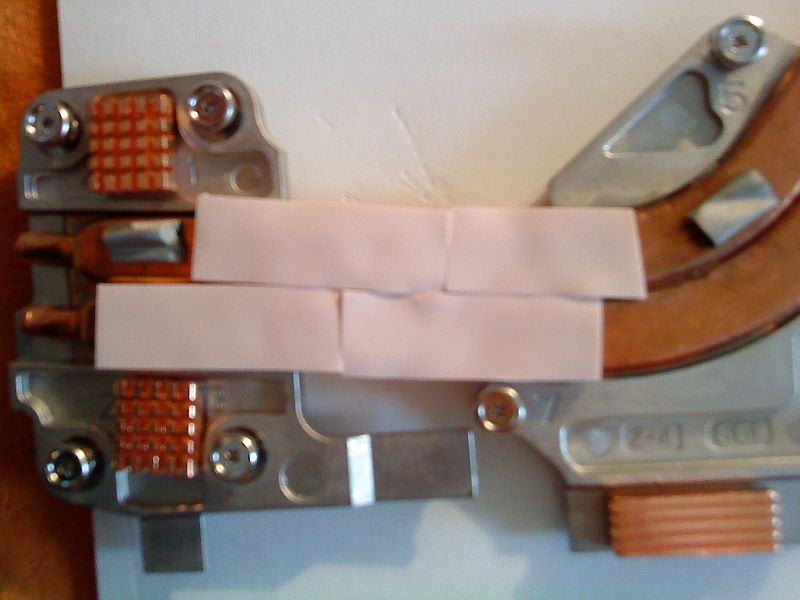

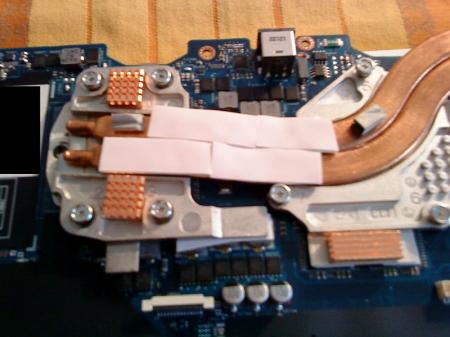

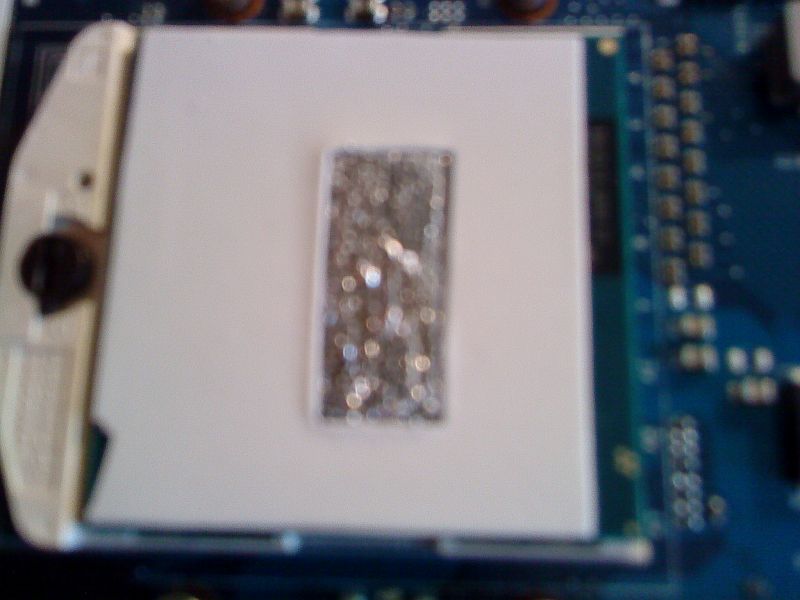

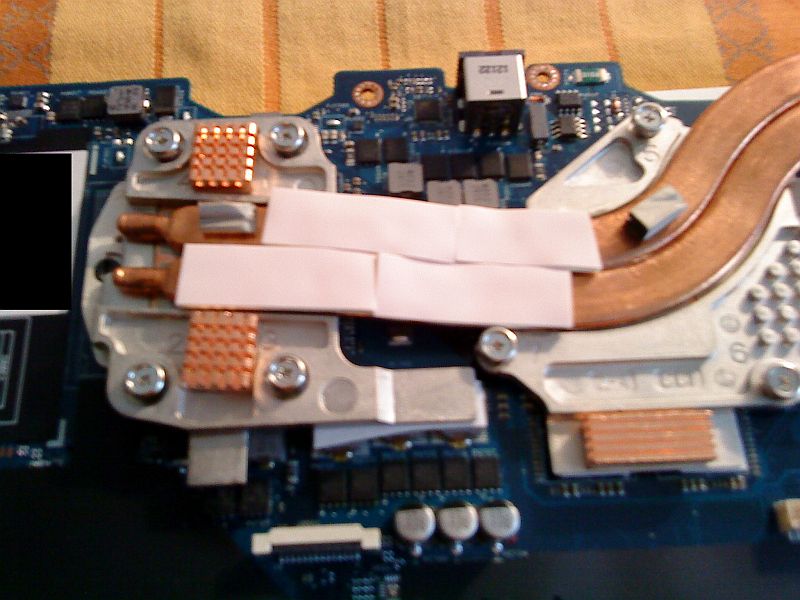

6. CPU + Heatsink mod thermal pads 1 w/mk + 7 w/mk + copper heatsinks (note the upper piece marked in red doesnt fit!!!! check pics and dont try this at home!!!)

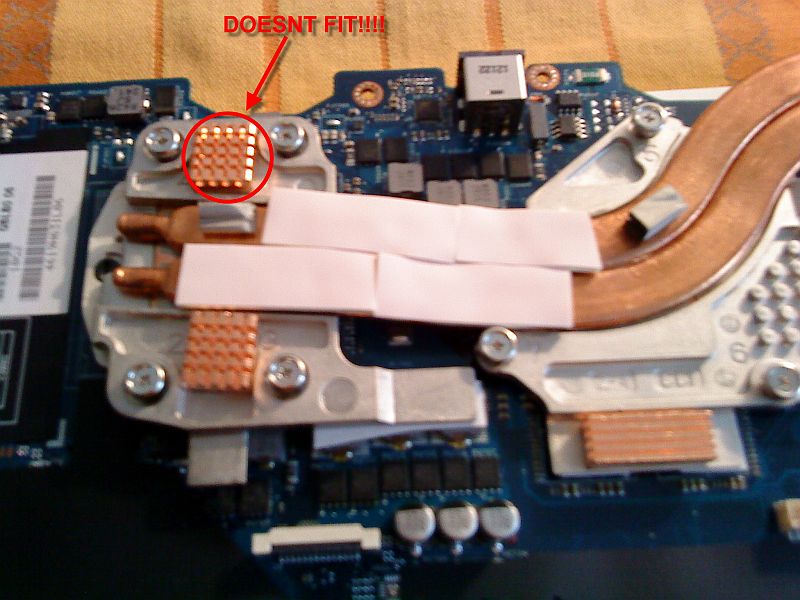

(Here is a pic just to make sure where you can see which heatsink doesnt fit!) (also note that the liquid metal you can see on the CPU was removed before reassembly and exchanged with IC Diamond)

Result comparisons:

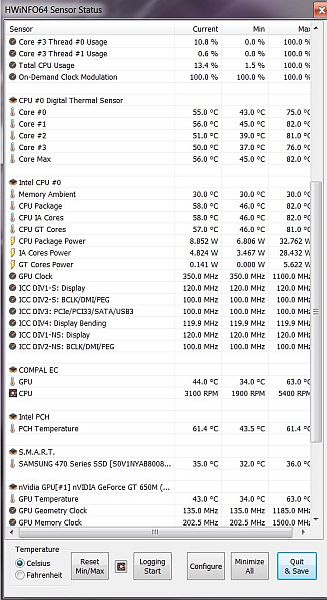

temps before this mod using Turbo + max OC + PCH cooling mod part 1

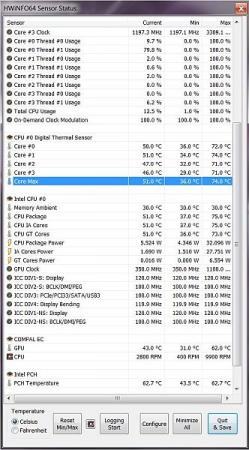

temps after this mod using Turbo + max OC + PCH cooling mod part 2

The 9900 rpm fanspeed is a bug i dont know why but the max fanspeed was 4200 rpm at 74 C but mostly it was max at 3800 rpm which is very quiet compared to before 5400 rpm hairdryer mode.

Before my first repaste and without this mod it even reached 89 C and the fan hit 5800 rpm which was extreme disturbing.

So i can say this mod was very successful in addition to a simply repaste and my PCH cooling mod. Im looking forward to use my M14x now for years without the need to open it again.

Pros

+lower temps and noise even when extreme OCing

+better longlivity

Contra

-temps go down slower but not very significant

I hope my results help you to figure your own awesome mod out that helps you with your system to achieve max performance gains by a DIY way.

edit: as always this is my way to contribute for all the helpful work of svl7, mw86, StamatisX and all the productive, competent and helpful users in this forum.
