Searching VBIOS-ROM on AMD 7100


Recommended Posts

Hello,

does anyone know, which is the chip holding the VBIOS-ROM on an AMD Pro-WX 7100?

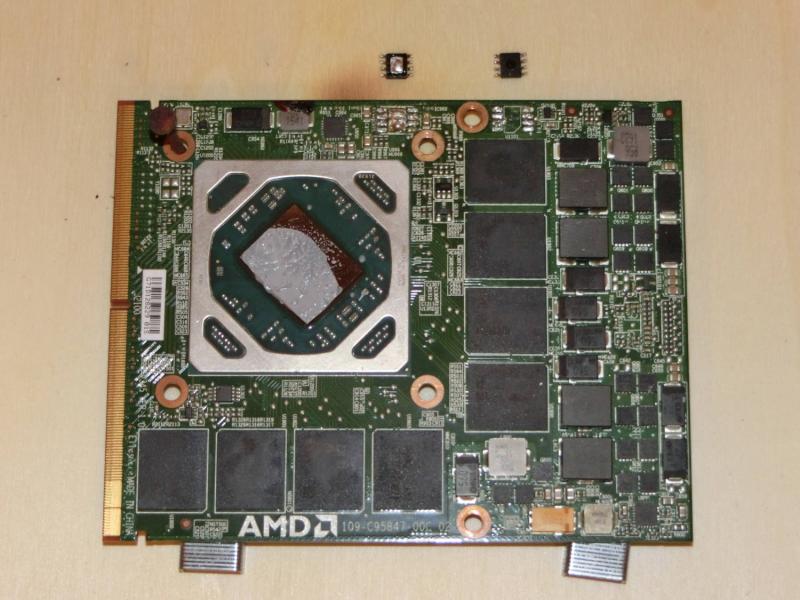

I've two AMD Pro WX 7100 which doesn't work. One has maybe a wrong VBIOS and gets deativated in BIOS before any system boots. The other one is not recognized by the MB so I suspect this one to be defective and un-soldered two chips, which I suspect to be the VBIOS-ROM:






On earlier GPUs, the VBIOS was the chip closer to the GPU. But here, this chip has a bottom SMD contact which looks more like some power electronics...
So before I start soldering on the probably working GPU - can you tell me, which actually is the VBIOS?

Thanks.
