Hi everybody!

I am also the owner y510p like many of you!

Some time ago I decided to upgrade the CPU, and after a long search found references to authentic information that help you to upgrade to Intel® Core ™ i7-4910MQ Processor (8M Cache, up to 3.90 GHz).

Previously, I had a Intel® Core ™ i7-4700MQ Processor (6M Cache, up to 3.40 GHz). I have not conducted specific tests, but on the whole system more responsive.

If someone is interested in information about the final performance - write in the comments and I'll try your test.

Have you changed your CPU? If you have changed, on what CPU?



I wish you all a good day!



My setup:

  • GeForce GT 755M SLI
  • Intel® Core ™ i7-4910MQ Processor
  • 16gb RAM (DDR3-1600 Kingston 11-11-11-28)
  • 240gb SSD Kingston SH103S3240G
  • 256gb SSD Transcend TS256GMTS400 (m2)

Share this post

Link to post
Share on other sites

Venc Dee    2

Venc Dee
Posted (edited)

4910MQ is of course good choice! I have nearly identical configuration and I'm planning similar CPU enhancement...

Do you have records of average temperatures of CPU/board/disks(M.2) during normal operation before the upgrade with 4700MQ and after upgrade with 4910MQ?  With what

thermopaste(grease) did you replaced original one?

If you can run live linux, what is the indicated bogomips of the CPU?

Edited by Venc Dee

Share this post

Link to post
Share on other sites

johnbizokk    0

johnbizokk
Posted (edited)

Hi, Venc Dee!

Lately I've been a little busy, so i could not answer.

I answer a little later about the temperature.

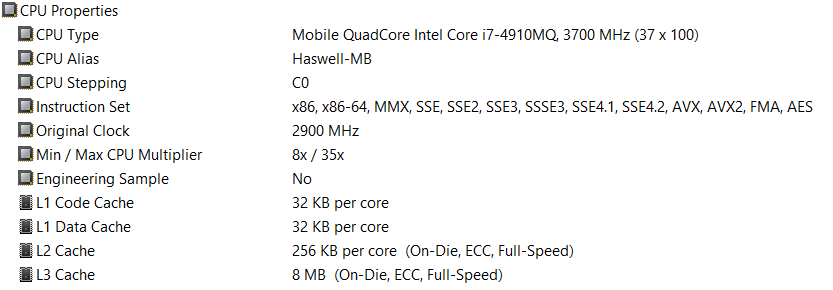

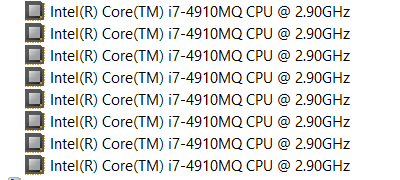

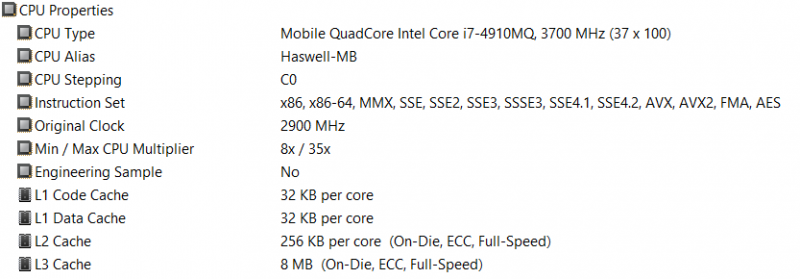

That performance in BogoMIPS.

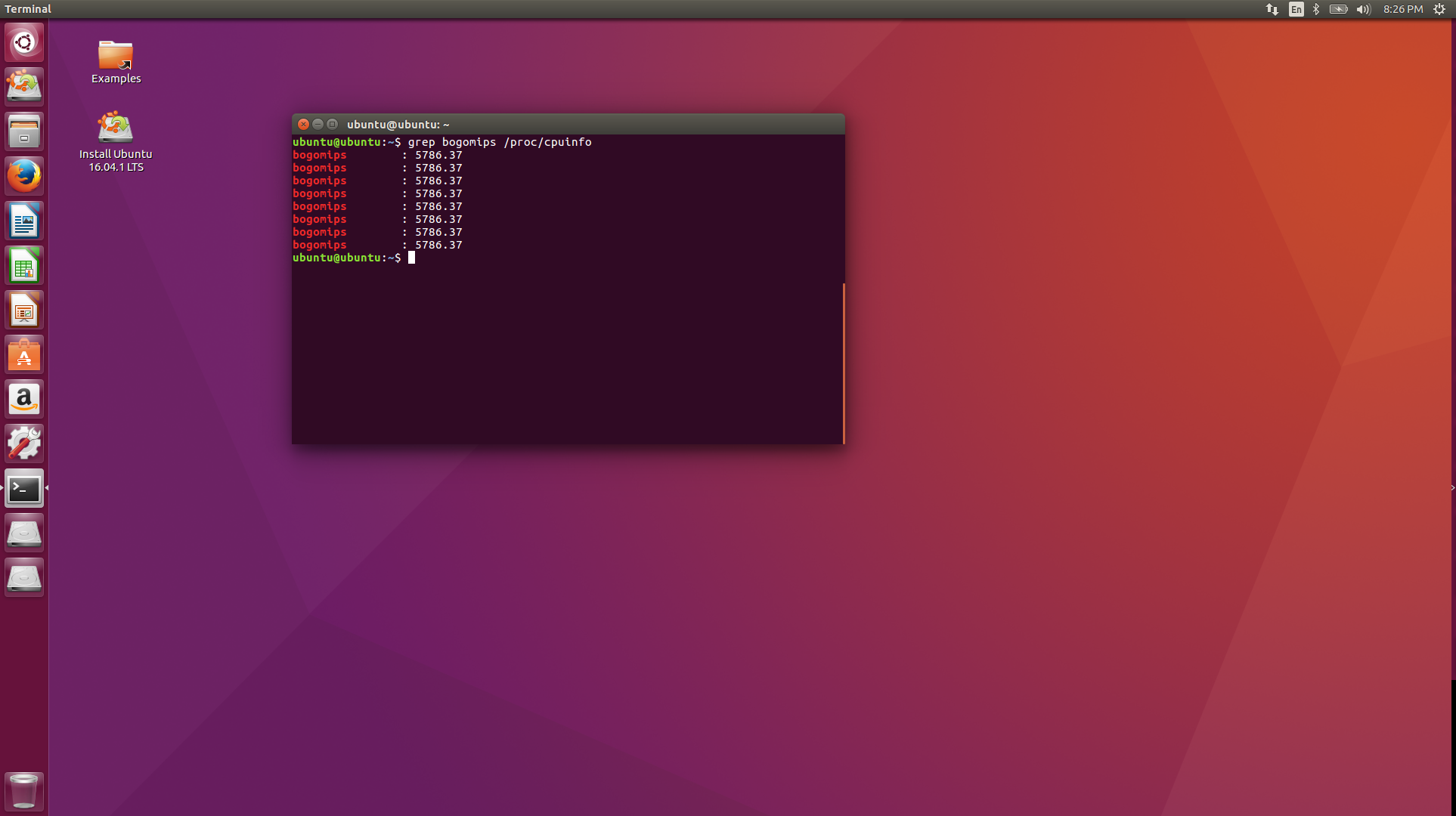

Screenshot from 2016-07-26 20-26-14.png

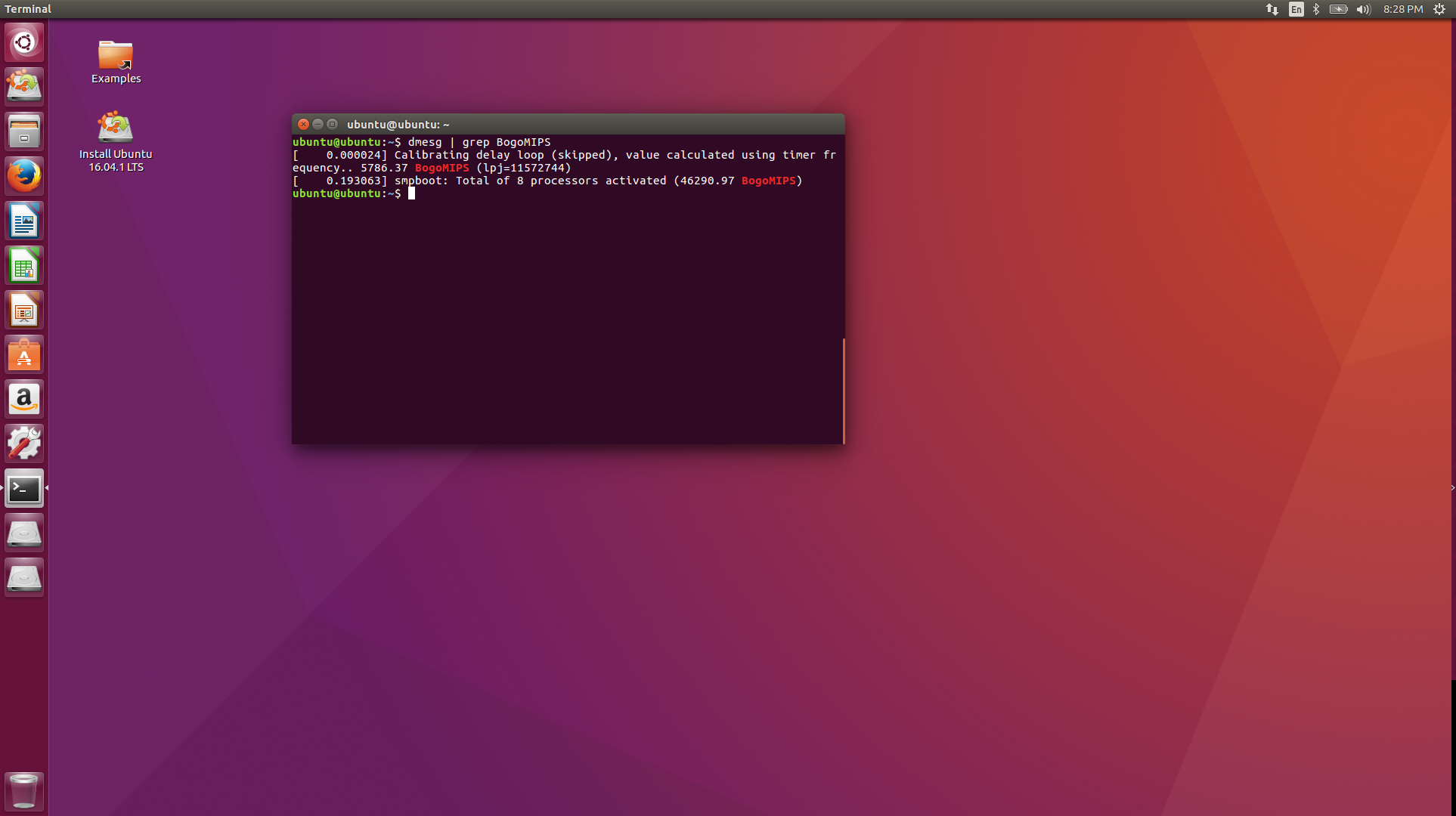

Screenshot from 2016-07-26 20-28-23.png

Edited by johnbizokk
word fix

Share this post

Link to post
Share on other sites

rupek1995    12

rupek1995
Posted

Was it worth it? I have y510p with a single 755M and a i5 4200m, was wondering about upgrading it to a 4 core.

And what about SLI, is it still buggy as hell? I'm talking about game-performance.

Share this post

Link to post
Share on other sites

johnbizokk    0

johnbizokk
Posted

Yes, I think it was worth it! About performance, the hardest change is felt when the PC boots, when a plurality of applications, and they are in the startup, the PC easier to handle the load.

About SLI - nope, after flashing bios and vbios, and underclocking everything works well! The extended gaming session, there are no problems with subsidence or performance lags or bugs with SLI.

Share this post

Link to post
Share on other sites

johnbizokk    0

johnbizokk
Posted

Buona giornata!

Dal mio sistema di raffreddamento (sostituzione di pasta termica sulla CPU, due schede grafiche (Prolimatech PK-3) e un radiatore esterno (Opolar LC06)) in un semplice - a 50-60 gradi sotto carico - 90 (carico 80%, ad una frequenza di 3,2 - di 3,5 GHz).

Share this post

Link to post
Share on other sites

fannas    0

fannas
Posted

Ok ...it seems I can not download this... I will check if there is any other places that can download this

Share this post

Link to post
Share on other sites

Drozof    1

Drozof
Posted
On 7/11/2016 at 5:05 AM, johnbizokk said:

Hi everybody!

I am also the owner y510p like many of you!

Some time ago I decided to upgrade the CPU, and after a long search found references to authentic information that help you to upgrade to Intel® Core ™ i7-4910MQ Processor (8M Cache, up to 3.90 GHz).

Previously, I had a Intel® Core ™ i7-4700MQ Processor (6M Cache, up to 3.40 GHz). I have not conducted specific tests, but on the whole system more responsive.

If someone is interested in information about the final performance - write in the comments and I'll try your test.

Have you changed your CPU? If you have changed, on what CPU?



I wish you all a good day!



My setup:

  • GeForce GT 755M SLI
  • Intel® Core ™ i7-4910MQ Processor
  • 16gb RAM (DDR3-1600 Kingston 11-11-11-28)
  • 240gb SSD Kingston SH103S3240G
  • 256gb SSD Transcend TS256GMTS400 (m2)



I know this is an old thread but @johnbizokk what increase in scores you got in benchmarks vs the original 4700?

Share this post

Link to post
Share on other sites

Donz7733    0

Donz7733
Posted (edited)

I have a i5 4200m, planning to upgrade to 4710mq.

It should work right? has the same socket but not listed in manual.



Edit: I upgraded and it works fine.

Edited by Donz7733

Share this post

Link to post
Share on other sites

sm1tty    0

sm1tty
Posted

Hi, I have BIOS version 3.05, do I need install 3.08 to upgrade to 4910mq or 3.05 would be fine?

Share this post

Link to post
Share on other sites

Klem    802

Klem
Posted
7 hours ago, sm1tty said:

Hi, I have BIOS version 3.05, do I need install 3.08 to upgrade to 4910mq

Hi, no it's not necessarily.



7 hours ago, sm1tty said:

or 3.05 would be fine?

Yes.

Share this post

Link to post
Share on other sites
