TomJGX



Prema see your PM



Seriously, you should make UV versions of your Maxwell vBIOSs



You can't undervolt with Inspector?

Maxwell doesn't allow UV through software..need a vBIOS undervolt..

Sent from my LG-H811 using Tapatalk

6 hours ago, Prema said:

No the power issues are due to BIOS total power draw throttle code...also careful with randomly swapping modules without fixing dependencies and also porting board specific code.

Boards are different (voltages, layout etc) and what may work for some time may damage the board in the long run...

Prema see your PM

Seriously, you should make UV versions of your Maxwell vBIOSs

@Prema sent you a PM, would be grateful if you make a low voltage mod for me like last time

if i flash the prema mod bios.. thus i need to reinstall windows? im using windows 10 pro 64bit

Sent from my SM-N9208 using Tapatalk

You might need to reinstall GPU drivers at worst but no you don't need to reinstall Windows ...

Sent from my LG-H811 using Tapatalk

Hi Prema!

Well I have a problem , I ordered a P771DM -G except that the G -Sync is not working.

The reason is that I have a 970M with 13D8 ID and only then 970M with ID 1618 on for the G- Sync. What should I do ? A VBIOS update may change the ID of my graphic card to spend in 1618 ?

You will need a new GSync version of the GPU.. There are slight hardware changes between the 2 versions, well a resistor actually... So talk to your reseller..

Sent from my LG-H811 using Tapatalk

hi, setting it higher doesn't solve it :/ i've also tried to set all to max in xtu , no matter what settings i use same thing happens as without any overclock:(

Increase processor ICC max and give that a shot... Also in XTU, add a graph or a number in side pane for thermal, current or power throttling and monitor that...

Sent from my LG-H811 using Tapatalk

Because the ID of the Alienware machines are not inserted in many of today's drives ... at least with the GTX780 NO nvdmi.inf I had my ID ... by manually entering all the drives worked ... can not be the case with colleague above, but I'm trying to give the solution that I managed ...

- - - Updated - - -

Could you give me a help with my gtx 780m? I am using overclocked to control the temperature, there is a better way to achieve this?

Fergus for the love of god, don't overclock... You are increasing temps.. How many times to tell you?

Also when are you getting Gelid GC Extreme?

Sent from my LG-H811 using Tapatalk

Goodnight everyone, now applied the AS5 folder (still can not get the gelid, but I'll buy) and my 104C CPU dropped to 65C ... great! My FPS Borderlands not go down under 55 with ALL the ultra inclusive Physix in High ...

[ATTACH=CONFIG]16182[/ATTACH]

I thank the attention of everyone here!

I'm just my GPU does not yet satifsfeito is with 84C (all in ultra) ... now I wonder, should I use overclocking to improve? which recommend?

Fergus stop overclocking... You will burn out your GPU... Have you applied new paste to GPU? If so temps are too high still.. Have you bought Gelid yet? Get some new thermal pads for GPU..

Sent from my LG-H811 using Tapatalk

No it isn't a conductor, it should be fine.. Extreme will be better but this is no slouch either I think... See if you can find something better in case...

Sent from my LG-H811 using Tapatalk

... now you got me .. I will research this you mentioned ... hard to find around here

Where are you from? The pastes which you should use are the 2 above I mentioned or Zalman STG2

Sent from my LG-H811 using Tapatalk

Thanks for the quick response, good, come on ...

This print was using the machine normally without using overclocking, but I'm already using it open at the bottom with a 20.000RPM cooler focused on the GPU, reducing at least 10C ... I ordered to Article 5 silver for maintenance ... I'm using the wrong note in time to avoid damage.

I've done all the cleaning, lacking only the folder ... only think that would solve the heating problem and fall of FPS? I have done almost everything ...

The temps are too high.. Arctic silver 5 is old and junk nowadays... What other pastes can you get?

Sent from my LG-H811 using Tapatalk

Hi TomJGX!, The following image my machine without overclocking playing for 5m borderland2 in ultra ... I know there's something wrong but do not know how to solve = (

[ATTACH=CONFIG]16177[/ATTACH]

Overclocked can maintain 65C, yet falls too FPS from 60 to 10fps ... I'm running out of ideas how to solve ...

According to the images, CPU is throttling due to high temps and so is the GPU... 90C++ isn't safe.. I would firstly stop overclocking..

2nd thing to do is remove the bottom cover, clean fans and remove dust and then repaste your GPU and CPU with some good thermal paste... Use something like IC Diamond or Gelid GC Extreme...

I wouldn't overclock your GPU, you will burn it out... Prop up the back of your laptop with some books or something as a temporary solution but do the repaste...

Sent from my LG-H811 using Tapatalk

Right... is possible share your overclock? i try here, my best fps min is 11 and max 70 in moment =/ ... hard man rs

Fergus, before you do any overclock, wtf are your temps in game? I have a feeling with all the variation in fps you are overheating.. Download HWinfo64 and let us know your max GPU and CPU temps while playing some game..

Sent from my LG-H811 using Tapatalk

Dell vBioses for 9xxm are available as download from Dell support website, thanks to Dell!

- - - Updated - - -

thanks to prema for the unleashed power of my aw18 970m sli setup

http://www.3dmark.com/3dm11/10341773

no OV, cards hardly reach 70C.

Dude do a FS run... Also that Physics score is atrocious.. Is your 4910MQ throttling? Even my 3630QM can get a higher score...

Sent from my LG-H811 using Tapatalk

so can you unlock this bios or modify it ?can you tell me why if i can only or only 1 original Driver without mod inf is working? did i make something wrong?

I think he meant that he needs to make

a vBIOS for the 2nd card, which is called a slave card in SLI..

Should be fine.. Give Prema some time..

Sent from my LG-H811 using Tapatalk

<!--[if gte mso 9]><xml> <w:WordDocument> <w:View>Normal</w:View> <w:Zoom>0</w:Zoom> <w:PunctuationKerning/> <w:ValidateAgainstSchemas/> <w:SaveIfXMLInvalid>false</w:SaveIfXMLInvalid> <w:IgnoreMixedContent>false</w:IgnoreMixedContent> <w:AlwaysShowPlaceholderText>false</w:AlwaysShowPlaceholderText> <w:Compatibility> <w:BreakWrappedTables/> <w:SnapToGridInCell/> <w:WrapTextWithPunct/> <w:UseAsianBreakRules/> <w:DontGrowAutofit/> </w:Compatibility> <w:BrowserLevel>MicrosoftInternetExplorer4</w:BrowserLevel> </w:WordDocument> </xml><![endif]--> Thank you very much for your help

<!--[if gte mso 9]><xml> <w:LatentStyles DefLockedState="false" LatentStyleCount="156"> </w:LatentStyles> </xml><![endif]--><!--[if gte mso 10]> <style> /* Style Definitions */ table.MsoNormalTable {mso-style-name:"Table Normal"; mso-tstyle-rowband-size:0; mso-tstyle-colband-size:0; mso-style-noshow:yes; mso-style-parent:""; mso-padding-alt:0cm 5.4pt 0cm 5.4pt; mso-para-margin:0cm; mso-para-margin-bottom:.0001pt; mso-pagination:widow-orphan; font-size:10.0pt; font-family:"Times New Roman"; mso-ansi-language:#0400; mso-fareast-language:#0400; mso-bidi-language:#0400;} </style> <![endif]-->

Here it is: https://www.facebook.com/CLEVOEXTREMEGAMING?fref=ts

united kingdom , cumbria

Where did you get your laptop from? Was it from a UK reseller like Scan, XMG, PCS Specialist? If you did, ask your reseller first... Otherwise, I'd suggest looking at CEG Extreme... a German reseller... They should be able to sell you a motherboard without making a fuss like the UK resellers.. They're also quite cheap... got my P771ZM from them! Fastest way to contact them is through Facebook message.. search for Clevo Notebooks and it's got a German address and it's them..

Sent from my LG-H811 using Tapatalk

Thank you for your help Prema , but unfortunatelyits not my day today , i have just lifted my laptop , keyboard was not screw inand it fell out taking with it the piece that was solder in the motherboard.

So now im looking for new motherboard for my p177sm model

Anybody have any idea where i can buy one for good money?

Thank you

p.s didnt have that problems with my old w370et laptop for last 2 years

Dear me I know the feeling...Where are you located firstly?

Sent from my LG-H811 using Tapatalk

So how come nobody has made a 980m vbios with "baked in" overclocks??? Is it not possible to do??? The 980m is capable of so much more than the unlocked rev 0 bios! If we were able to overclock the vbios we wouldn't have to worry about stupid NVIDIA disabling overclocking!!!

That is precisely why we have an unlocked vBIOS... NVIDIA have limited OCing but with this vBIOS no such problems..

Sent from my LG-H811 using Tapatalk

Hey all, Is it safe to install this on my laptop? I'm running Windows 7. I've read some scary things... or is that just with windows 10? Please let me know. Thanks

- - - Updated - - -

Hey all, Is it safe to install this on my laptop? I'm running Windows 7. I've read some scary things... or is that just with windows 10? Please let me know. Thanks

I wouldn't install on either OS's.. Hold off on 353.00/.06 for now IMO..

Sent from my LG-H811 using Tapatalk

No windows 10 ????

- - - Updated - - -

NO WINDOWS 10 ????

Do you want to kill your computer? Windows 10+ NVIDIA+Alienware doesn't work.. I've had my LCD killed by this..

Sent from my LG-H811 using Tapatalk

Umgh so what is the safest drivers for AW owners with 970M/980M on Win 8.1? I've been running 353.00 but looks like it's time to update lol..

@J95 can you please share BIOS settings for removing motherboard power limit since I now have unlocked BIOS

@J95 as I have been also asking in my PM's, how did you successfully get past the TDP limit in the end? I have tried various combinations of things in this thread however it would be really helpful for me and other owners if you could get together a list of things that need to be done to get past it, like BIOS settings etc...

I have disabled MSR lock, remove the TDP lock and tried various combinations of settings however this isn't getting anywhere.. As on my thread in NBR, the minute I start the XTU stress test, the power limit gets hit in like 5 secs and clocks throttle from 4.3Ghz on 4 cores to 3.8GHz...

My Firestrike Physics score is 10950 is latest bench, which is the highest ever for me however if there is anymore that can be eeked out, do let me know!

Thanks,

Tom

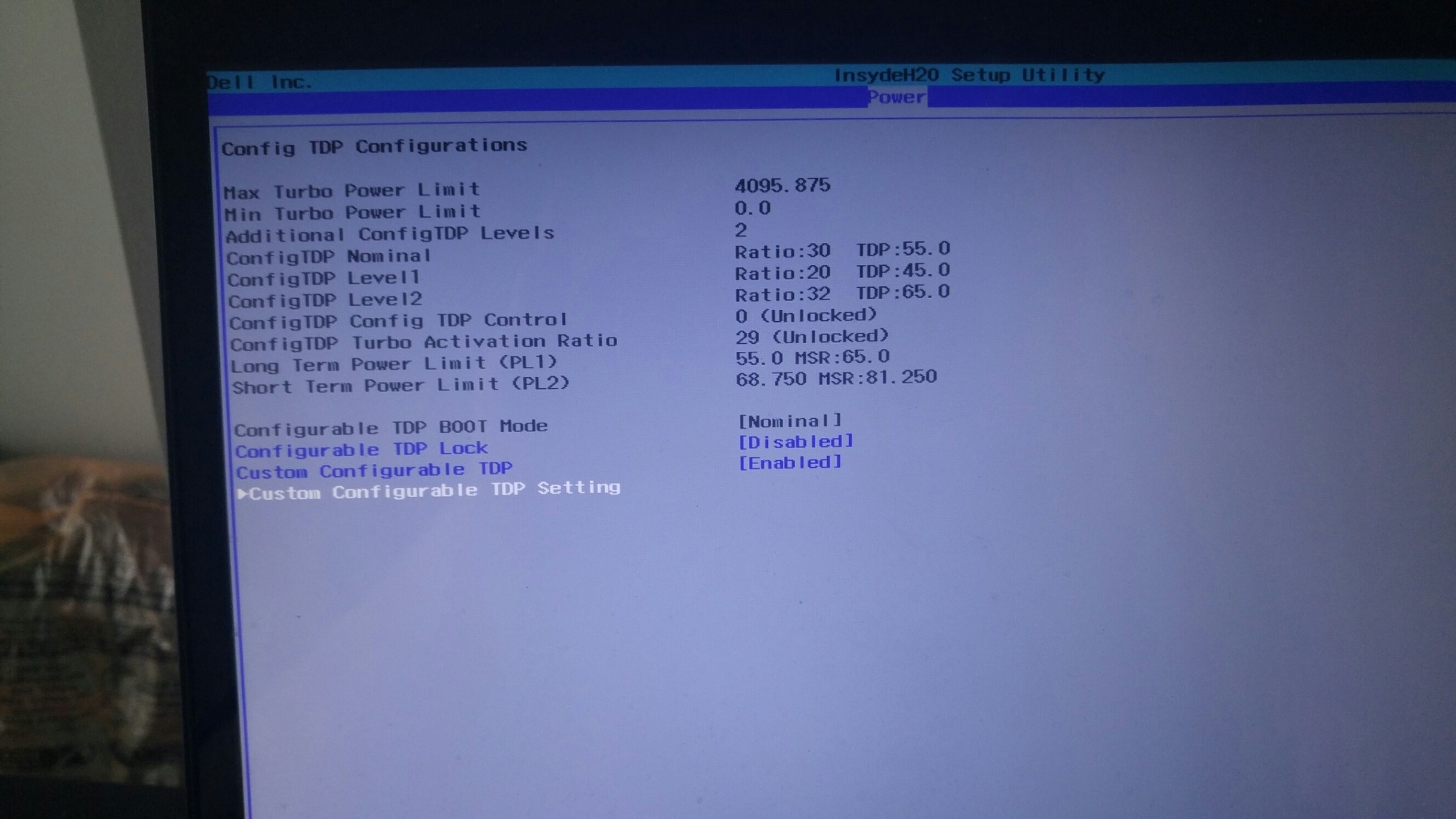

Edit: I have got this showing in the BIOS.. Turbo power limit registers are not matching... This seems to be the problem for me... Any suggestions?

@J95 can you please share BIOS settings for removing motherboard power limit since I now have unlocked BO

Unlocked BIOS installed... Just doing rest of steps

@J95...

Edit: I have installed everything however J95 2 points,

1. I don't want to mess around with Creative drivers... I don't have any of those chipset issues and don't want that so I'll stick to old drivers (I have the latest ones on AW website).. do the new drivers actually make any difference?

2. I still have CPU TDP throttle... What settings should I set in the BIOS to prevent this? I have BD PRODCT disabled along with MSR... Maybe [MENTION=119]Mr. Fox[/MENTION] can also help?
