  1. invait53

    12.5" HP Elitebook 2570P Owner's Lounge

    @bg6dt Thank you for PCB layout file. Last things what I want to ask you. Write here detailed instruction how did you apply the VBT mod and replaced the new driver with the UBU tool. Wrire every step because mostly people don't know how to use Intel BMP Utility or UBU tool. @adrian_sa The request about instructions for you also.
  2. invait53

    12.5" HP Elitebook 2570P Owner's Lounge

    Yes, send the file. Thanks.
  3. invait53

    12.5" HP Elitebook 2570P Owner's Lounge

    Okay but can you show here the former of printed circuit board with both sides and with real size and holes? I will order it by myself.
  4. invait53

    12.5" HP Elitebook 2570P Owner's Lounge

    @bg6dt Well done. Can you do that plates more and sell it? Very interesting mod. I've found on Ebay LVDS to eDP converter. Very simple to install.
  5. invait53

    12.5" HP Elitebook 2570P Owner's Lounge

    @adrian_sa Thank you very much. If I'm not mistaken, with your mod I'll not able to see Bios. Did you twisted the line wires? What the length of cable? In theory this mod let me use the 4 line display. @bg6dt have done the mode with 2K screen. Maybe by the same way. I hope he will share it with us.
  6. invait53

    12.5" HP Elitebook 2570P Owner's Lounge

    Our chipset is Mobile Intel QM77 Express. That chipset has 4 ports of SATA2 and 2 ports of SATA3. SATA HDD and SATA ODD are SATA3. It means that in our laptop available RAID0 only. Two people here have done the display mod but nobody wants to share it.
  7. invait53

    12.5" HP Elitebook 2570P Owner's Lounge

    Good job, show schematic pls.
  8. invait53

    12.5" HP Elitebook 2570P Owner's Lounge

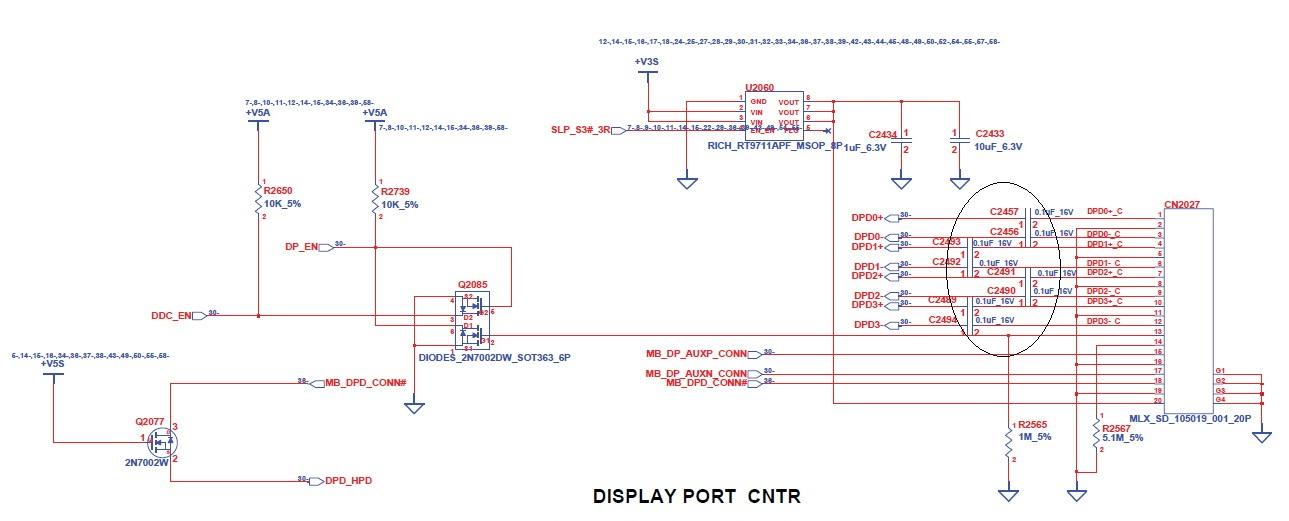

    Thanks for advise but my SSD is Samsung and I use the program Samsung Magician with Rapid mode. I think it's the same functions. @adrian_sa, did you use for your mod capacities like in DisplayPort connector:
  9. invait53

    12.5" HP Elitebook 2570P Owner's Lounge

    @adrian_sa, we are still waiting for your explanation about the mod how to change the screen. Where did you solder the high-speed pairs on the motherboard? And show schematic of every wires that you soldered on the motherboard. How did you do VBT modding? How did you change the default LVDS resolution to 1080p and the BL PWM frequency to 2000Hz? Everything pls.
  10. invait53

    12.5" HP Elitebook 2570P Owner's Lounge

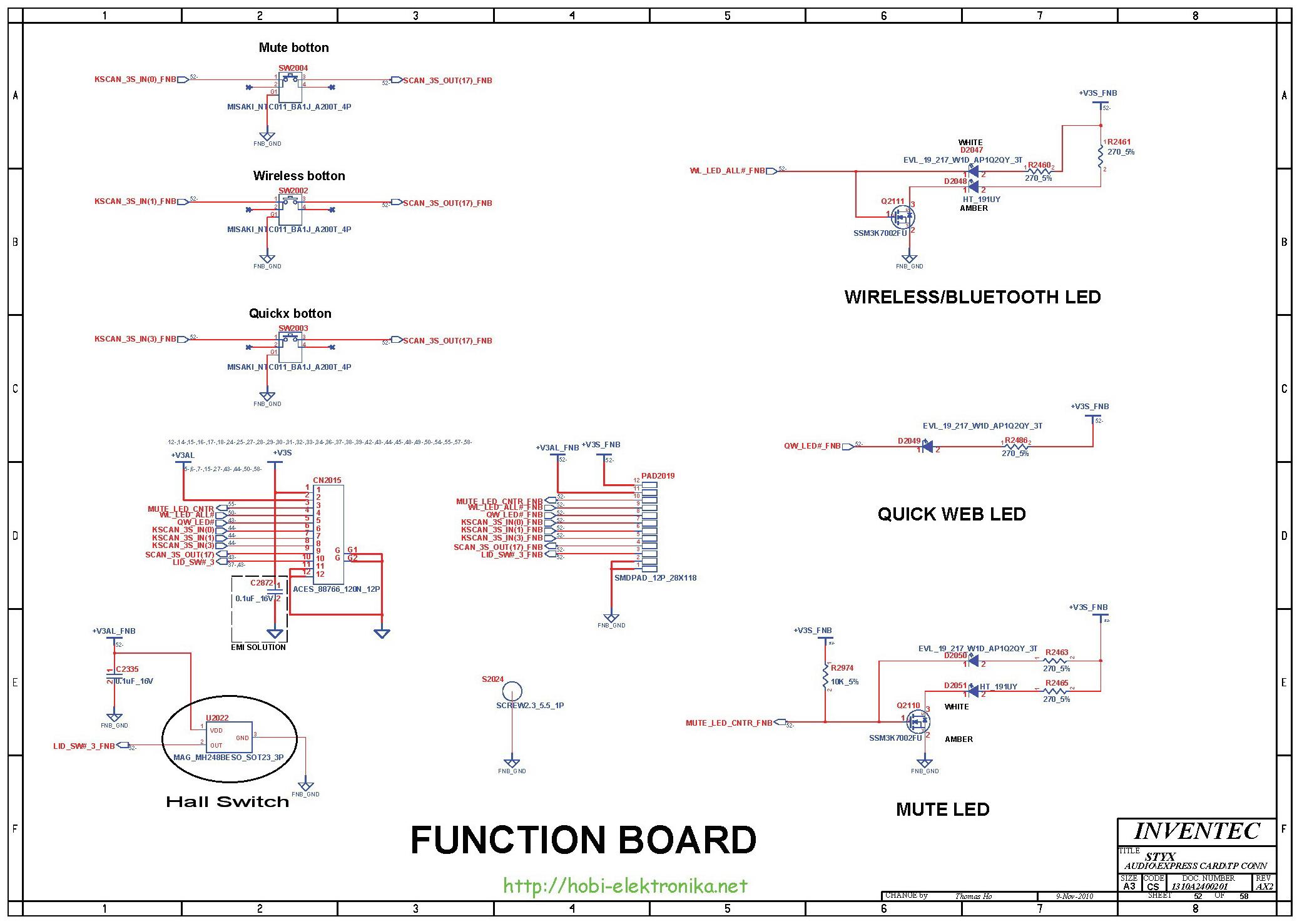

    WWAN slot. This is shown on the schematic.
  11. invait53

    12.5" HP Elitebook 2570P Owner's Lounge

    Yes, of course I can do RAID. The difference between mSATA and SATA is a formfactor only. That's why i did my mod. If I will use RAID I will still have the free caddy.
  12. invait53

    12.5" HP Elitebook 2570P Owner's Lounge

    I had the same problem. I tryed to solder wires from LVDS cable and it was working with 3.0Gb-mode. Finally I bought the SATA extention HP DV7-7000 DV6-7000 and took SATA wires from that extention. mSATA SSD works with 6.0Gb-mode. I think that in the SATA cable wires are special.
  13. invait53

    12.5" HP Elitebook 2570P Owner's Lounge

    Hello, everybody. I've done this work by an other way. I was thinking about how to replace WWAN to mSATA. I soldered ways SATA ODD with WWAN socket. But for DWD RW I soldered ways from eSATA COMBO. On the photo: If the BIOS will turn off a WWAN socket you just solder the jumper on transistor: The Windows installed on SSD, HDD just for files and I put back the DVD RW.
  14. invait53

    12.5" HP Elitebook 2570P Owner's Lounge

    You need to ask here. It's russian forum. I was thinking about it but decided to buy a new DDR3-2133.
  15. invait53

    12.5" HP Elitebook 2570P Owner's Lounge

    Hello everybody. Our friend @adrian_sa still keeps his secret as a partisan. I know how he changed the screen. Right now I'm on the Philippines and don't have tools to upgrade the screen. In one month I will go back to Russia and change the screen. An additional Display Port is in the Docking Station connector. I already used that connector for USB line for BlueTooth in Wi-Fi card.
×
